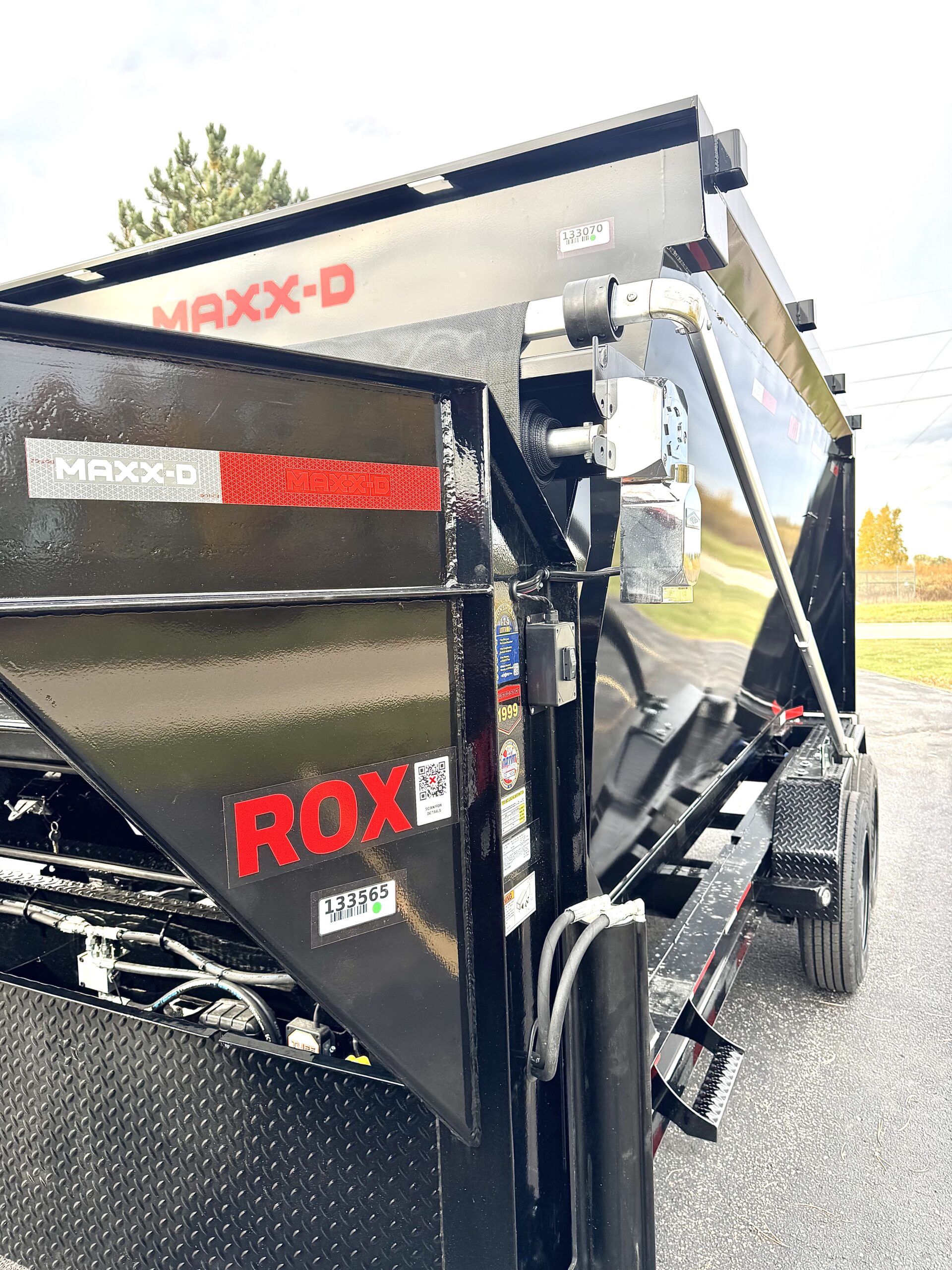

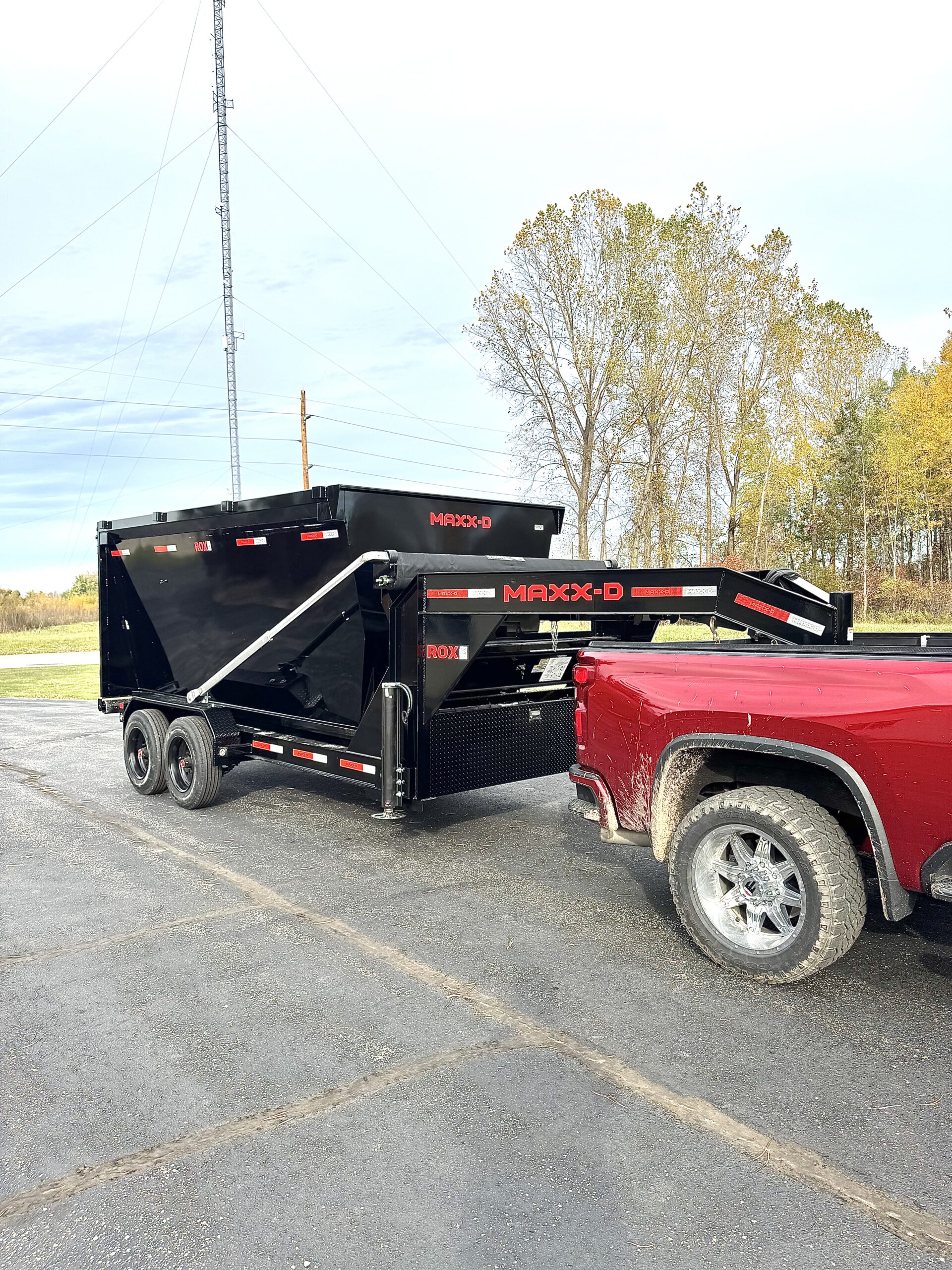

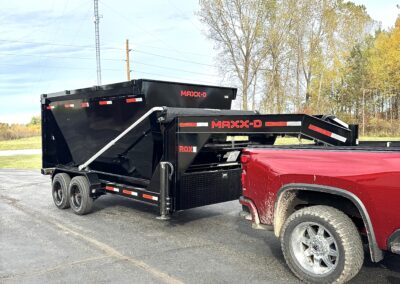

The ROX is another example of industry-leading innovation from MAXX-D trailers. Our incredibly rugged roll-off dumpster trailer provides a unique solution for many industries, especially waste management. With a ROX roll-off dump trailer, multiple roll-off dumpsters can be dropped in different locations, all serviced with a single cost-effective base trailer. The ROX is extremely popular with dumpster rental companies and construction supervisors handling numerous job sites.

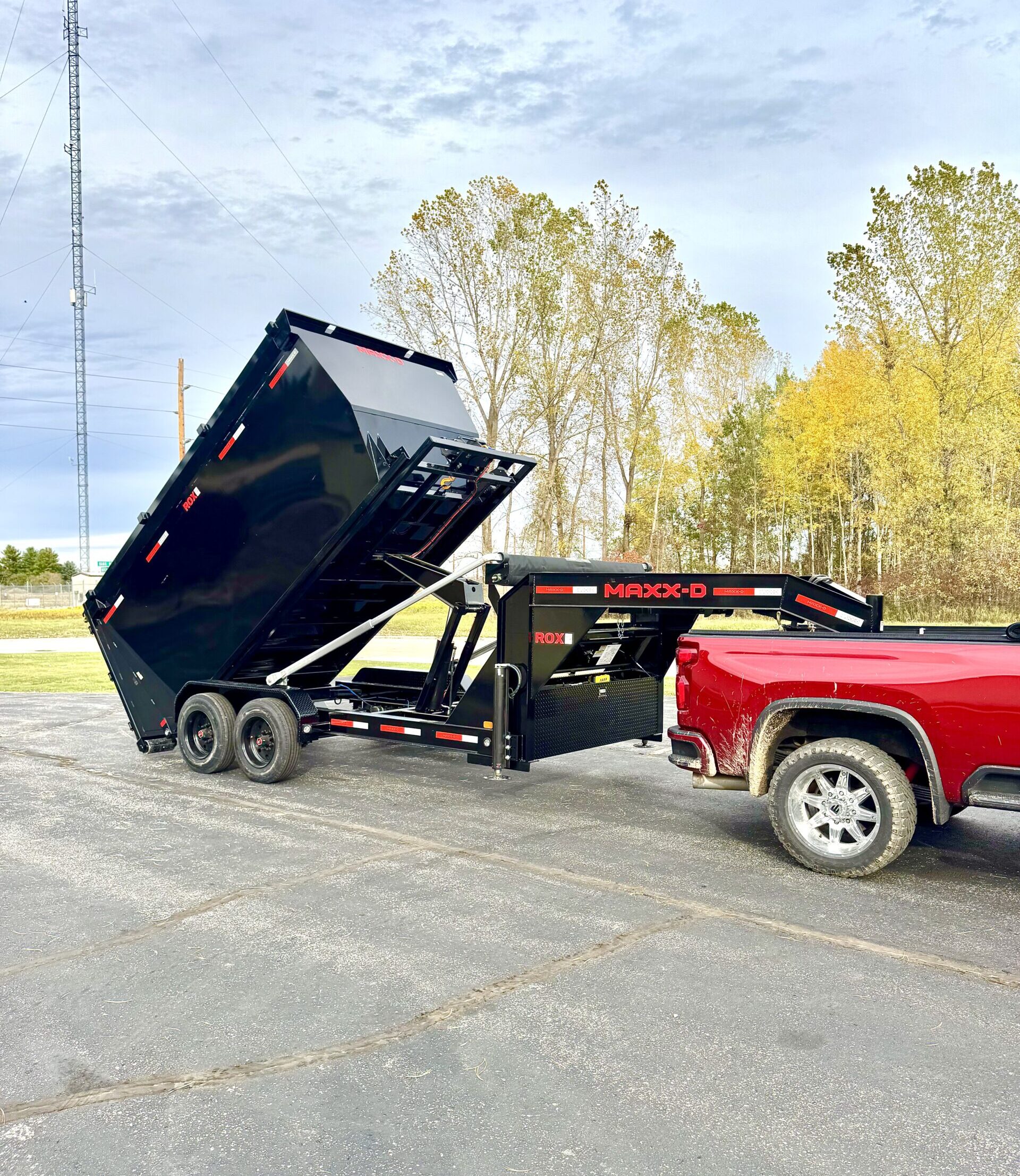

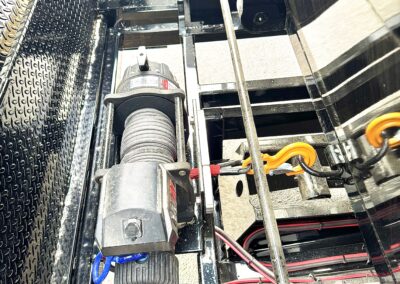

Boasting a steep 45-degree dumping angle, the ROX can handle large loads with ease thanks to the heavy-duty scissor lift and hydraulic hoist. We chose to equip the ROX with a specially-chosen 22K Warrior power winch system to easily load and unload your dumpsters.

Each ROX ships with dumpsters ranging from 13 to 18 cubic yards, with the most common dumpster size being the 4’ tall 13 cubic yard dumpster

• G29: 18,000 LB GVWR
• C17: 2 5/16″ 30K ROUND GN COUPLER
• J20: 2-HYDRAULIC JACKS ON GN

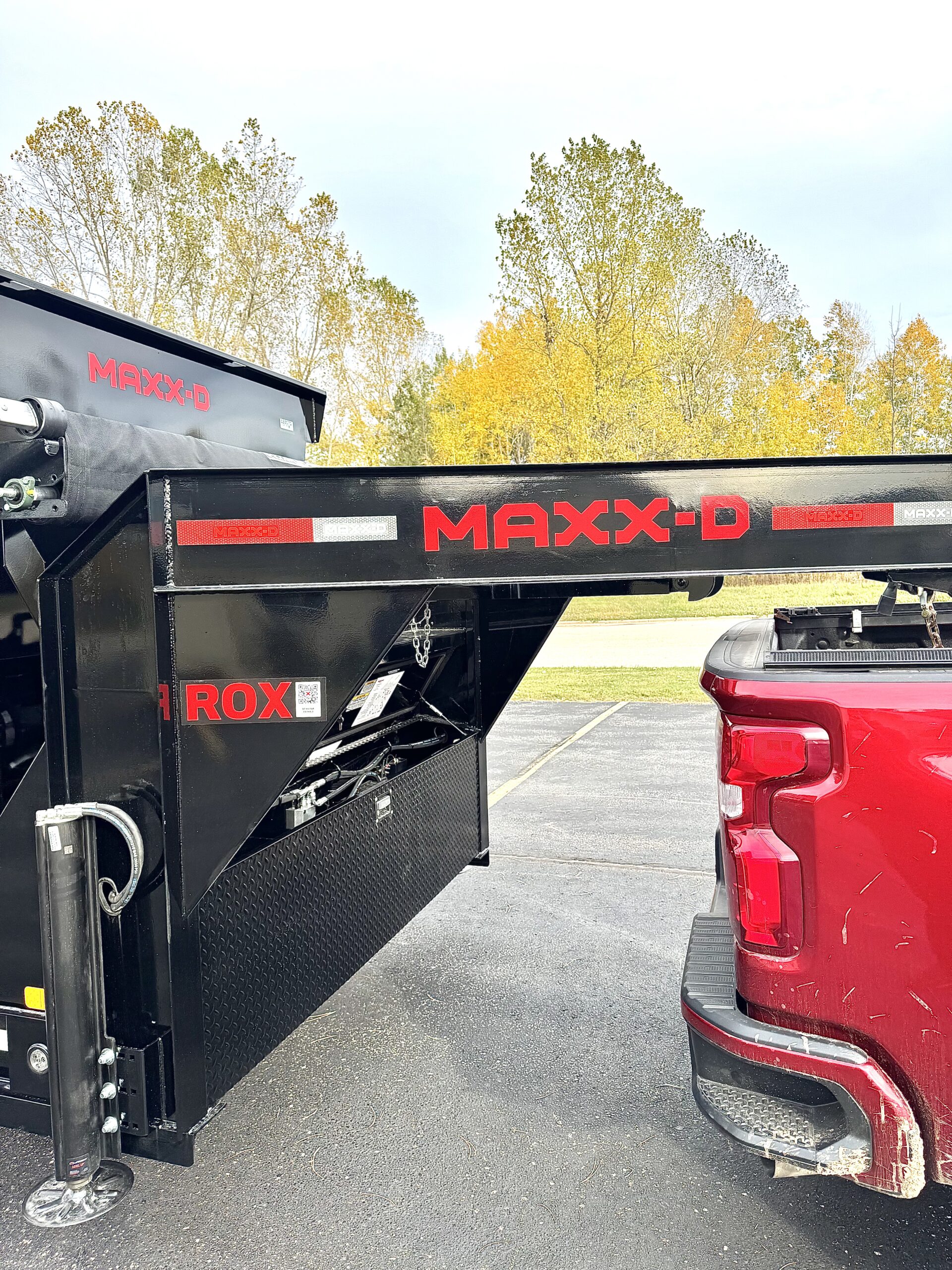

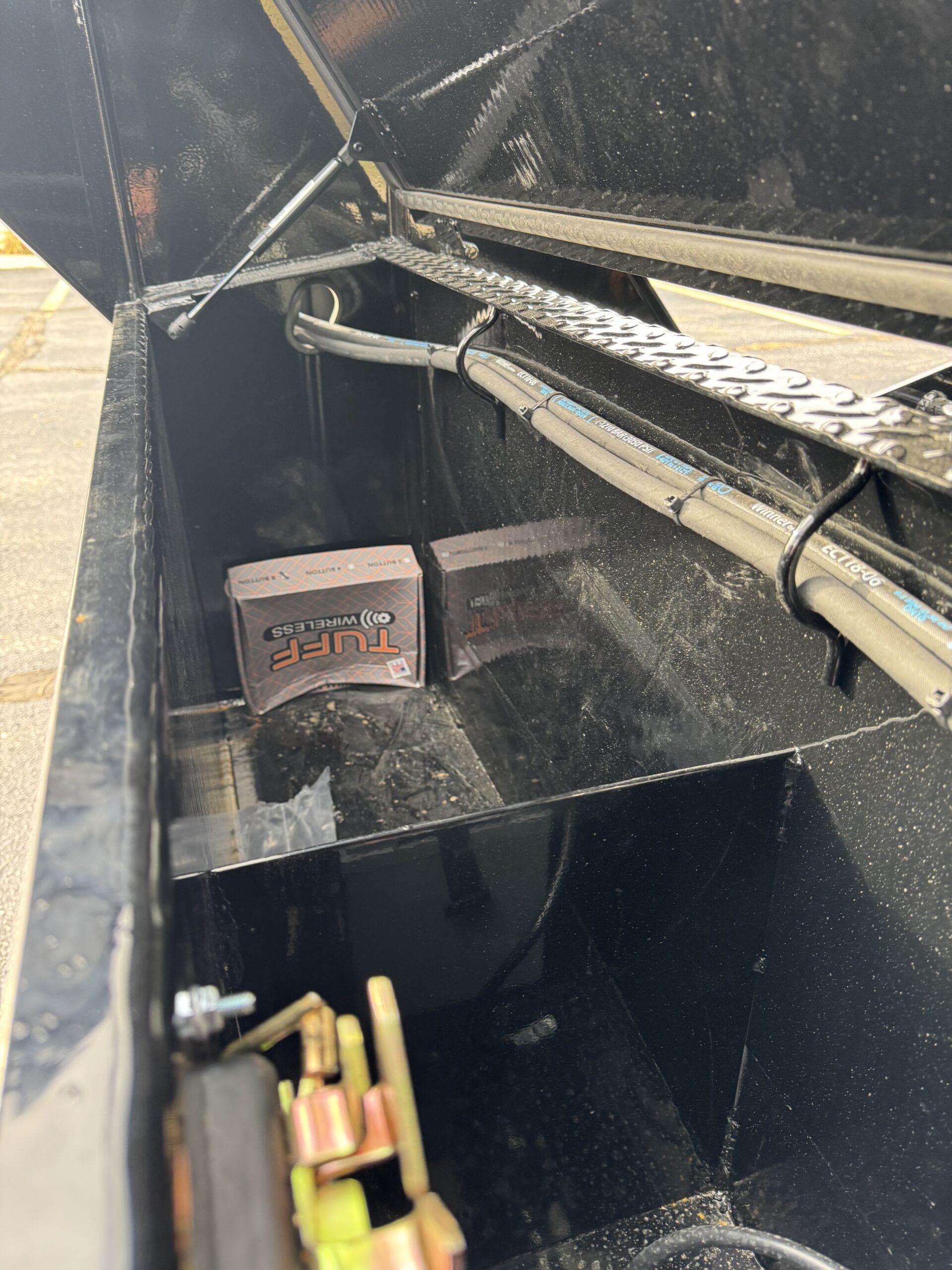

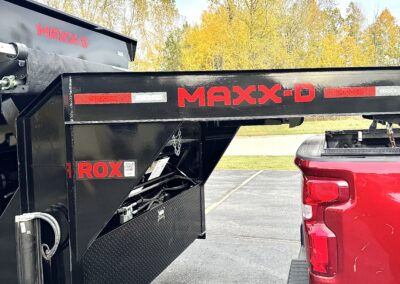

• N21: STANDARD HEIGHT I-BEAM NECK W/ FR T-BOX, WINCH PLT, & SP MT
• F104: 8″ X 10LB I-BEAM FRAME WITH 6X20 HOIST
• P14: NOT APPLICABLE
• R32: STANDARD/NOT APPLICABLE
• D01: NO DOVETAIL/NO RAMPS

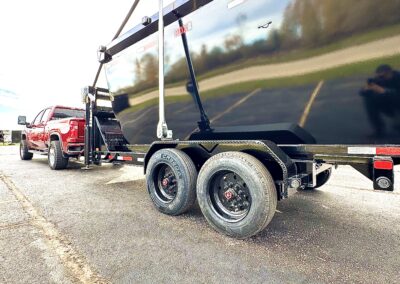

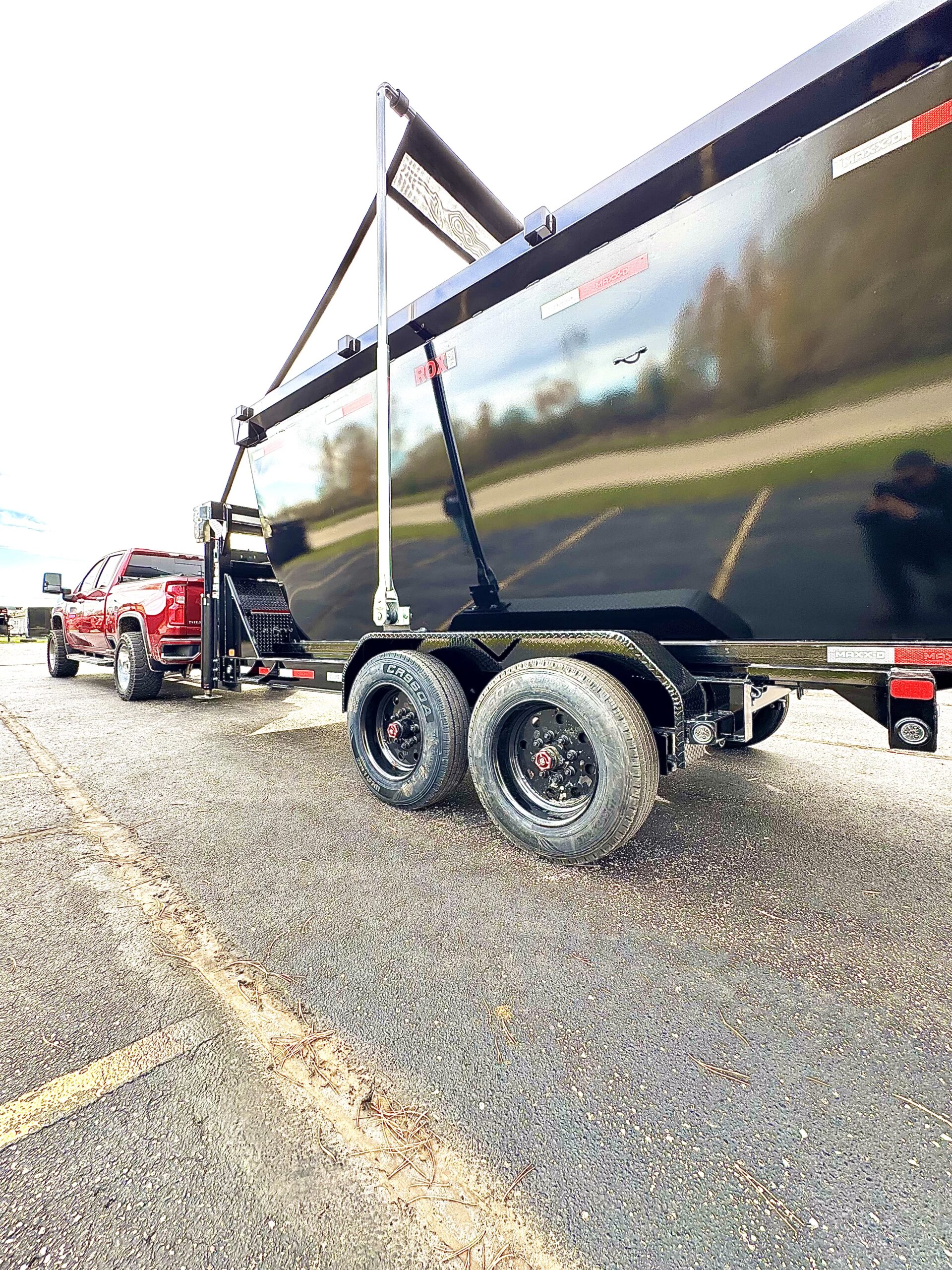

• A74: 2-8K ELECTRIC BRAKE AXLES
• S02: SLIPPER SPRING SUSPENSION

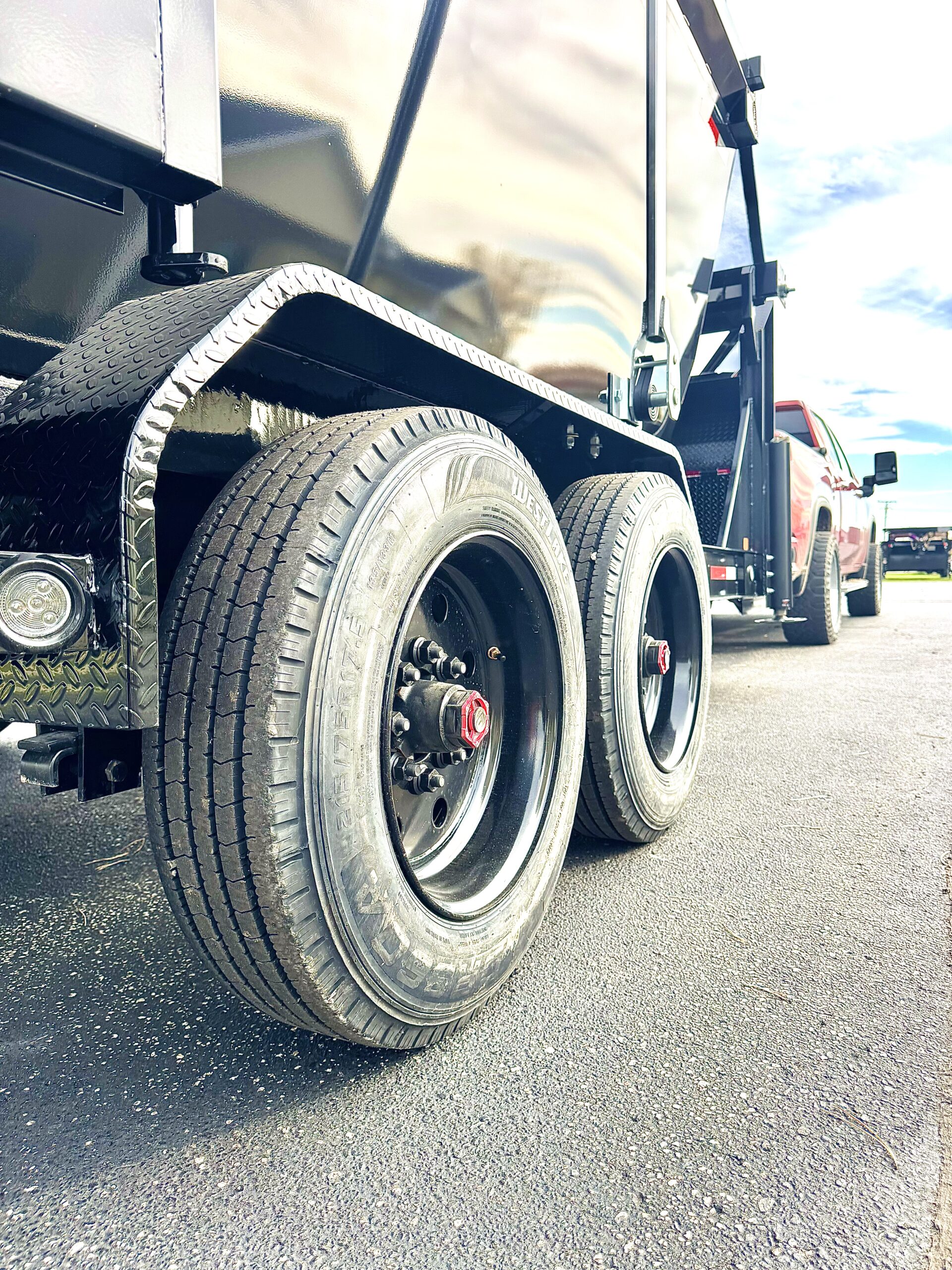

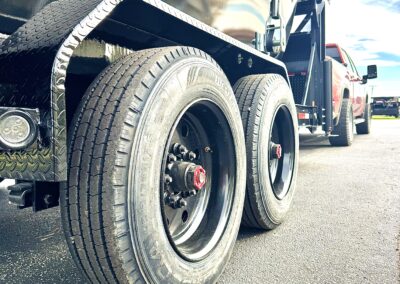

• T29: SINGLES (5) ST215/75R17.5 H TIRES FOR 2-8K
• P06: DOUBLE BROKE DIAMOND PLATE FENDERS
• E01: NO FLOOR/NOT APPLICABLE
• L03: FLUSHMOUNT LED’S / STANDARD SEALED WIRING HARNESS
• O01: WET BLACK & PRIMER

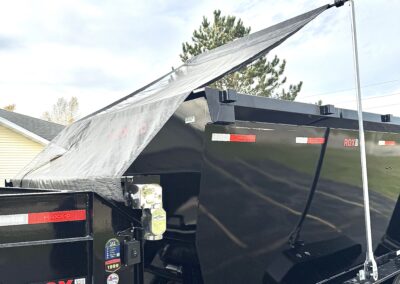

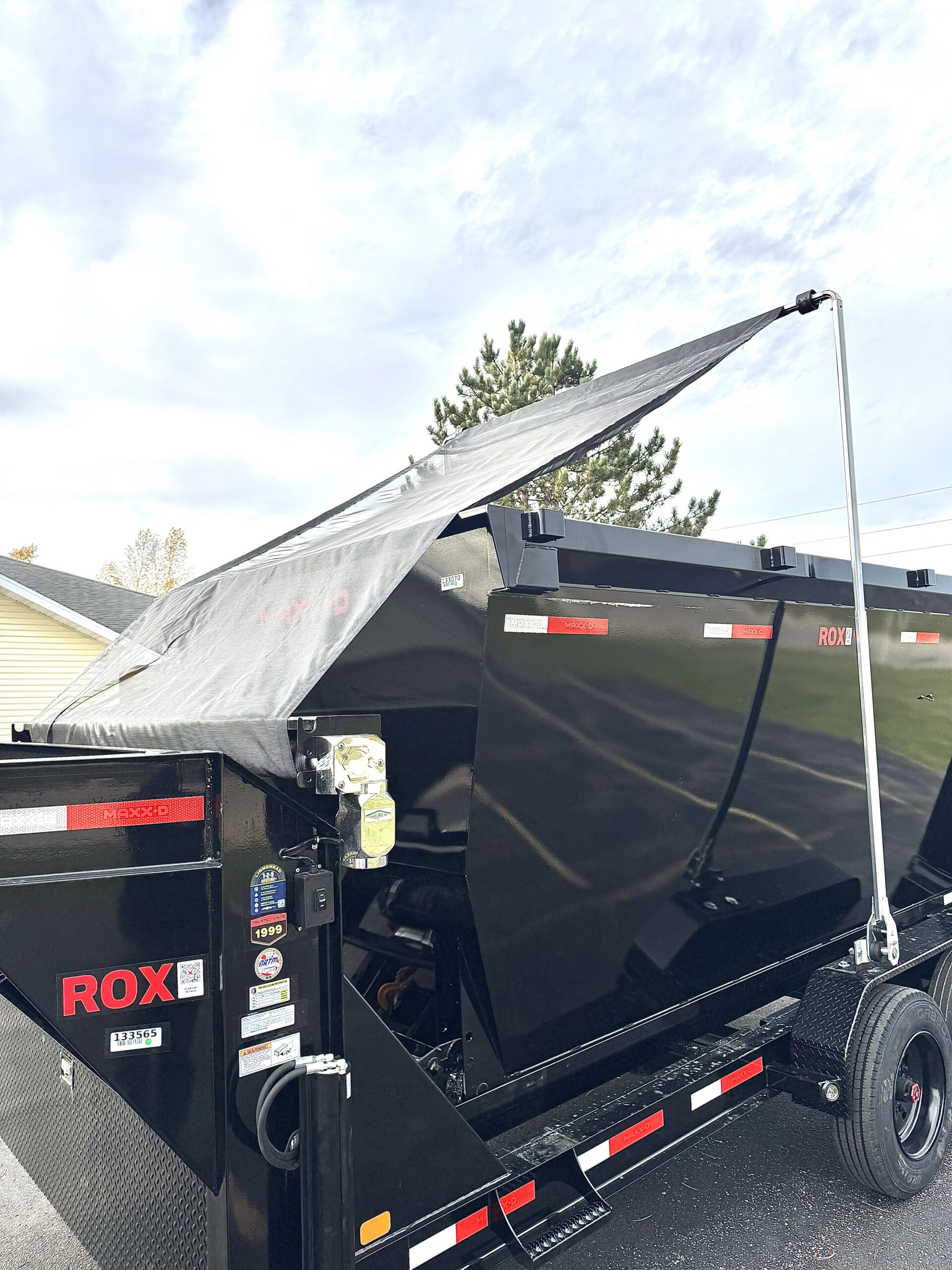

• Y50: FLIP-OVER ELECTRIC TARP KIT for ROX

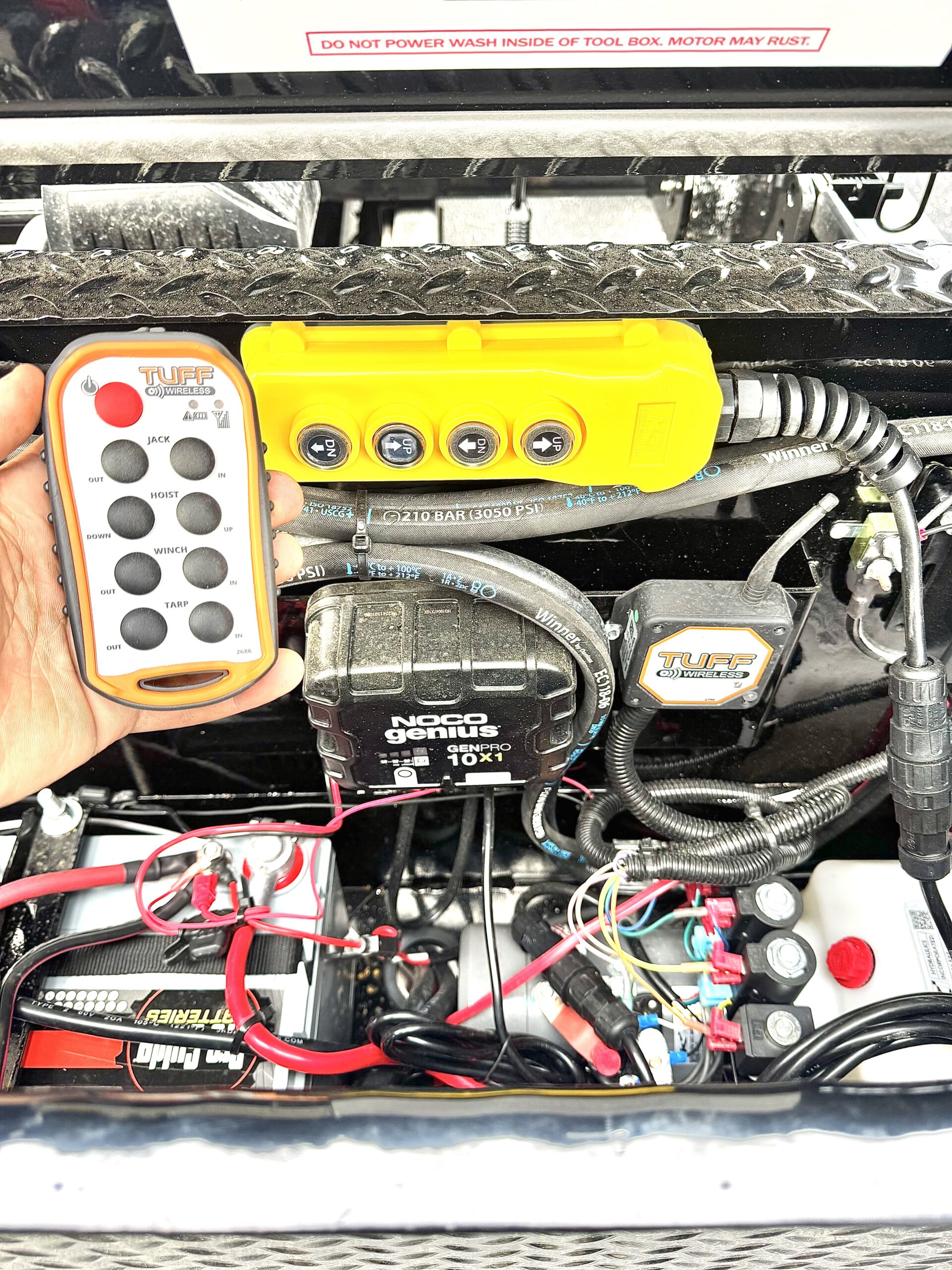

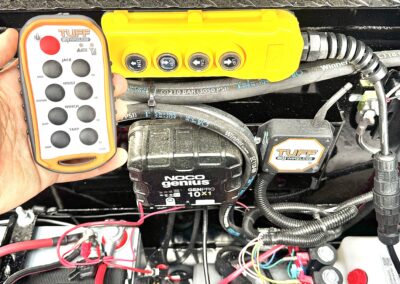

• Y64: WIRELESS REMOTE W/HYD&POWER OPTIONS W/ NOCO BATTERY CHARGERS

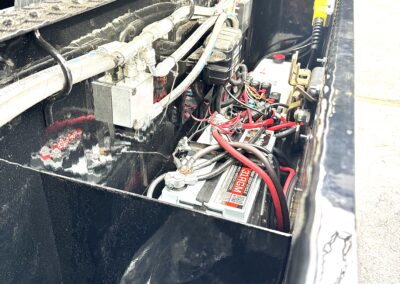

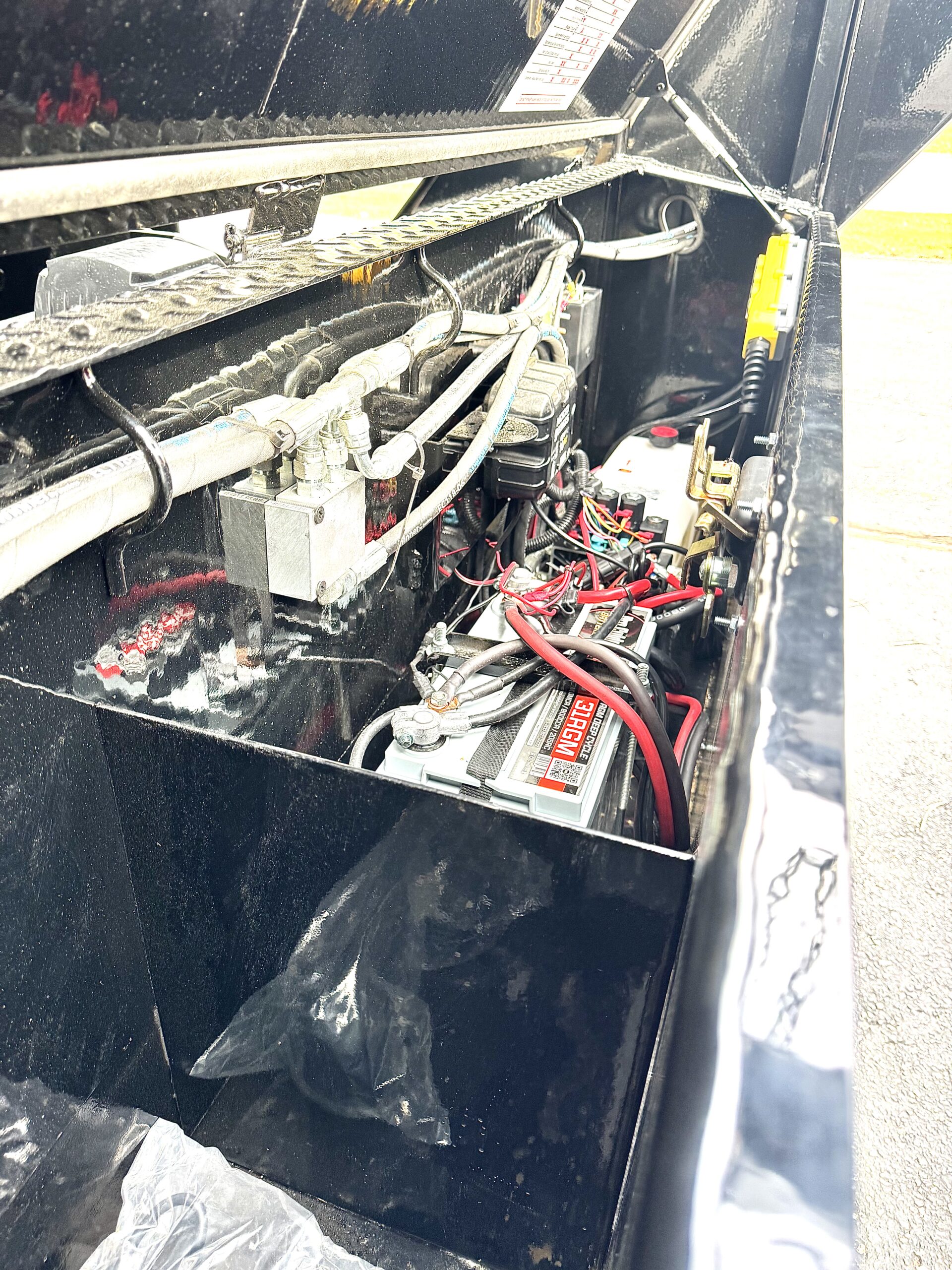

• Y15: AGM GROUP 31 BATTERY
• Y65: SPARE TIRE AND MOUNT

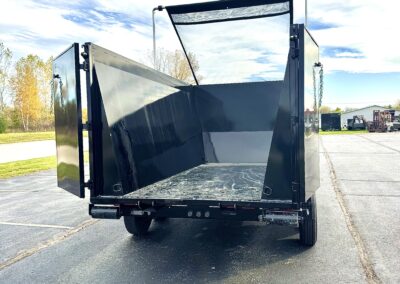

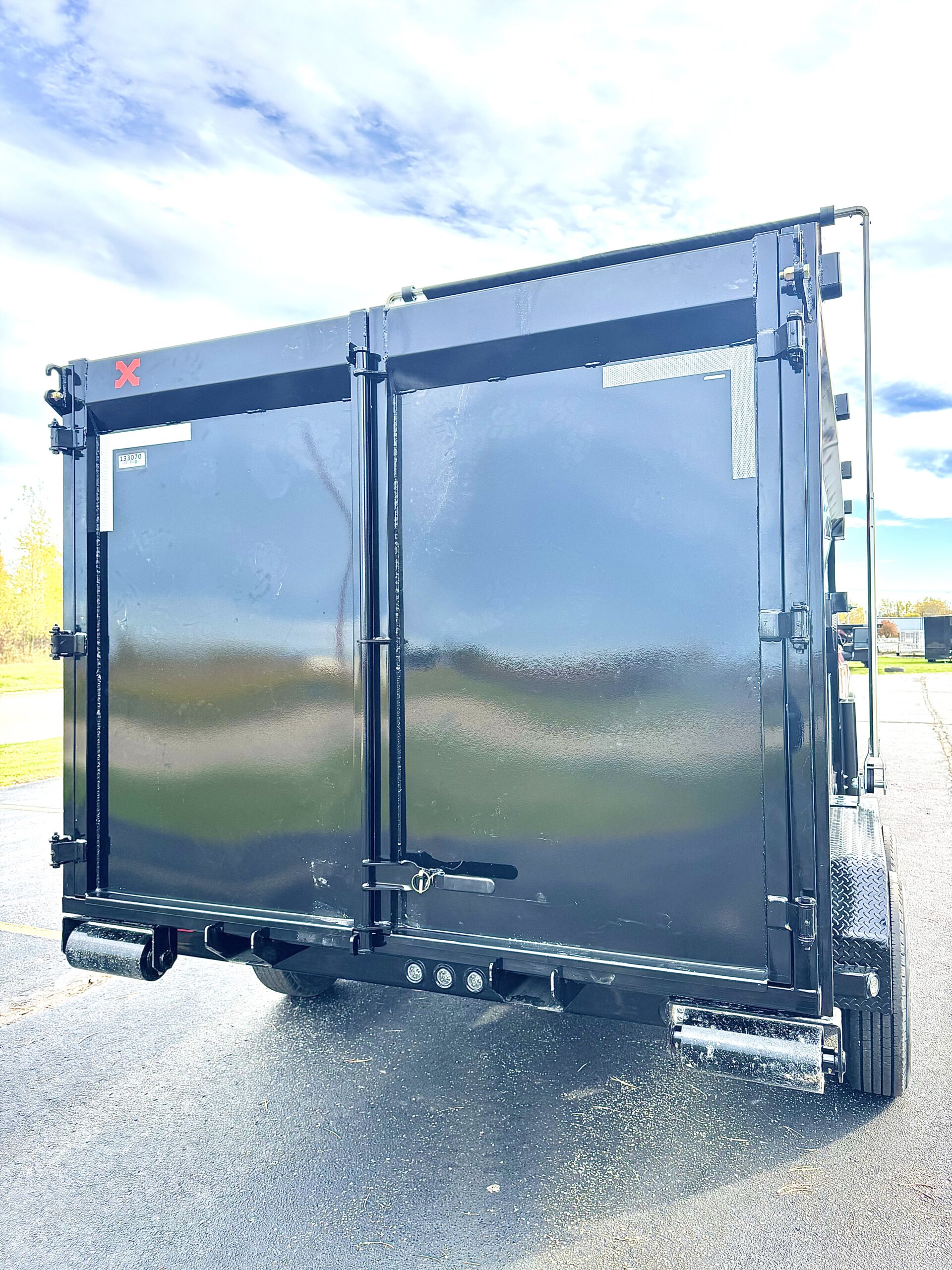

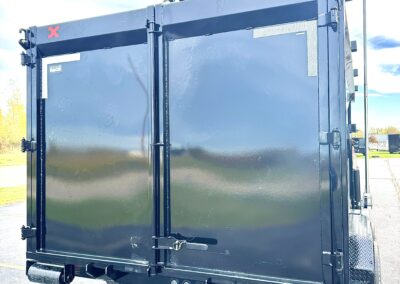

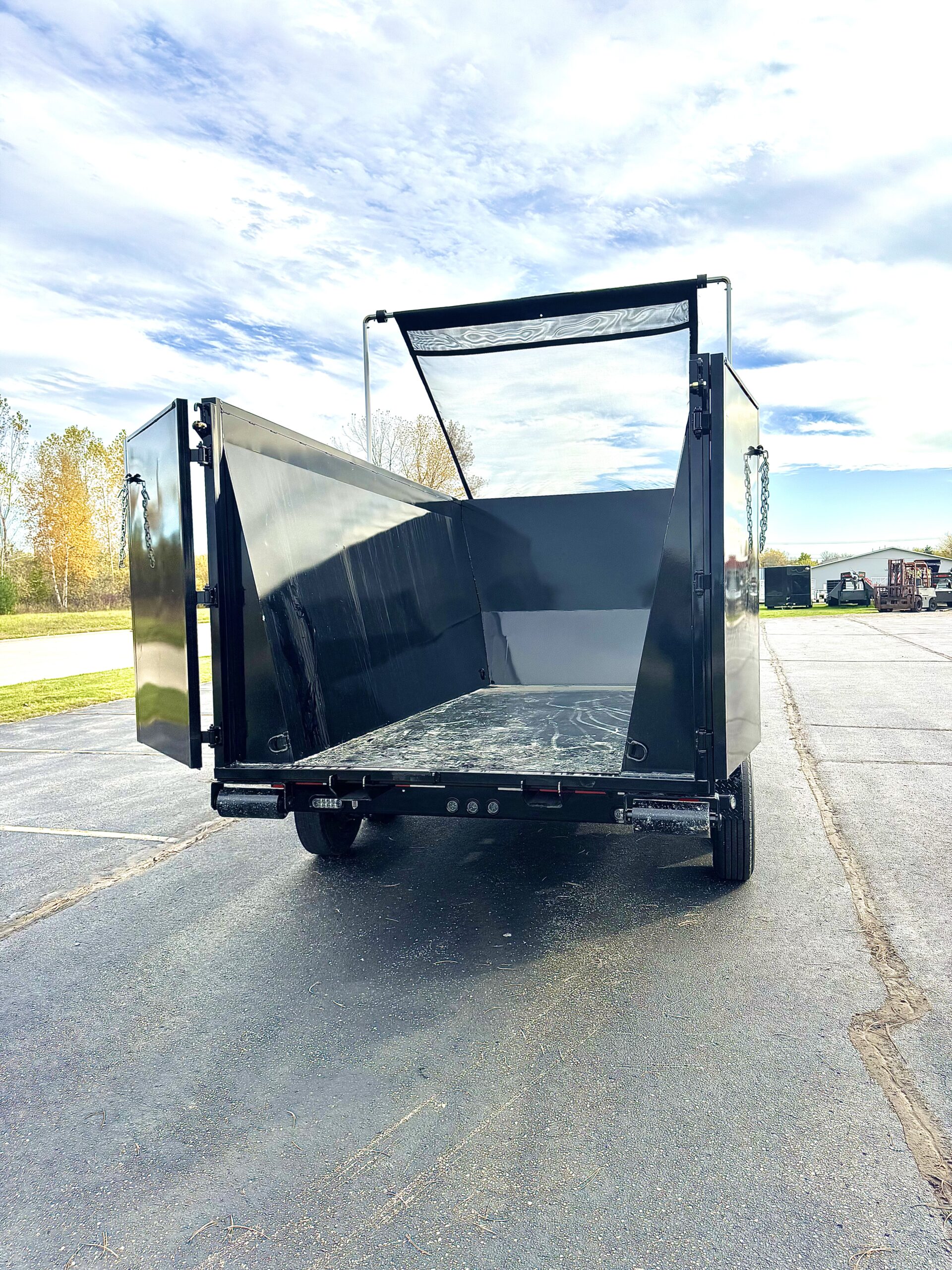

THIS UNIT COMES WITH A 6′ SIDEWALL BIN BUT CAN BE SWAPPED OUT FOR A 4′ SIDEWALL BIN

**ADDITIONAL BINS AVAILABLE FOR ORDER
