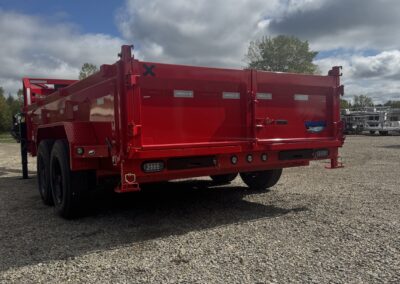

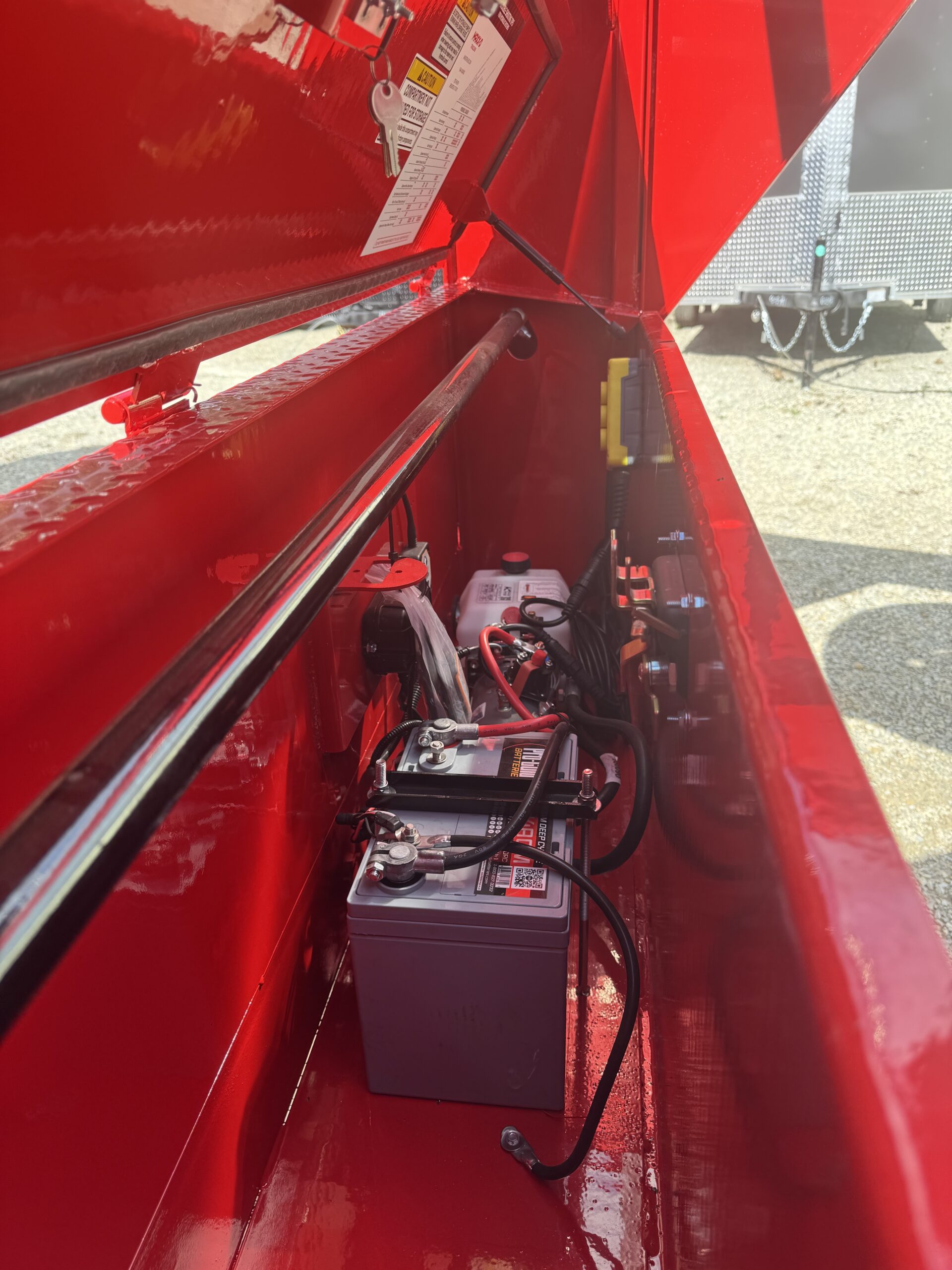

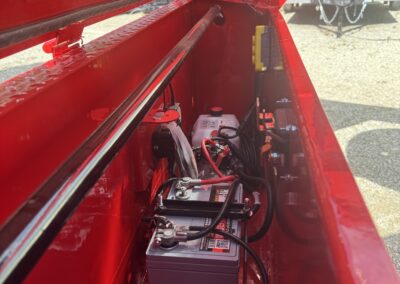

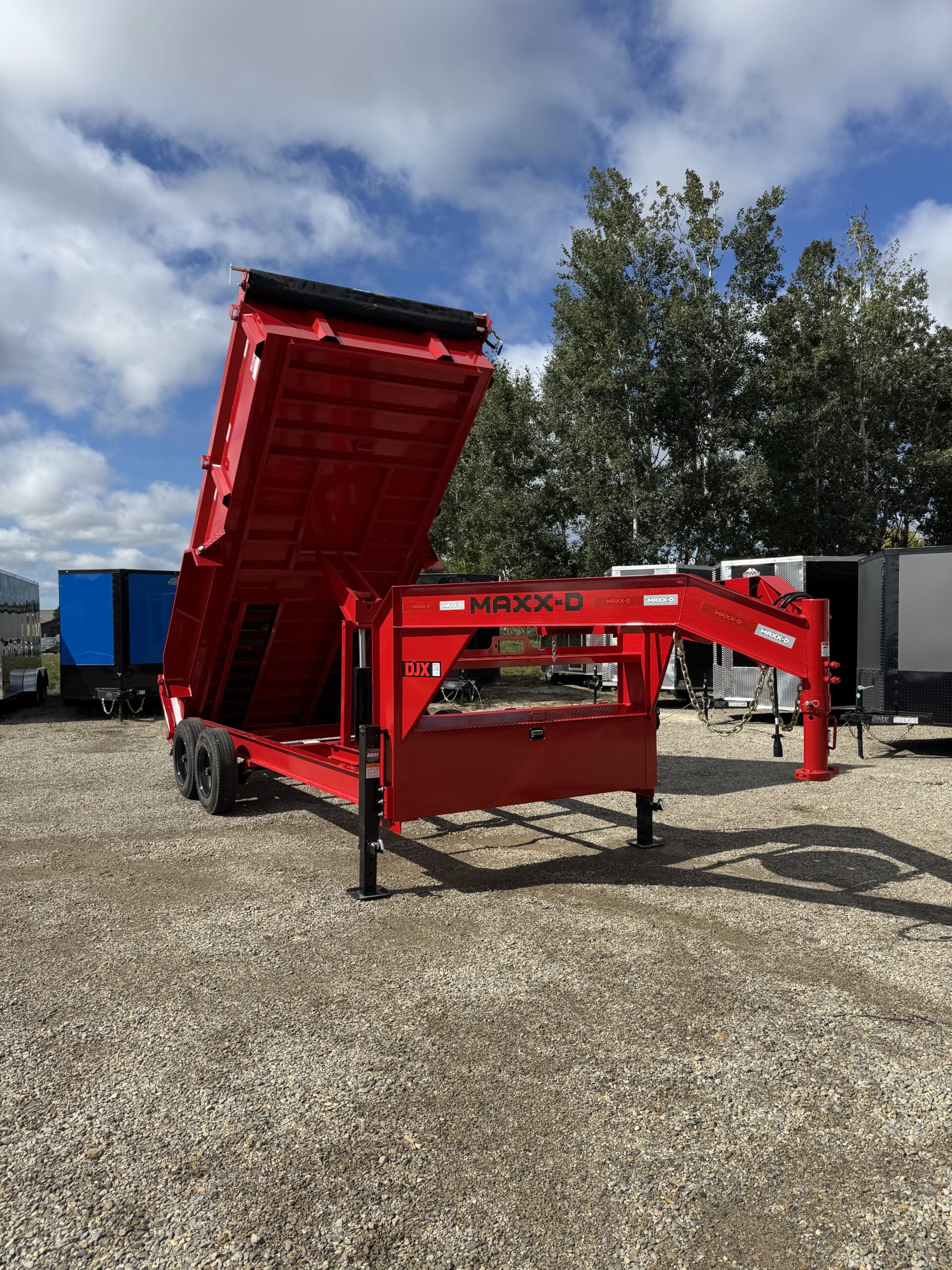

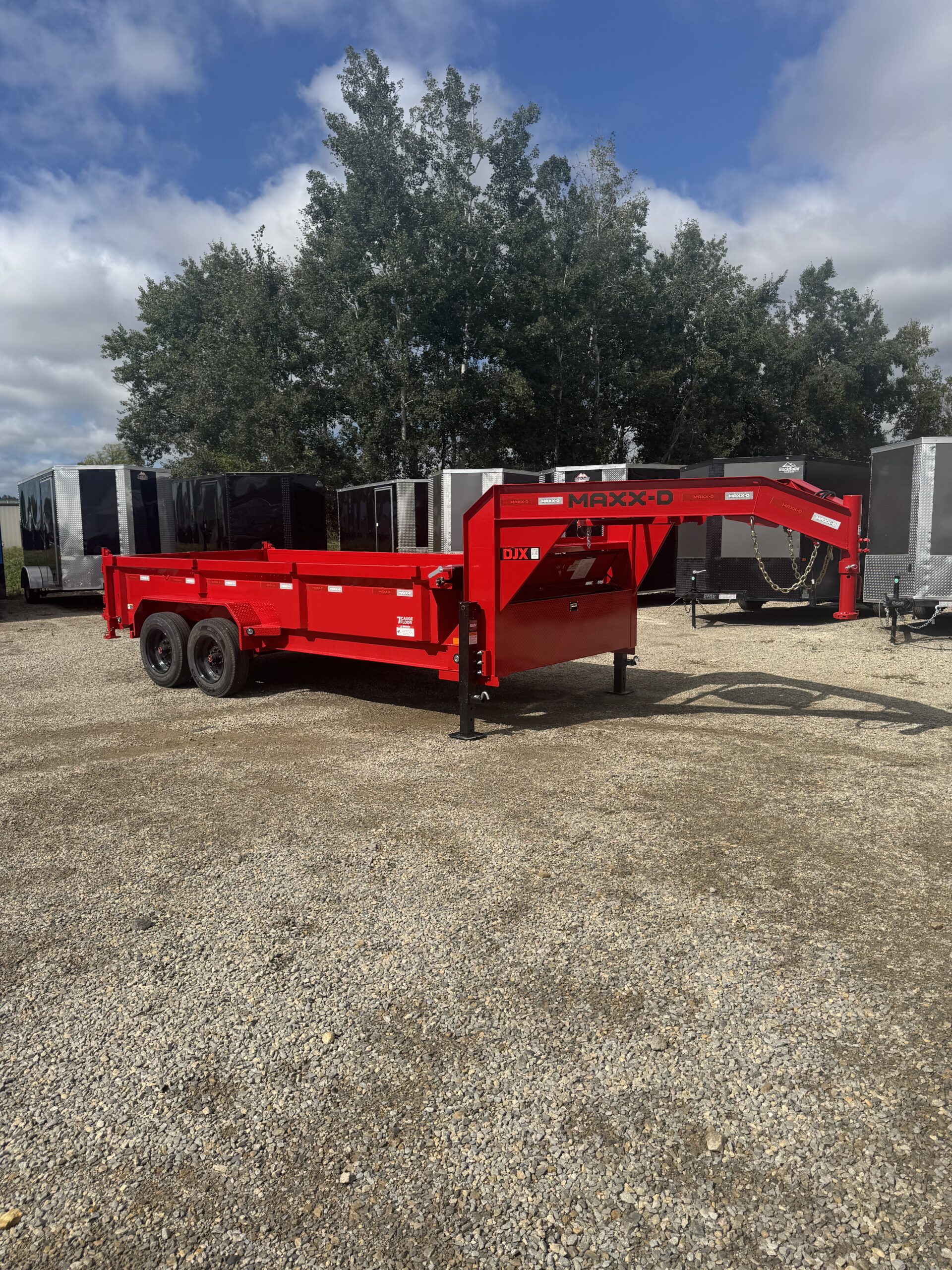

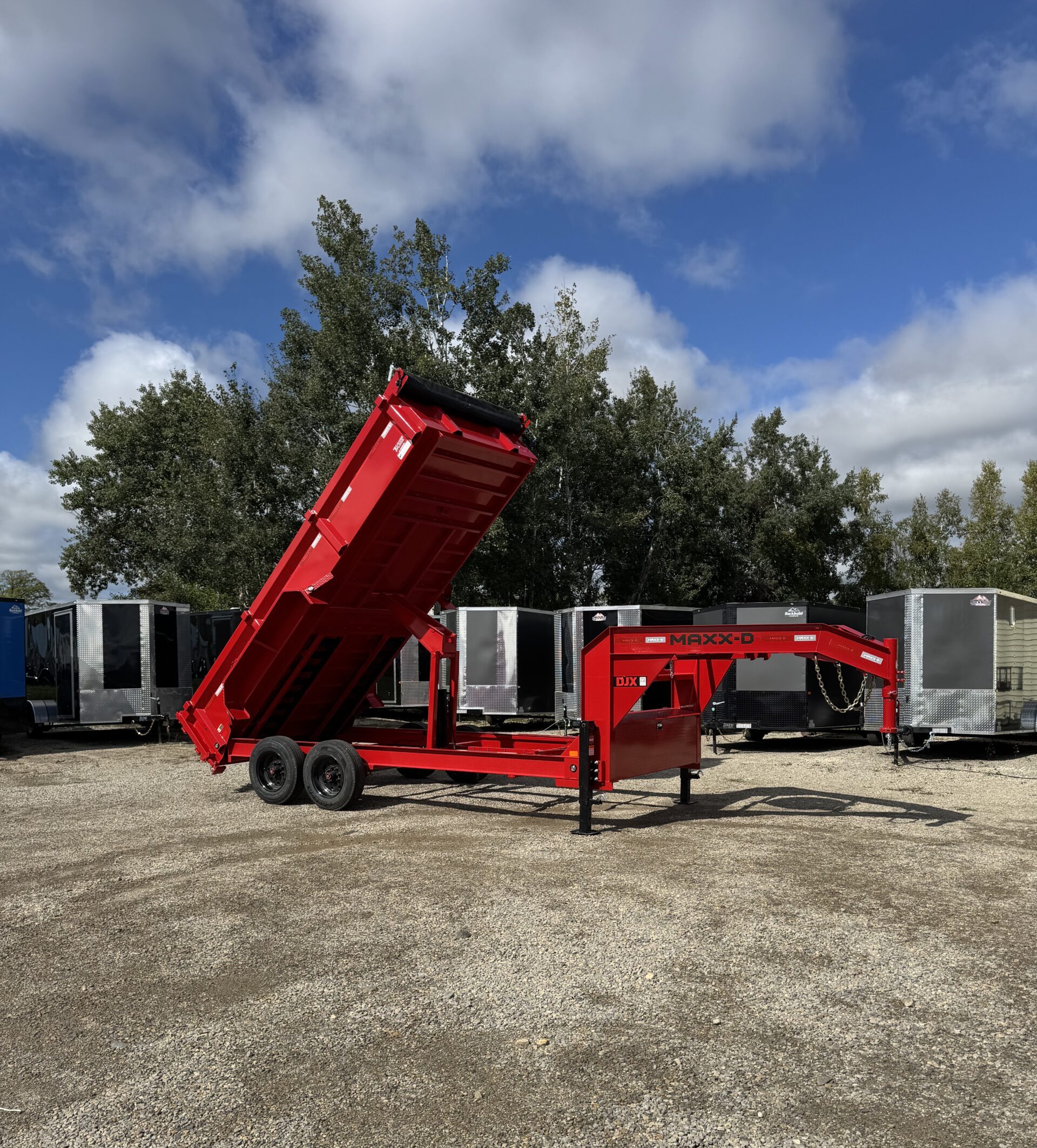

The DJX is a heavy-duty, all-purpose dump trailer, perfect for hauling skid steers, gravel, debris, and more with a ¾-ton truck. Designed with an 8” I-beam frame and a 6” scissor hoist, the DJX delivers smooth, controlled dumping. A full-width toolbox protects the KTI hydraulic pump and Interstate battery, ensuring reliability. Available with side height options of 2’, 3’, or 4’, this trailer adapts to your hauling needs. With a GVWR of 17,500 lbs., twin 8K axles, and lengths from 12’ to 16’, the DJX is one of our most versatile dump trailers.

BUILD YOUR TRAILER-https://maxxdtrailers.com/djx-83-i-beam-dump-trailer

SPEC LINK-https://maxxdtrailers.com/assets/maxxd/images/pdf/trailer_specs_print_sheet_-_individual_djx.pdf

• 2 5/16″ ADJUSTABLE COUPLER
• 1 – 10K DROP-LEG JACK

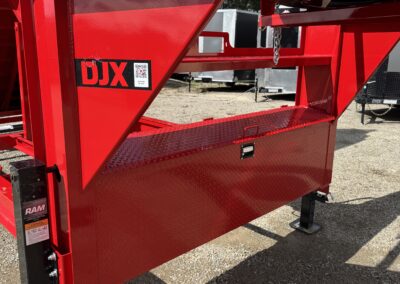

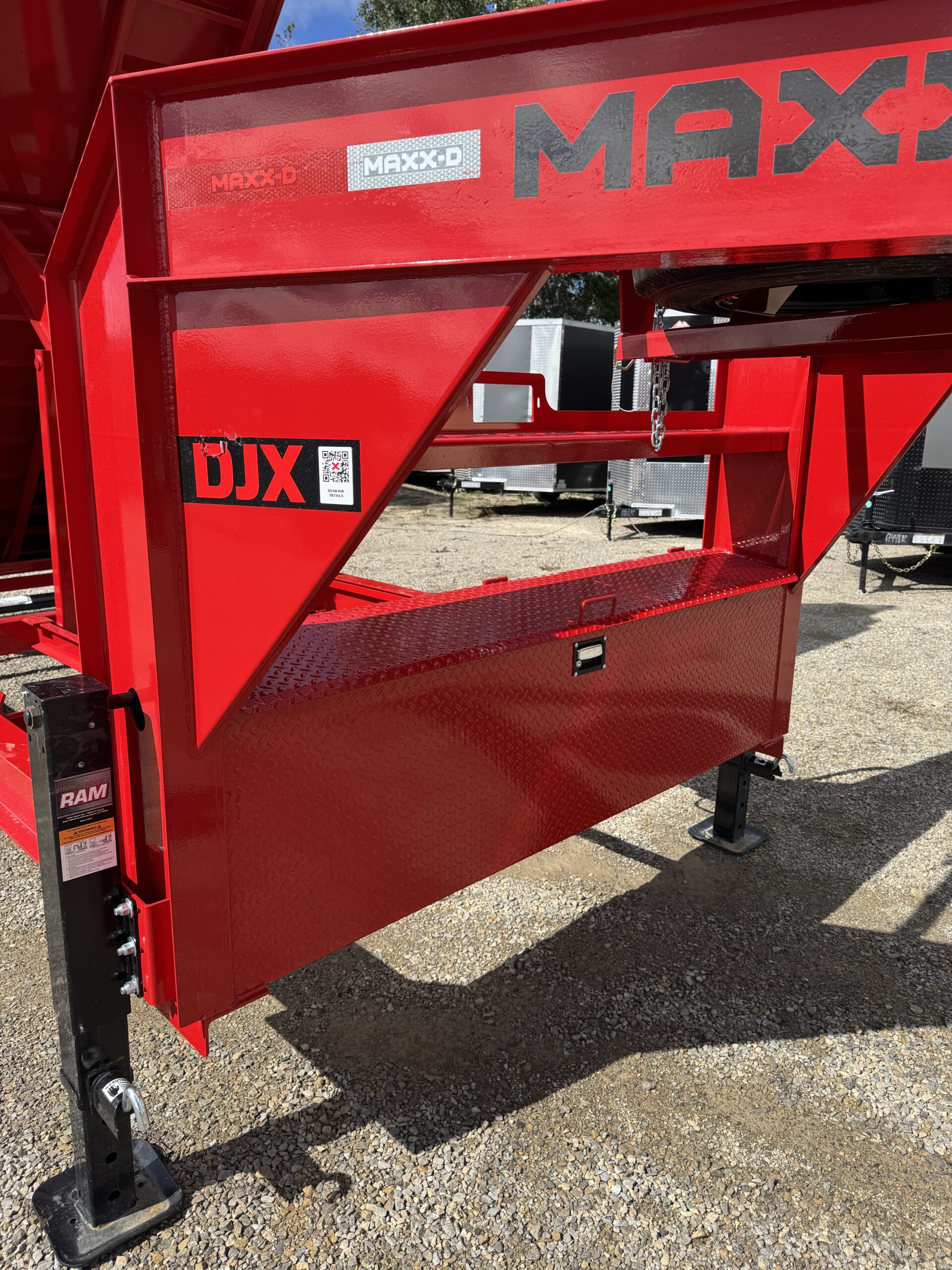

• I-BEAM TONGUE WITH TOOLBOX

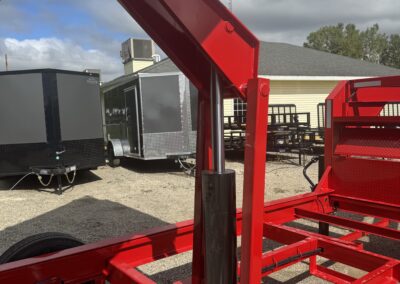

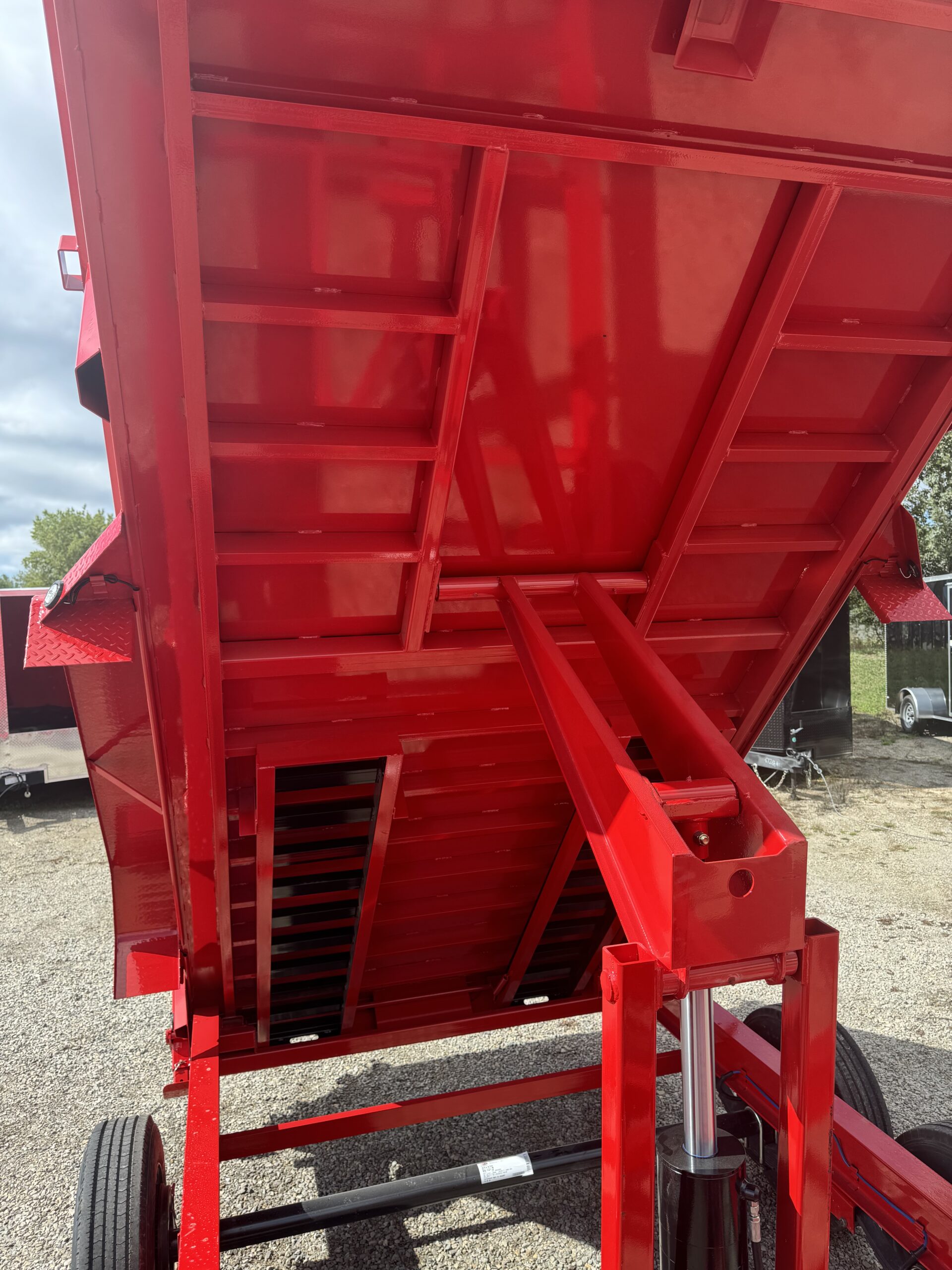

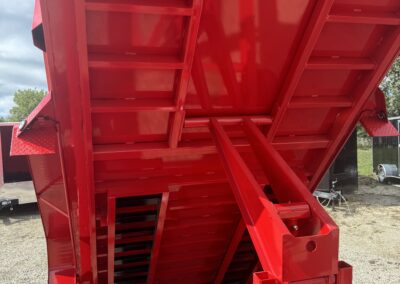

• 8″ X 15LB I-BEAM FRAME WITH 6X16 HOIST
• 3″ CHANNEL ON 12″ CENTERS

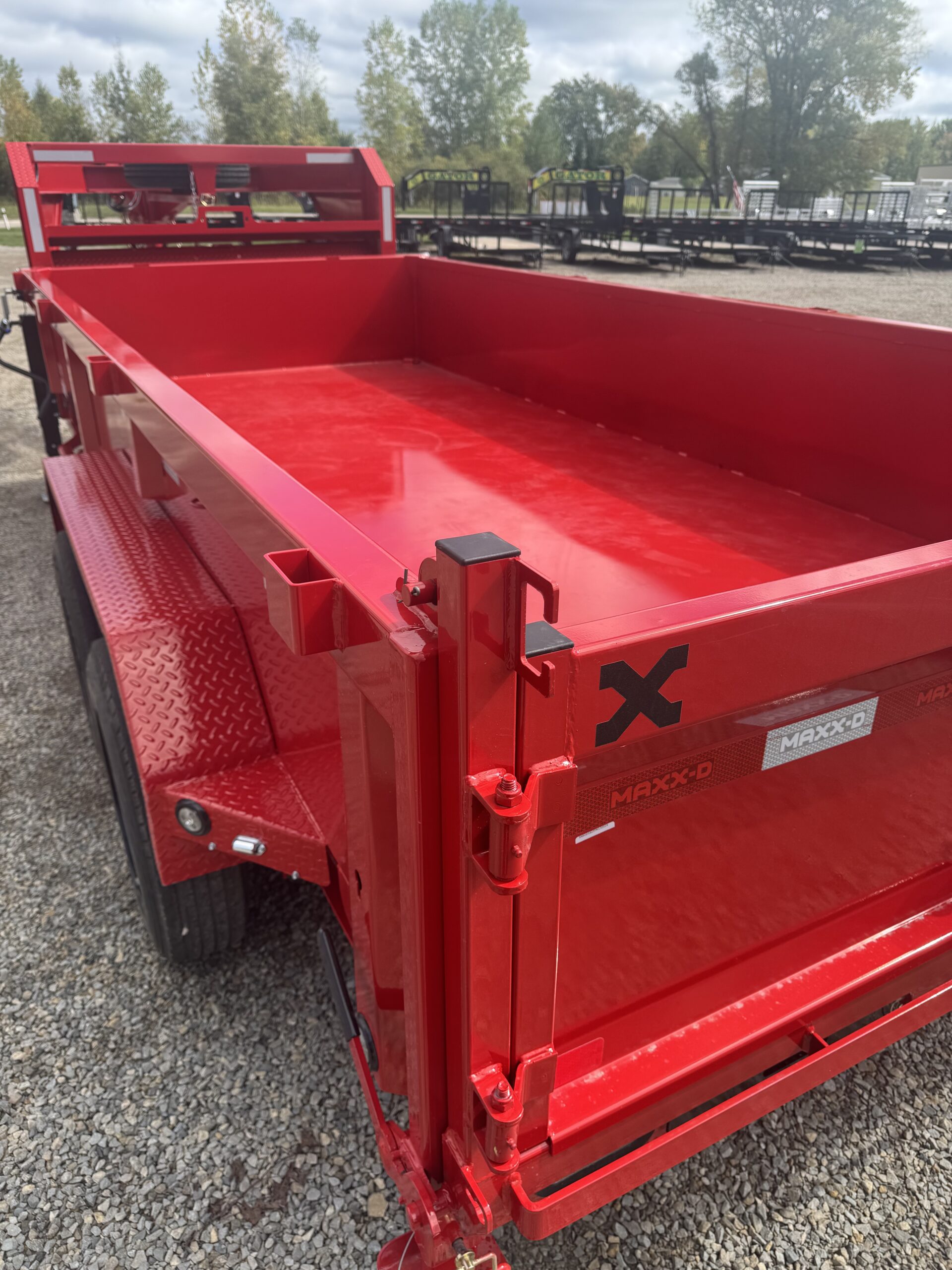

• 2′ SOLID SIDES ON DUMP TRAILER

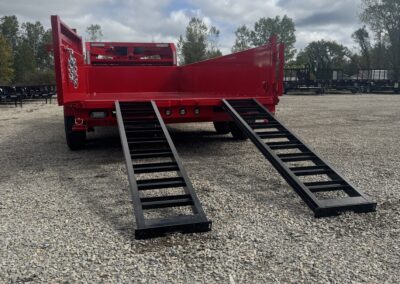

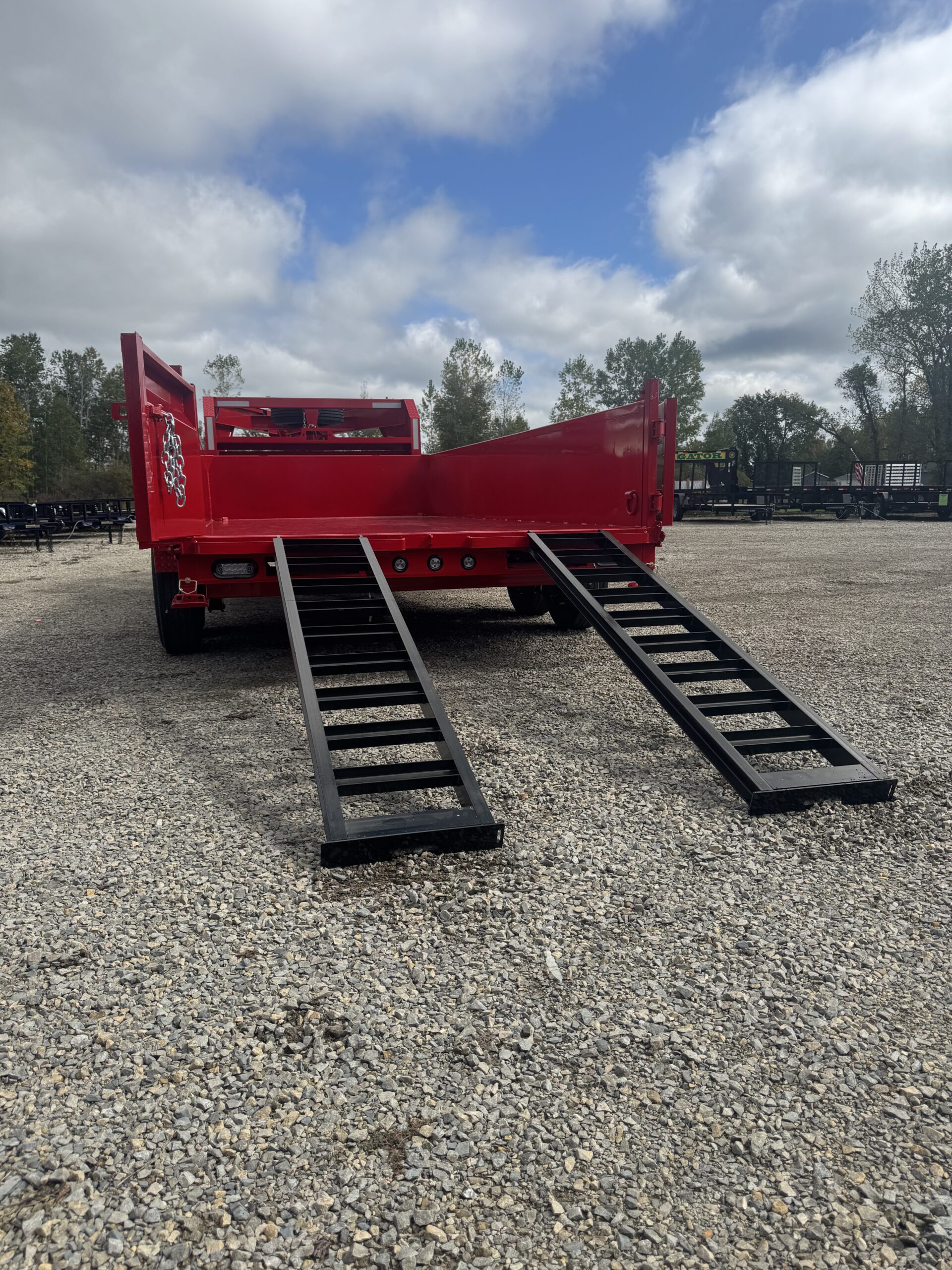

• NO DOVETAIL/7′ SLIDE-IN RAMPS
• 2-8K ELECTRIC BRAKE AXLES SLIPPER SPRING SUSPENSION
• ST215/75R17.5 H RADIAL TIRES ON SINGLES 18 PLY

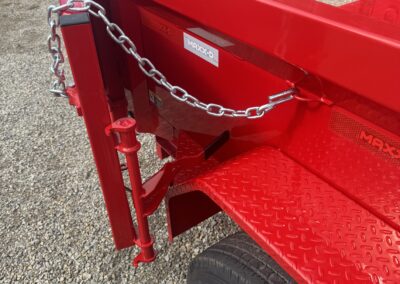

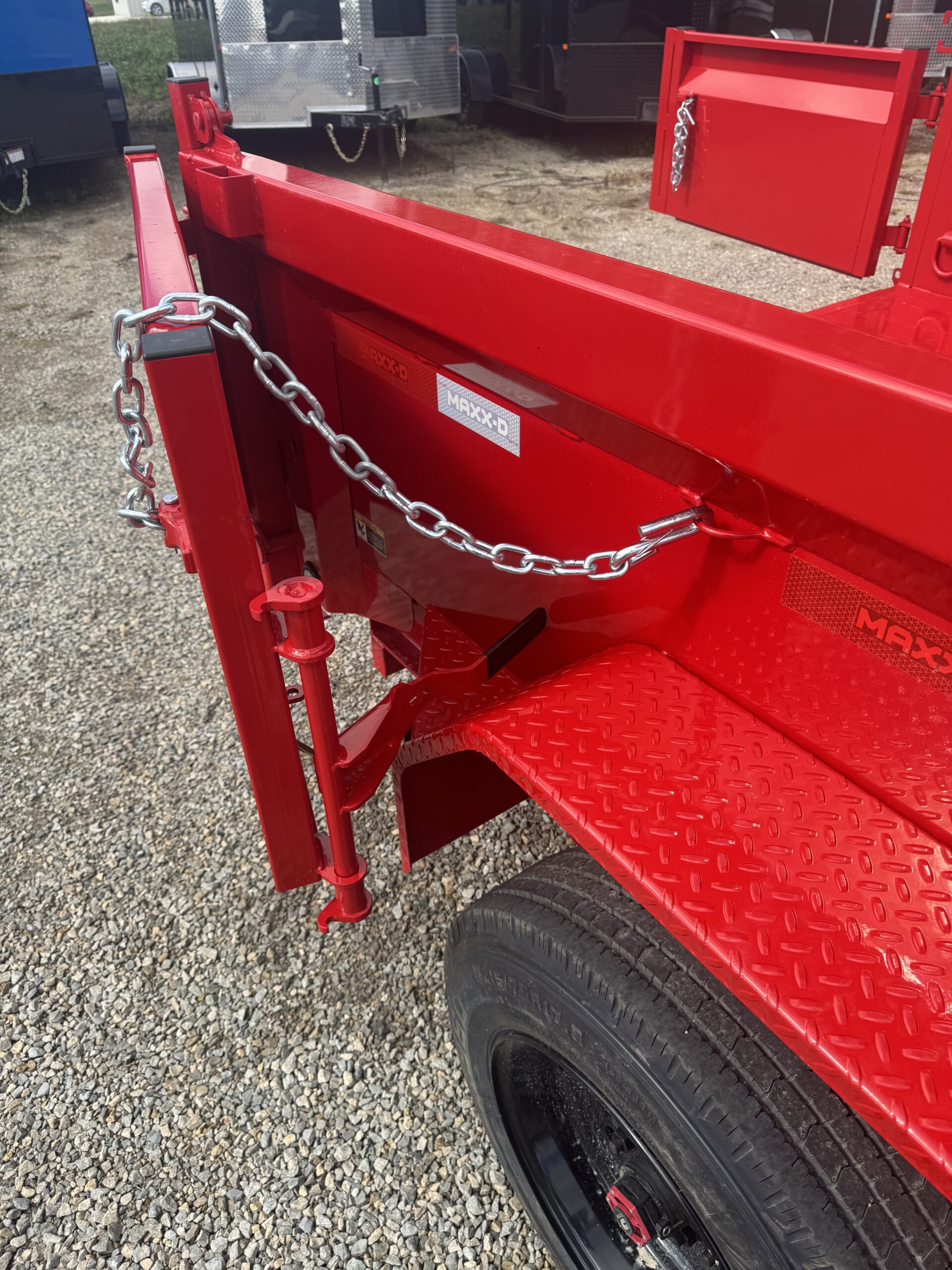

• DOUBLE BROKE DIAMOND PLATE FENDERS

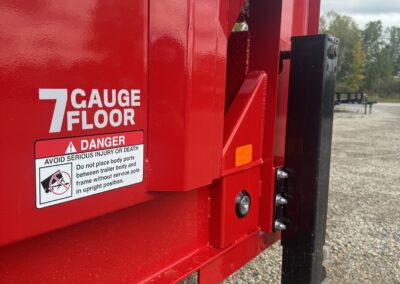

• 7 GAUGE FLOOR AND 10 GAUGE SIDES
• FLUSHMOUNT LED’S/STANDARD WIRING
• PULL BACK TARP SYSTEM
• WIRELESS REMOTE

COUPLERS

• 21K ADJUSTABLE PINTLE EYE
• 30K ADJUSTABLE PLATE MOUNT PINTLE EYE
• 2 5/16″ 30K ROUND GN COUPLER 30K ROUND GN COUPLER KING PIN

JACKS

• 2 – 10K DROP-LEG JACKS ON GN
• 1 – HYDRAULIC JACK
• 2 – HYDRAULIC JACKS ON GN

TONGUE/NECKS

• STND HEIGHT I-BEAM NECK (ADD. RISER BOX OR DECKOVER)

6″ EXTENDED HEIGHT RISERS NECK (ADD. RISER BOX OR DECK-OVER)

SIDES

• 2′ SOLID SIDES WITH 24″ SOLID SIDE EXTENSIONS
• 3’/4’ SOLID SIDES ON DUMP TRAILER
• 3′ \FLARE/ SIDES ON DUMP TRAILER

AXLES

• 2-8K ELECTRIC BRAKE AXLES

SUSPENSIONS

• 4″ DROP WITH SLIPPER SPRING SUSPENSION

WHEEL/TIRES

• ST235/85R16 G RADIAL TIRES ON 2-7K
• ST215/75R17.5 H RADIAL TIRES ON SINGLES

FLOORS

• 3/16″ FLOOR ONLY/10 GAUGE SIDES

TARPS

• FLIP OVER TARP SYSTEM

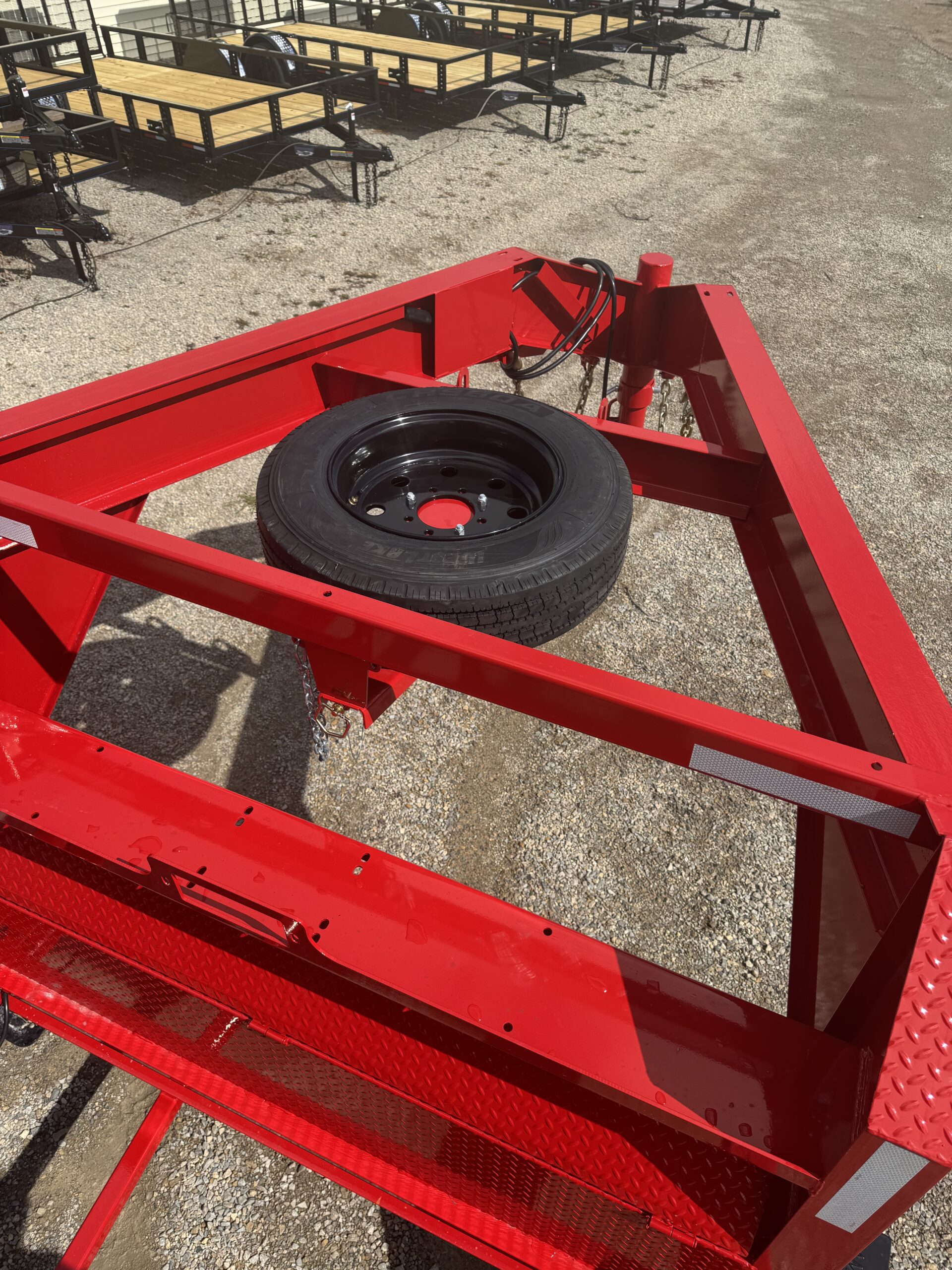

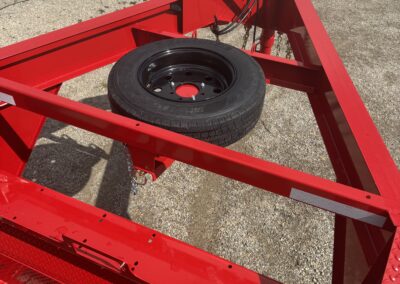

SPARES

• SPARE ST235/80R16 E RADIAL
• SPARE ST235/85R16 G RADIAL
• SPARE ST215/75R17.5 H RADIAL ON SINGLE

D-RINGS

• EXTRA 1/2″ BULL-NOSE DRINGS

OTHER OPTIONS

• 7-WATT SOLAR PANEL SECOND BATTERY RECEIVER HITCH IN REAR
