• 22′
• 24′
• 26′
• 28′
• 30′

• 2- 7K AXLES (14,000 LB GVWR)
• 2- 8K AXLES (16,000 LB GVWR) OR (17,500 LB GVWR)

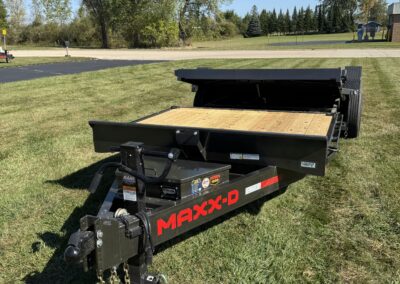

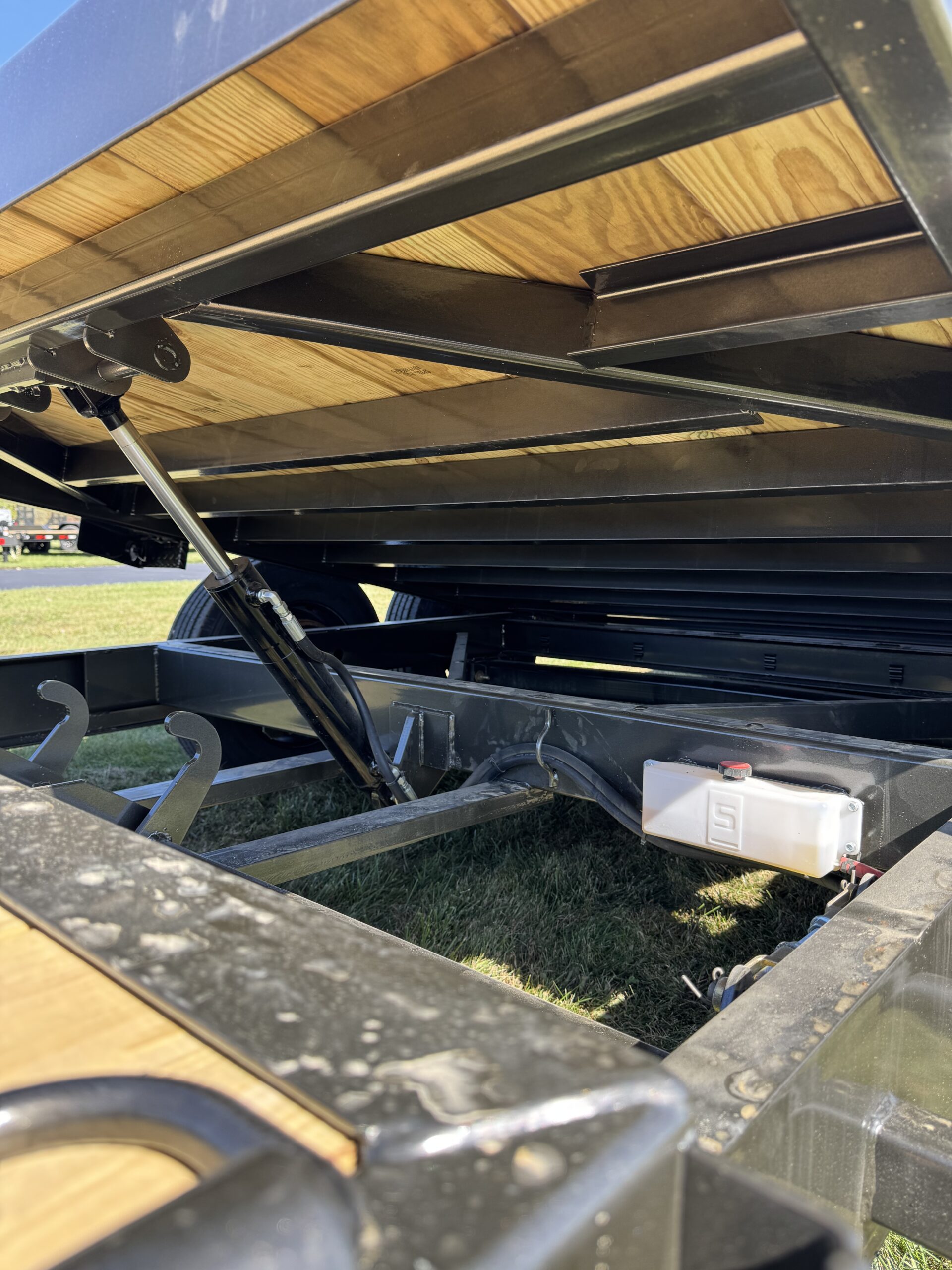

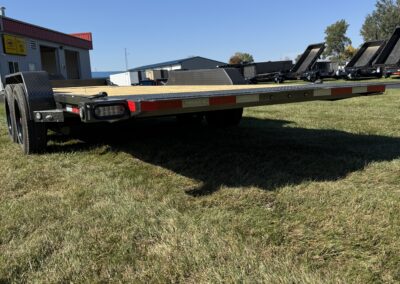

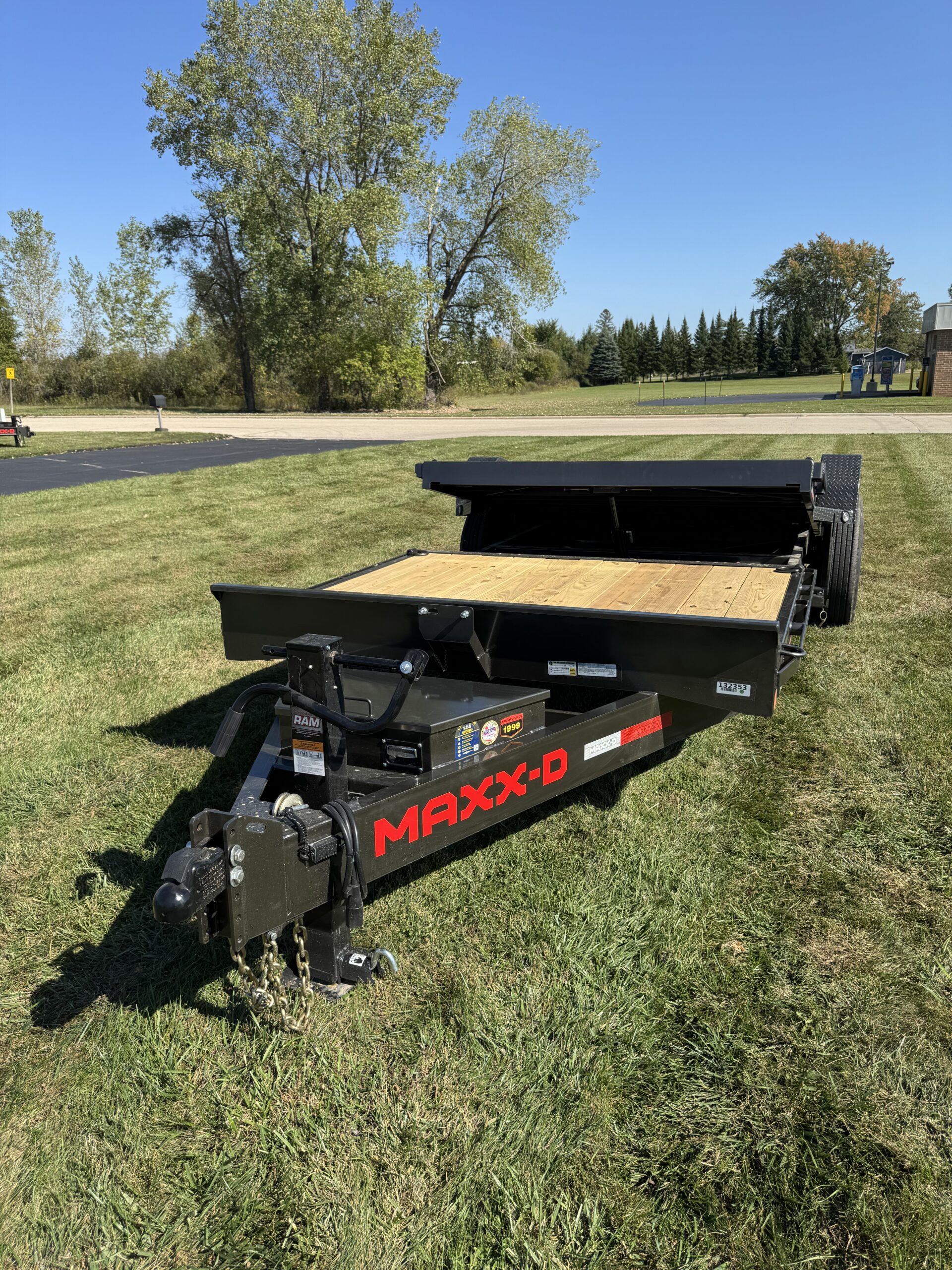

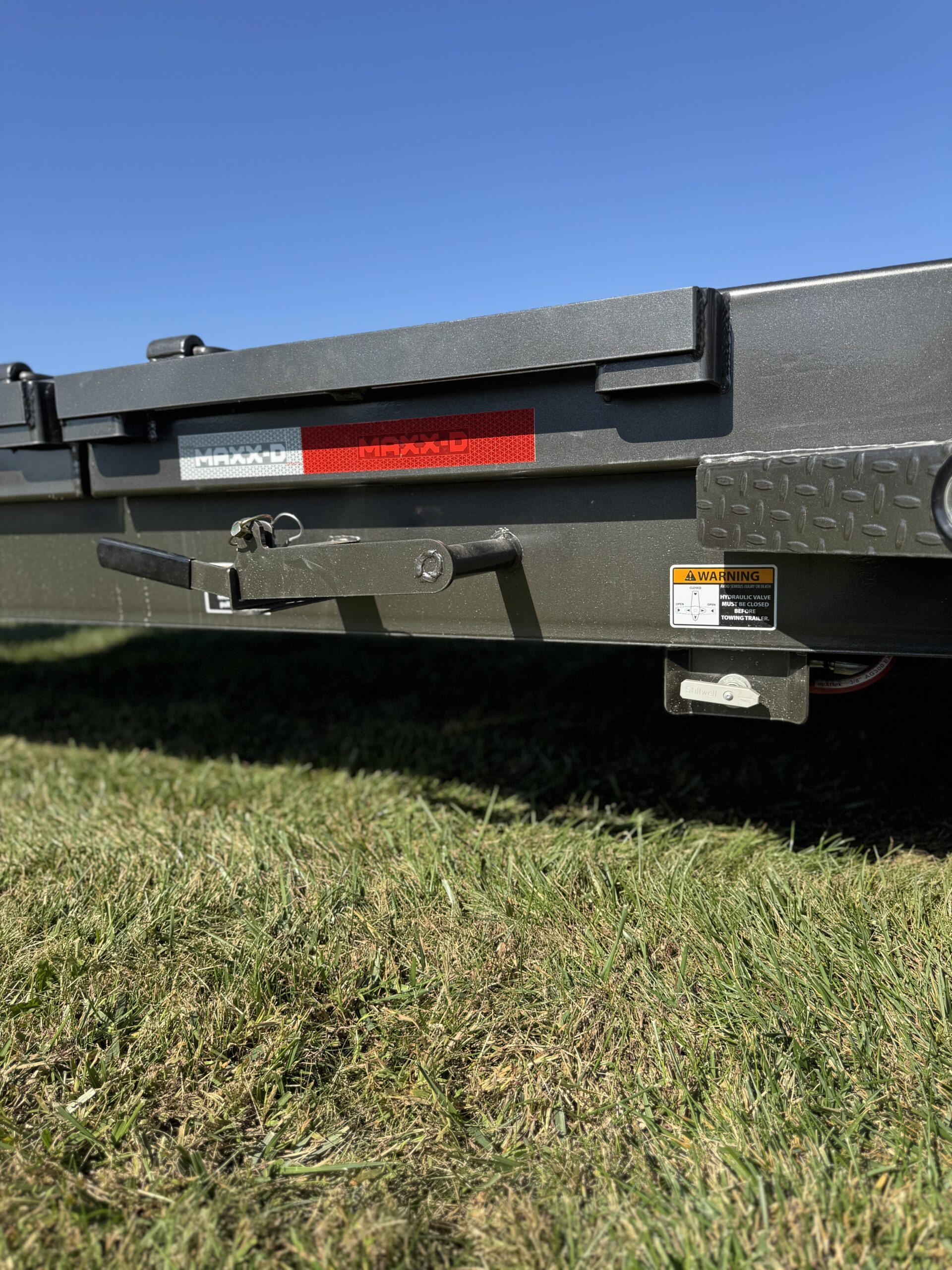

The G8X is the split deck, gravity tilting version of our best-in-class T8X powered tilt trailer. The G8X tilt deck equipment trailer offers a hydraulically dampened tilting deck, with your choice of a 4’, 6’, 8’, 10’ or 12’ stationary front deck. This gives you room to load cargo up front and still have the option to haul heavier equipment like tractors, skid steers, recreational vehicles, and SUVs or cars. Built for heavy-duty hauling, the G8X 16K Gravity Tilt Trailer features an 18’ tilt bed and can be ordered with a 102” wide deck. With a GVWR of up to 17,500 lbs., it’s perfect for mulchers, stump grinders, and skid steers.

LINK https://maxxdtrailers.com/g8x-8-gravity-equipment-tilt-trailer

SPEC SHEEThttps://maxxdtrailers.com/assets/maxxd/images/pdf/trailer_specs_print_sheet_-_individual_g8x.pdf

STANDARD FEATURES

G13 – 17,500 LB GVWR
C10 – 2 5/16″ ADJUSTABLE COUPLER
J04 – 1-10K DROP-LEG JACK

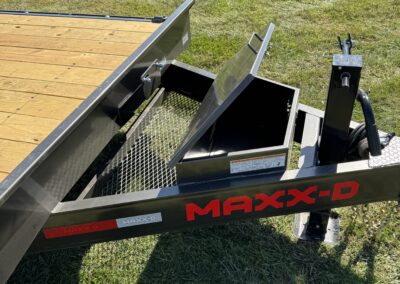

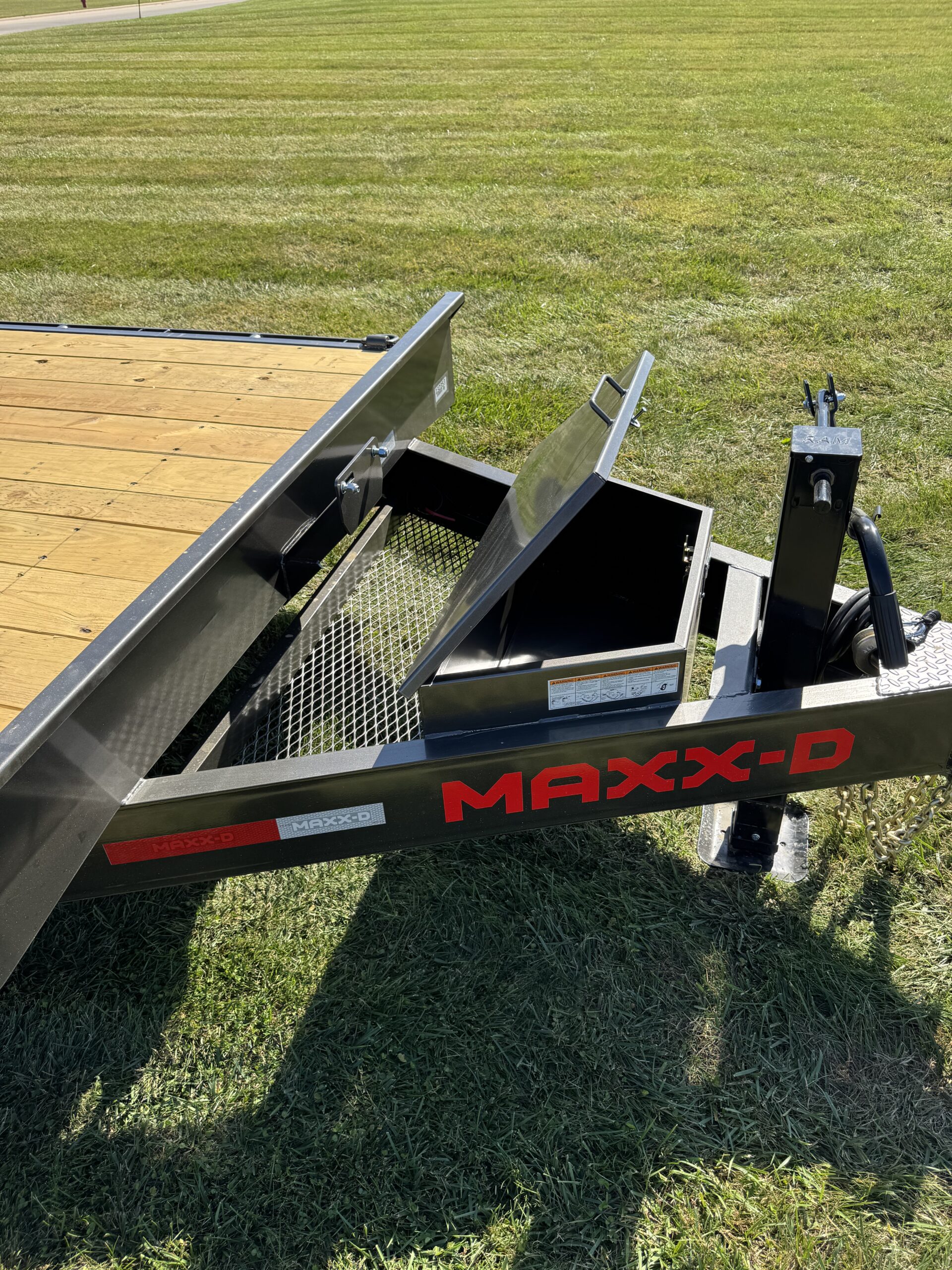

N16 – 8″ CHANNEL WRAP TONGUE WITH TOOLBOX
F73 – 6X2 3/16″ TUBE FRAME
X07 – 3″ CHANNEL ON 12″ CENTERS
R114 – STAKE POCKETS, RUBRAILS AND PIPE SPOOLS

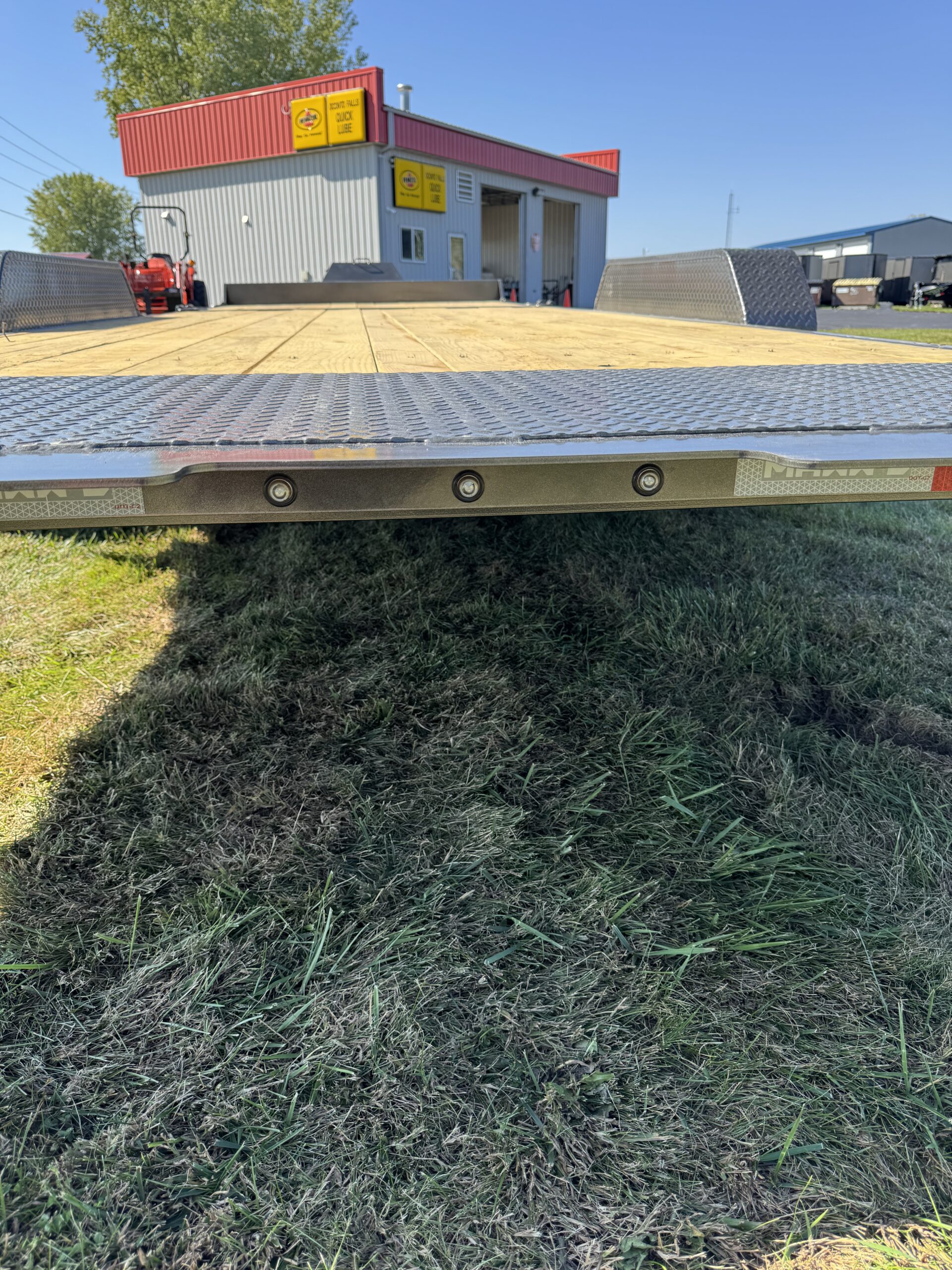

D50 – 6′ STATIONARY/KNIFE EDGE REAR
A74 – 2-8K ELECTRIC BRAKE AXLES
S11 – TORSION SPRING SUSPENSION 22.5* UP ON 2 AXLES

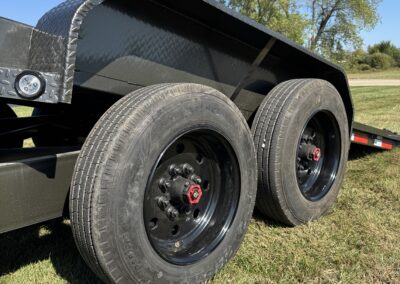

T29 – SINGLES (4) ST215/75R17.5 H TIRES FOR 2-8K
P06 – DOUBLE BROKE DIAMOND PLATE FENDERS
E04 – 2X8 TREATED WOOD FLOOR
L03 – FLUSHMOUNT LED’S / STANDARD SEALED WIRING HARNESS
O02 – MAXXD GRAY METALLIC & PRIMER
Z08 – 2x EXTRA 5/8″ BULL-NOSE D-RING WELDED TO TOP OF SIDE CHANNEL
CC27 – TOOL TRAY BEHIND TOOLBOX
