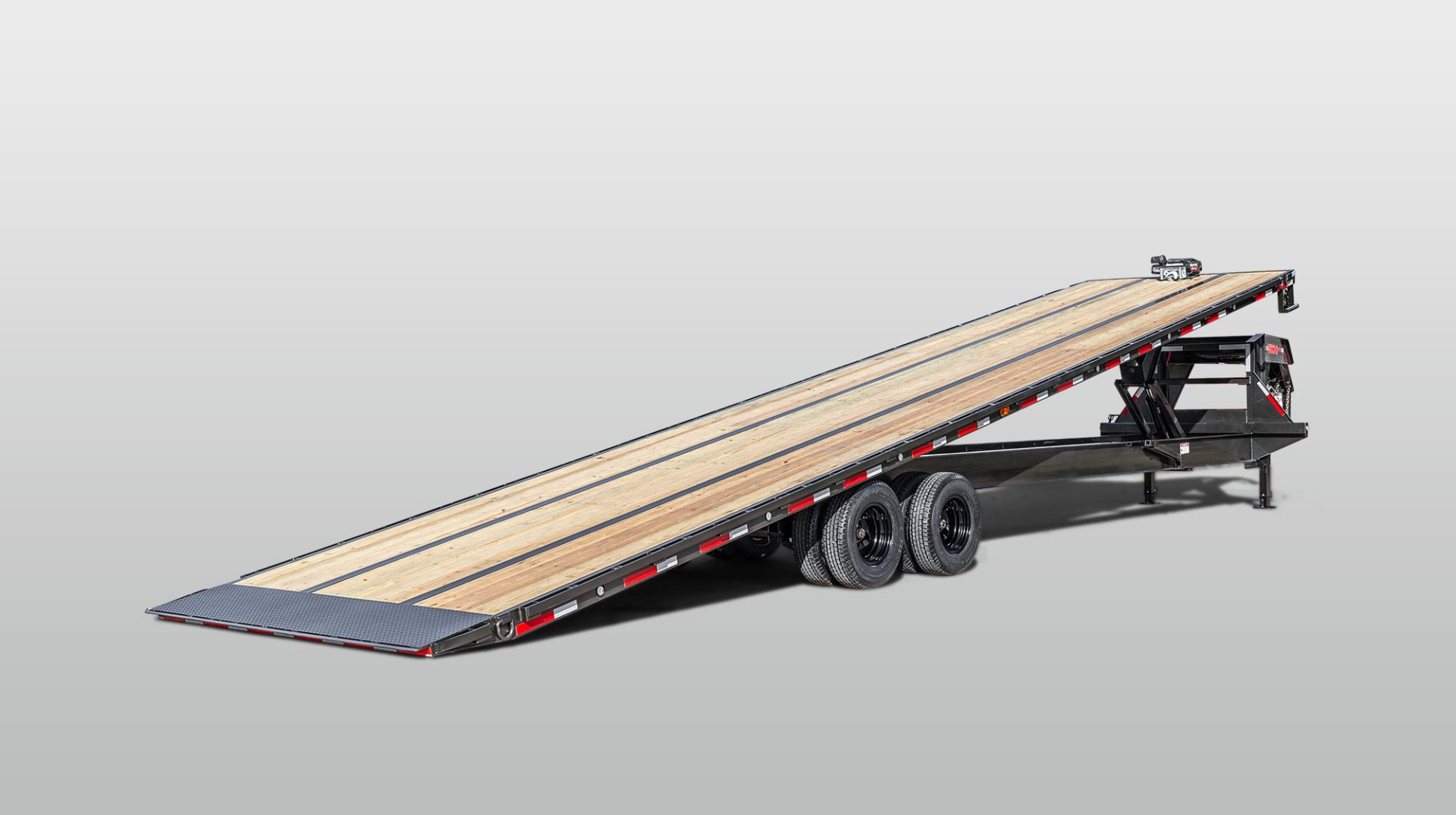

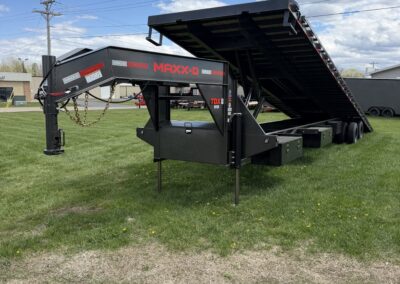

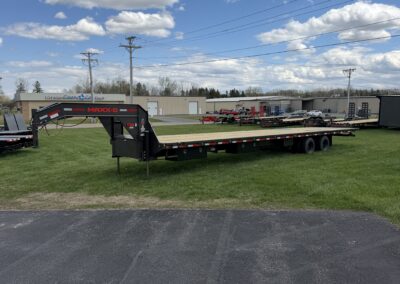

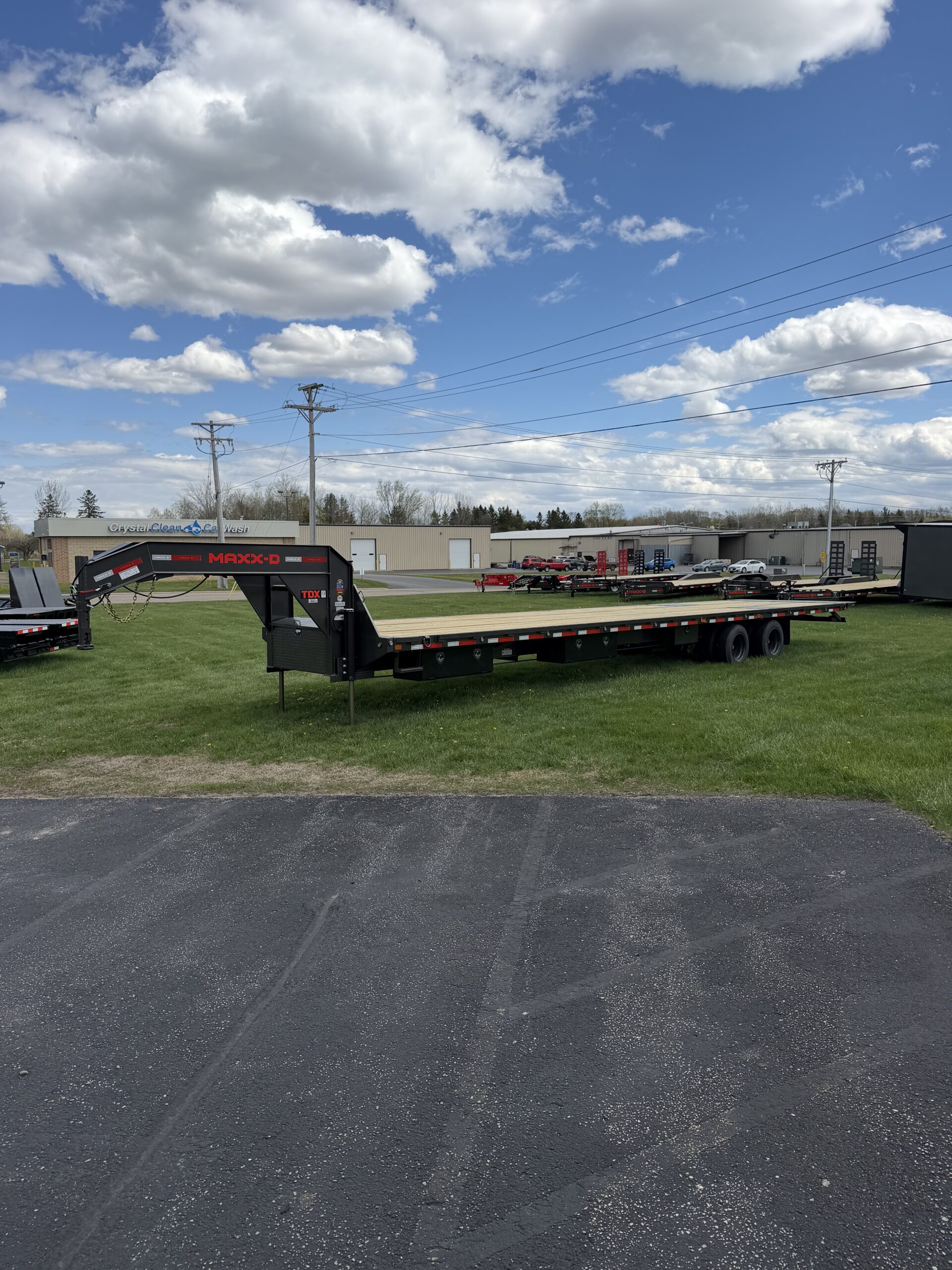

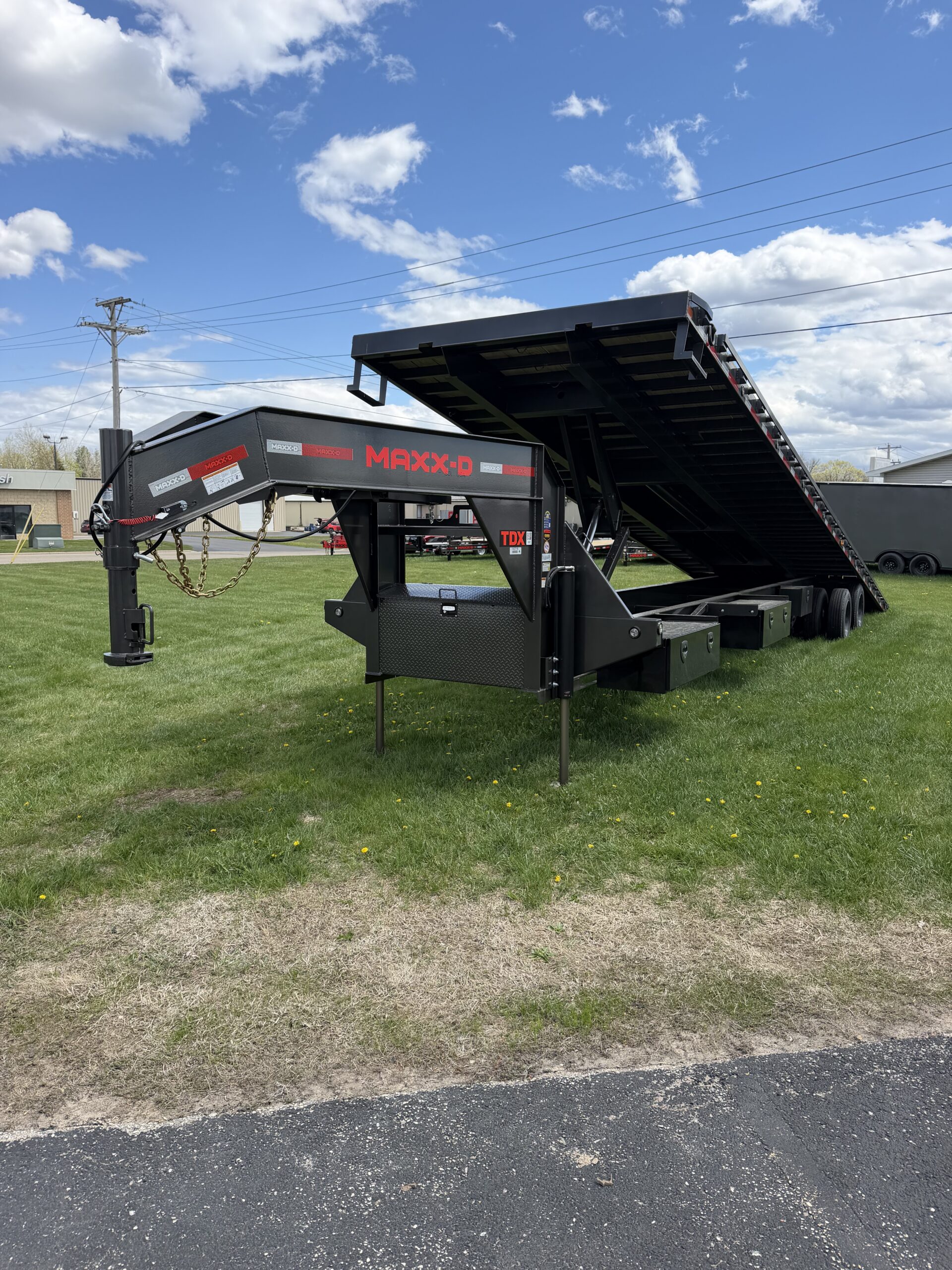

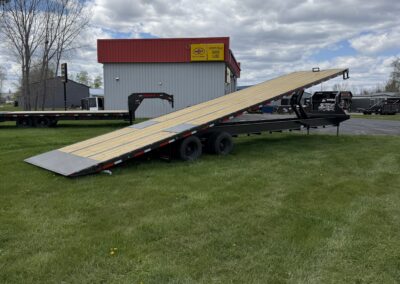

The TDX is our heavy duty tilt trailer, and comes standard with the industry-leading features to prove it. With a power up and power down scissor lift, this heavy duty flatbed is ready to work. It’s ideal for hauling tractors, small bulldozers and other heavy construction equipment. The TDX heavy duty tilt trailer is available with a full tilting bed. This gives you plenty of options when loading multiple vehicles or pieces of equipment. We put a sturdy treated lumber floor on the TDX and finish it with a leading knife edge constructed of steel tread plate. This provides an ultra-clean entry angle for equipment with small wheels, as well as a durable edge that can take a beating.

We built each TDX heavy duty flatbed tilt trailer with two 10,000 lb. tandem dual axles, for a GVWR of 22,500 pounds. With the right upgrade options, you can push the TDX all the way out to a 30,000 lb. GVWR for the heaviest of applications. Like all MAXX-D Trailers, the TDX heavy duty tilt trailer is finished with our industry-leading powder coating process. Six different steps all work together to give your tilt trailer a premium powder coated steel surface with unmatched durability.

BUILD YOUR TRAILER- https://maxxdtrailers.com/tdx-tandem-dual-flatbed-tilt-gooseneck

SPEC SHEET-https://maxxdtrailers.com/assets/maxxd/images/pdf/trailer_specs_print_sheet_-_individual_tdx.pdf

STANDARD FEATURES

G18 – 25,990 LB GVWR

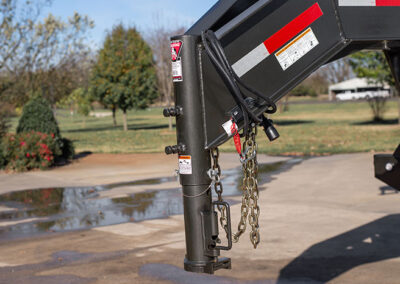

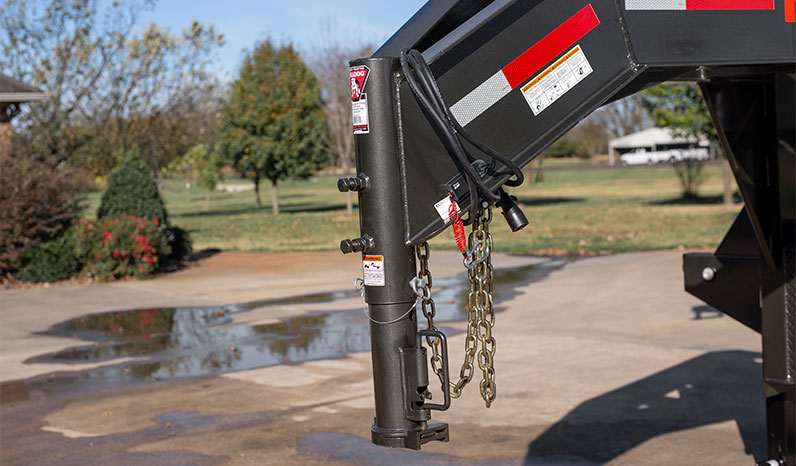

C17 – 2 5/16″ 30K ROUND GN COUPLER

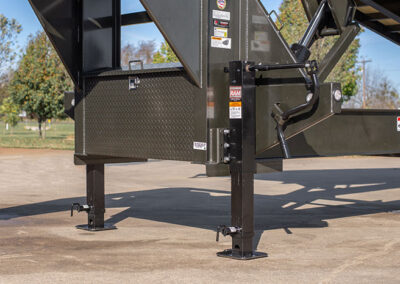

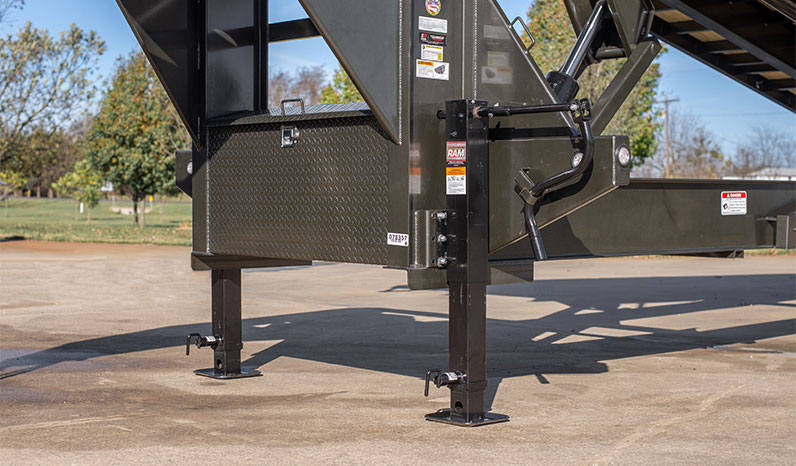

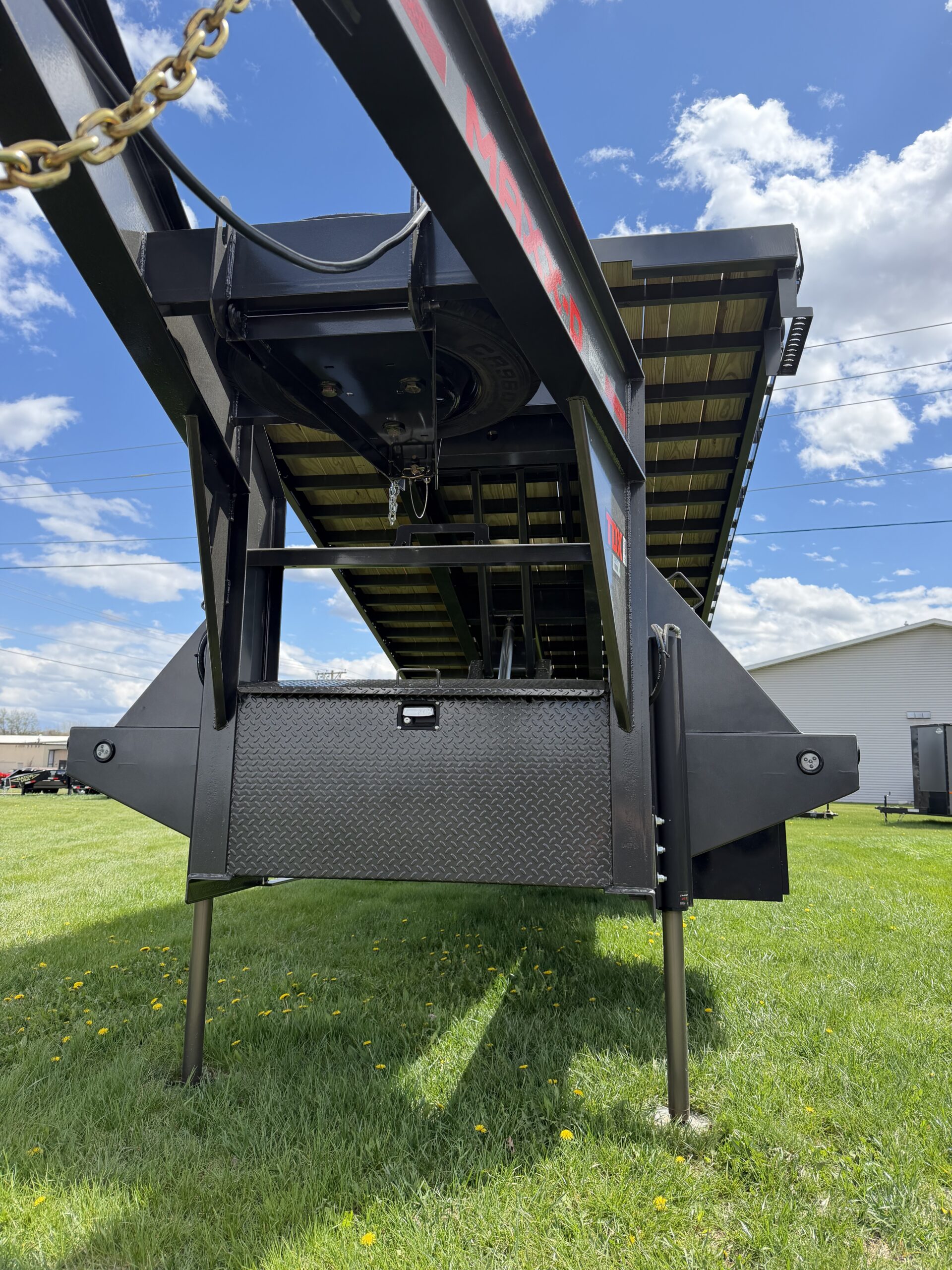

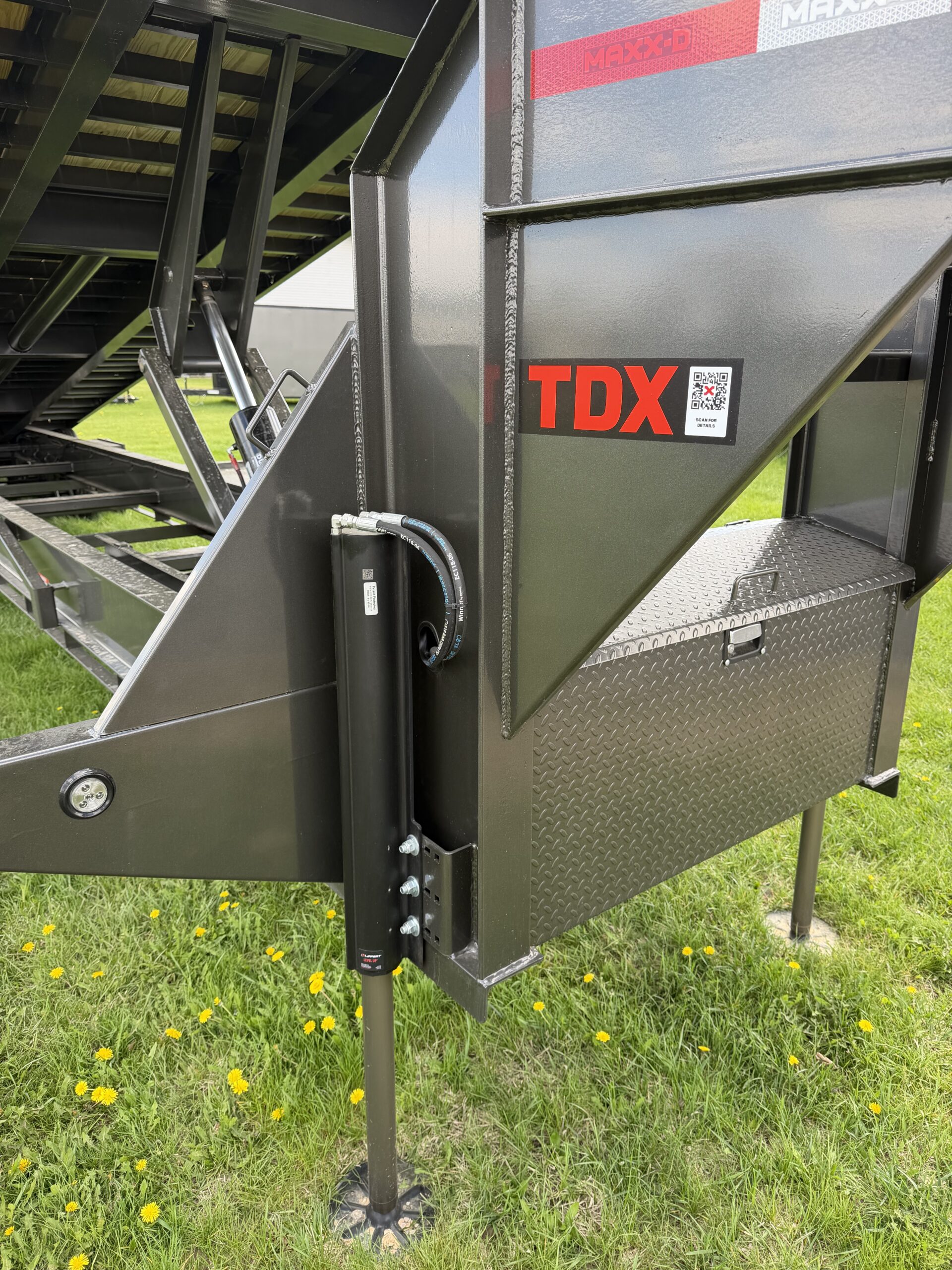

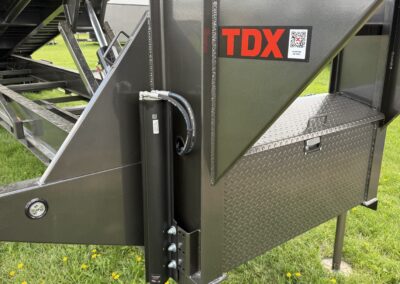

J09 – 2-HYDRAULIC JACKS

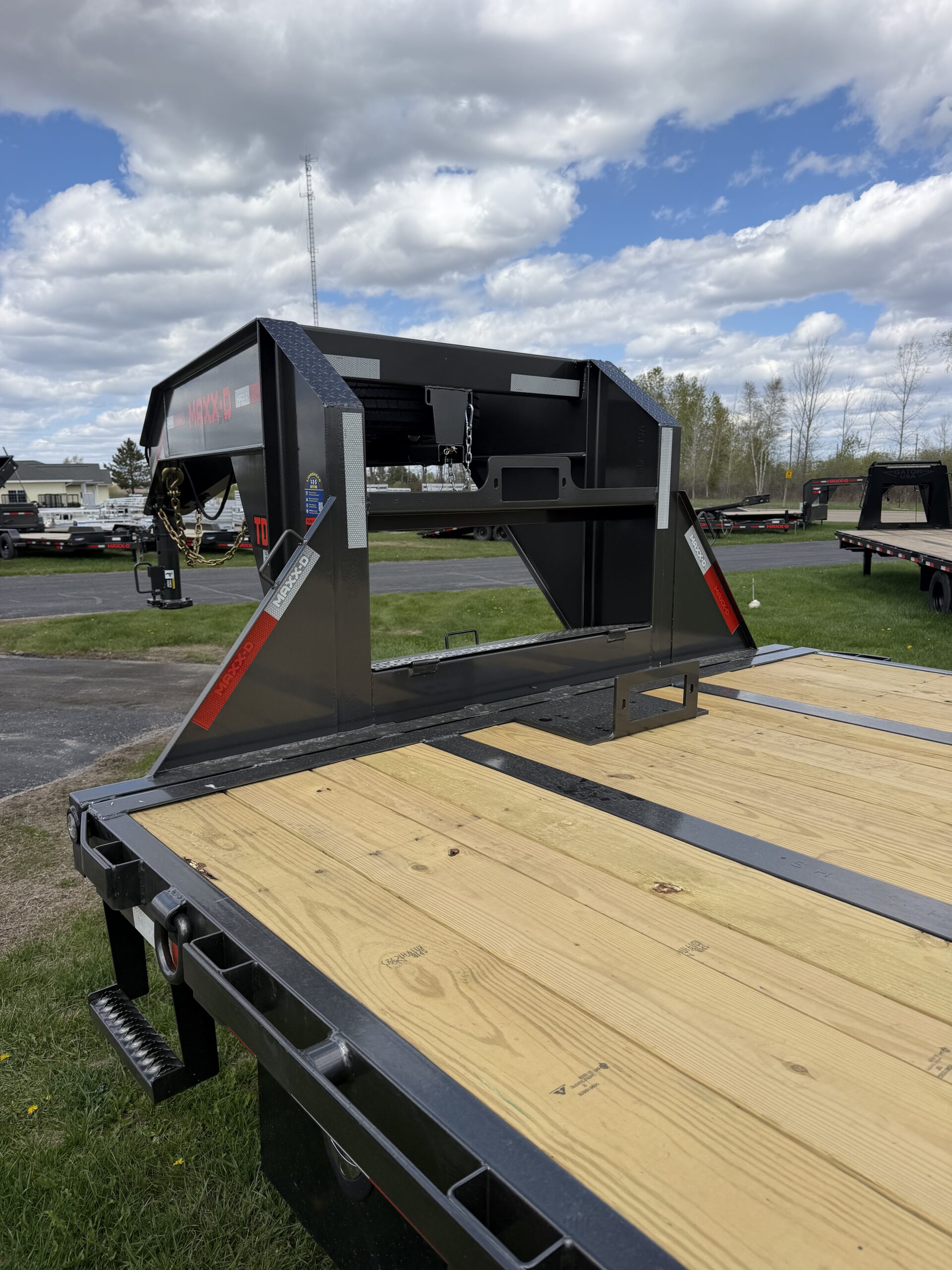

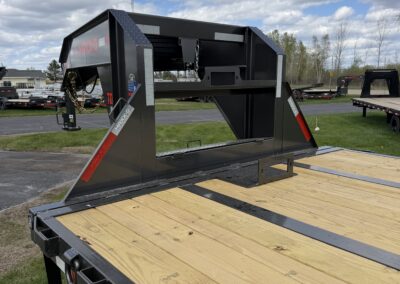

N21 – STANDARD HEIGHT I-BEAM NECK W/ FR T-BOX, WINCH PLT, & SP MT
F50 – 12″ X 22LB I-BEAM FRAME WITH BRIDGE AND TORQUE TUBE

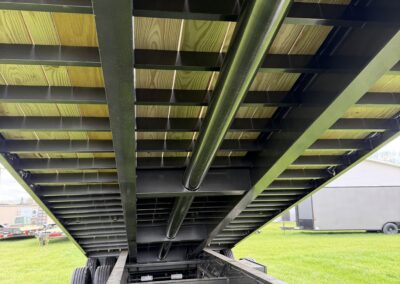

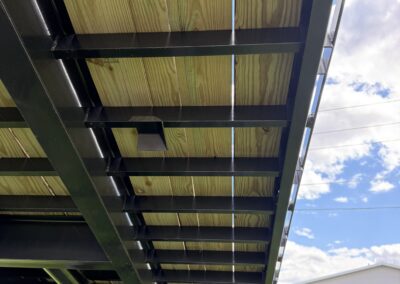

X07 – 3″ CHANNEL ON 12″ CENTERS
R06 – 6″ CHANNEL OUTER FRAME

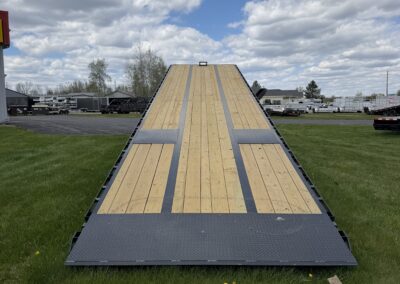

D137 – STANDARD BUMPER/KNIFE EDGE REAR
A64 – 2-15K ELECTRIC/HYDRAULIC BRAKE AXLES
S05 – HDSS SUSPENSION 2 AXLES

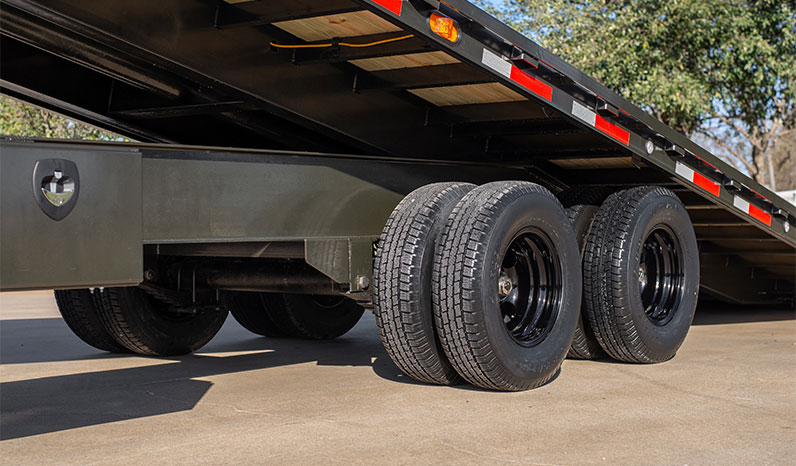

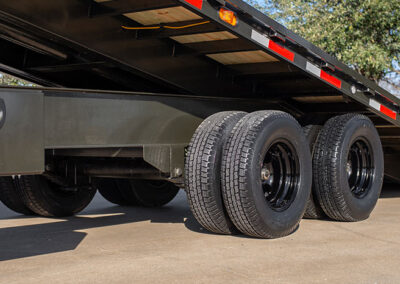

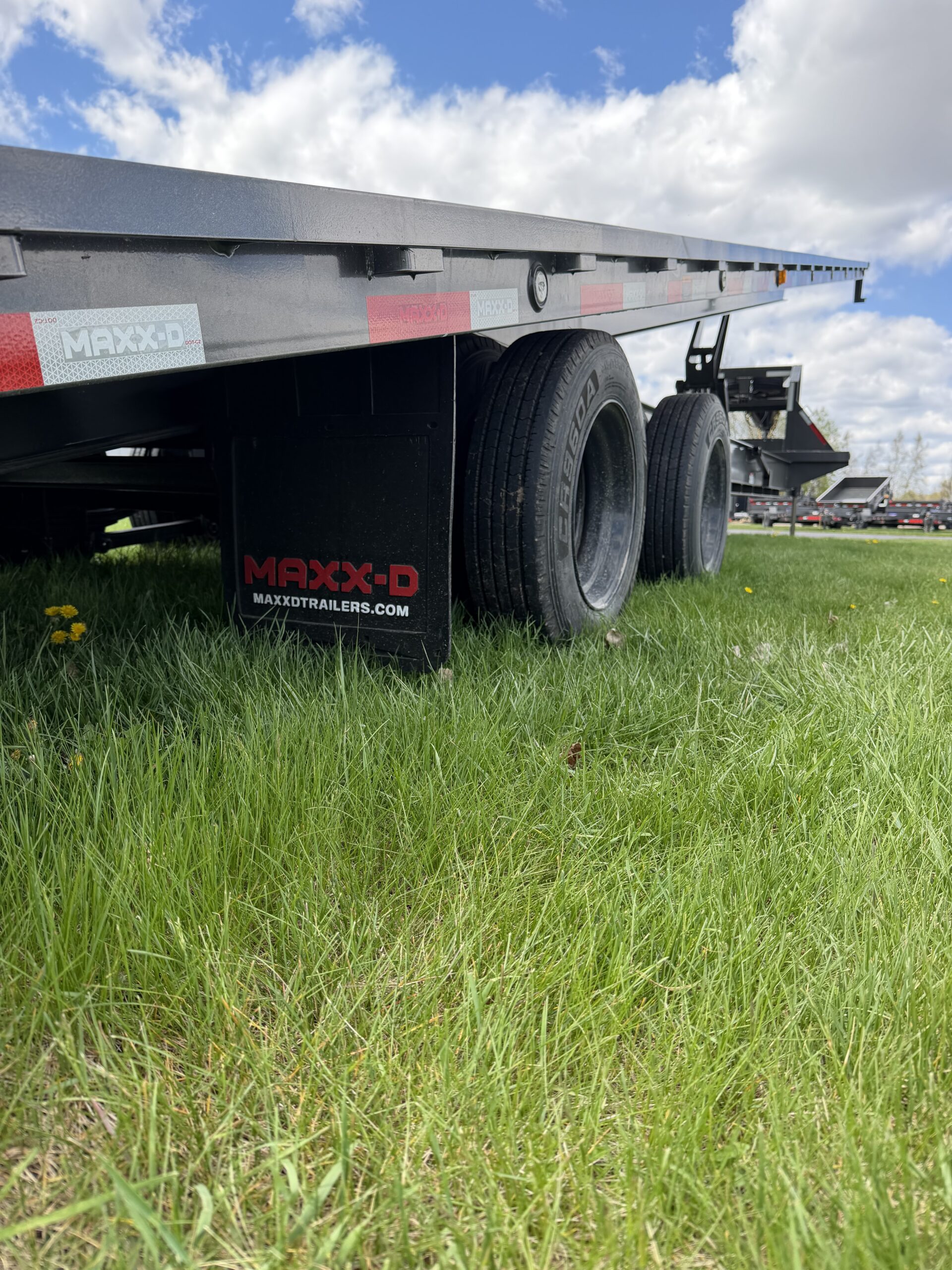

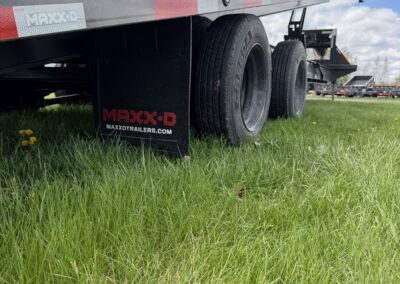

T30 – DUALS (9) ST215/75R17.5 H TIRES for 2-15/16K
P14 – NOT APPLICABLE

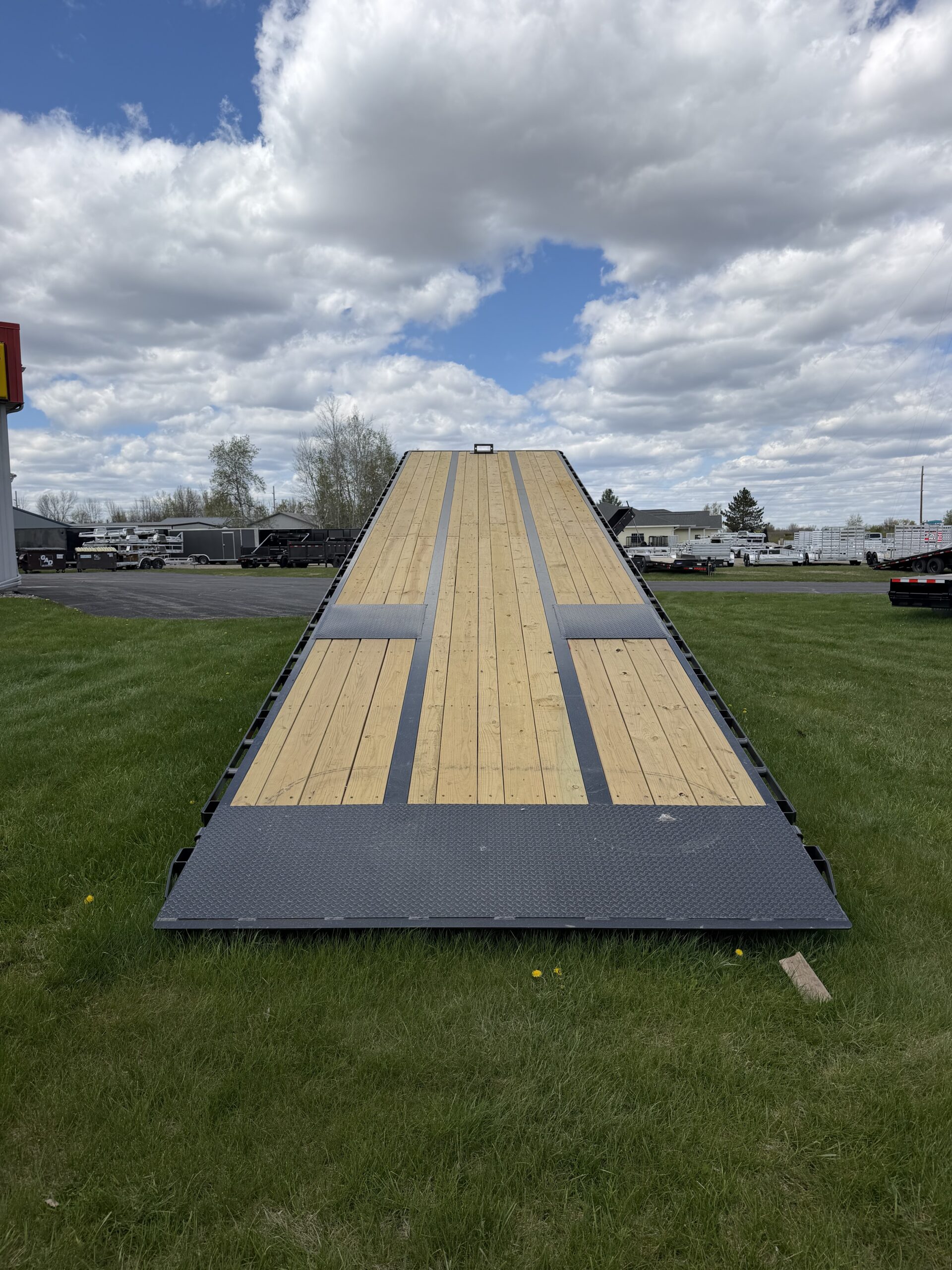

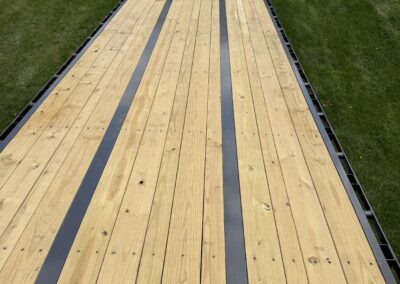

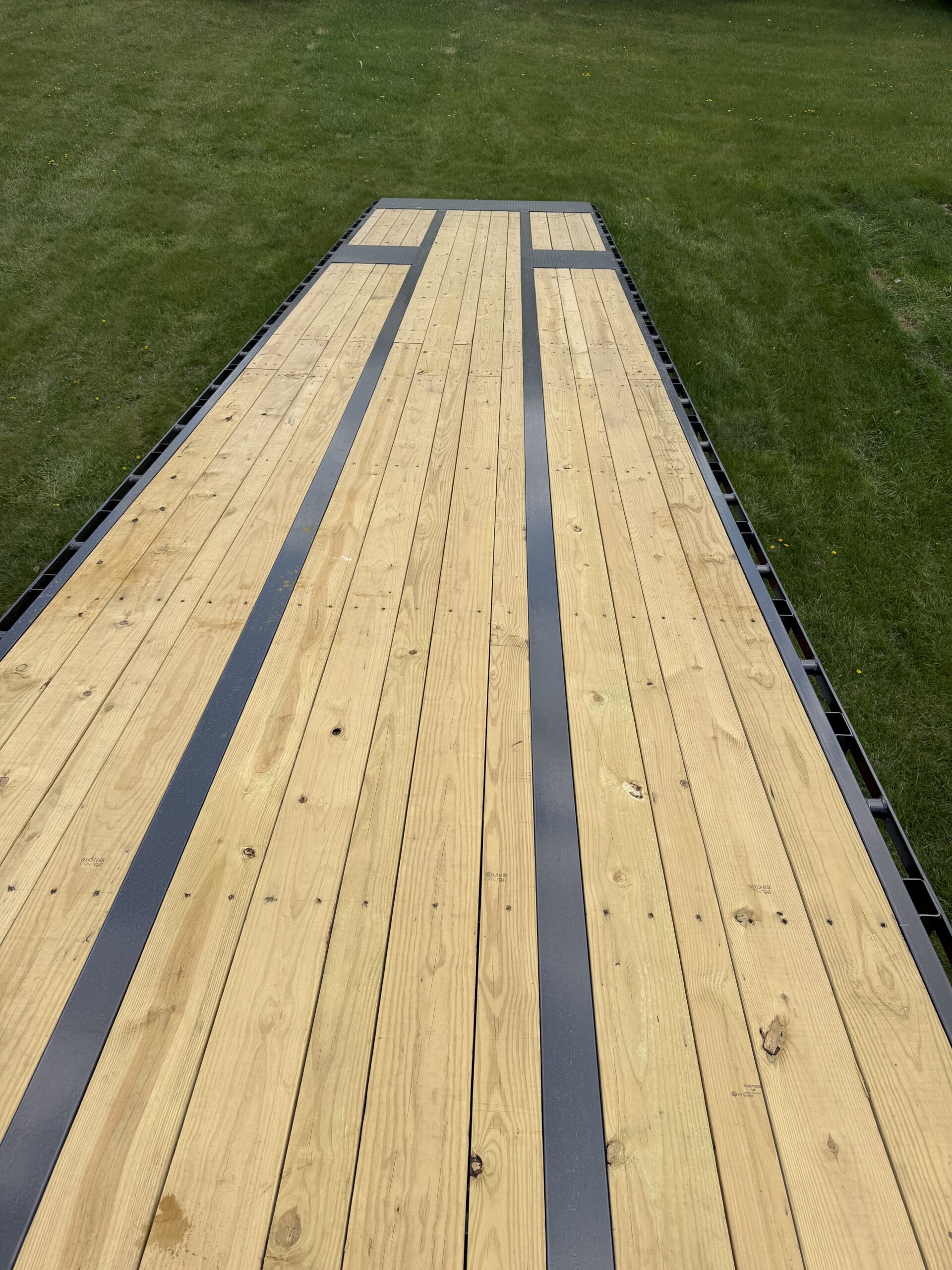

E04 – 2X8 TREATED WOOD FLOOR
L03 – FLUSHMOUNT LED’S / STANDARD SEALED WIRING HARNESS
O02 – MAXXD GRAY METALLIC & PRIMER

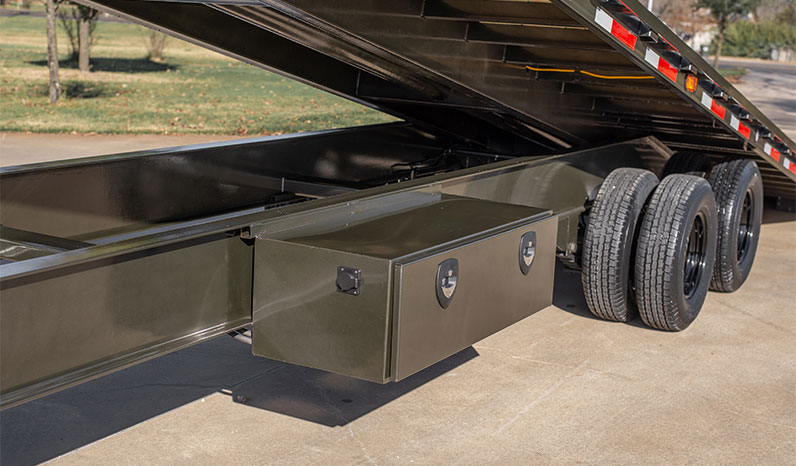

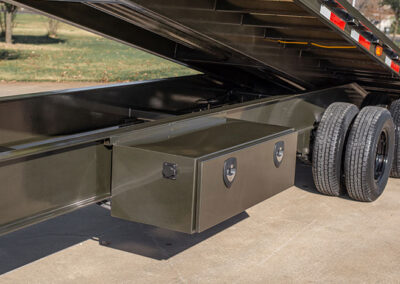

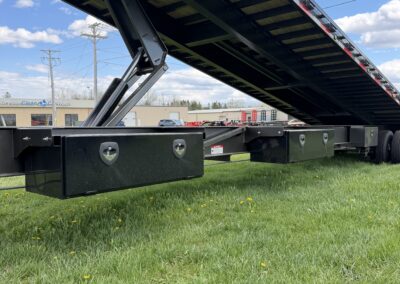

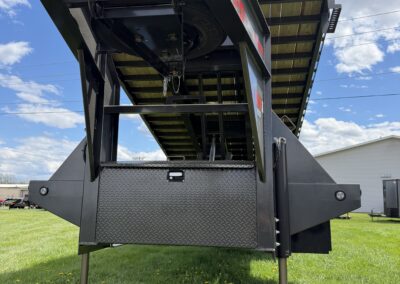

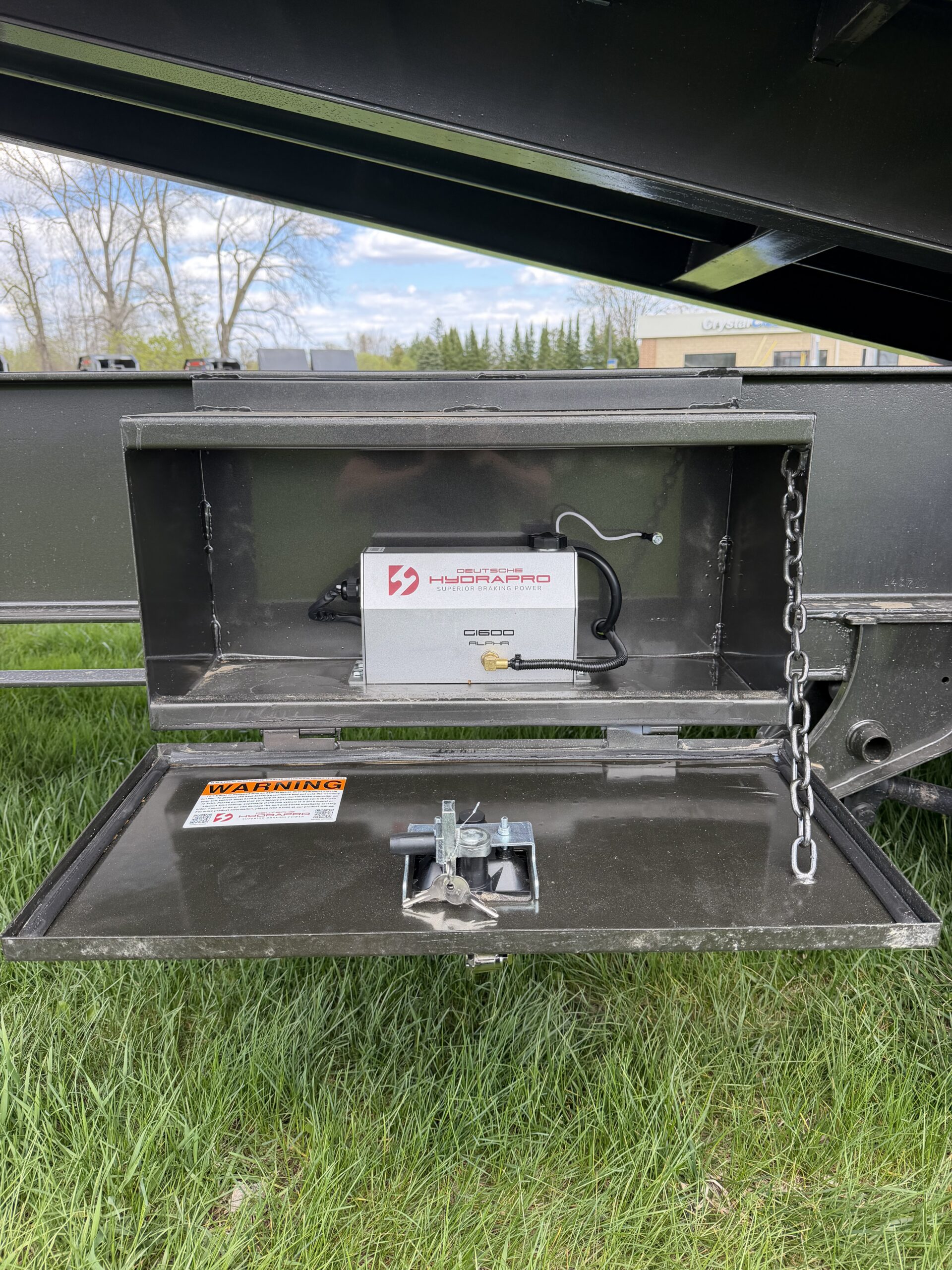

K46 – 1x 48″ STANDARD T-BOX FOR HYD & 1xtra 48″ SIDE MOUNT T-BOX

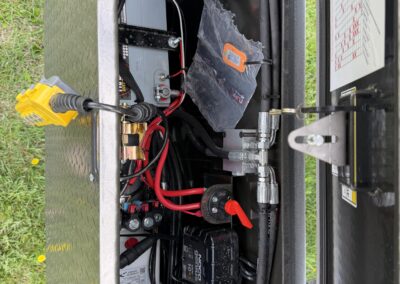

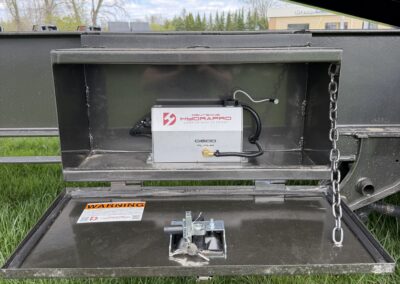

Y64 – WIRELESS REMOTE W/HYD&POWER OPTIONS W/ NOCO BATTERY CHARGERS
Y15 – AGM GROUP 31 BATTERY

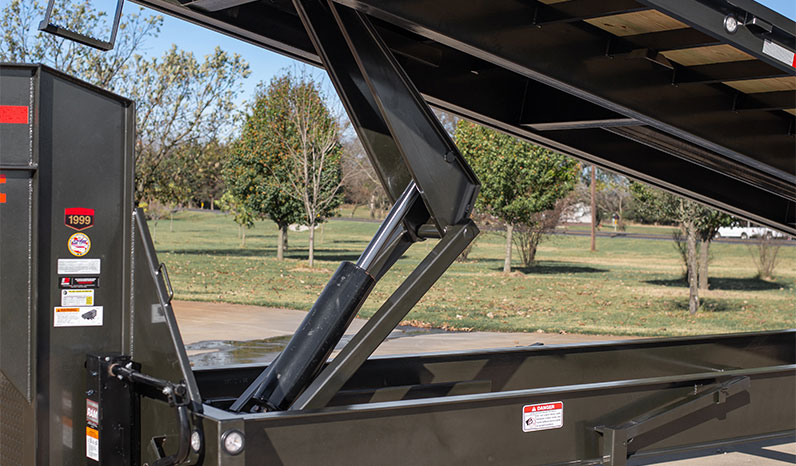

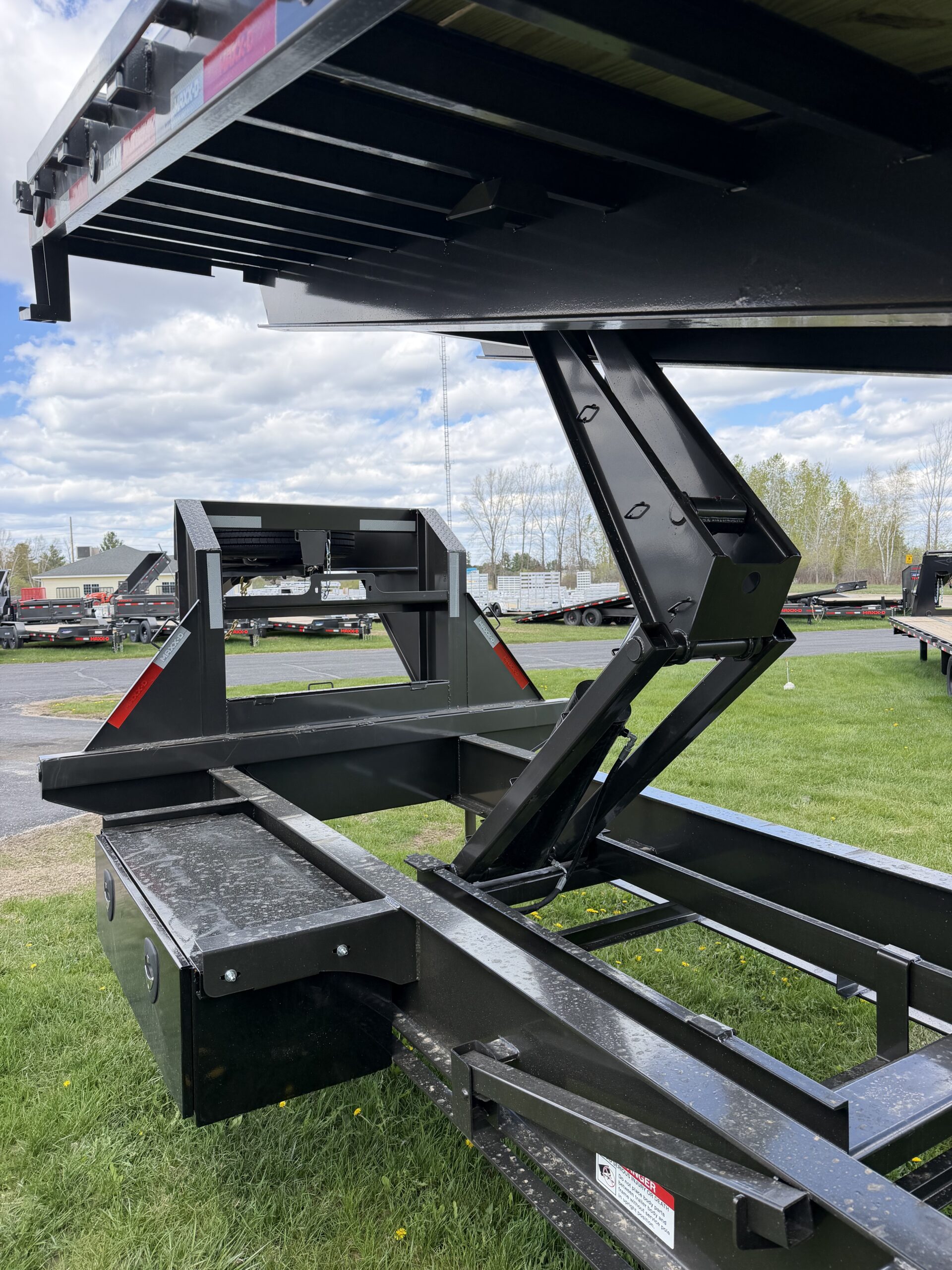

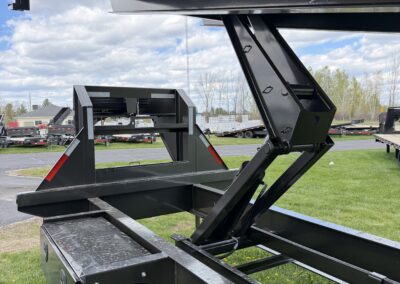

Y68 – 6X21″ SCISSOR HOIST

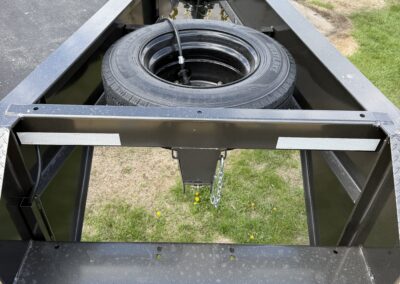

Y65 – SPARE TIRE AND MOUNT

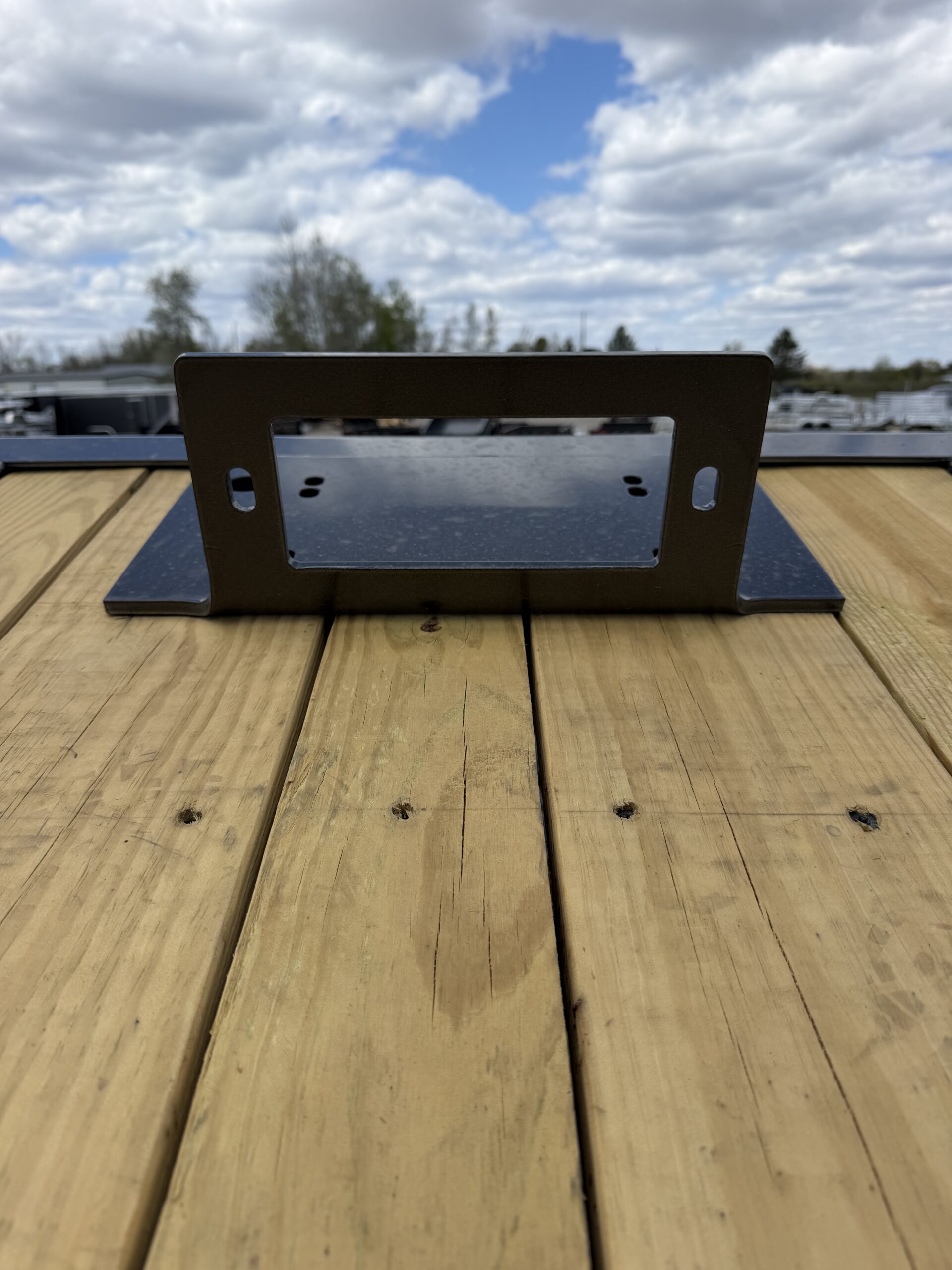

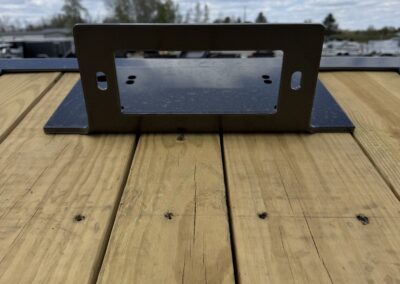

W01 – WINCH PLATE IN FRONT
