• 22′-32′

• 2- 7K AXLES (14,000 LB GVWR)
• 2- 8K AXLES (16,000 LB GVWR) or (18,000 LB GVWR)

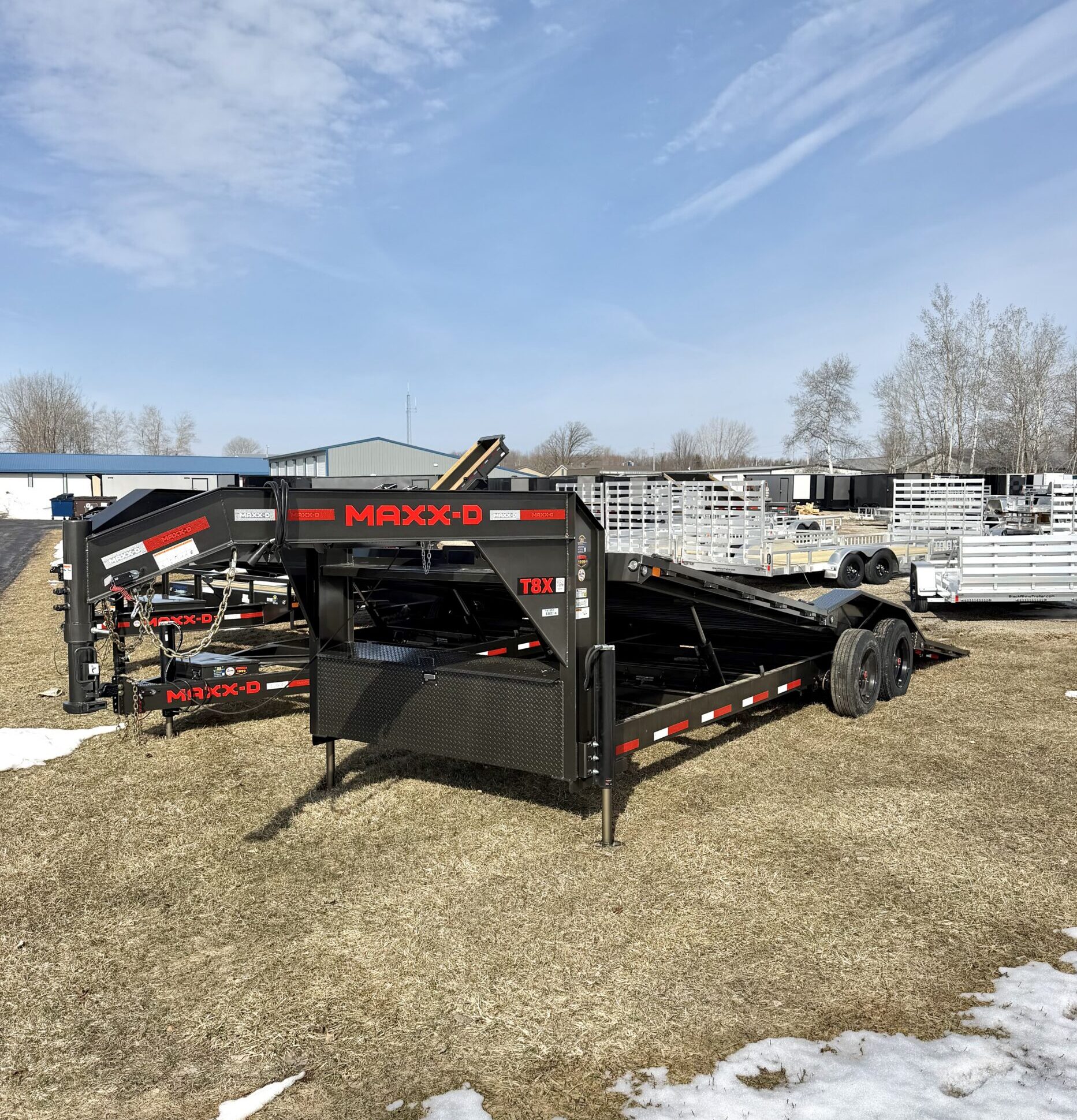

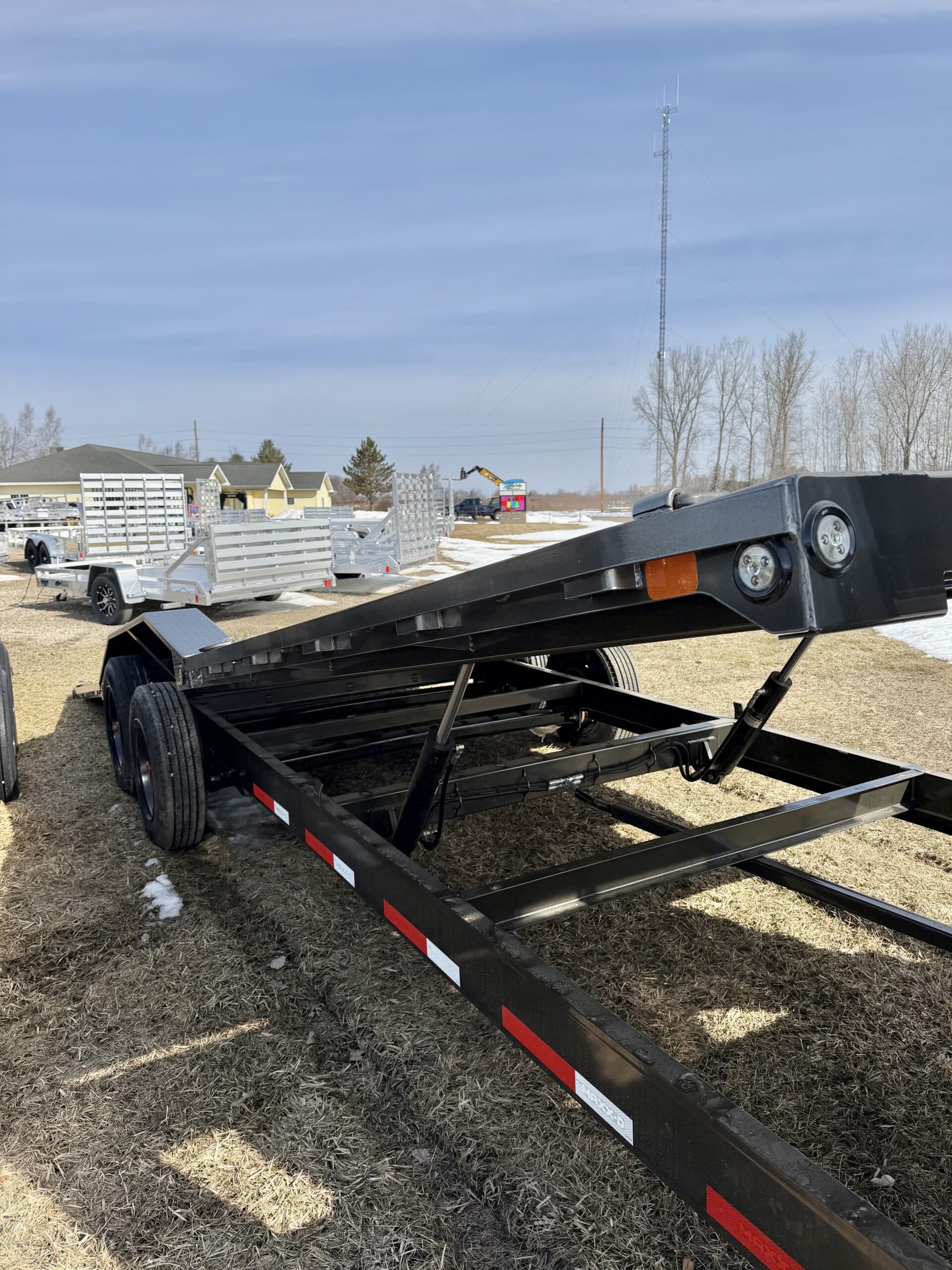

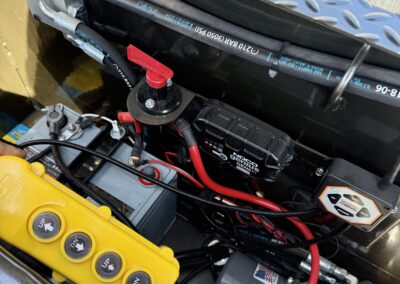

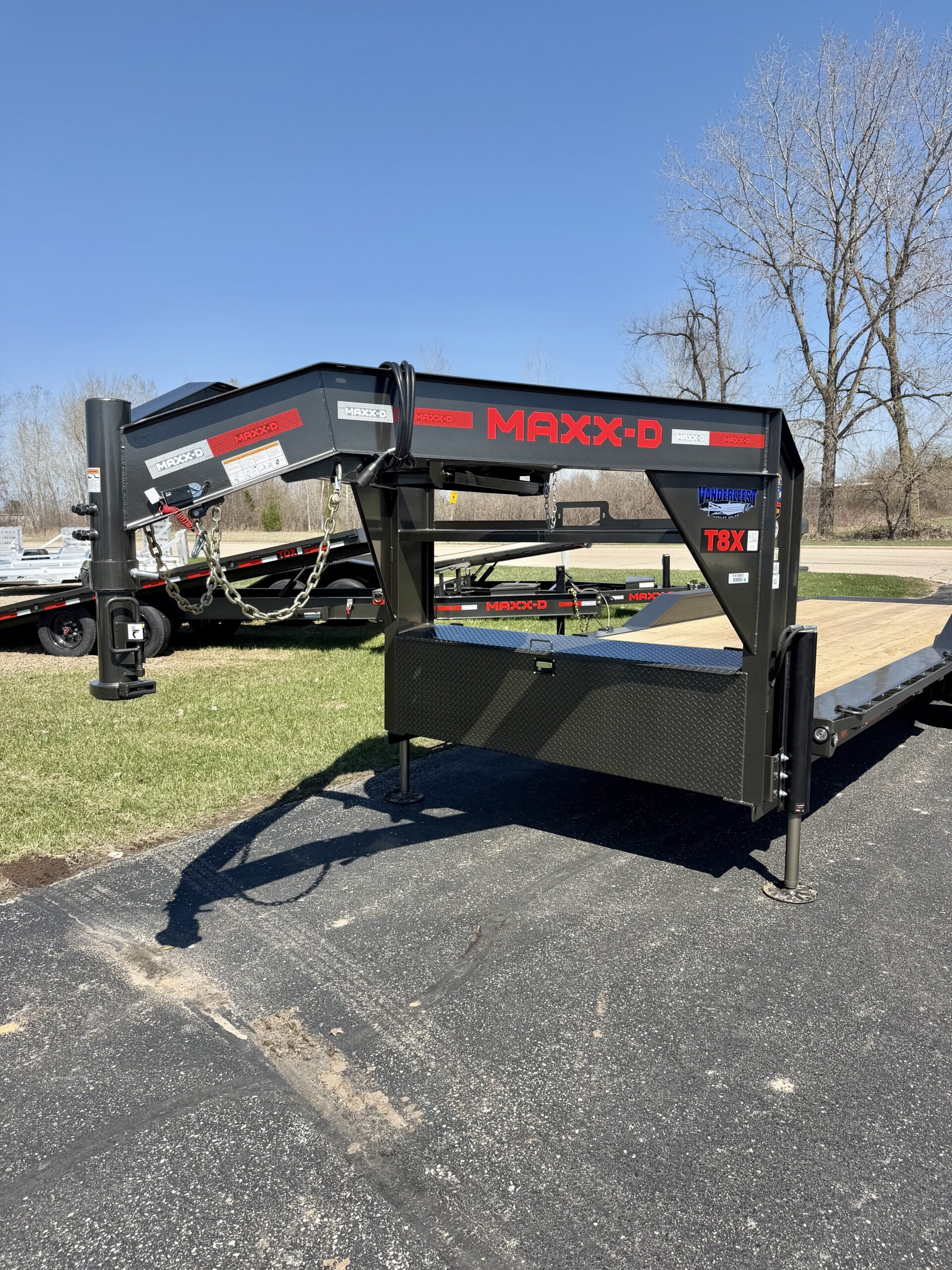

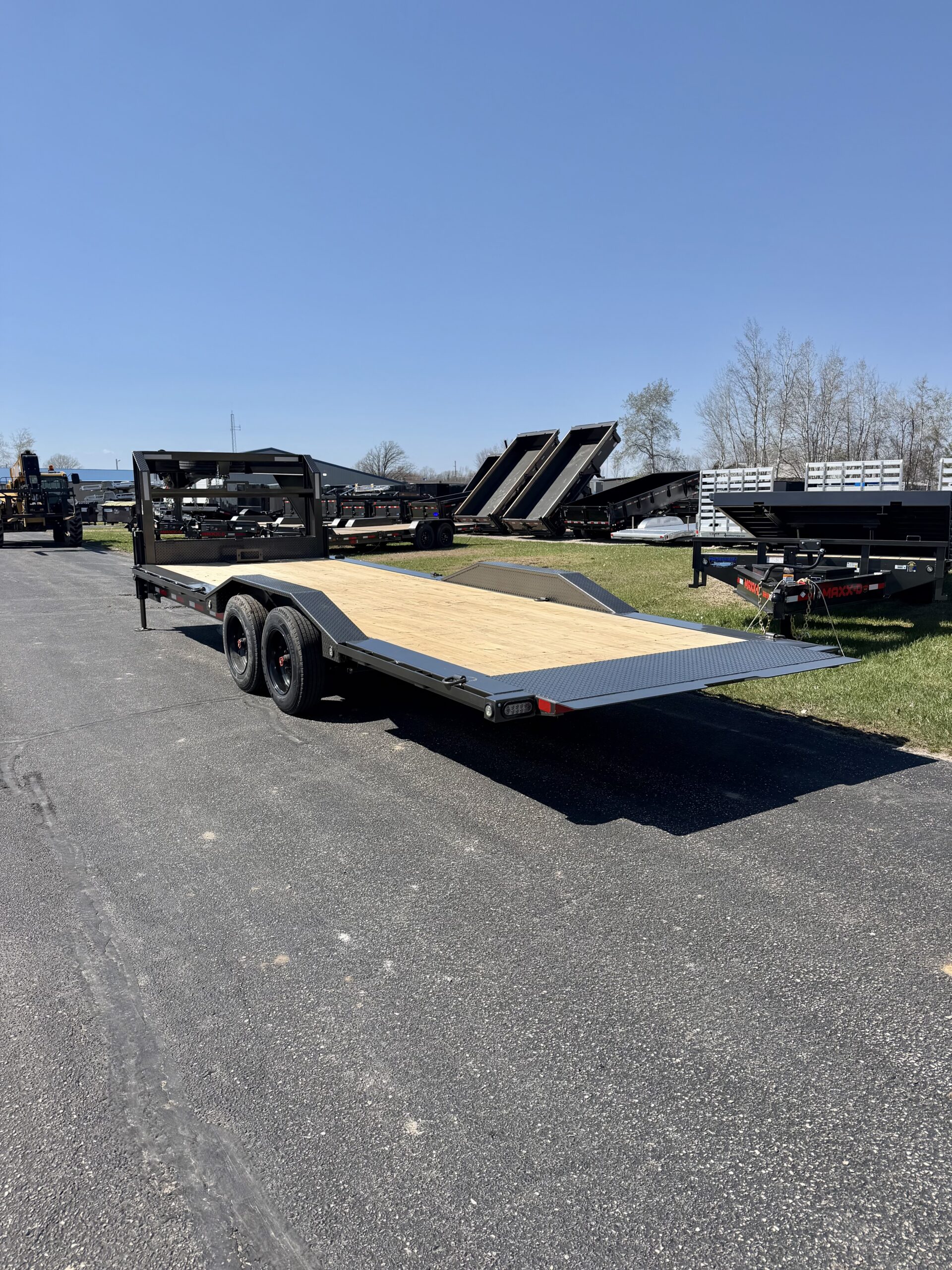

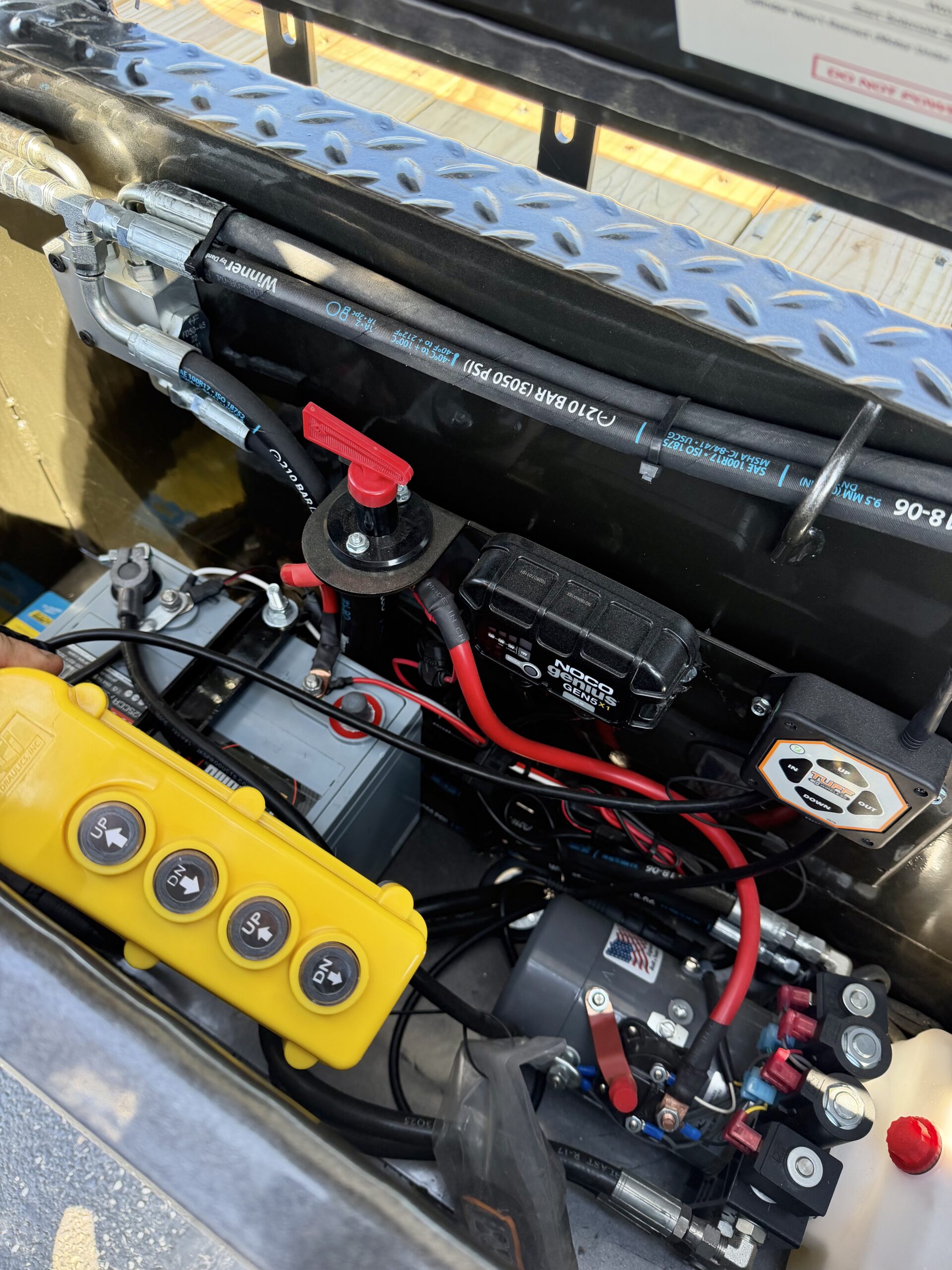

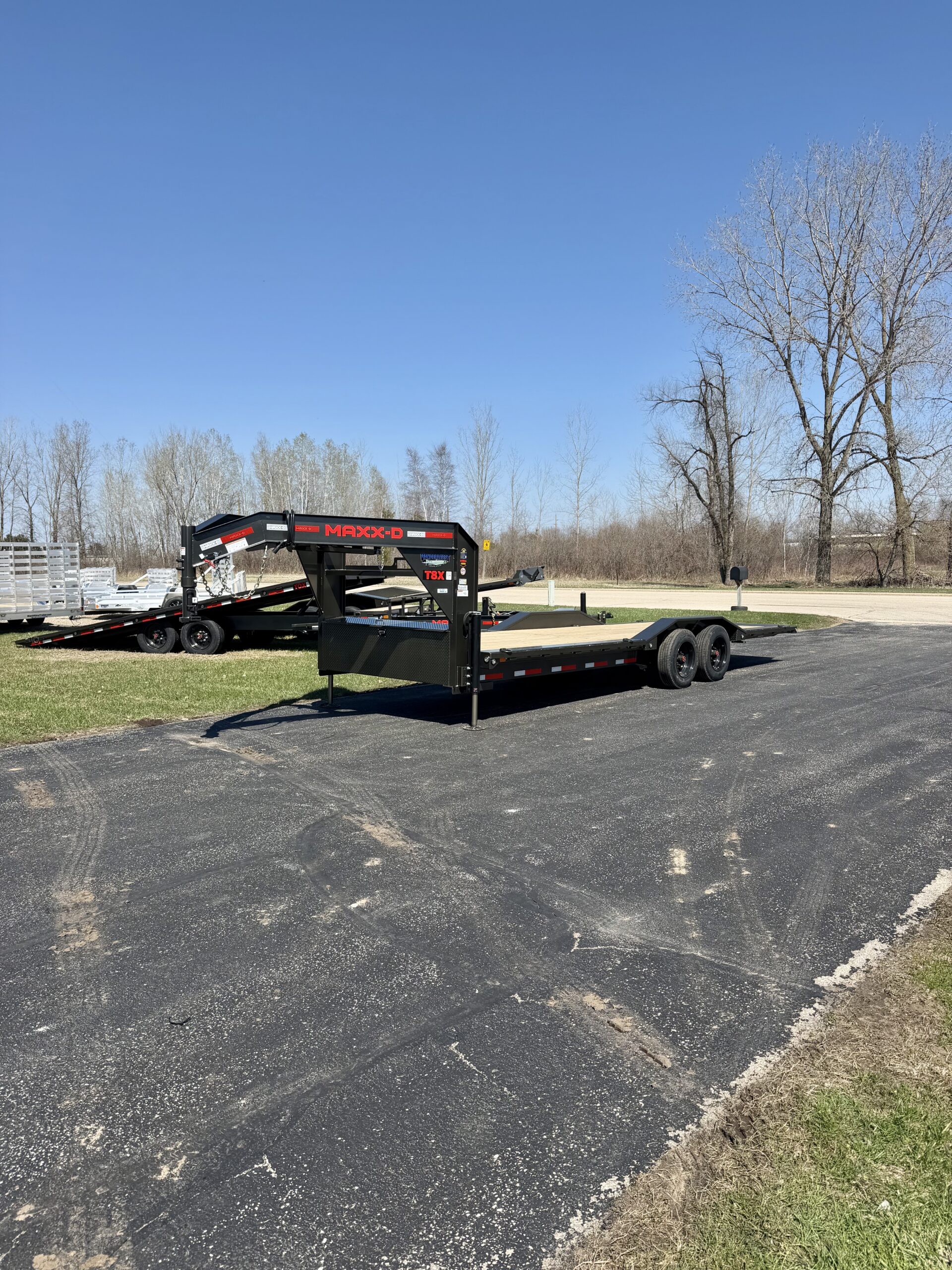

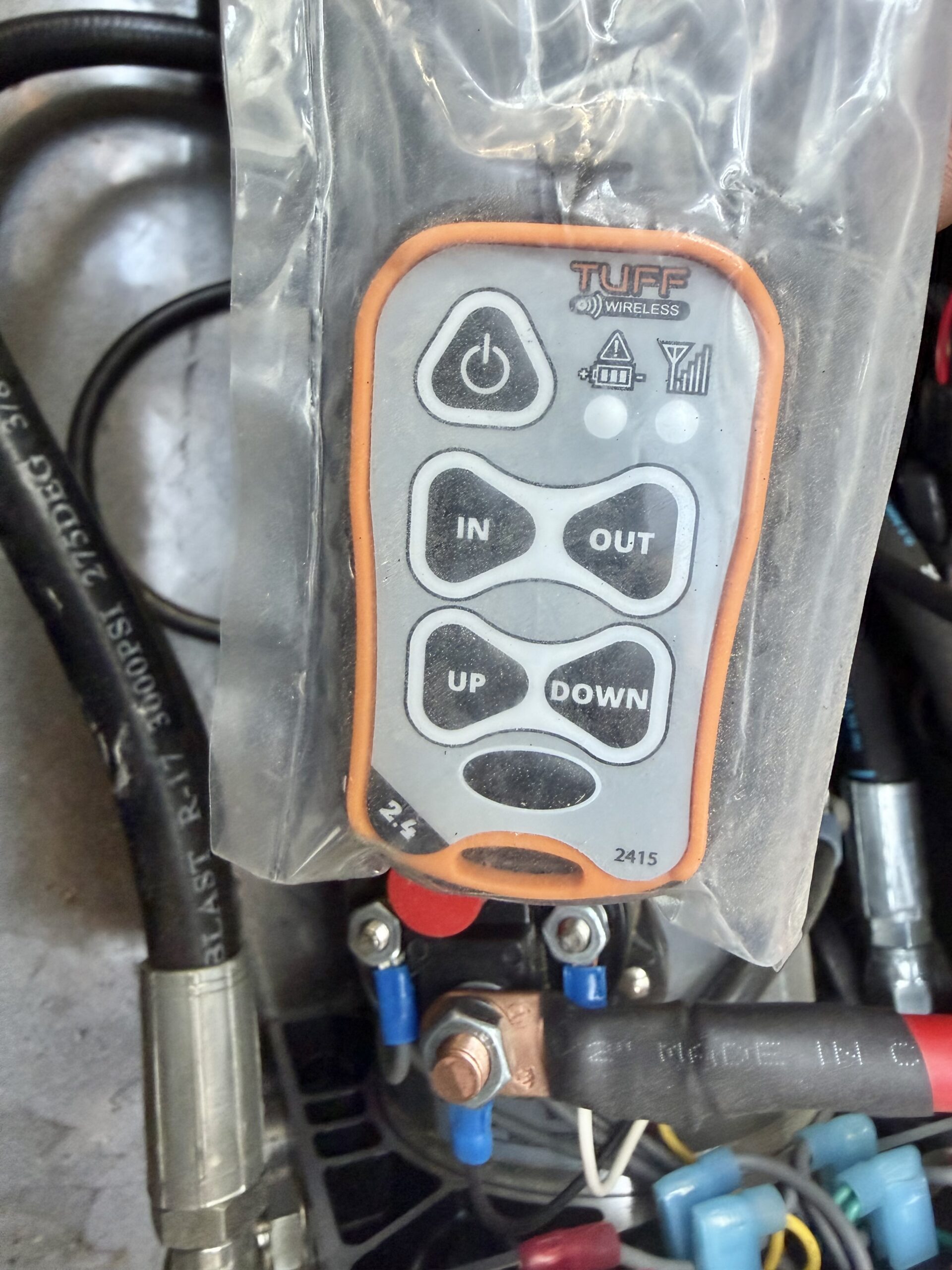

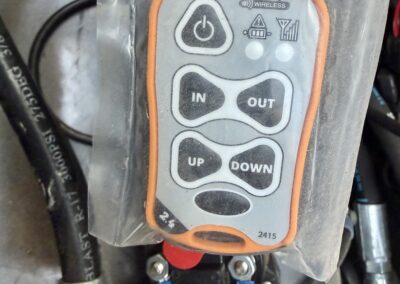

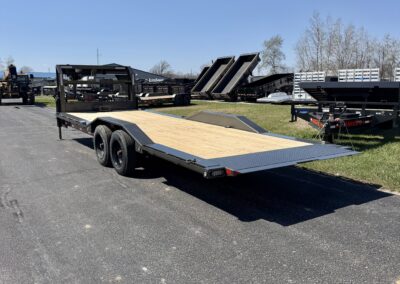

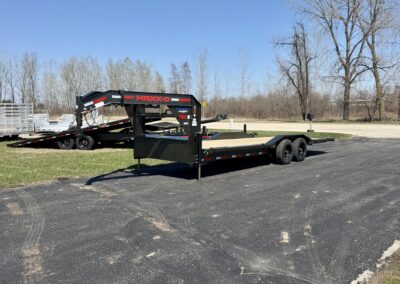

The T8X powered tilt trailer is perfect for users seeking a fully-featured, easy to use trailer with a full-length tilting bed. Raising and lowering the deck is as easy as activating the hydraulic power unit and letting the trailer do the work! It’s even available with a wireless remote for raising and lowering the bed from inside your tow vehicle. The T8X is perfect for hauling equipment with longer wheelbases, tractors with farm implements, or even two small cars.

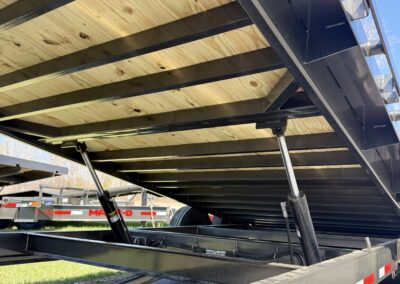

We build the T8X in 22’, 24’, 28’, and 32’. All T8X trailers feature dual cylinder controls to keep your load balanced.

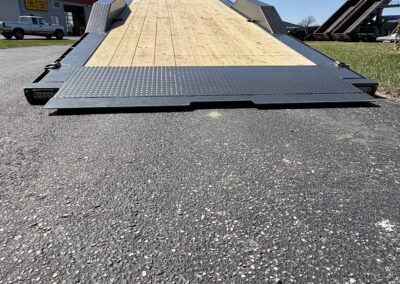

Width between the fenders on a standard T8X is 83”, and we offer the option of rugged drive over fenders for a full-width use of 102”. No matter which deck length you choose, we designed the T8X with low loading angles for your safety and convenience.

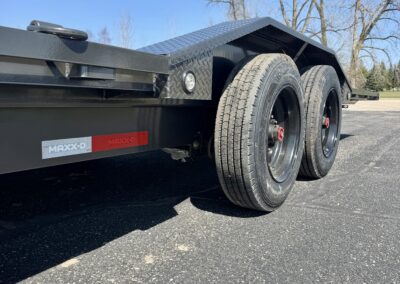

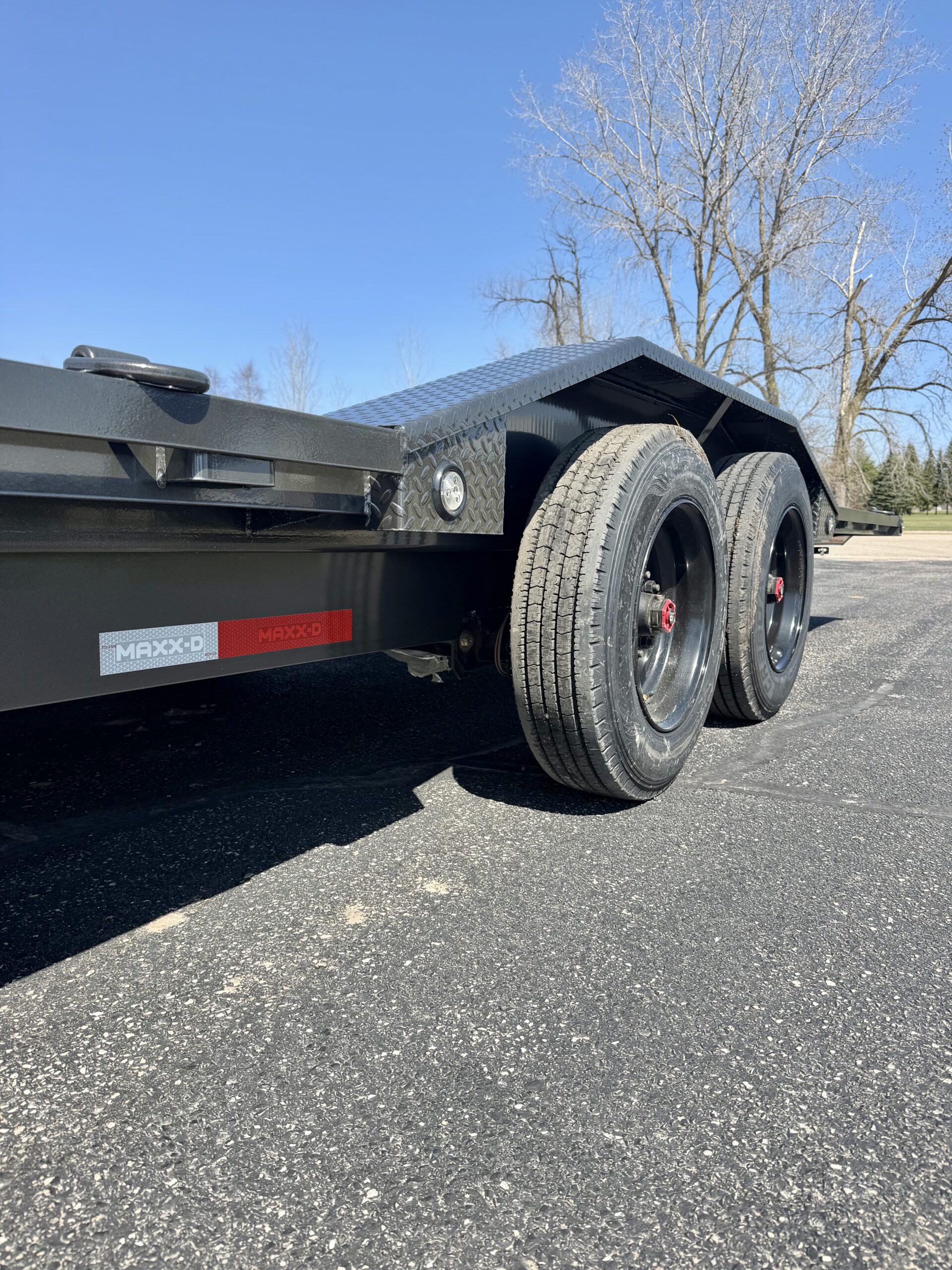

Two torsion axles come standard on the T8X powered tilt trailer, providing a base GVWR of 16,000 pounds. These torsion axles feature an enhanced warranty over a traditional suspension style and provide a smoother ride and lower deck height.

LINK https://maxxdtrailers.com/t8x-8-power-equipment-tilt-trailer

SPEC SHEET https://maxxdtrailers.com/assets/maxxd/images/pdf/trailer_specs_print_sheet_-_individual_t8x.pdf

G29 – 18,000 LB GVWR

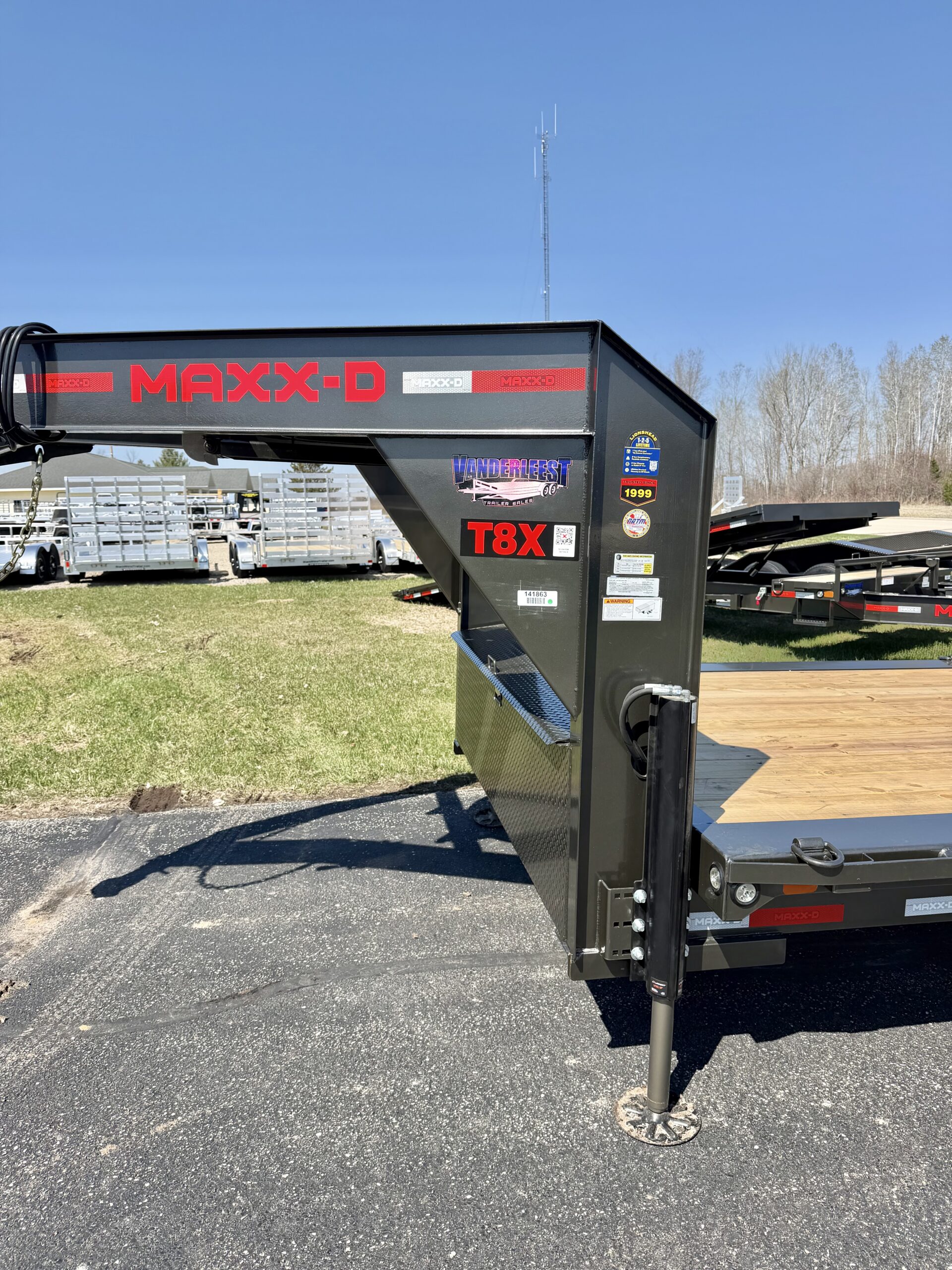

C17 – 2 5/16″ 30K ROUND GN COUPLER

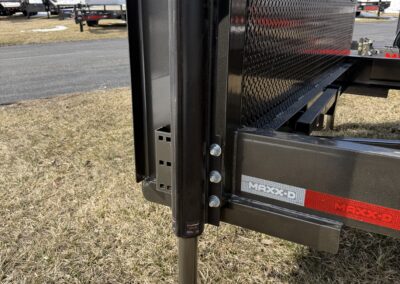

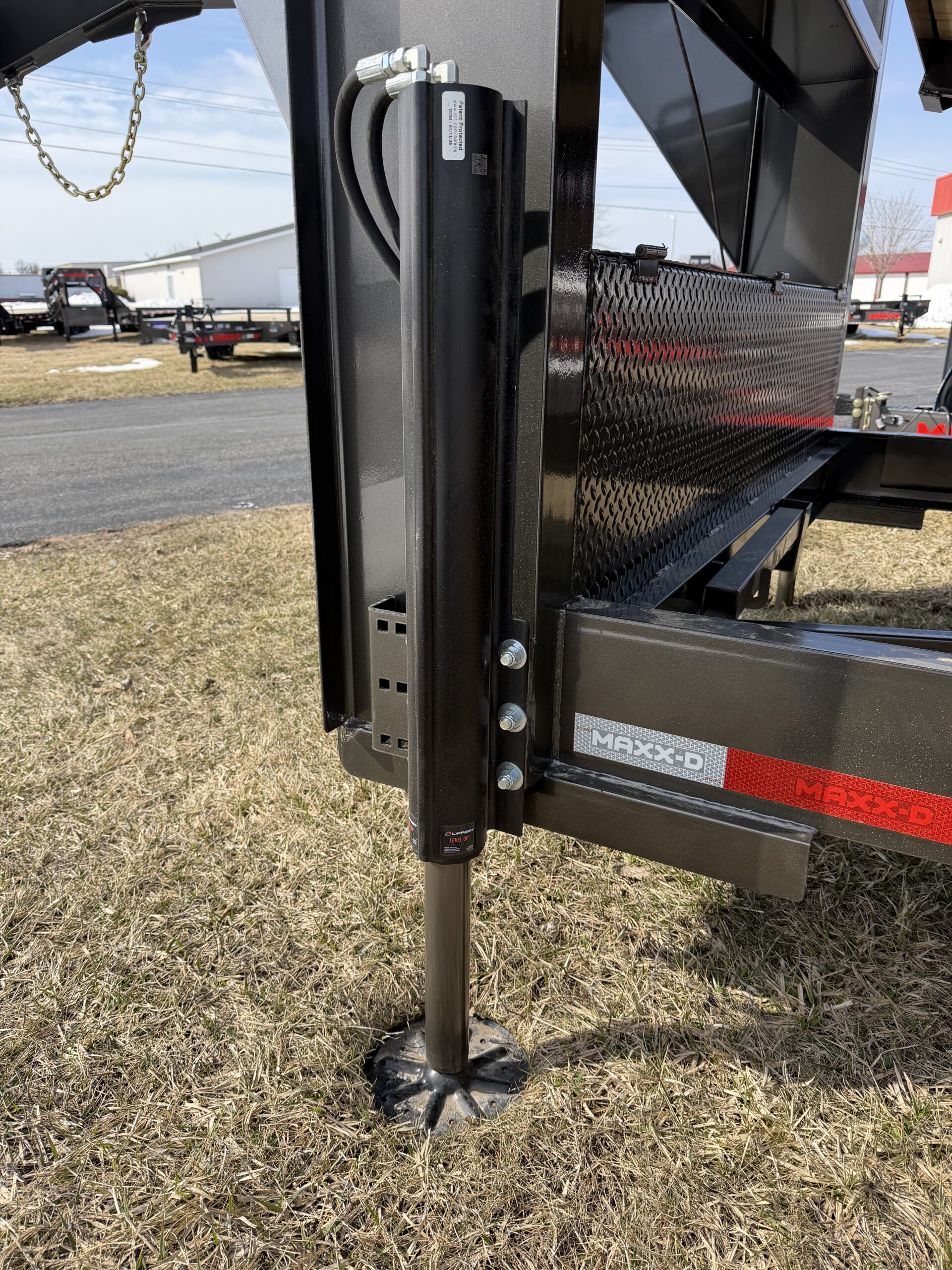

J20 – 2-HYDRAULIC JACKS ON GN

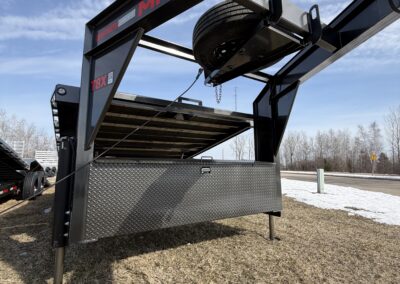

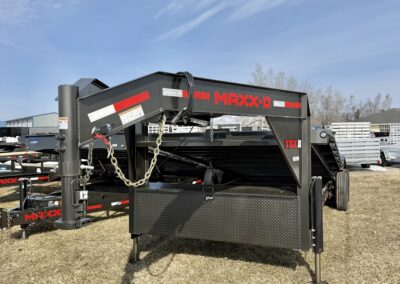

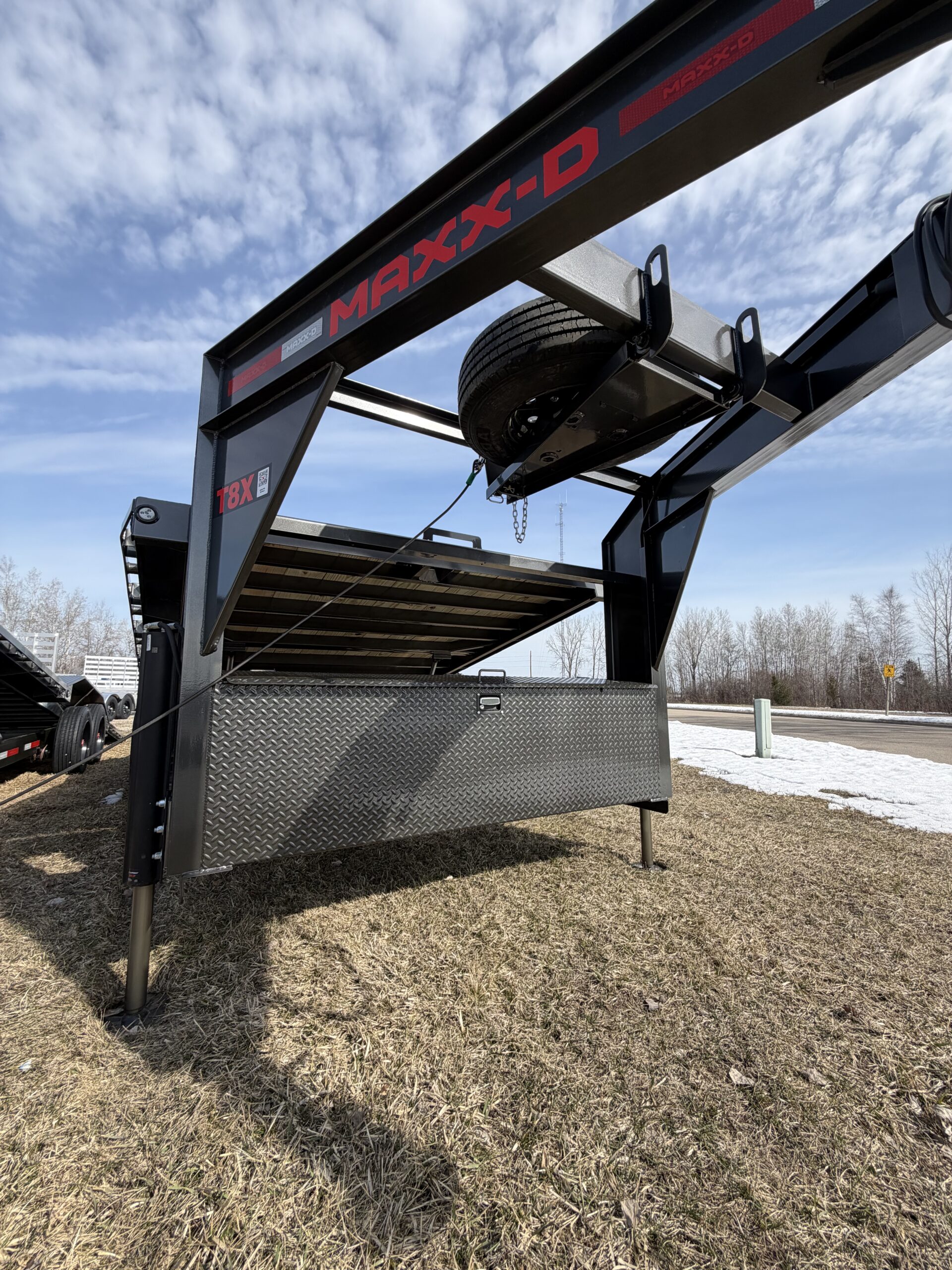

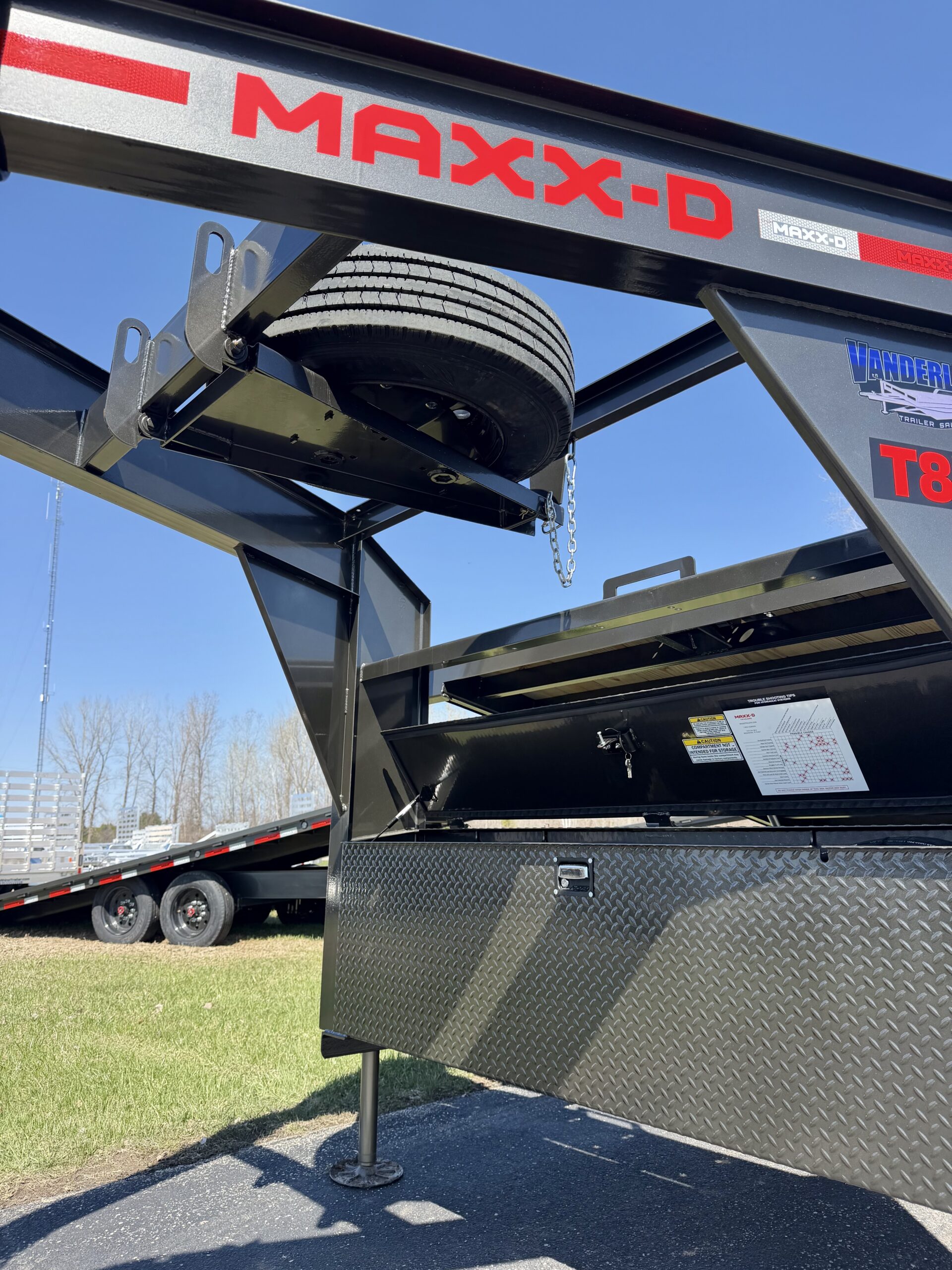

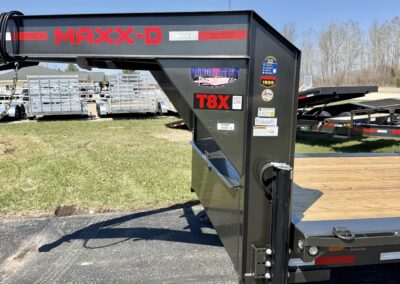

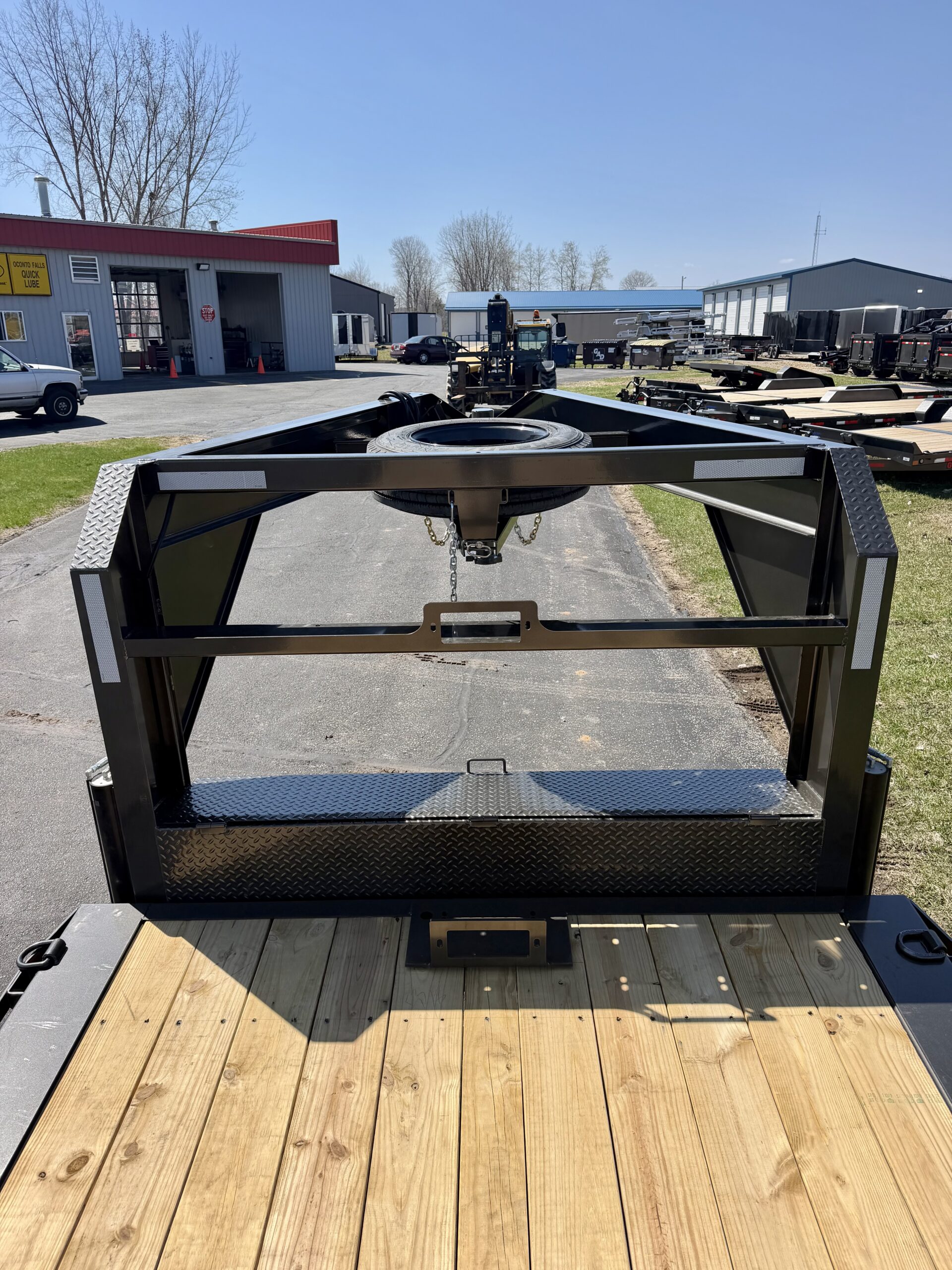

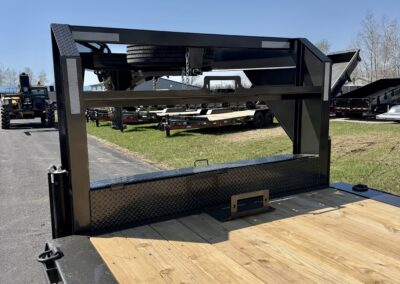

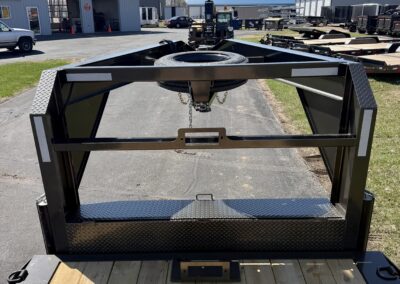

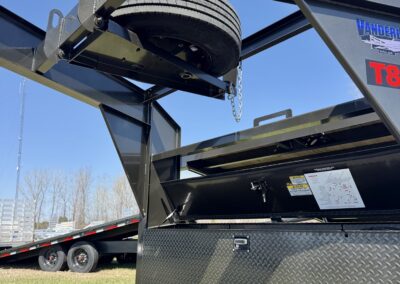

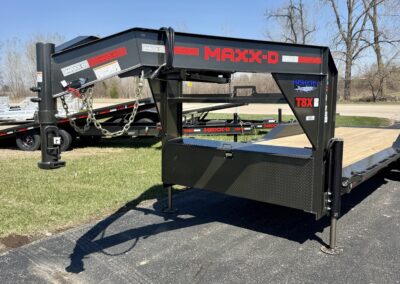

N21 – STANDARD HEIGHT I-BEAM NECK W/ FR T-BOX, WINCH PLT, & SP MT
F102 – 6X2 1/4″ TUBE FRAME

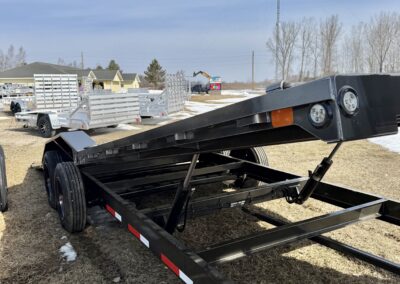

X07 – 3″ CHANNEL ON 12″ CENTERS
R114 – STAKE POCKETS, RUBRAILS AND PIPE SPOOLS
D47 – NO STATIONARY/KNIFE EDGE REAR
A74 – 2-8K ELECTRIC BRAKE AXLES
S11 – TORSION SPRING SUSPENSION 22.5* UP ON 2 AXLES
T29 – SINGLES (5) ST215/75R17.5 H TIRES FOR 2-8K

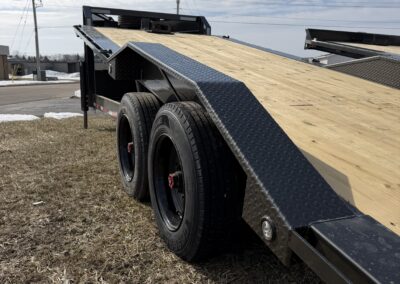

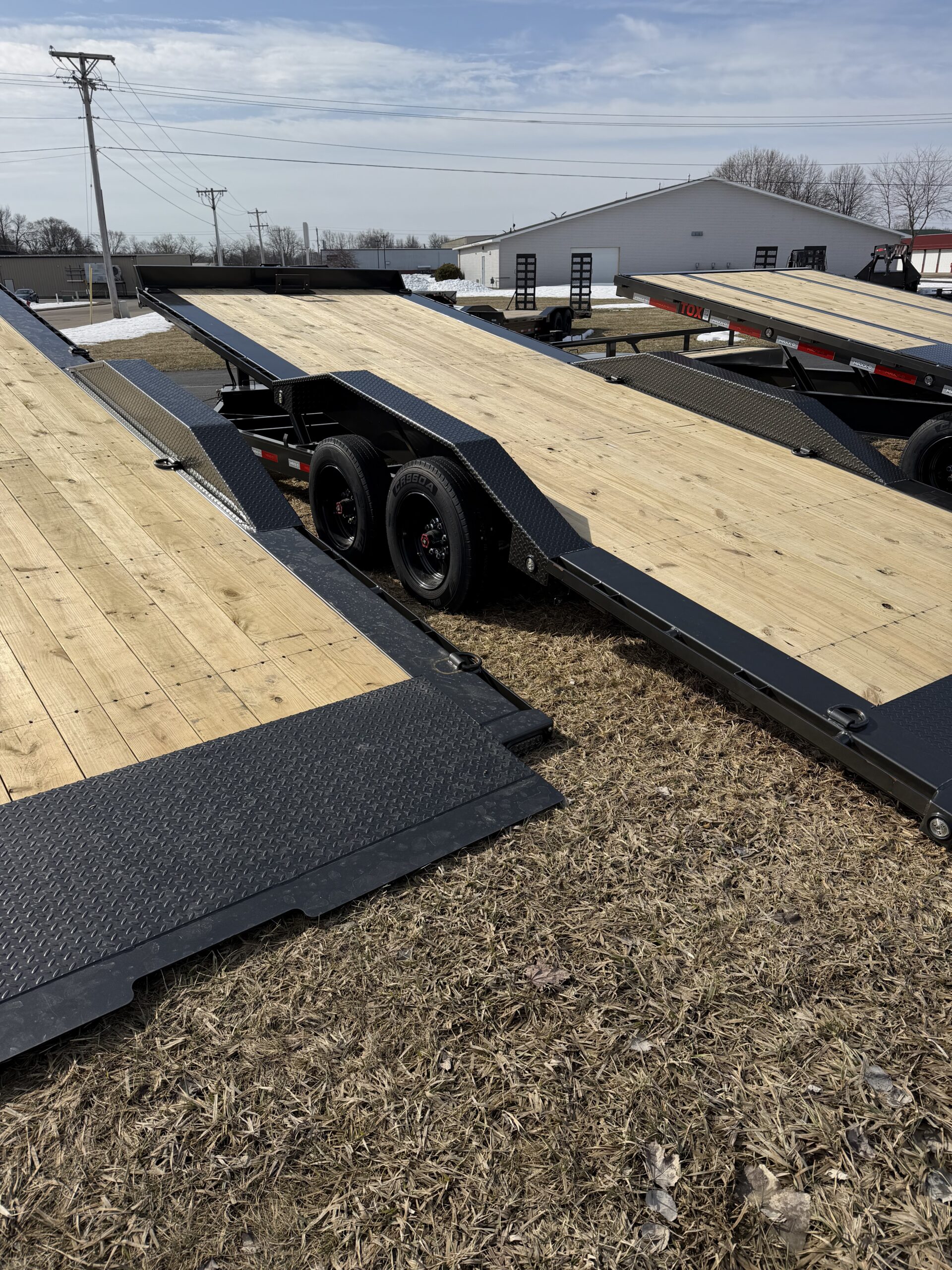

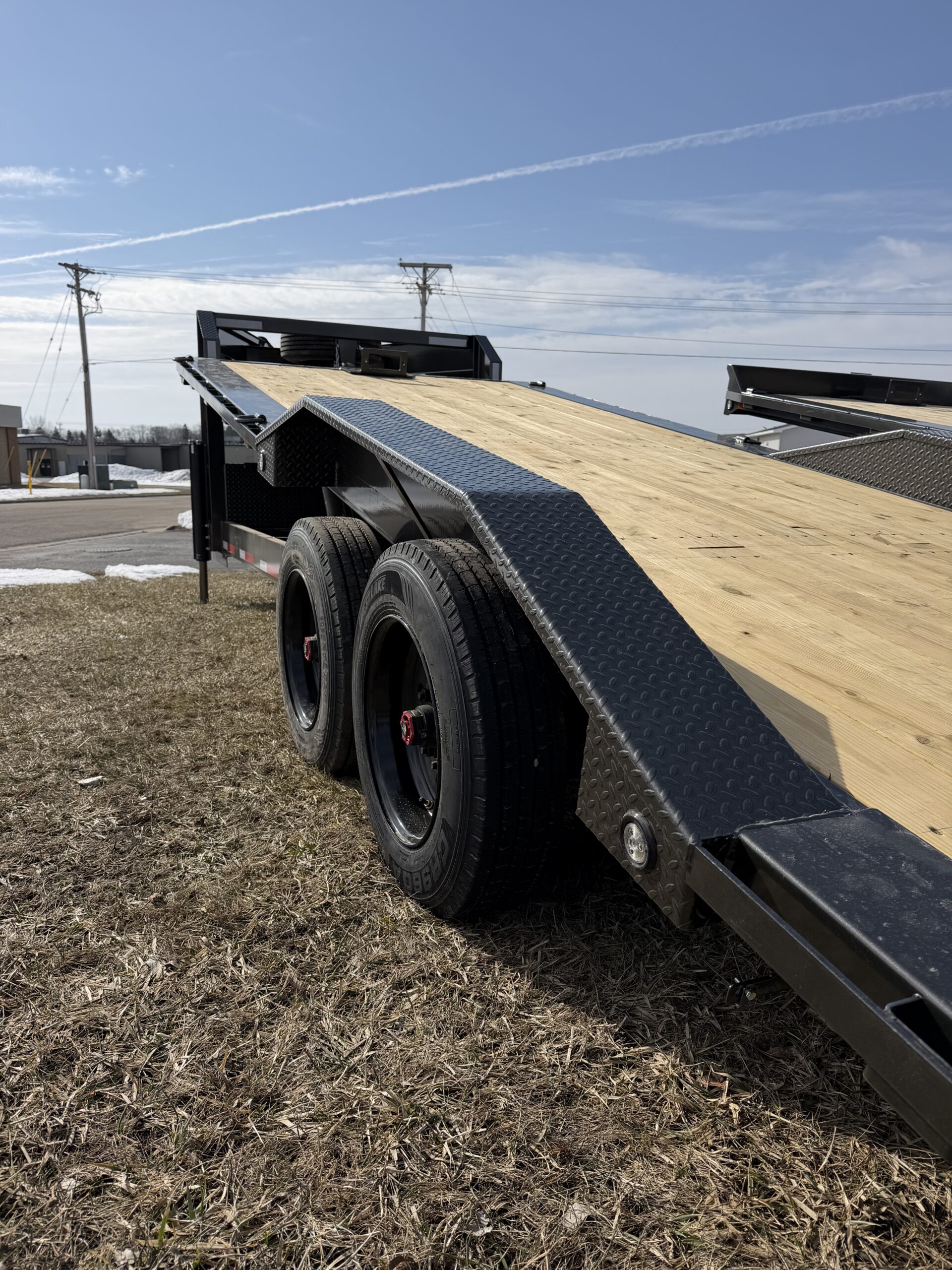

P18 – DRIVE-OVER FENDERS

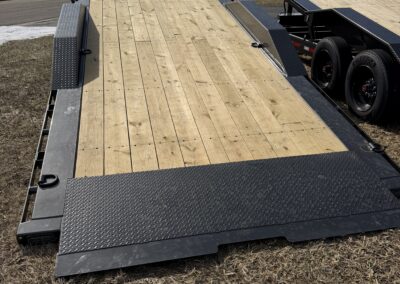

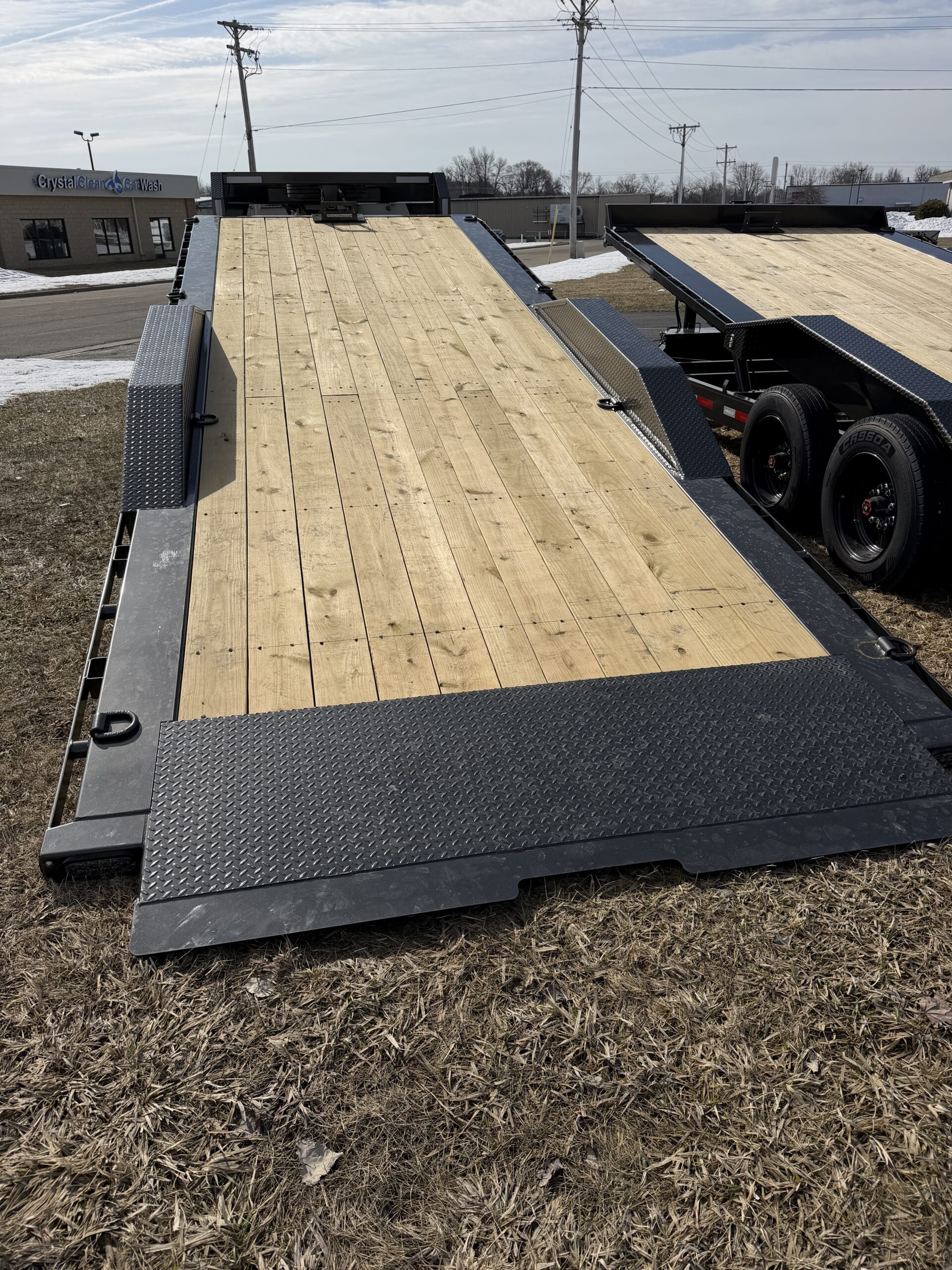

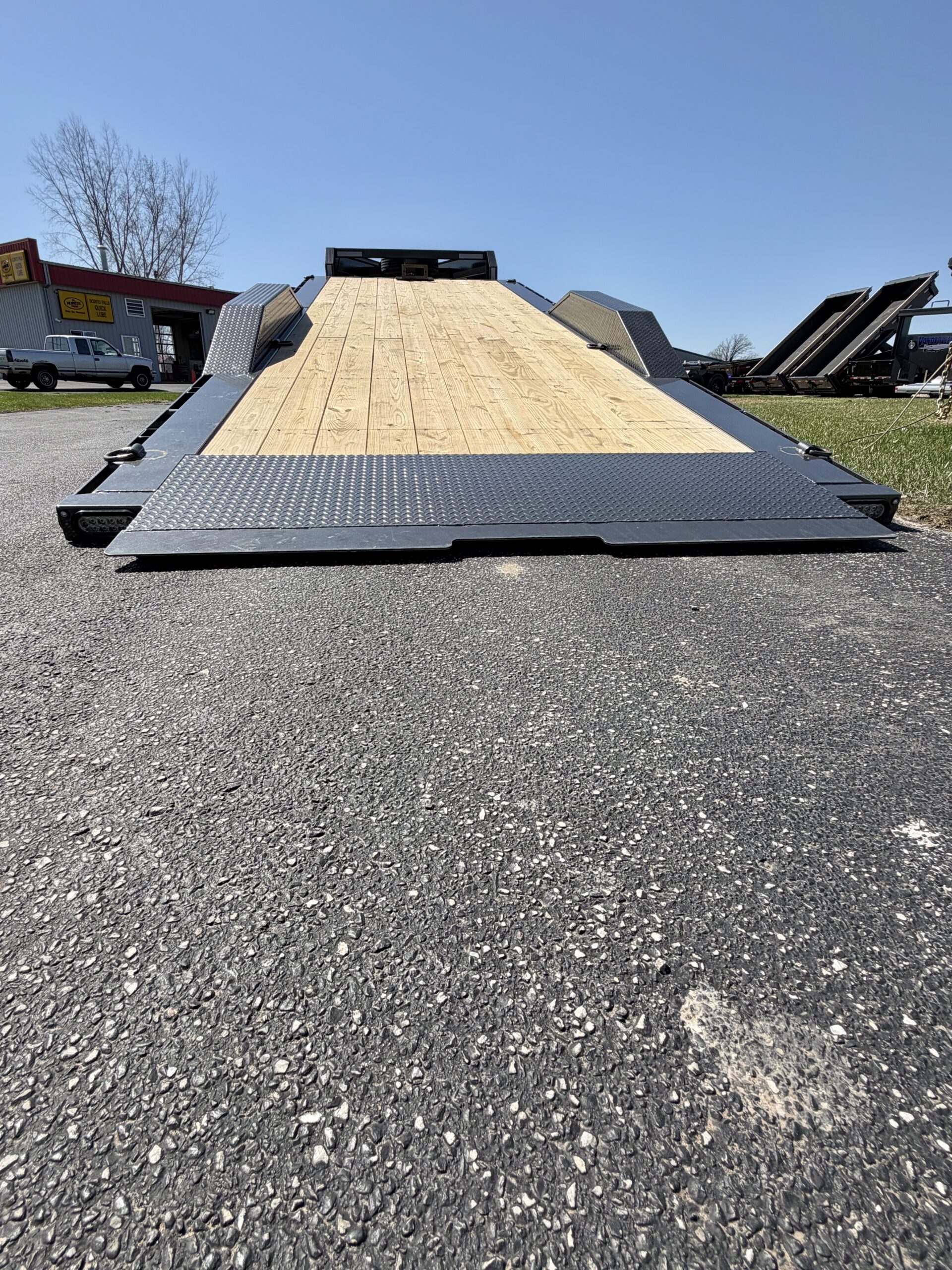

E04 – 2X8 TREATED WOOD FLOOR
L03 – FLUSHMOUNT LED’S / STANDARD SEALED WIRING HARNESS
O02 – MAXXD GRAY METALLIC & PRIMER
Z09 – 4x EXTRA 5/8″ BULL-NOSE D-RING WELDED TO TOP OF SIDE CHANNEL

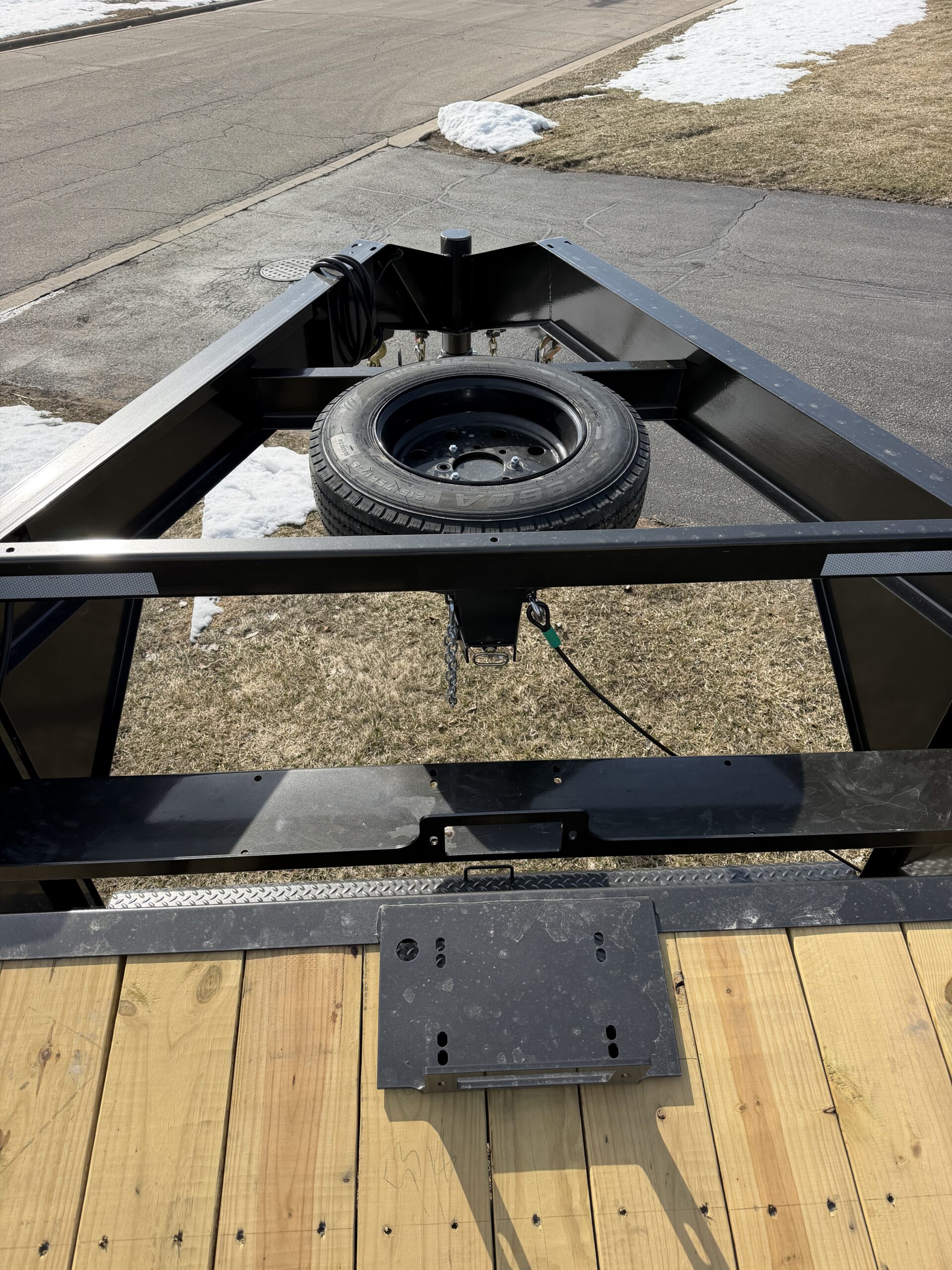

W01 – WINCH PLATE IN FRONT
