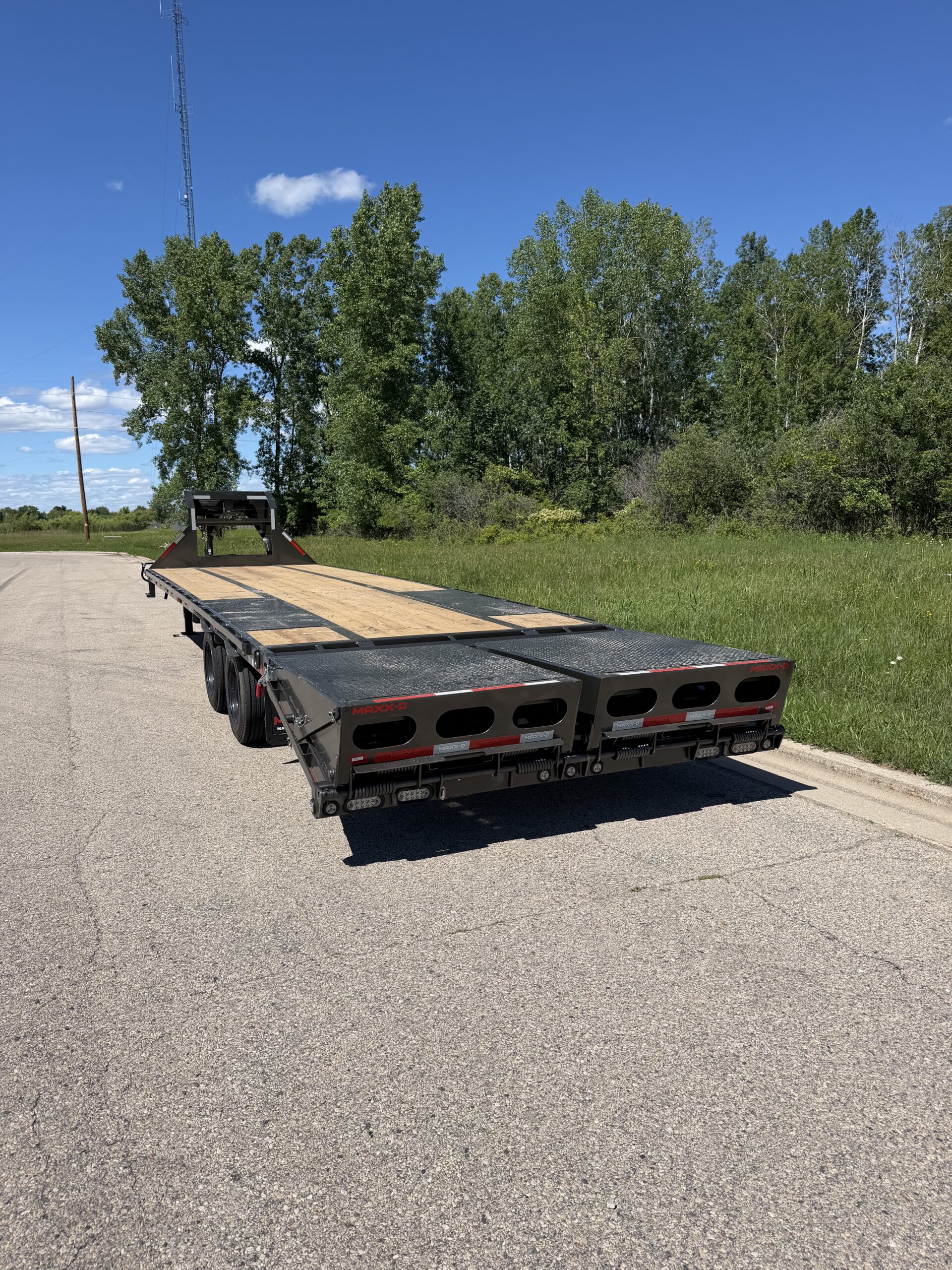

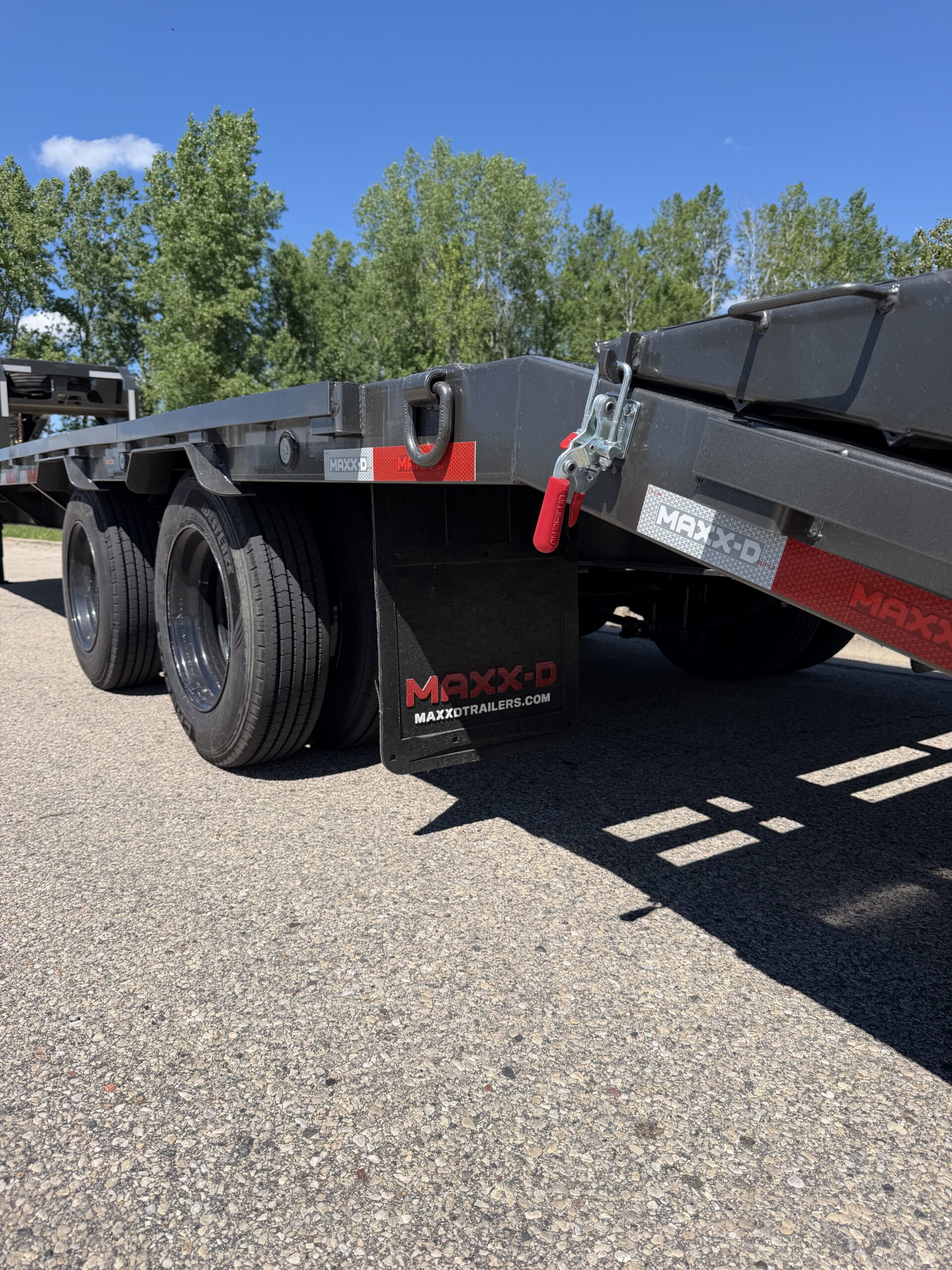

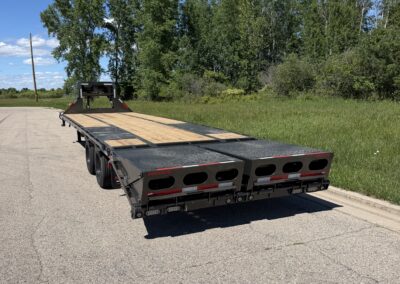

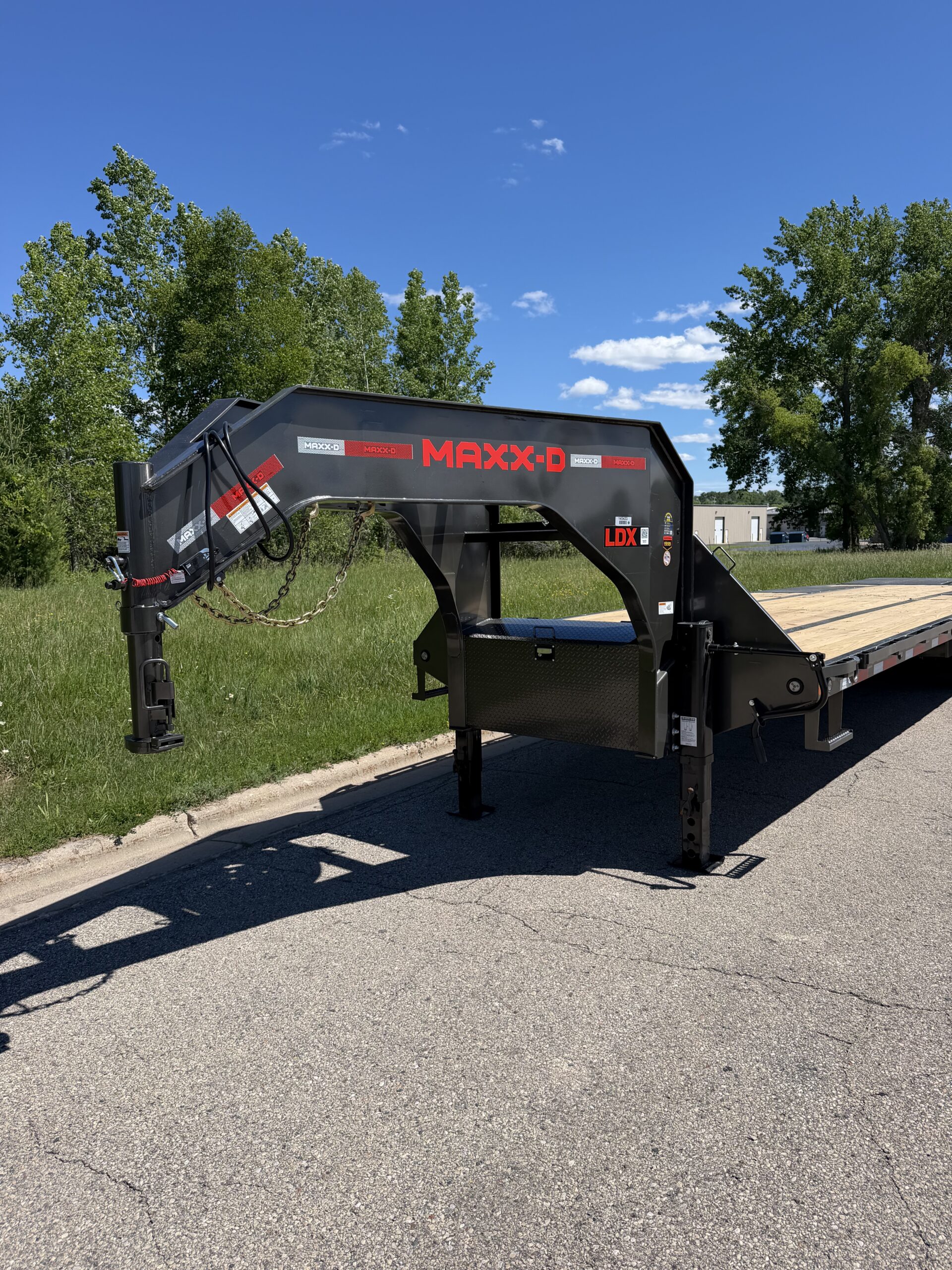

MAXX-D 102″x32′ LDX Low Profile Gooseneck Trailer | Tandem Dual Flatbed 15K AXLES
$26435
GVWR:
25990 lbs
Empty Weight:
10000 lbs
Available Length Configurations:
- 102″x30′
- 102″x32′
- 102″x40′
Available Axle Configurations:
- 10K Dual Axles
- 12K Dual Axles
- 15K Dual Axles
Standard Features:
G18 – 25,990 LB GVWR

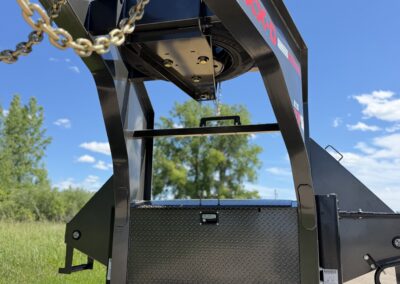

C17 – 2 5/16″ 30K ROUND GN COUPLER
J19 – 2-JOST 2-SPEED JACKS

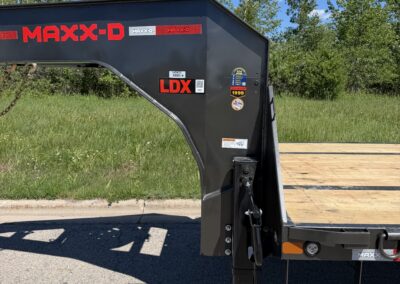

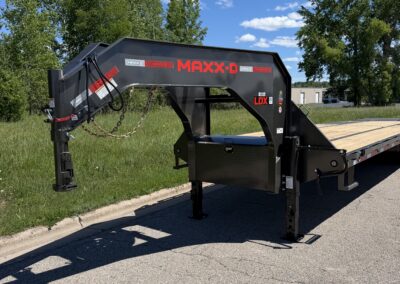

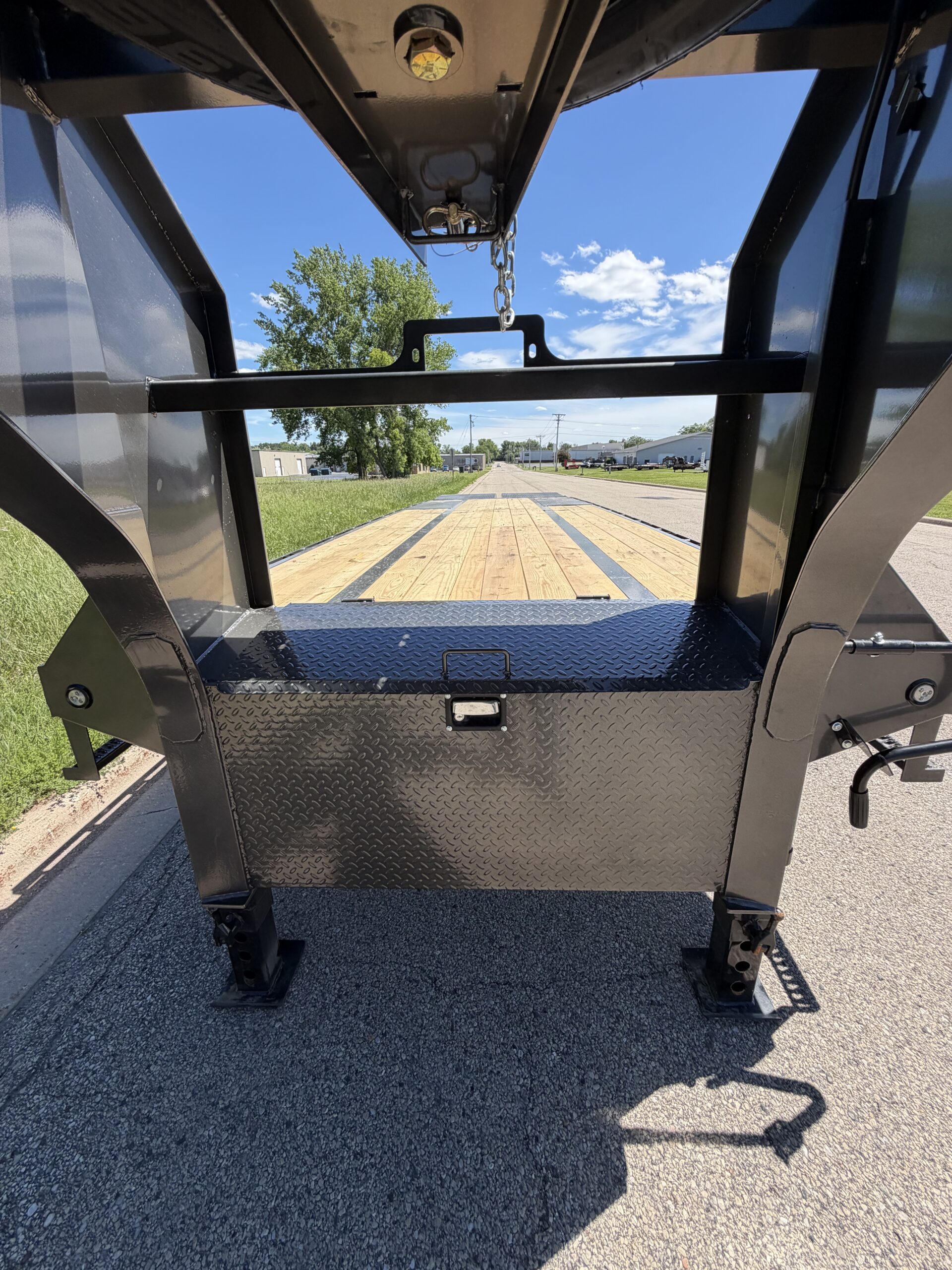

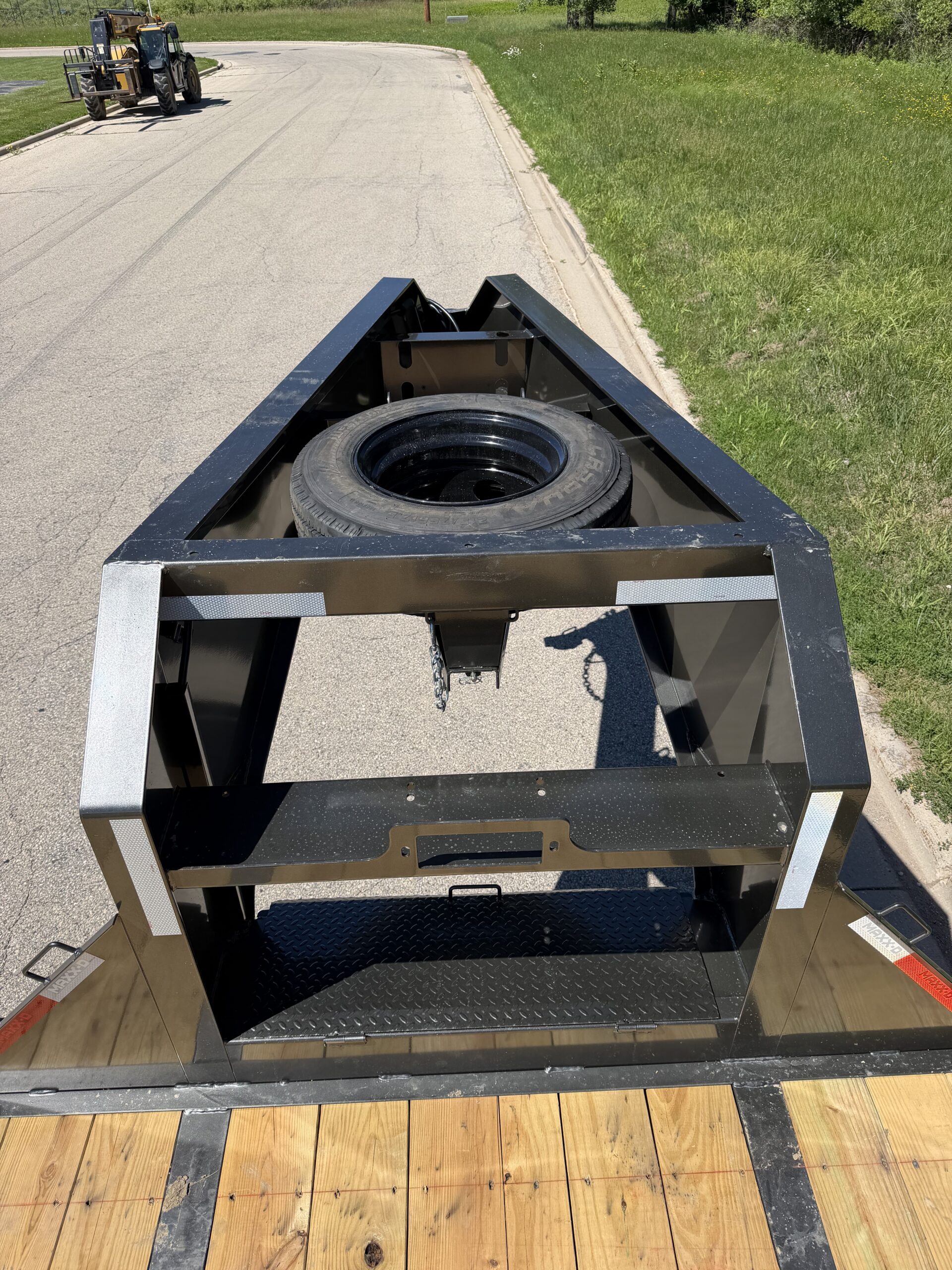

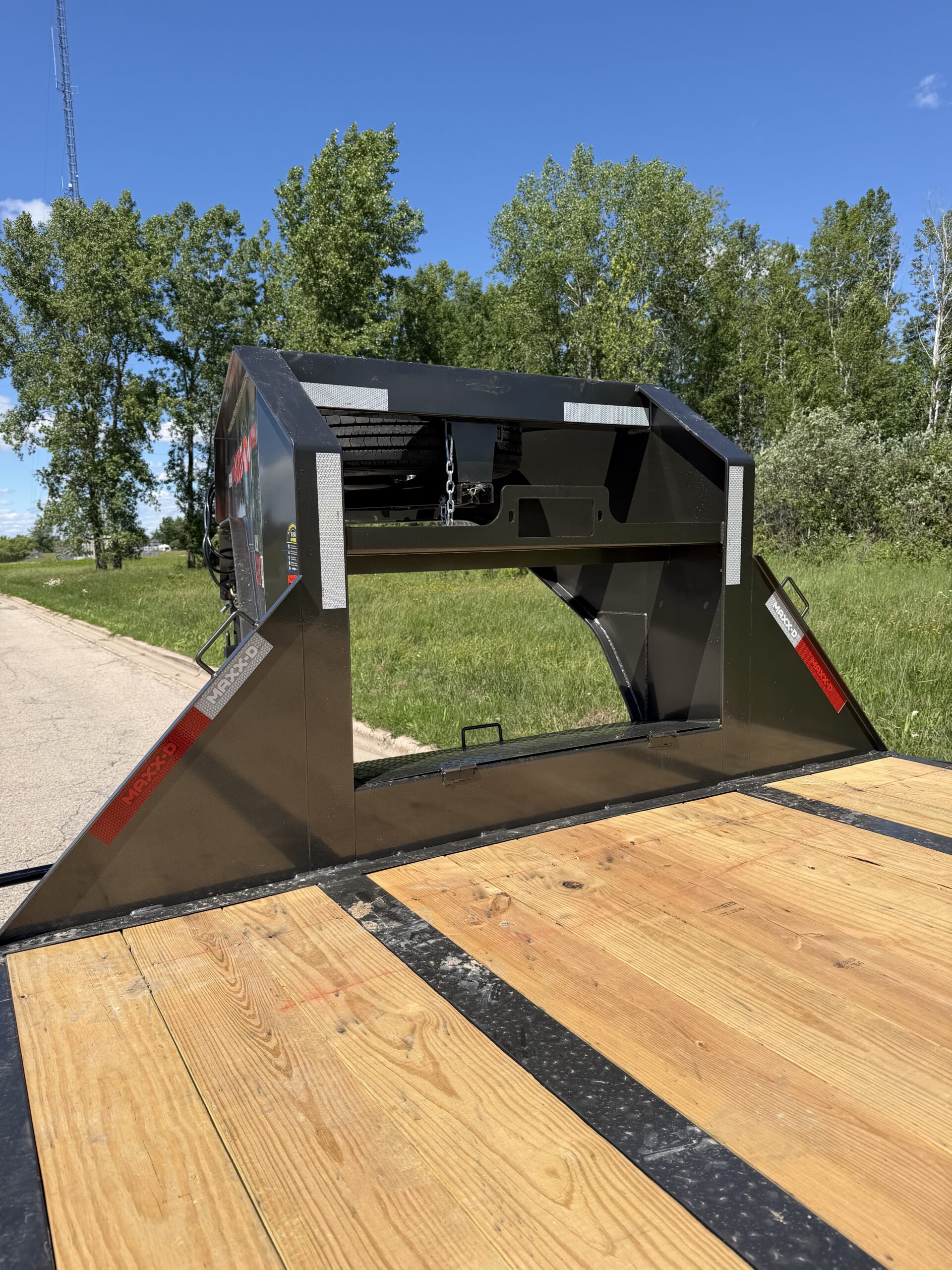

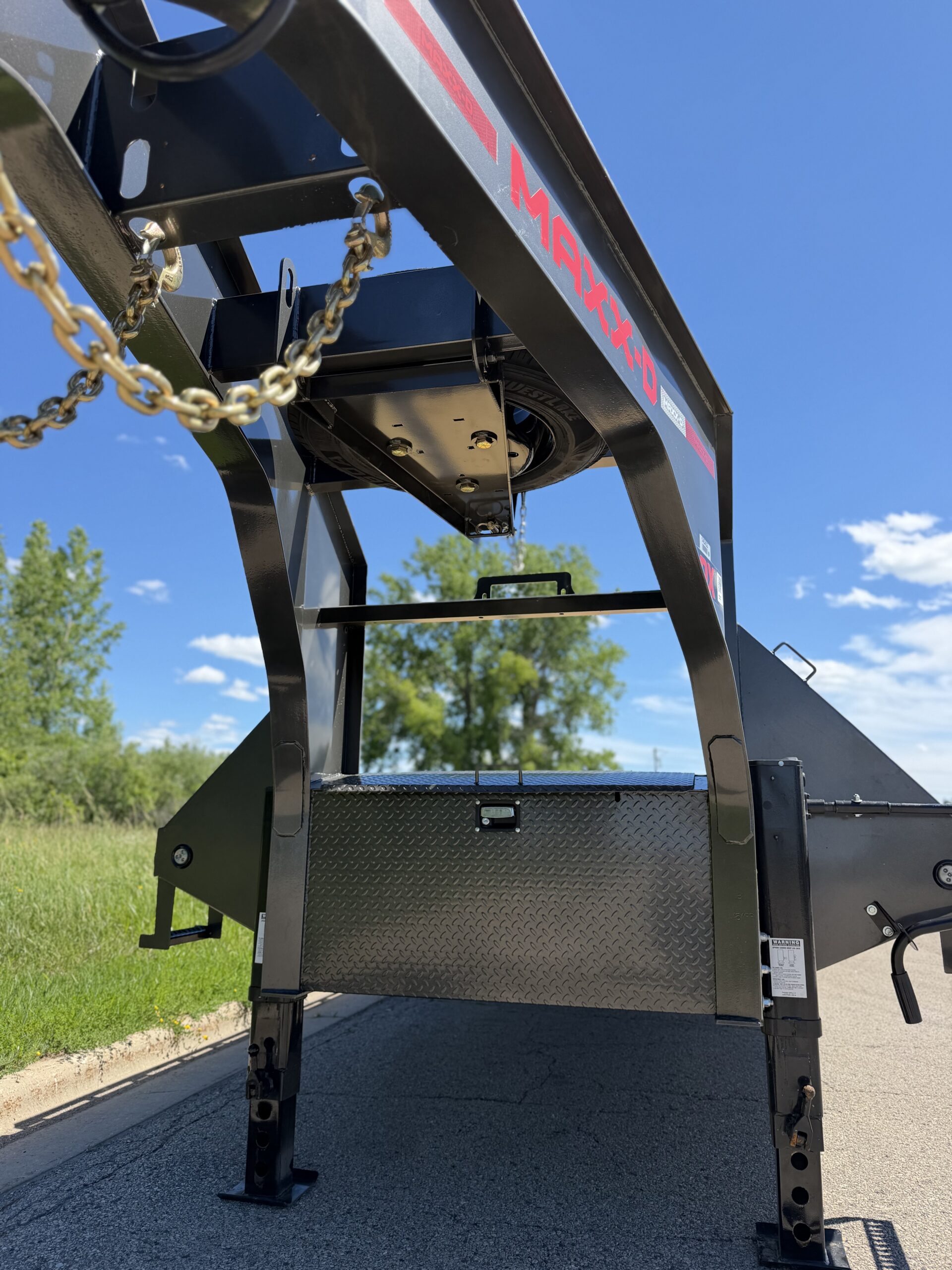

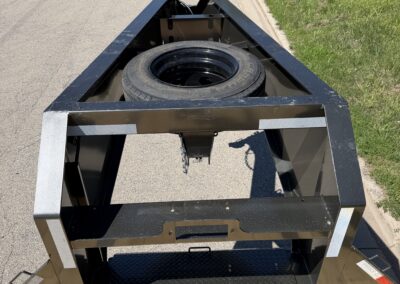

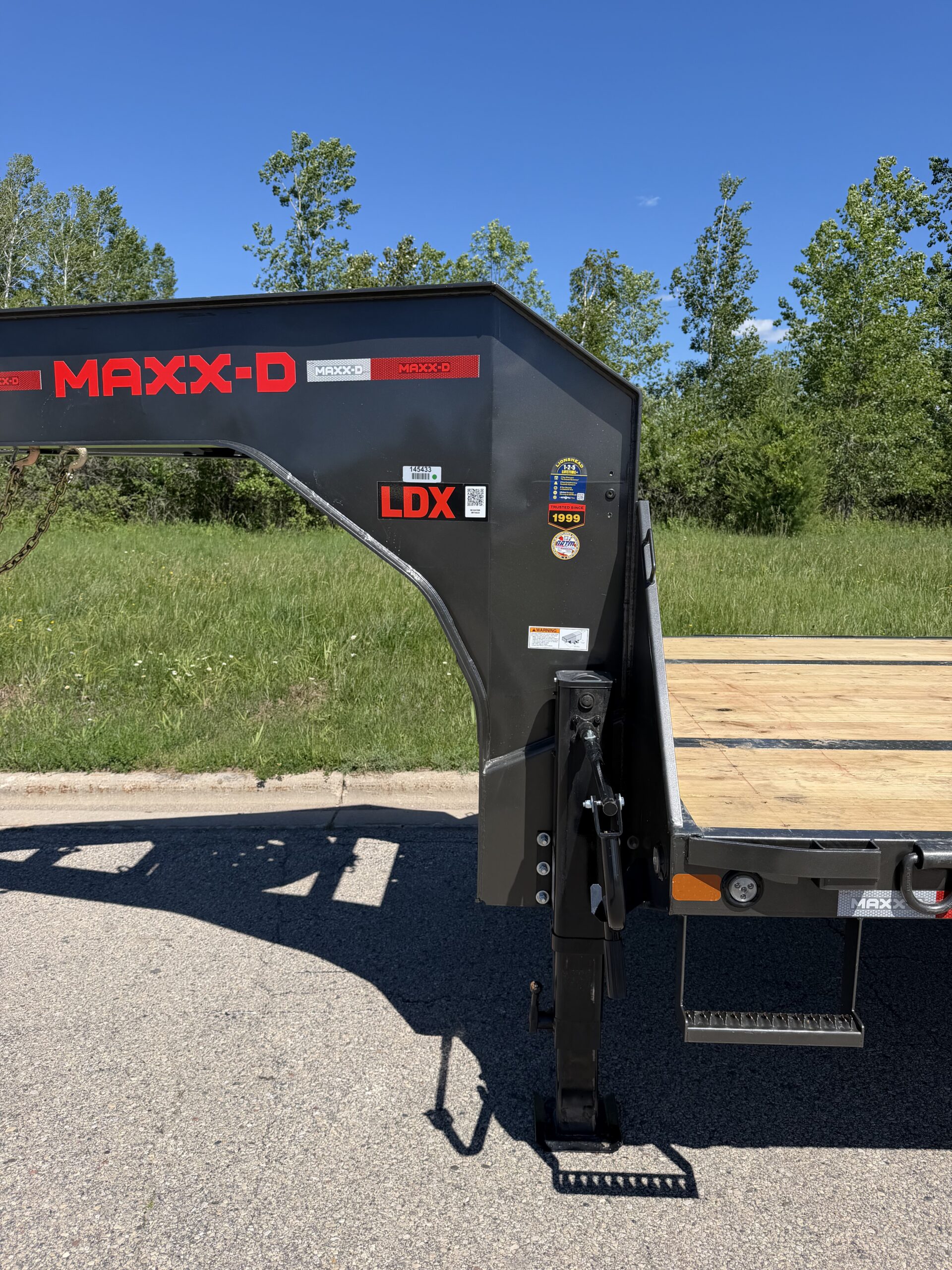

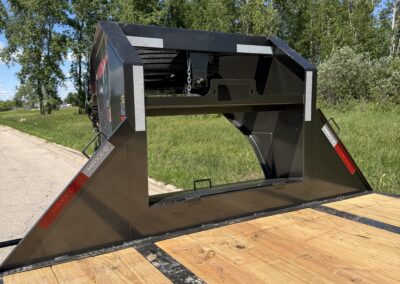

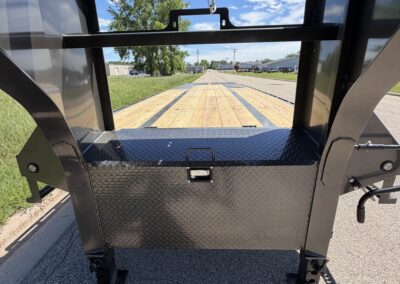

N65 – STANDARD HEIGHT ENG. NECK W/FR T-BOX, WINCH PLT, & SP MT

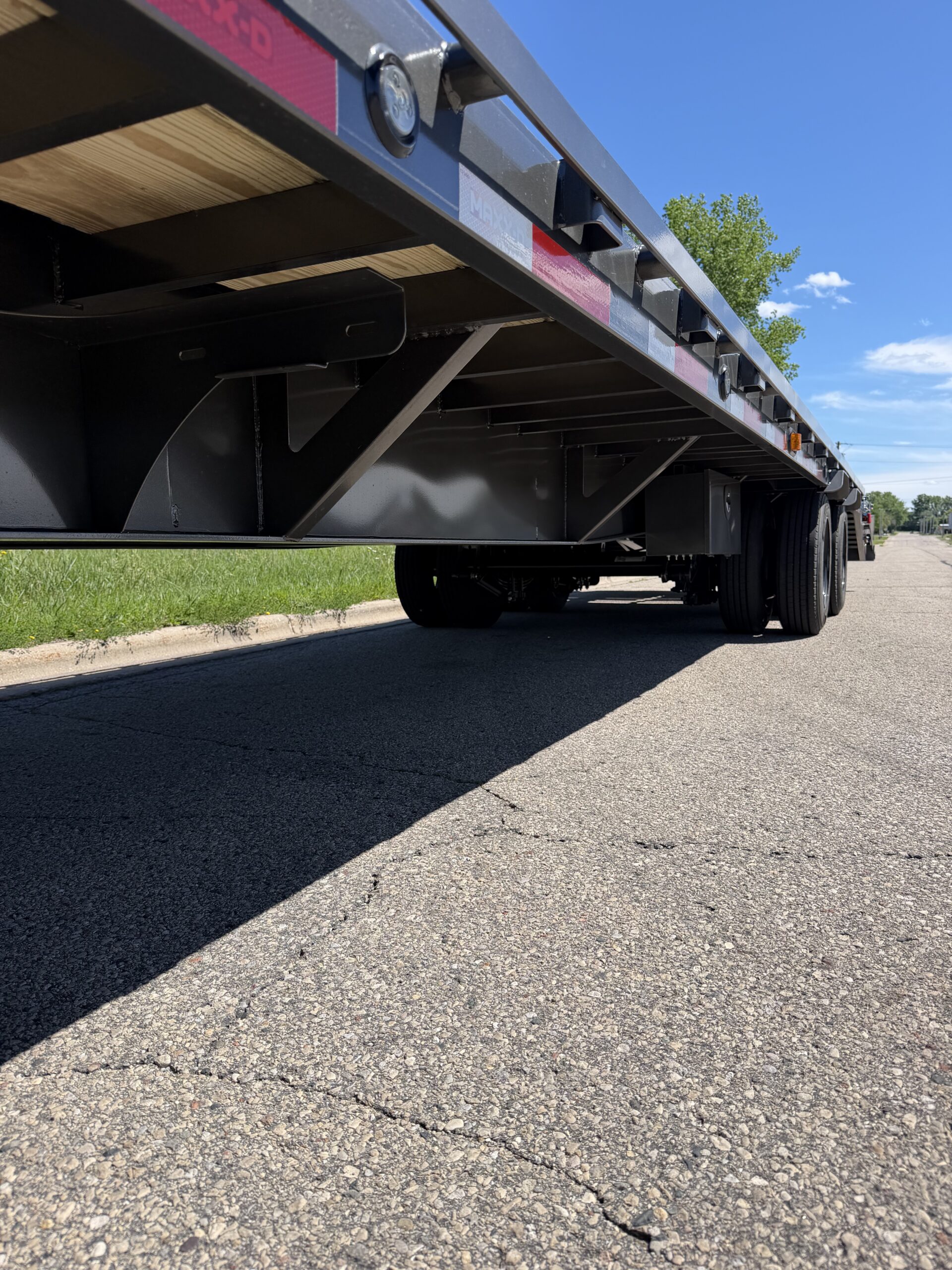

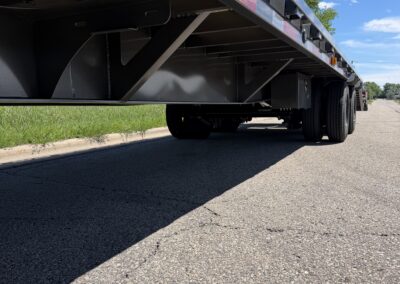

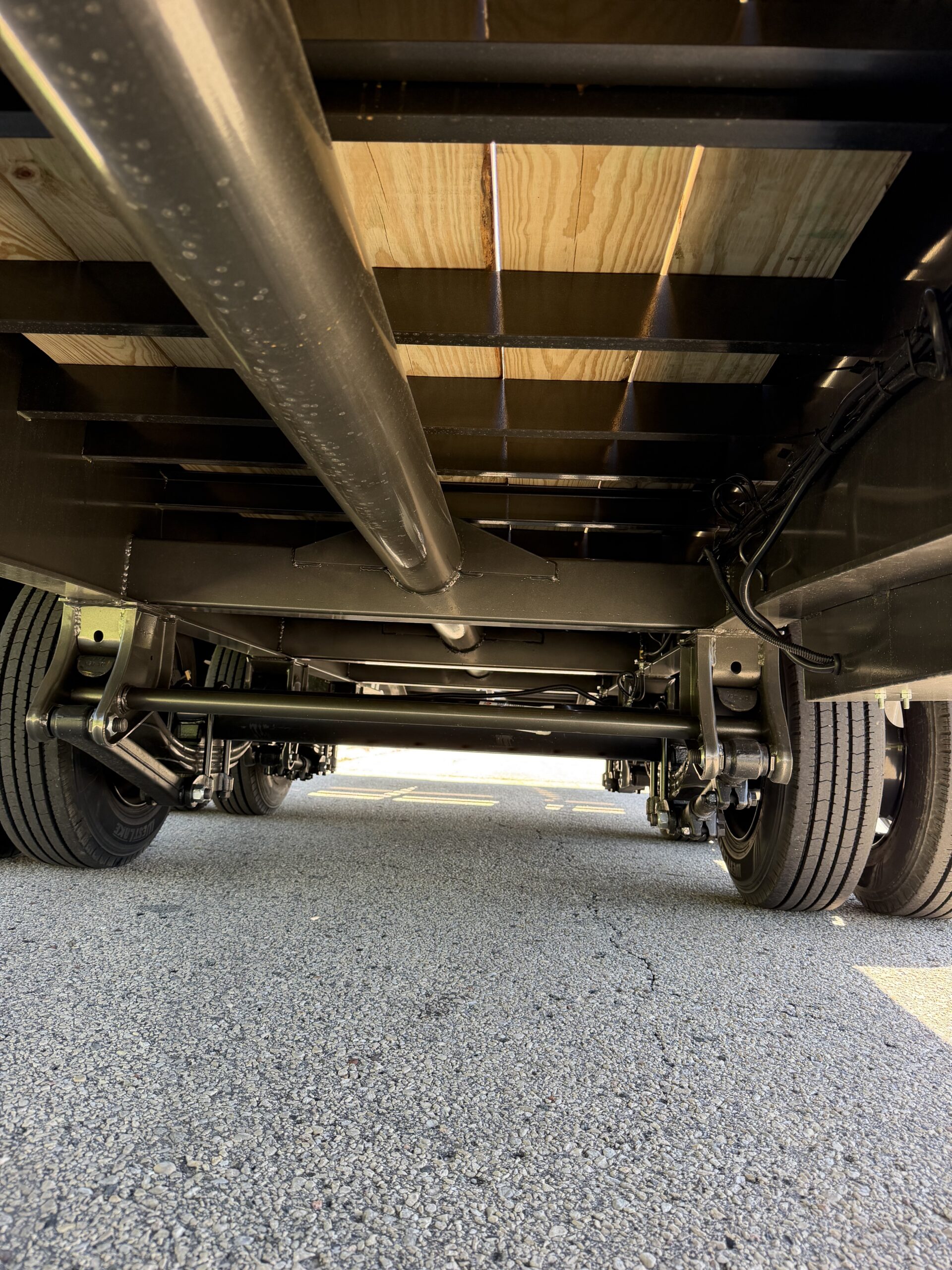

F114 – ENGINEERED I-BEAM FRAME WITH TORQUE TUBE
X20 – 3″ I-BEAM ON 14″ CENTERS
R06 – 6″ CHANNEL OUTER FRAME

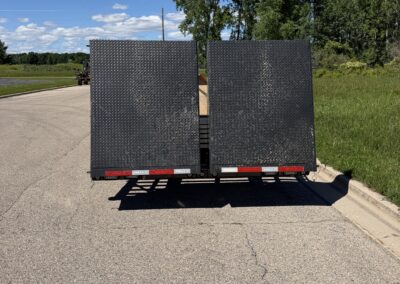

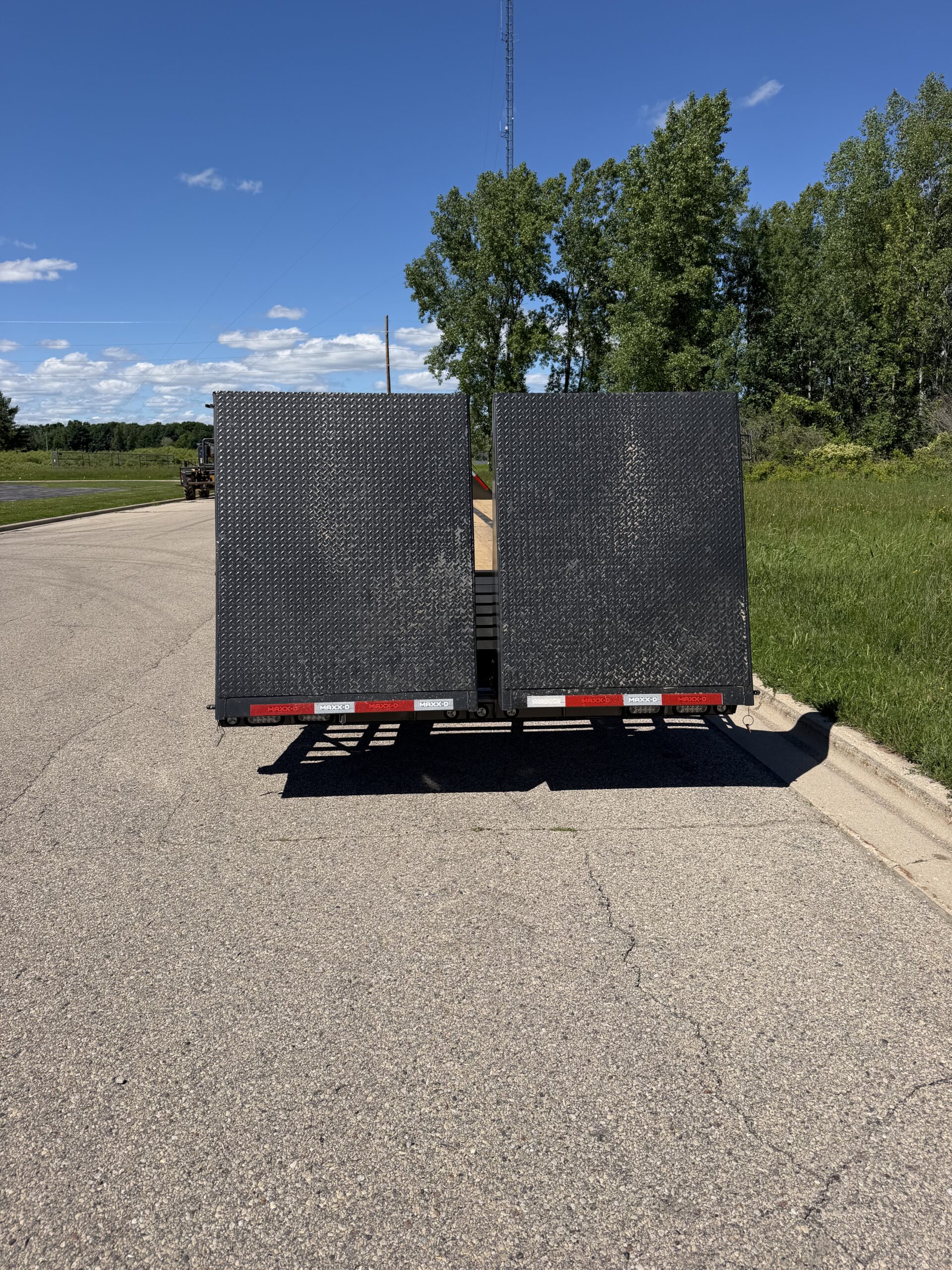

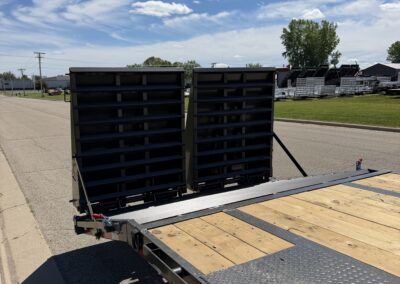

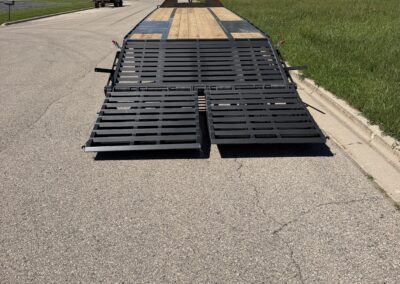

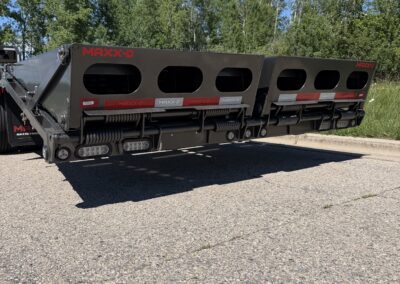

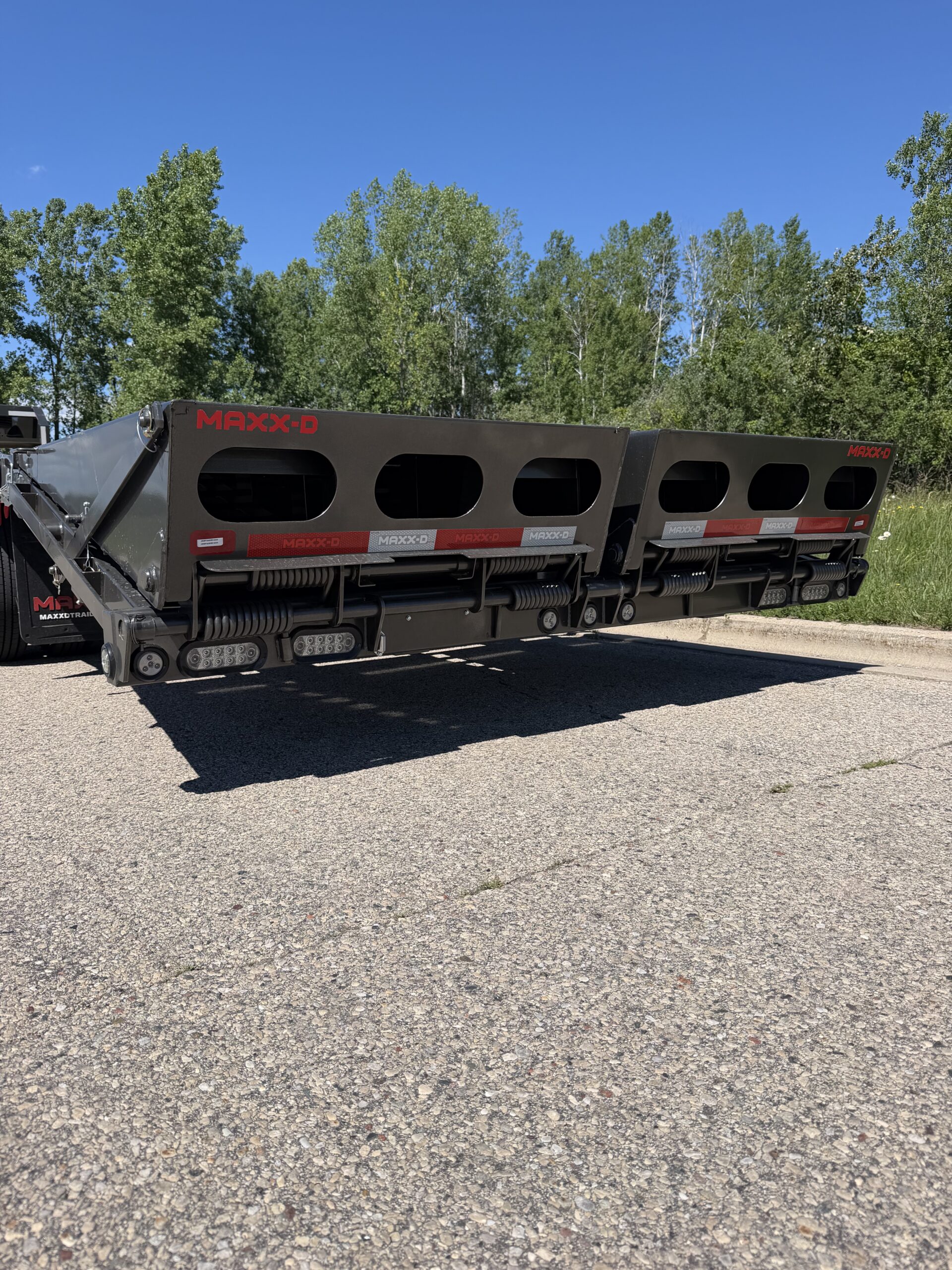

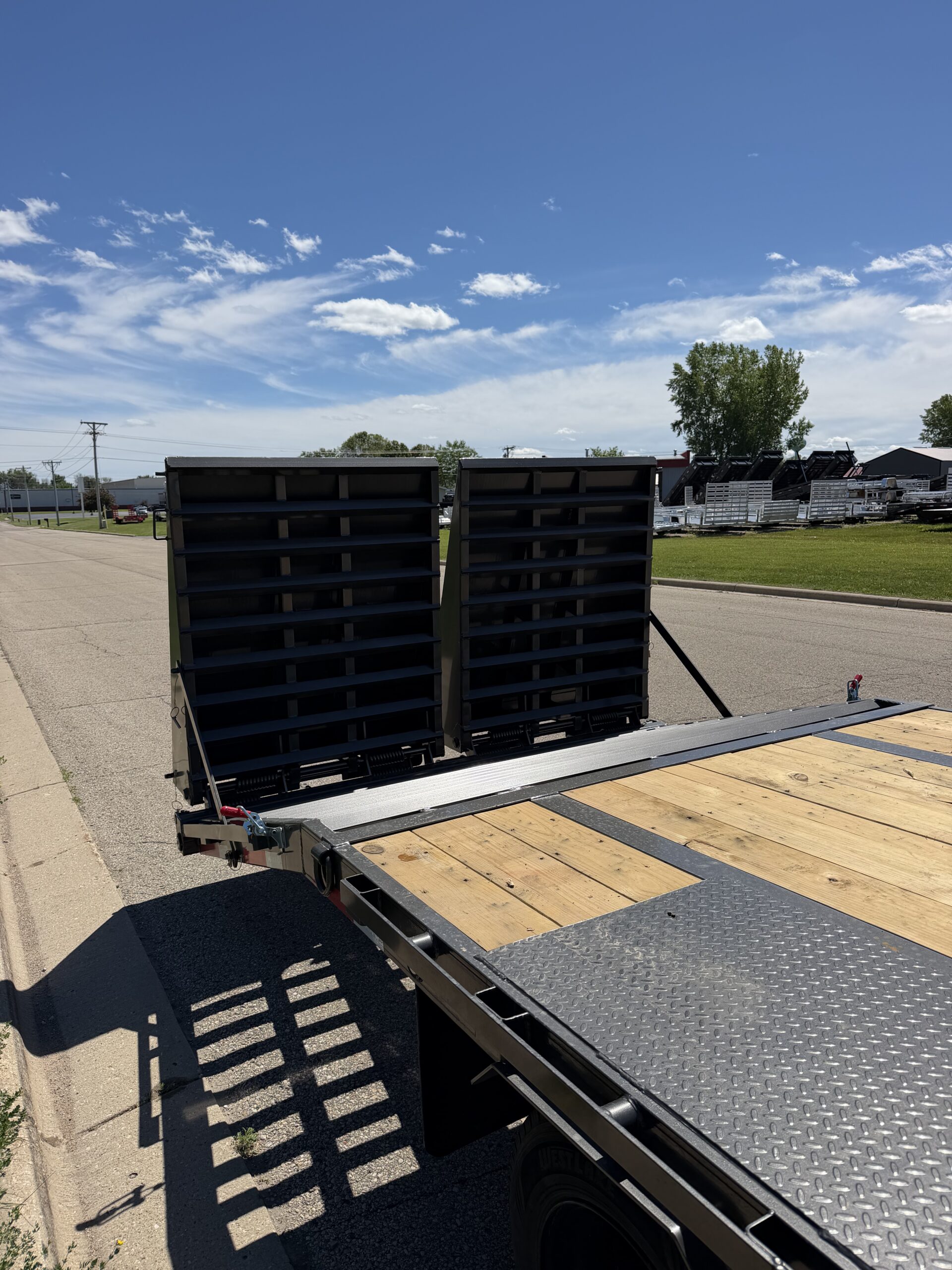

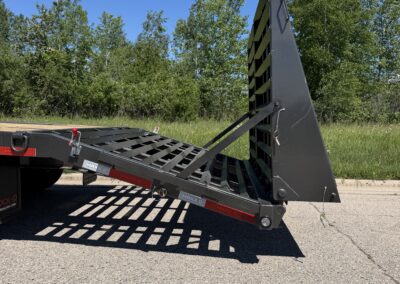

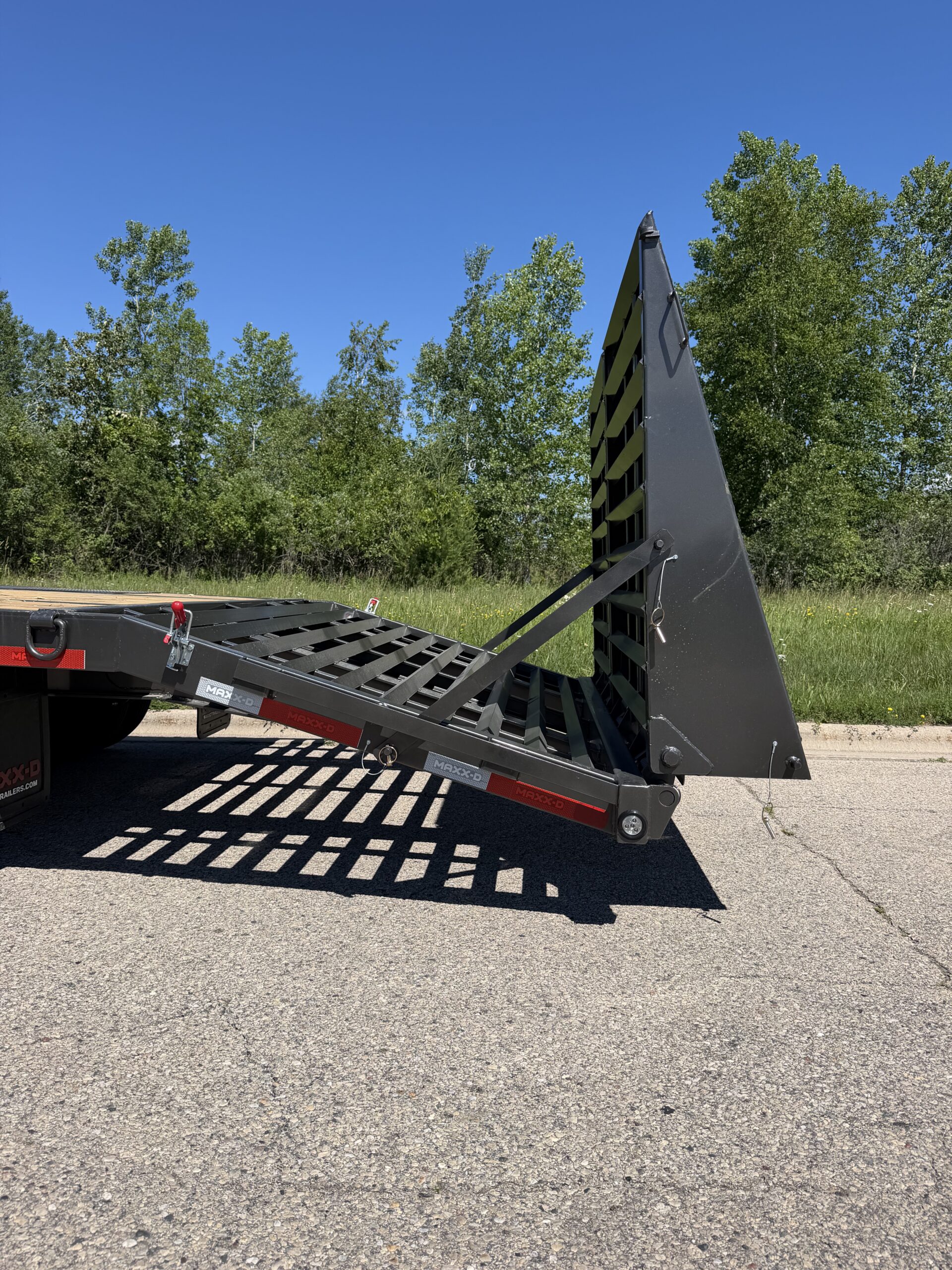

D36 – 5′ DOVETAIL/MAXXD-OUT RAMPS

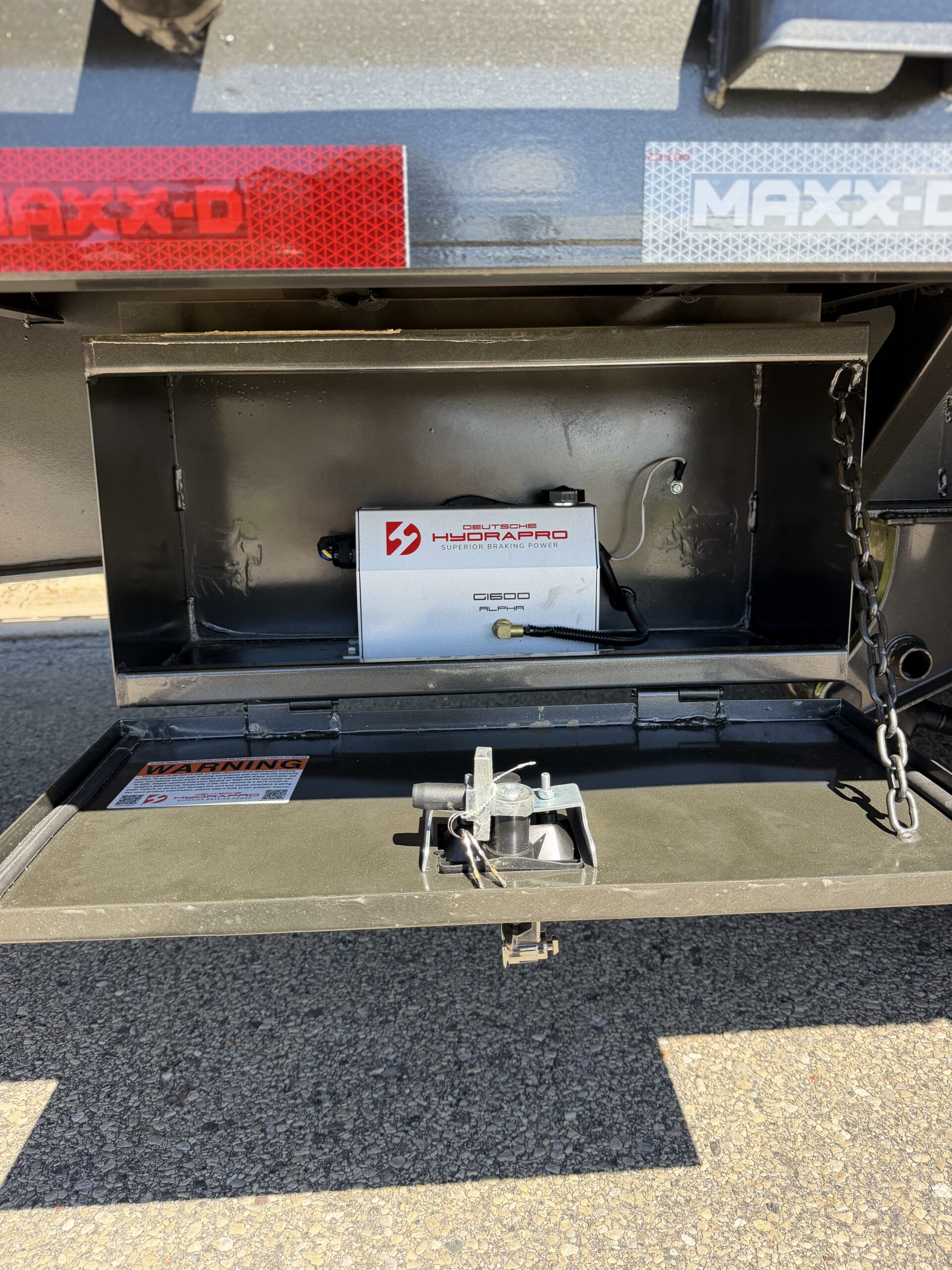

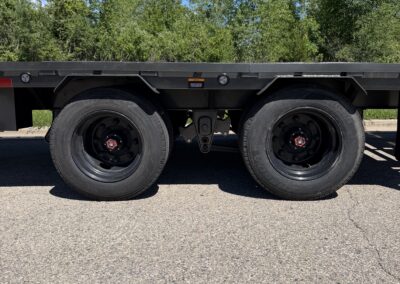

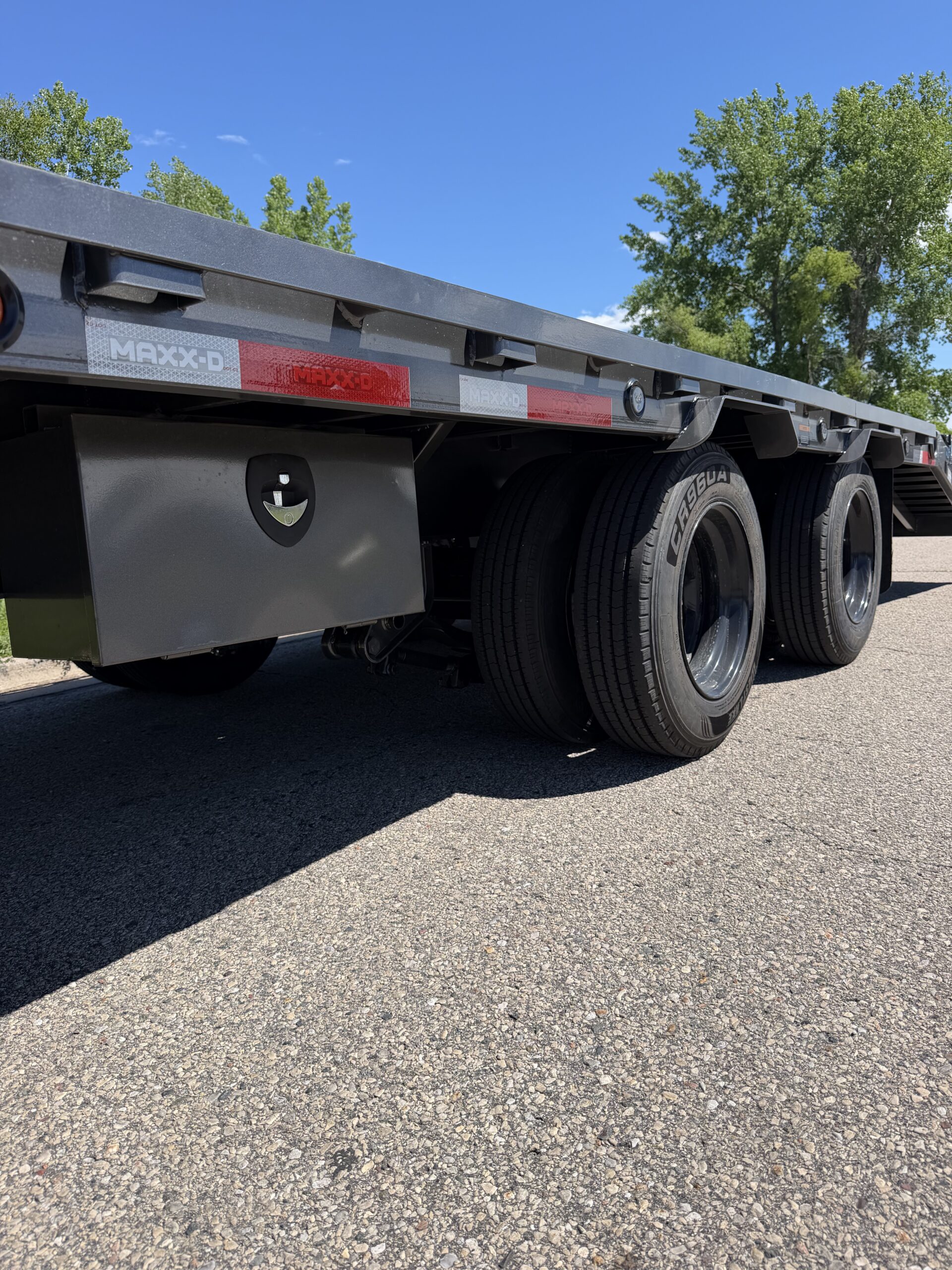

A64 – 2-15K DEXTER ELECTRIC/HYDRAULIC BRAKE AXLES

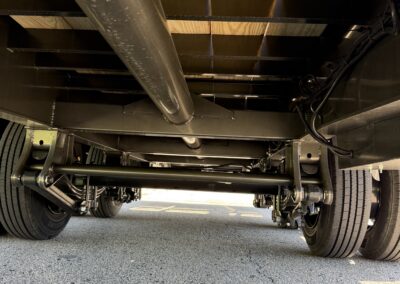

S05 – HDSS SUSPENSION 2 AXLES

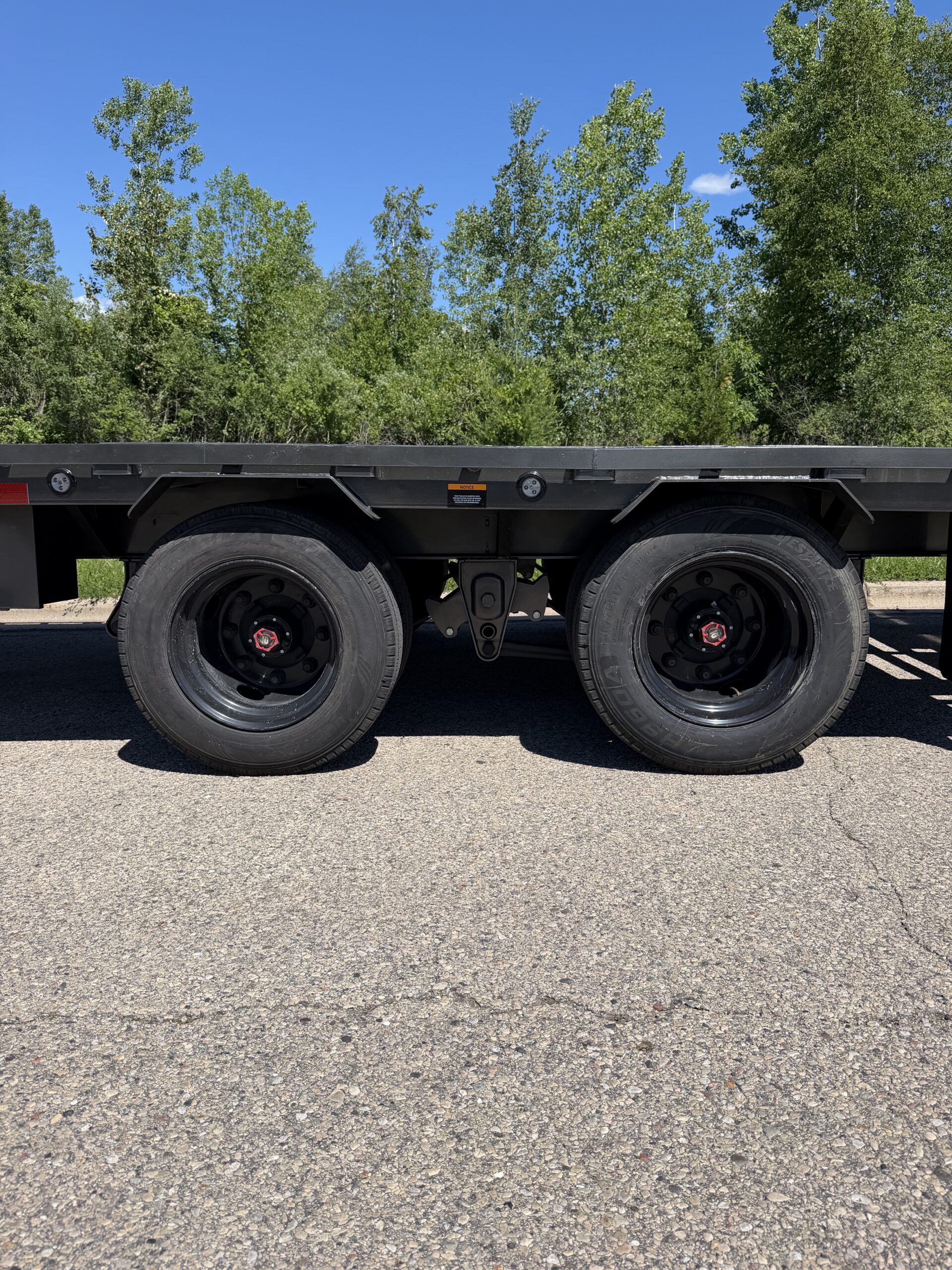

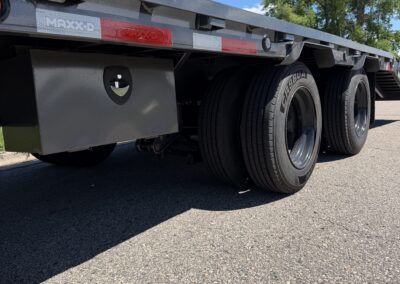

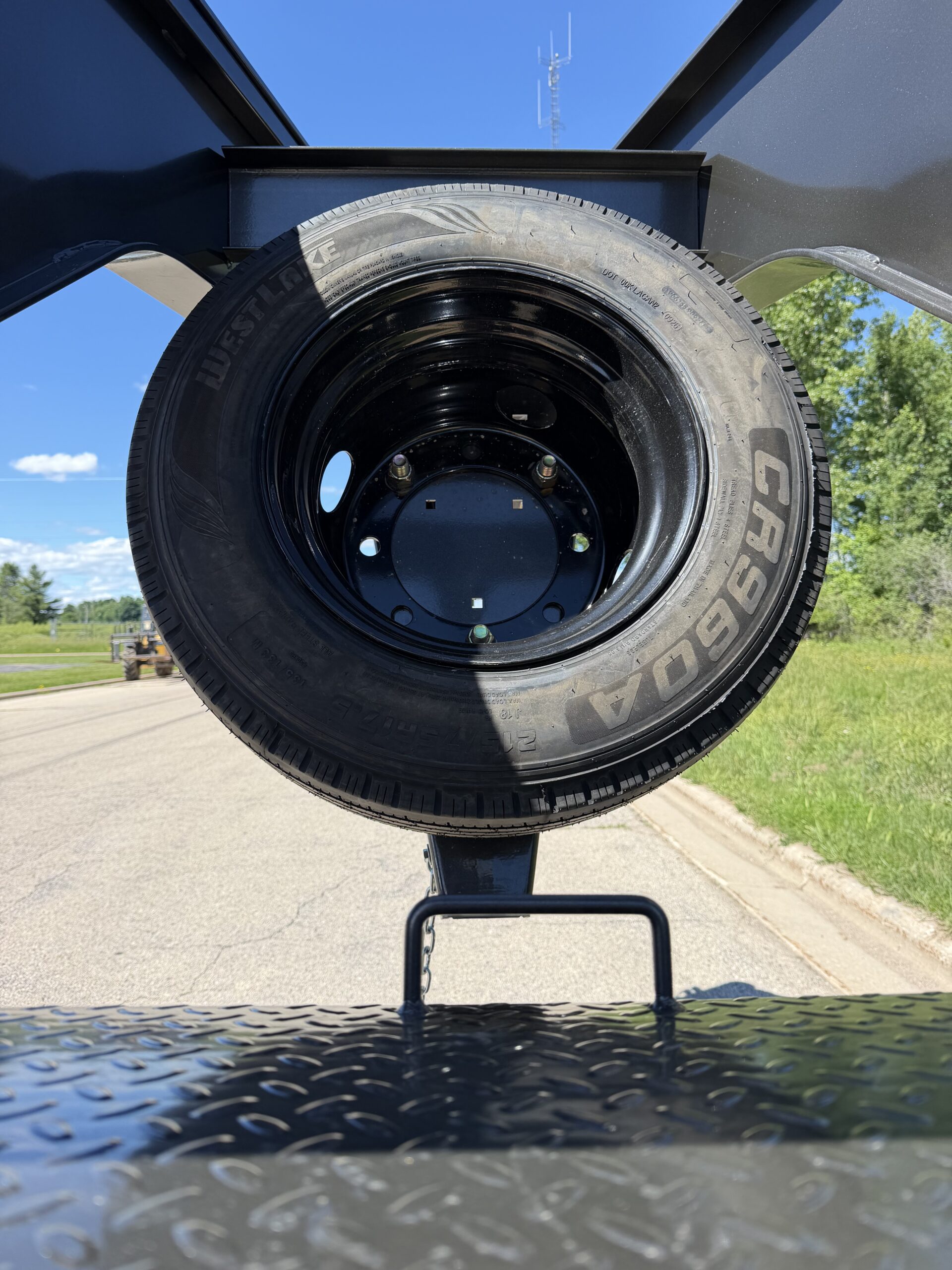

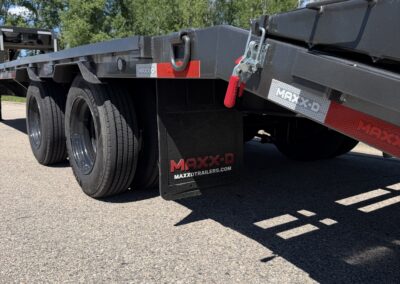

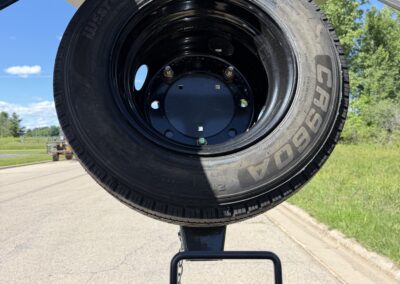

T30 – DUALS (9) ST215/75R17.5 18PLY TIRES for 2-15/16K
P14 – NOT APPLICABLE
E04 – 2X8 TREATED WOOD FLOOR
L03 – FLUSHMOUNT LED’S / STANDARD SEALED WIRING HARNESS
O02 – MAXXD GRAY METALLIC & PRIMER
