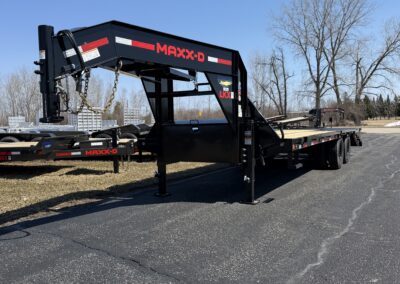

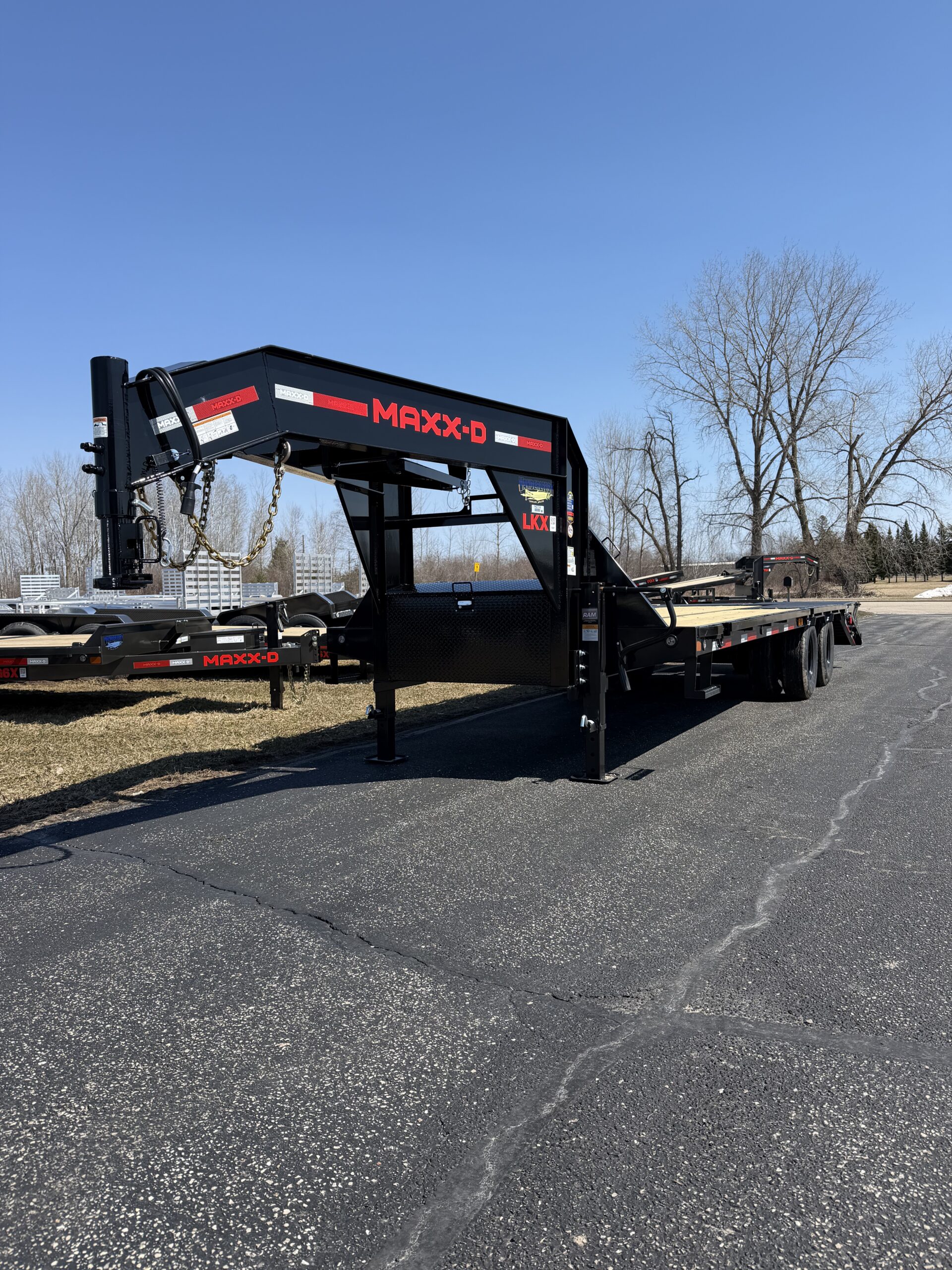

The MAXX-D LKX Low-Pro Tandem Dual Flatbed Trailer is built for one thing: getting the job done. Designed around our most-requested, most-produced configurations, the LKX gives you everything you need—and nothing you don’t. It’s a serious flatbed for haulers who want MAXX-D strength in a simplified, work-ready platform.

The LKX is ideal for contractors, ranchers, builders, and business owners who need a dependable, no-fluff flatbed that’s built to haul and priced to move. With consistent configurations, fast turnaround, and trusted MAXX-D quality, it’s the trailer your crew can count on from the first job to the last.

Available in deck lengths from 25’ to 40’, every LKX comes standard with a 12” x 19 lb I-beam frame, dual 10K Dexter electric brake axles, 5’ dovetail with MAXX-D out ramps, slipper spring suspension, 2×8 treated wood floor,

G17 – 25,000 LB GVWR
C17 – 2 5/16″ 30K ROUND GN COUPLER

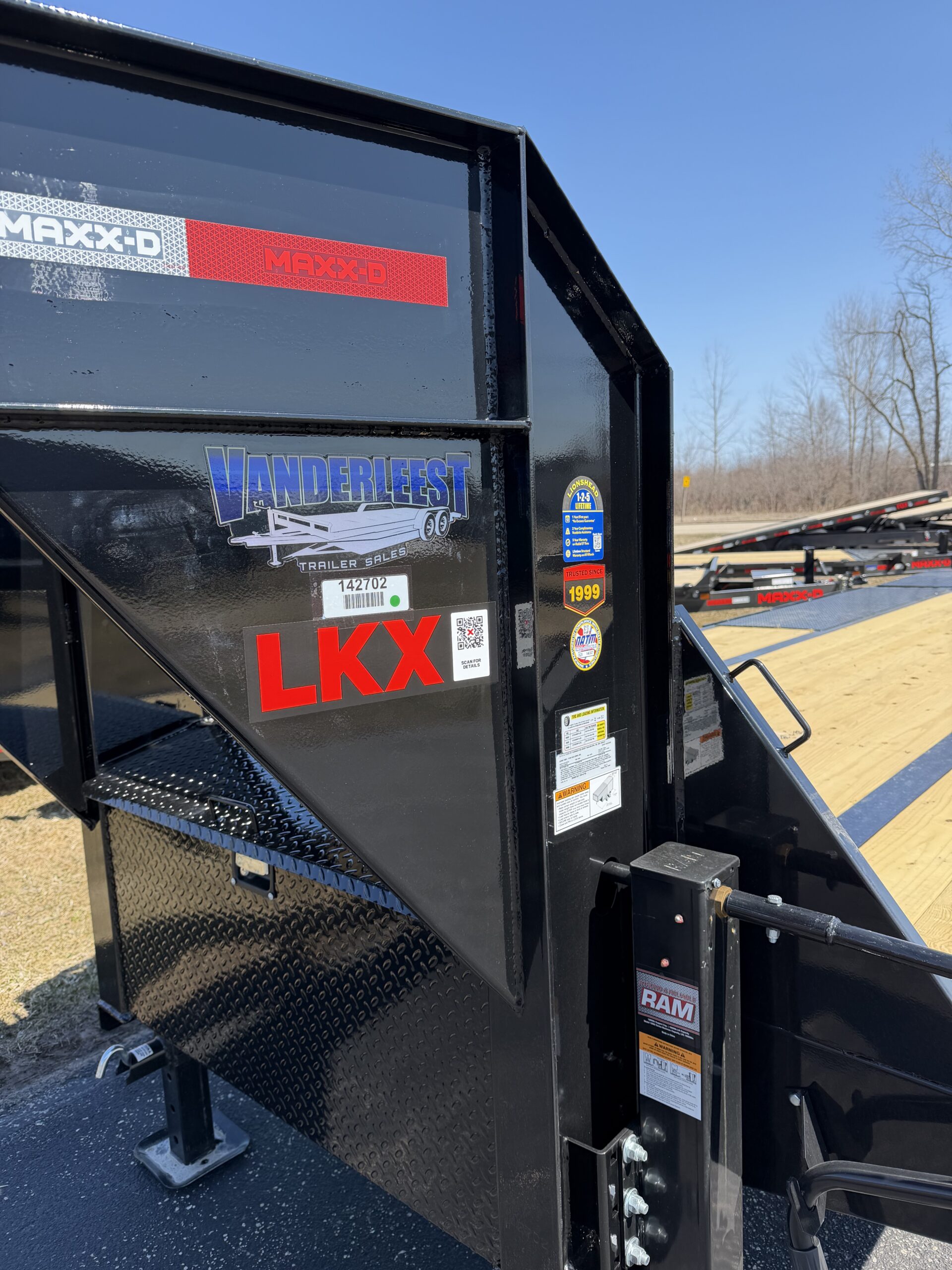

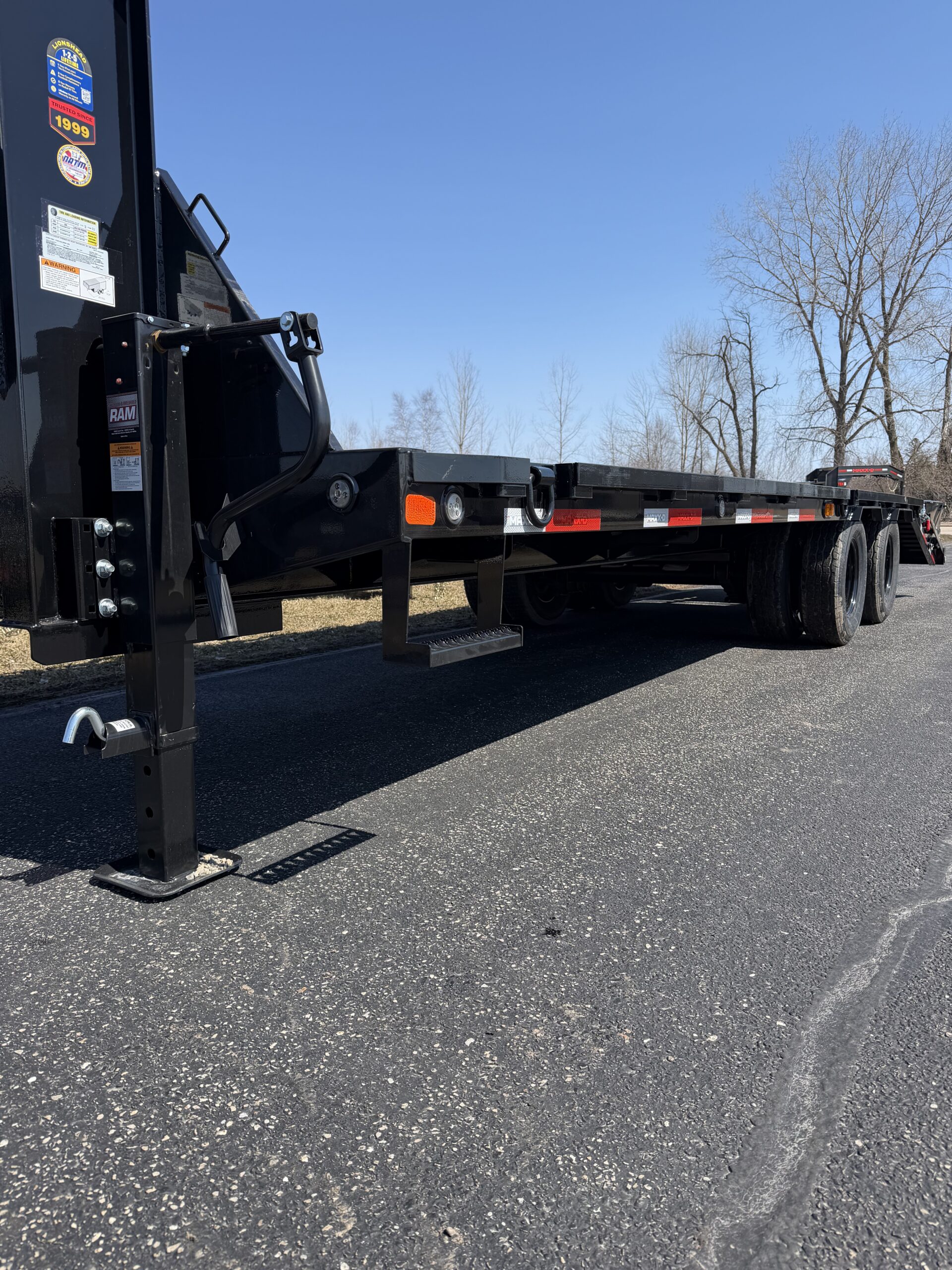

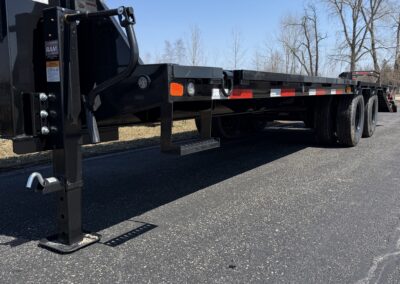

J18 – 2-10K DROP-LEG JACKS

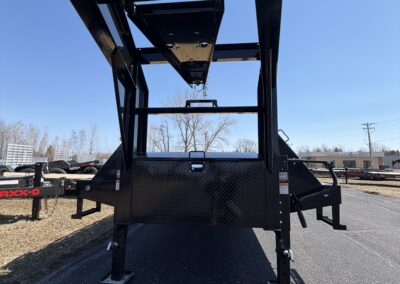

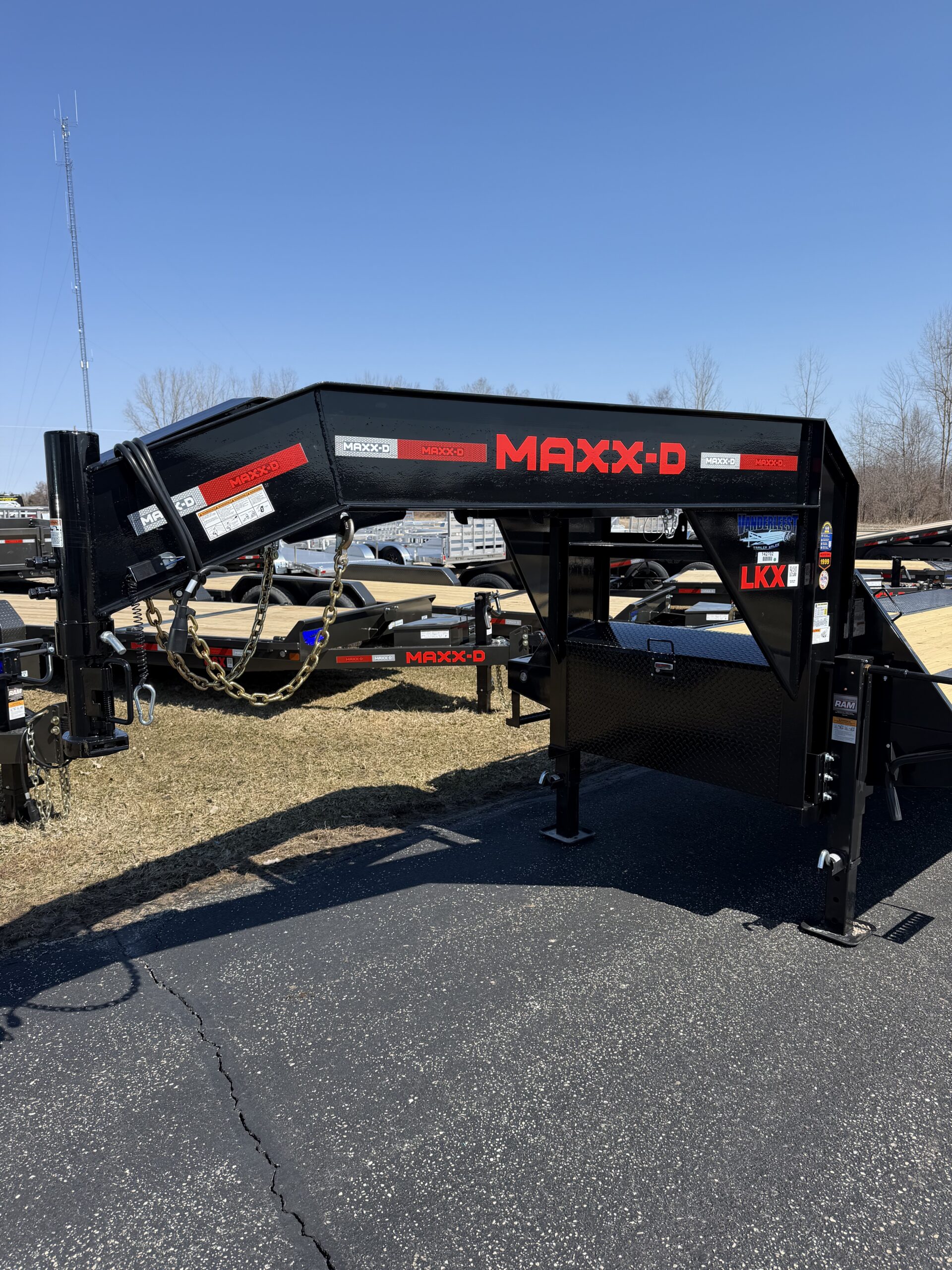

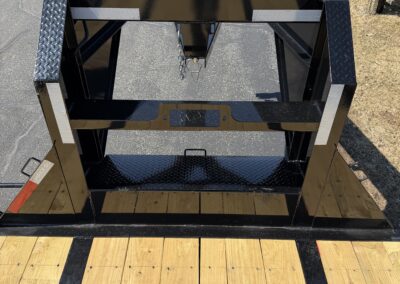

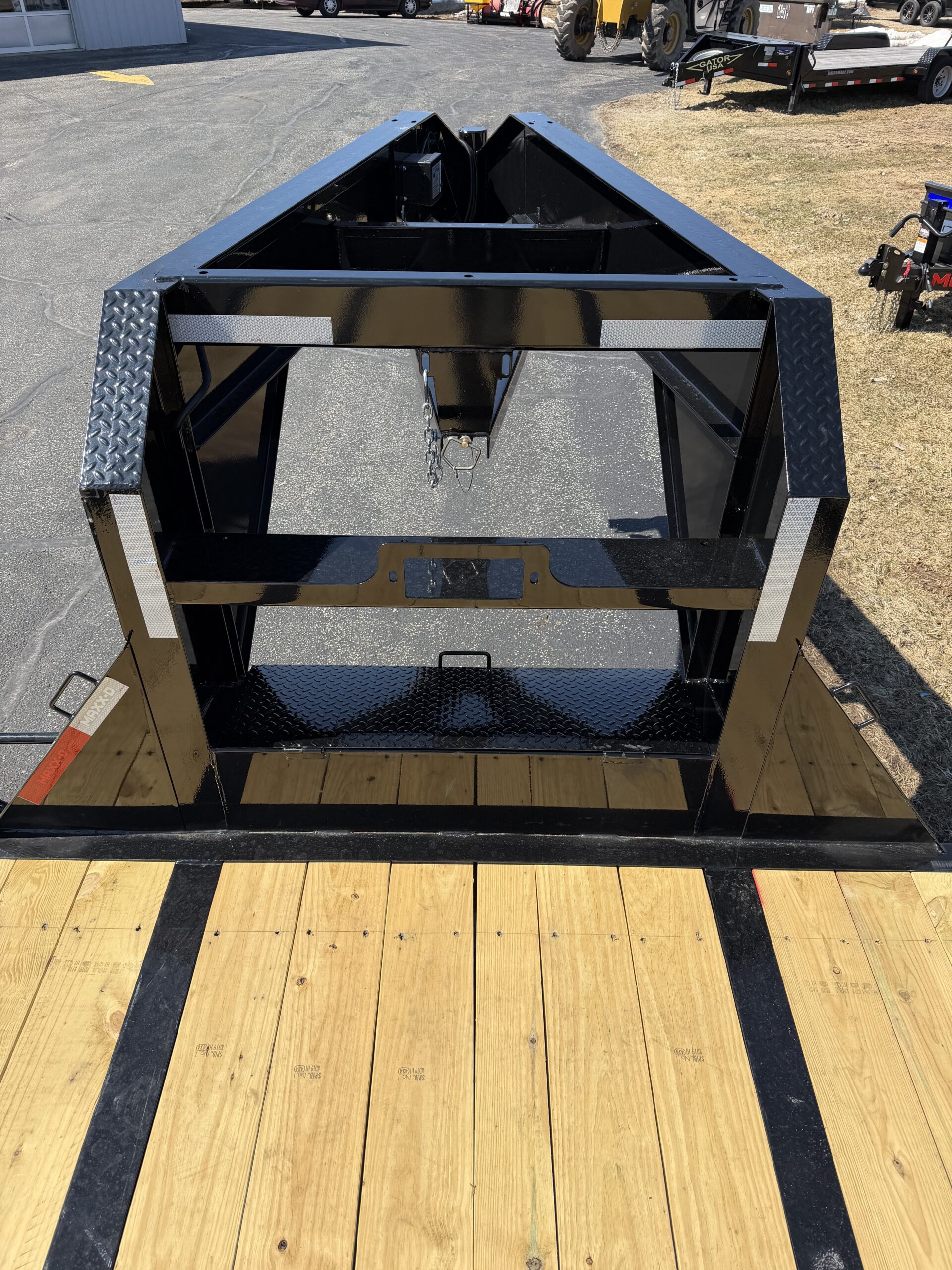

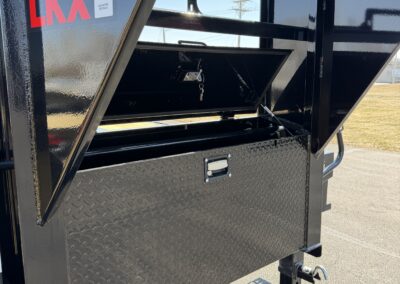

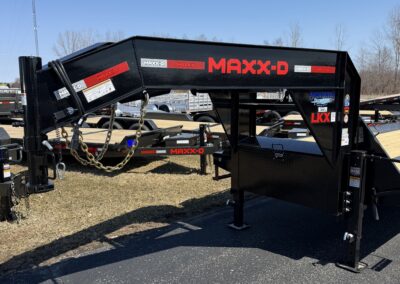

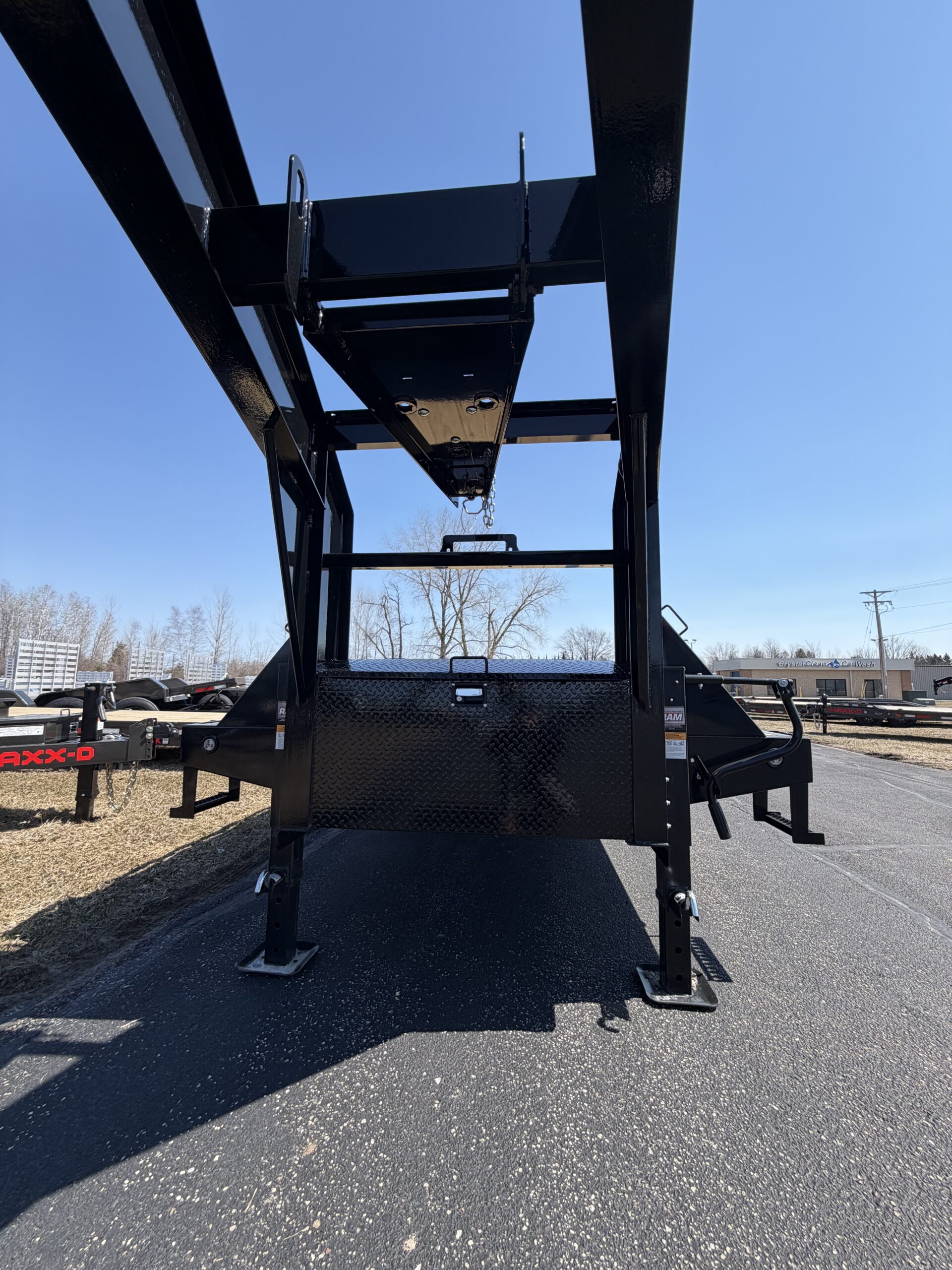

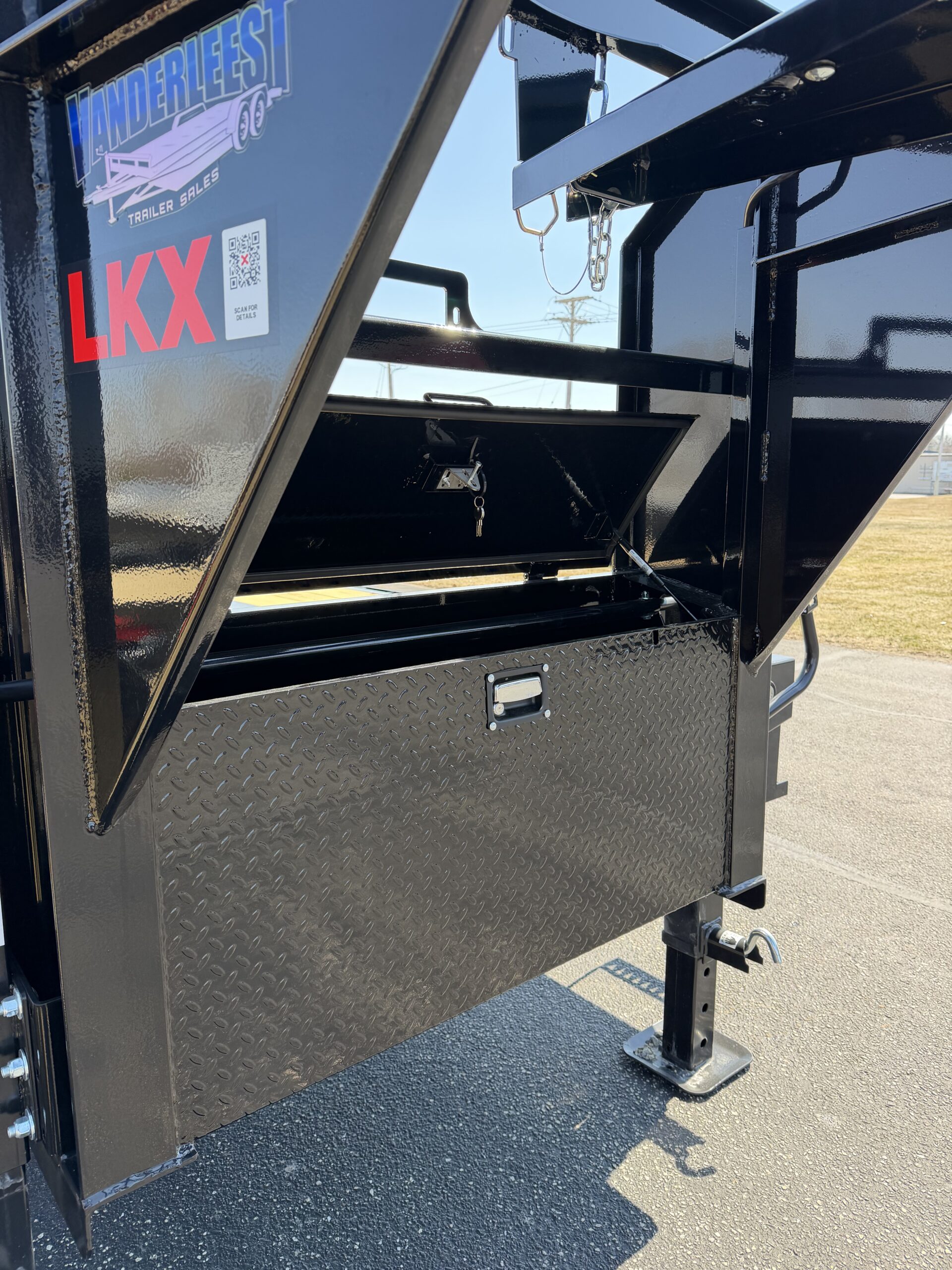

N21 – STANDARD HEIGHT I-BEAM NECK W/ FR T-BOX, WINCH PLT, & SP MT
F45 – 12″ X 19LB I-BEAM FRAME WITH TORQUE TUBE
X19 – 3″ I-BEAM ON 16″ CENTERS
R06 – 6″ CHANNEL OUTER FRAME

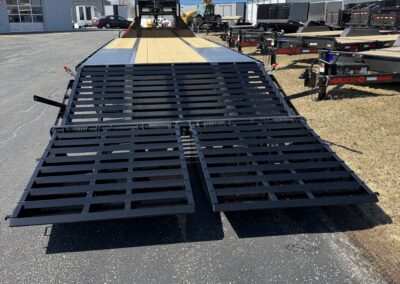

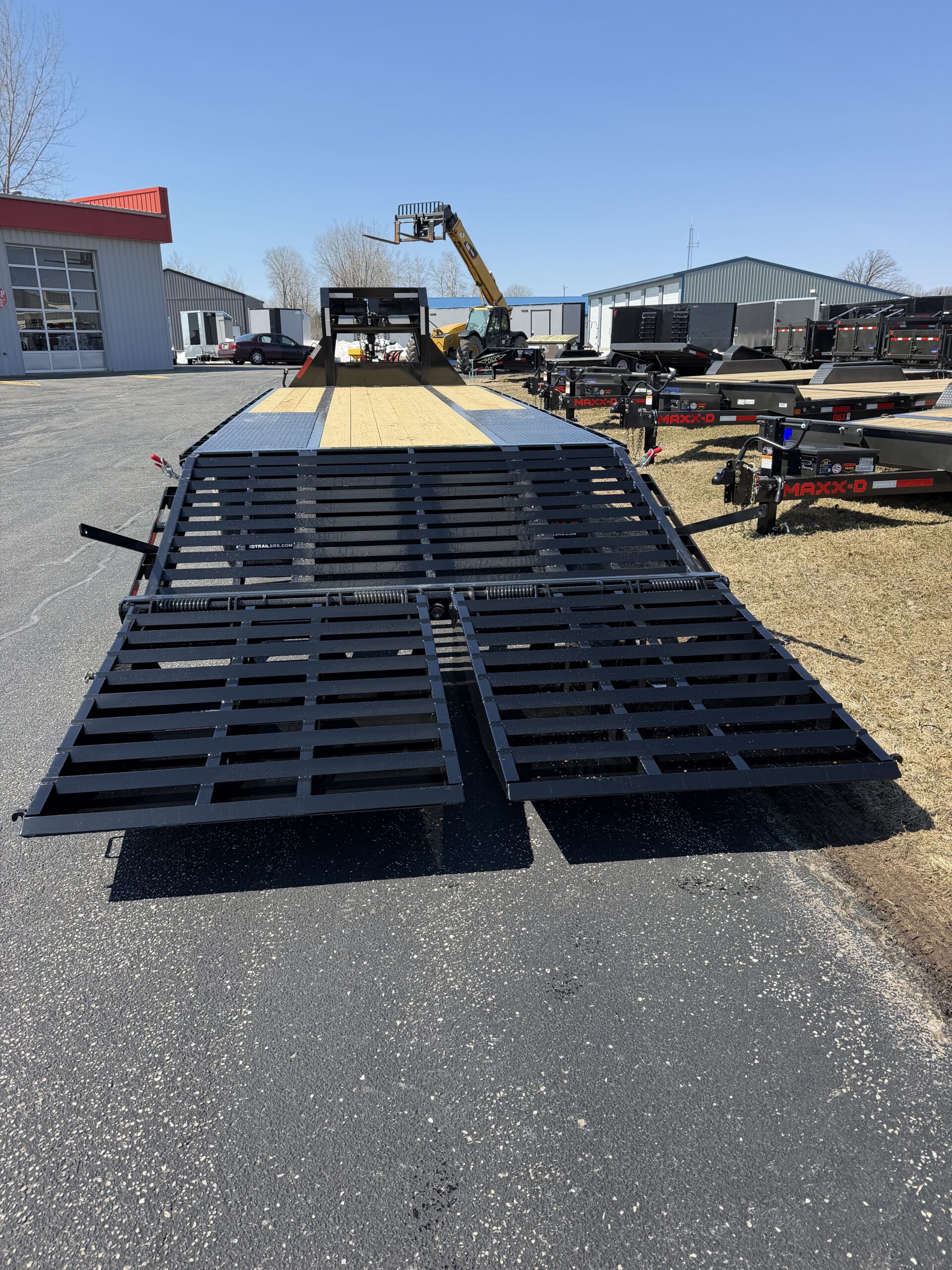

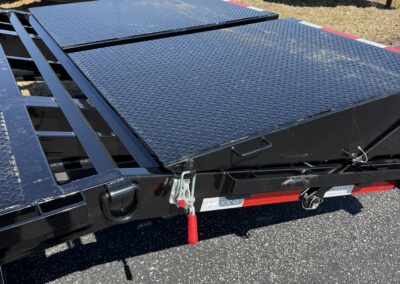

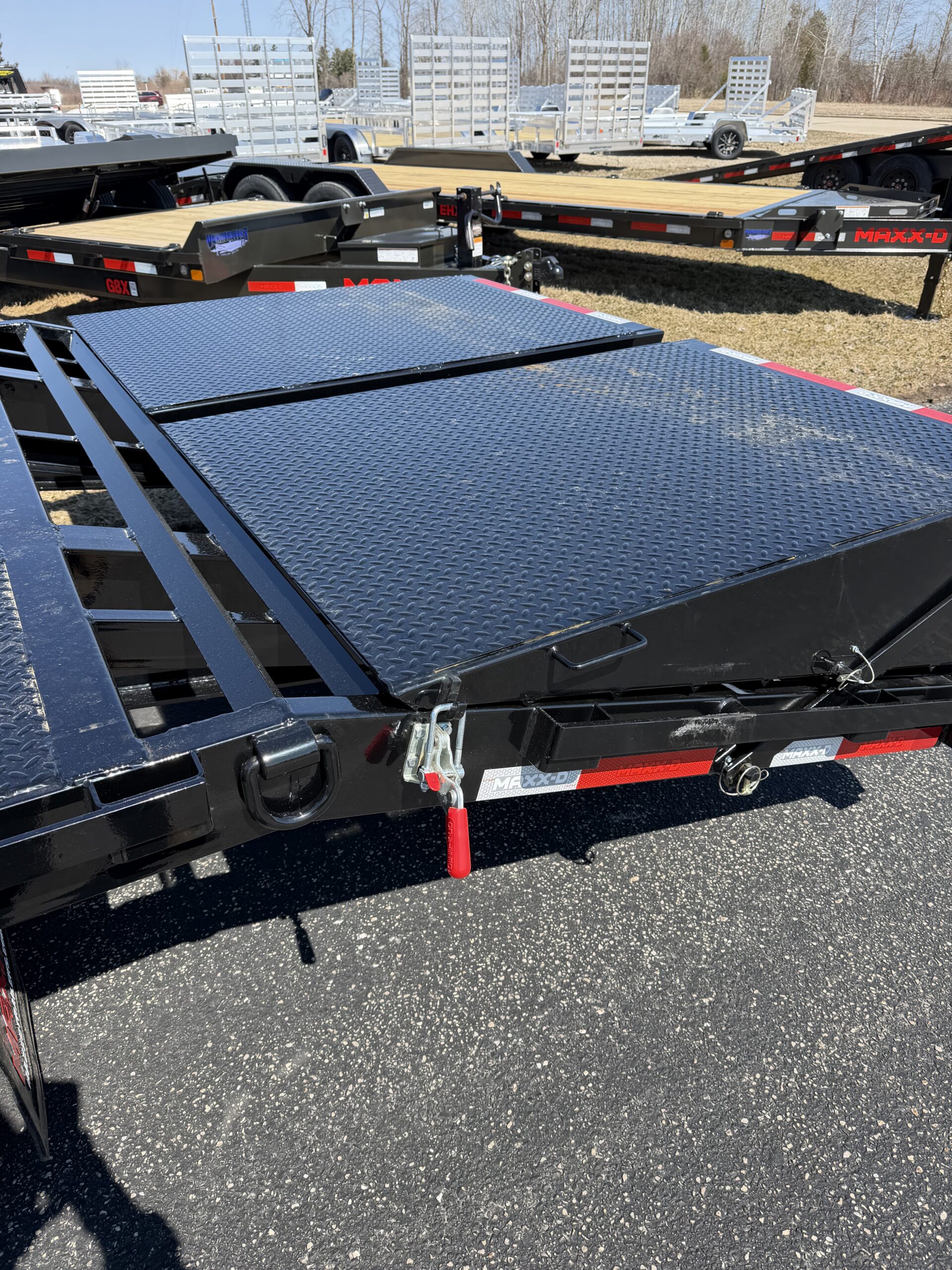

D36 – 5′ DOVETAIL/MAXXD-OUT RAMPS
A33 – 2-10K ELECTRIC BRAKE AXLES
S02 – SLIPPER SPRING SUSPENSION

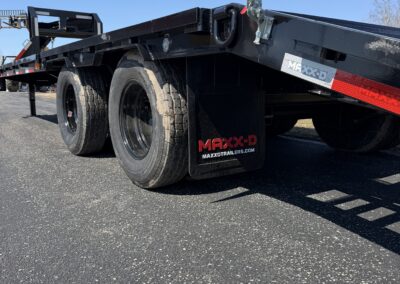

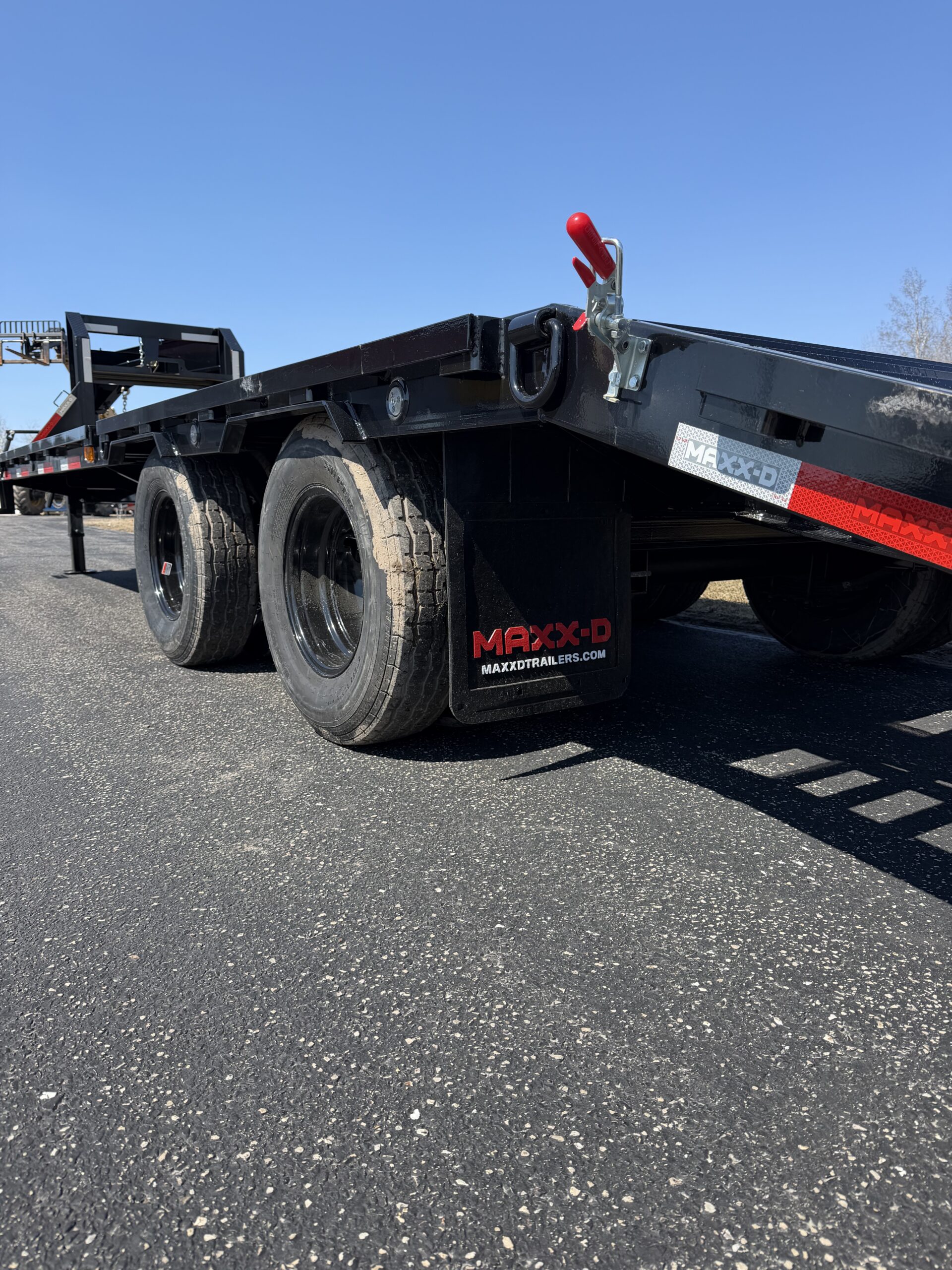

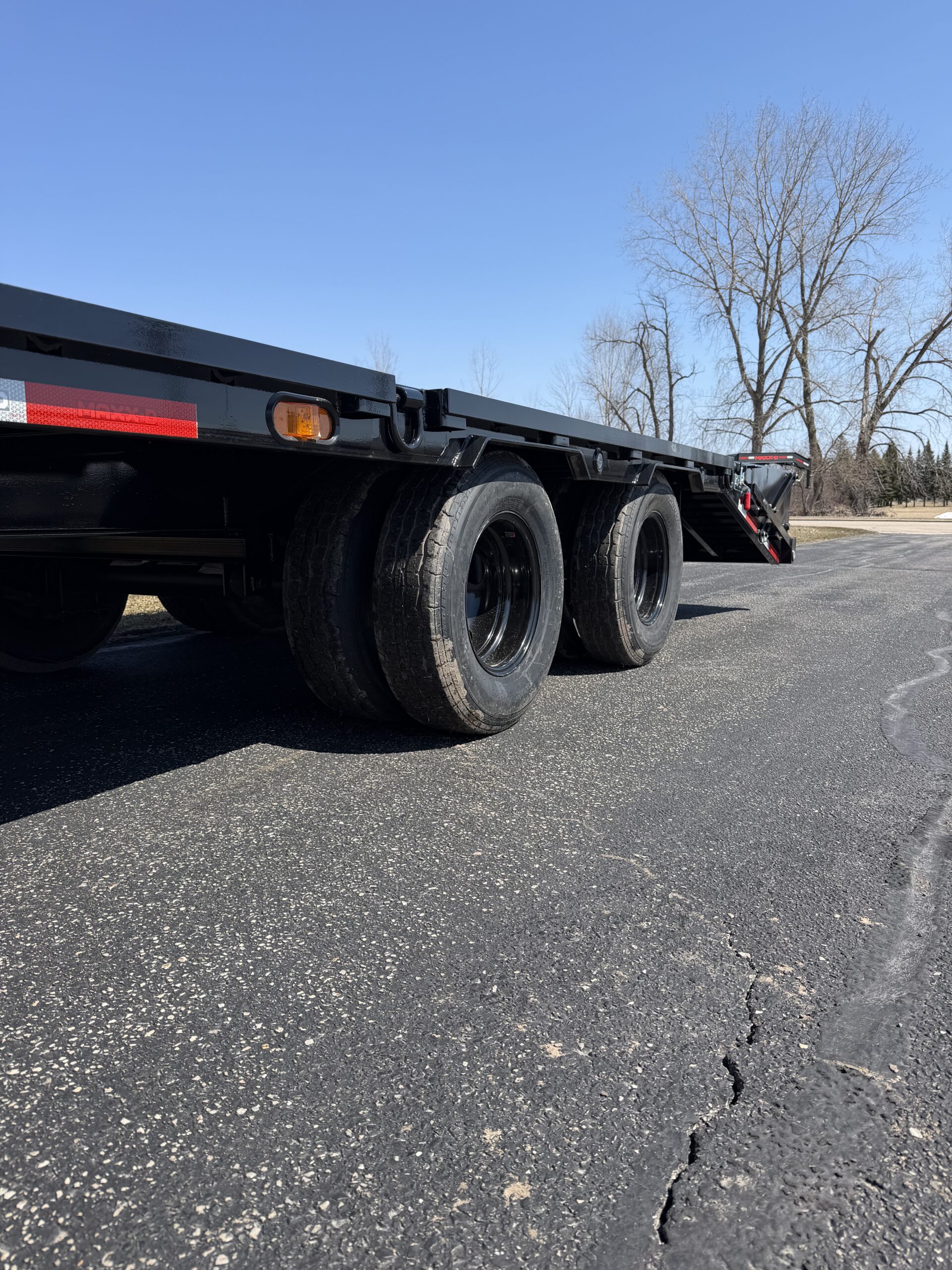

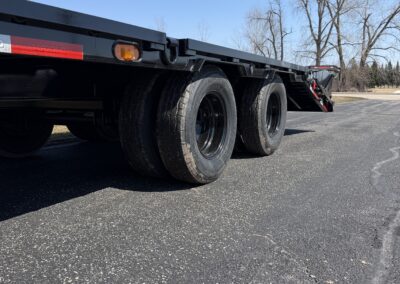

T26 – DUALS (9) ST235/80R16 E TIRES
E04 – 2X8 TREATED WOOD FLOOR
L03 – FLUSHMOUNT LED’S / STANDARD SEALED WIRING HARNESS
O01 – WET BLACK & PRIMER
Y65 – SPARE TIRE AND MOUNT

SPEC SHEET-https://maxxdtrailers.com/assets/maxxd/images/pdf/trailer_specs_print_sheet_-_lkx.pdf
