• 12-16 FEET

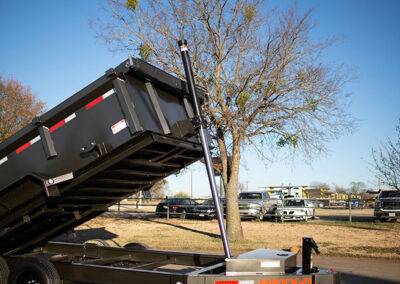

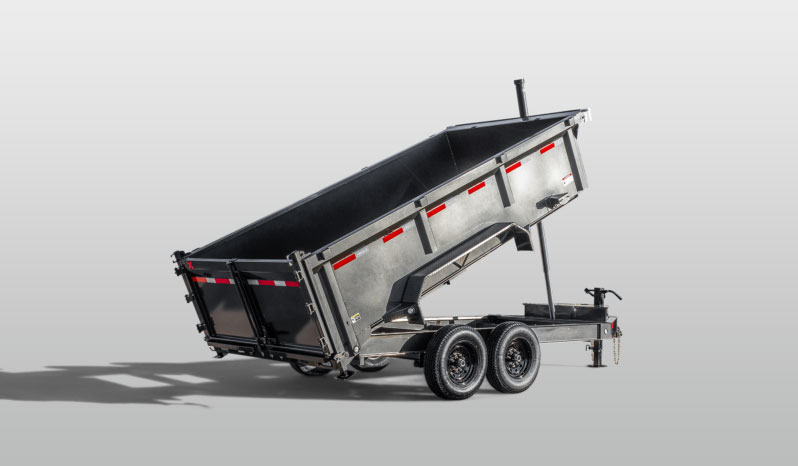

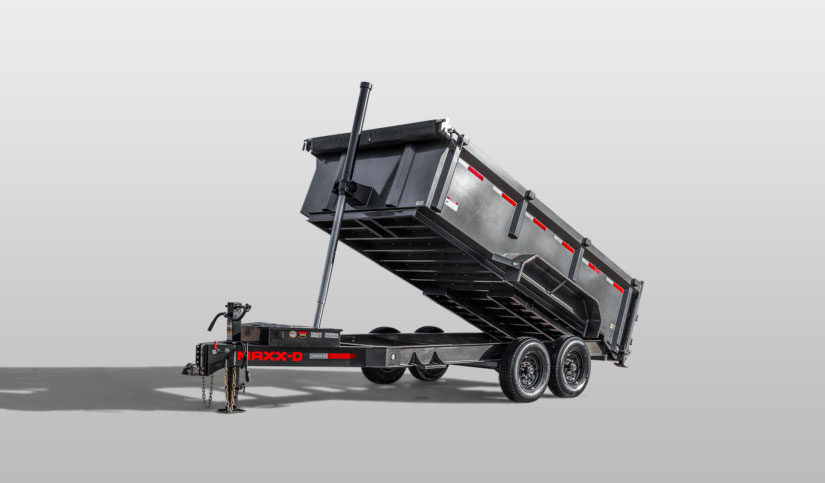

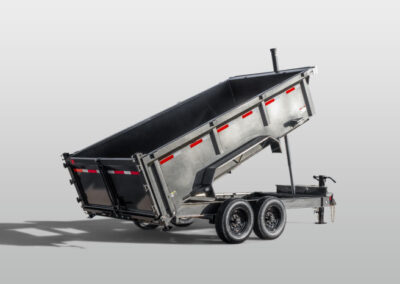

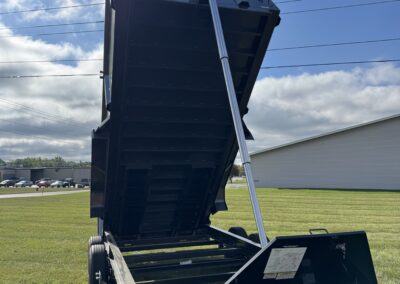

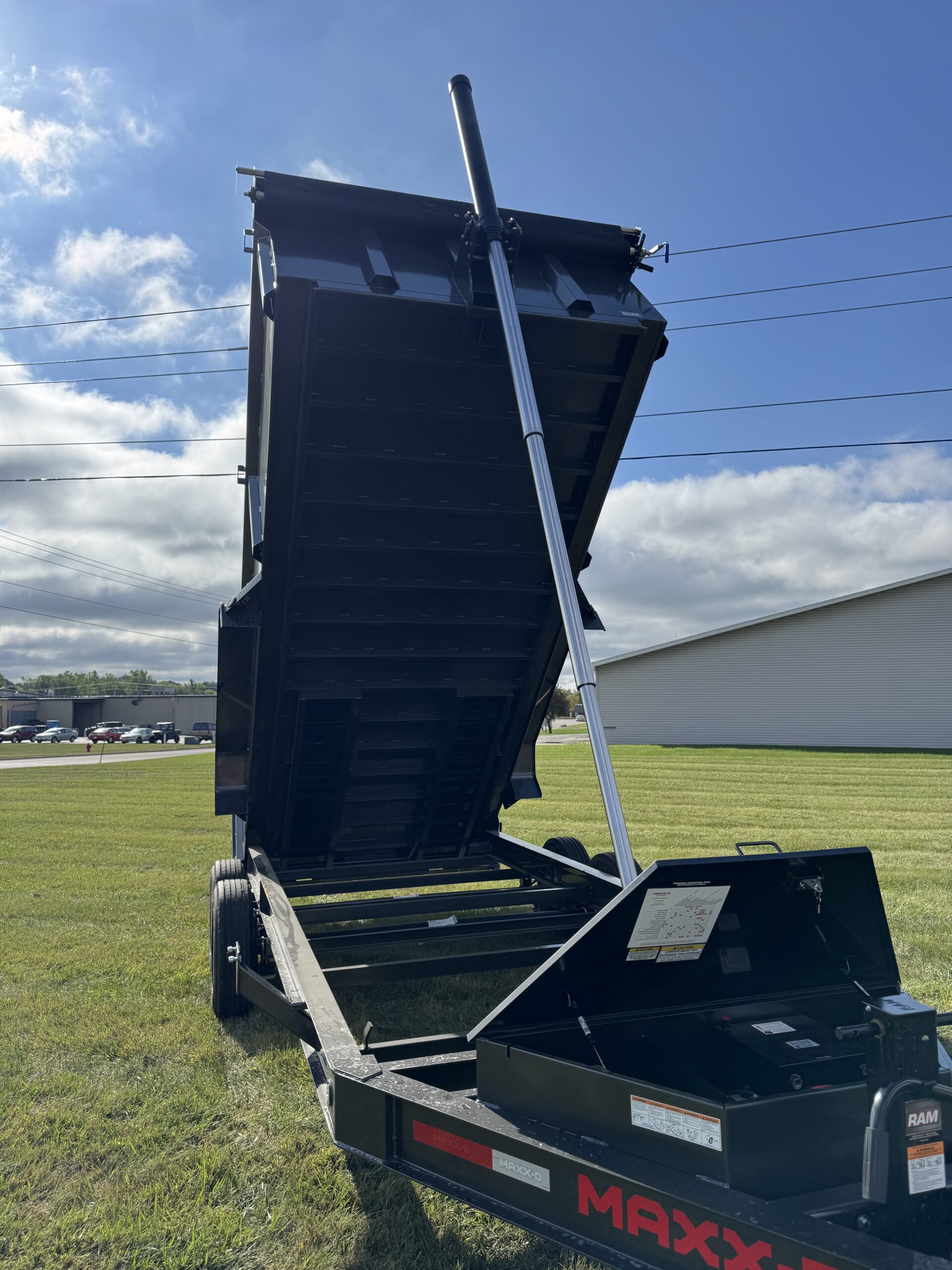

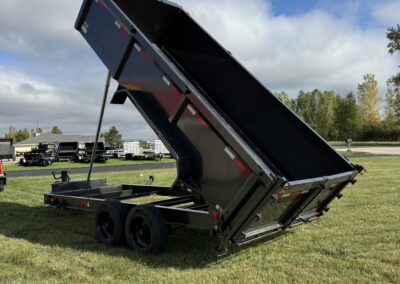

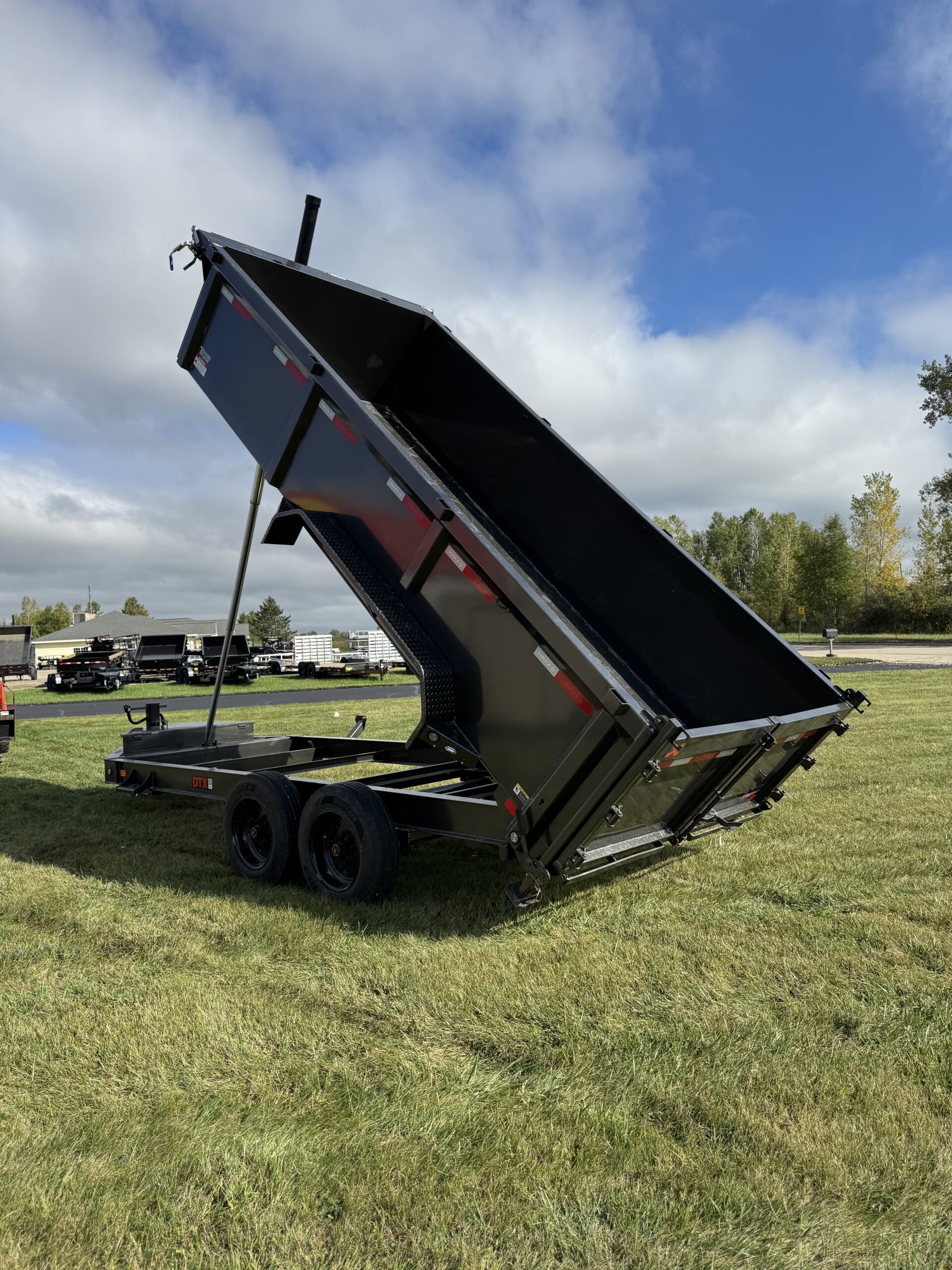

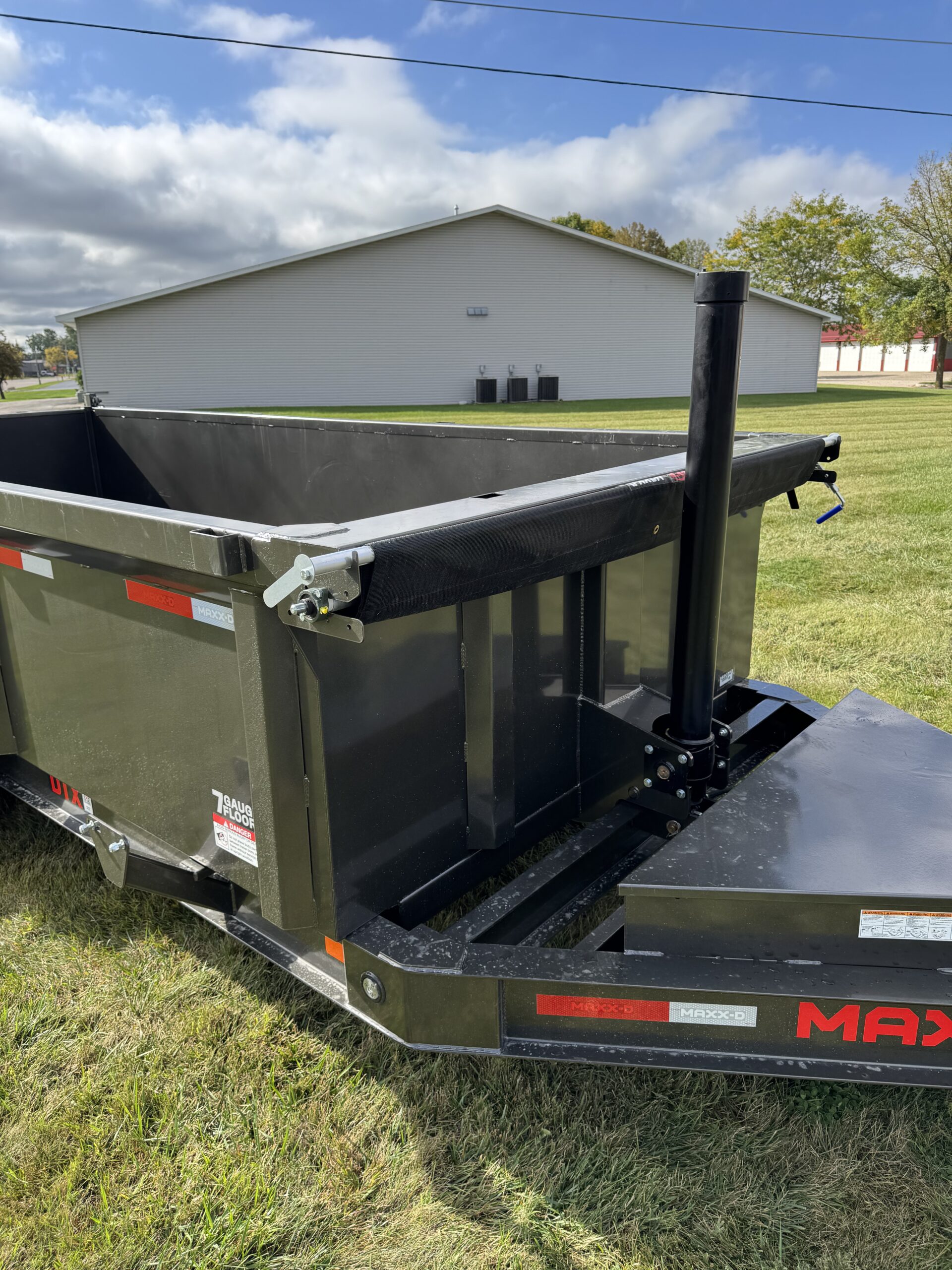

The DTX Dump Trailer is built for maximum dumping power, featuring a telescoping cylinder for efficient, controlled lifting with less stress on the frame. Designed for ¾-ton and heavier trucks, it’s the go-to choice for construction, roofing, and agriculture.

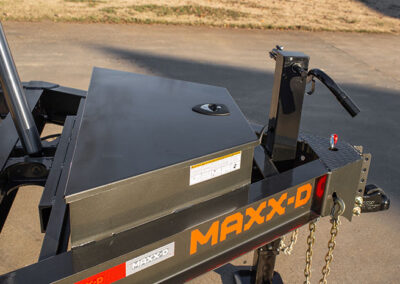

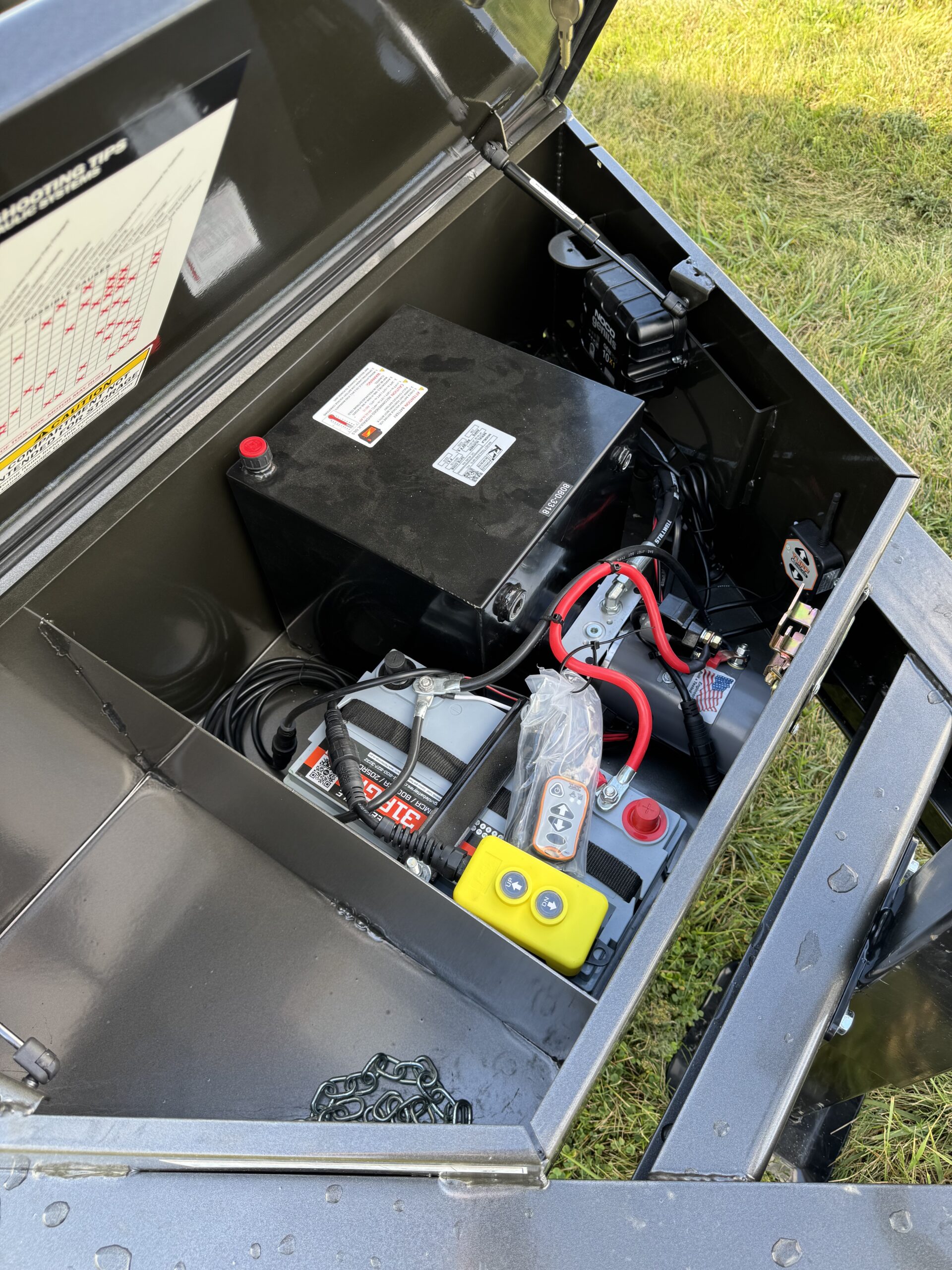

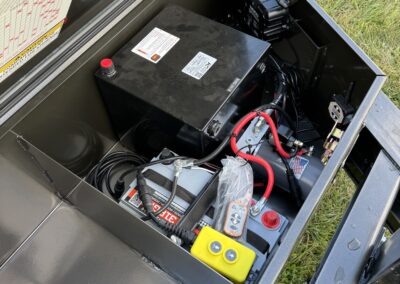

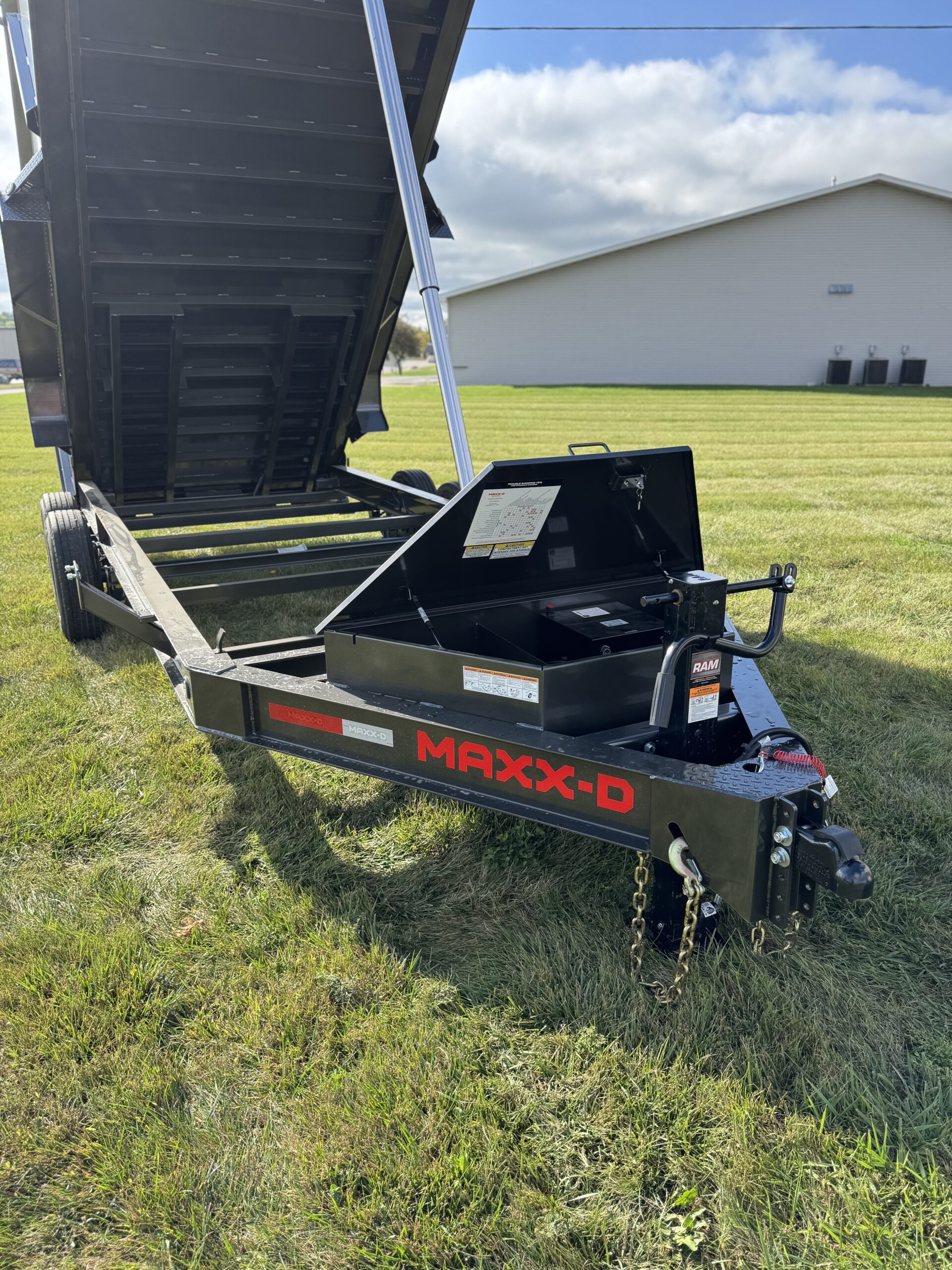

With an 8” I-beam frame for durability and a KTI hydraulic pump housed in a heavy-duty toolbox, the DTX is built to last. A NOCO® onboard battery charger ensures reliable power, while the standard tarp kit keeps loads secure. Available with a 16,000 lb. GVWR, twin 8K electric brake axles, and lengths from 12’ to 16’, the DTX is ready to handle tough jobs.

LINK- https://maxxdtrailers.com/dtx-16k-83–telescoping-dump-trailer

SPEC SHEET LINKhttps://maxxdtrailers.com/assets/maxxd/images/pdf/trailer_specs_print_sheet_-_individual_dtx.pdf

SPECS

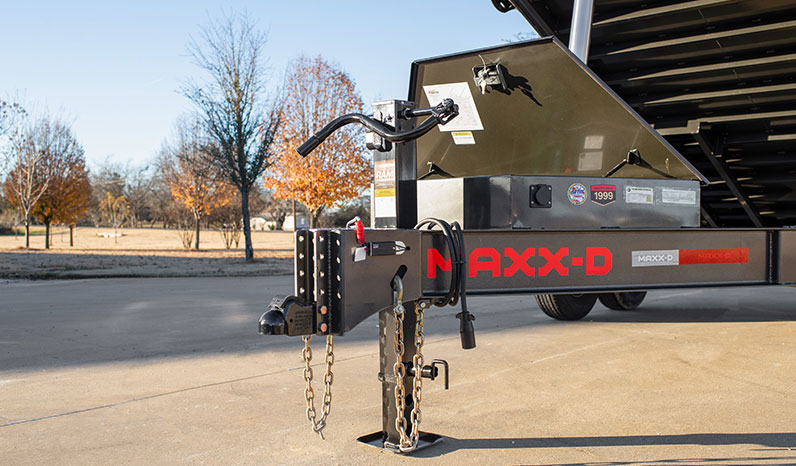

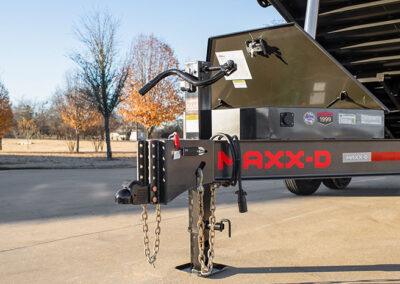

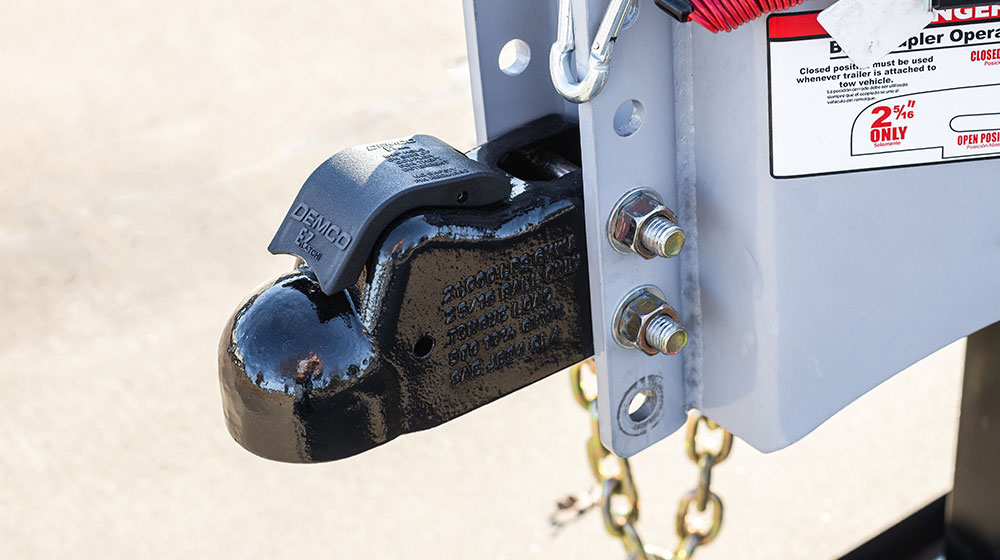

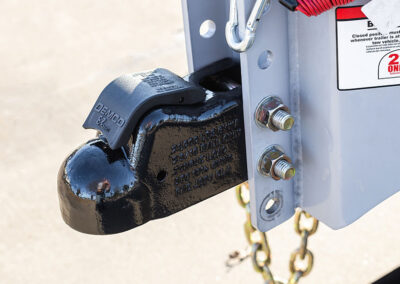

• 2 5/16″ ADJUSTABLE COUPLER
• 1 – 10K DROP-LEG JACK

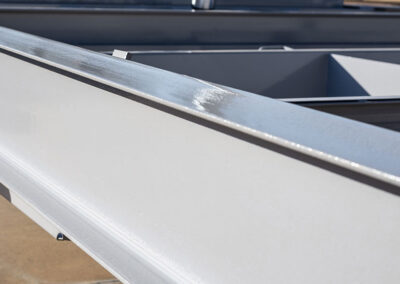

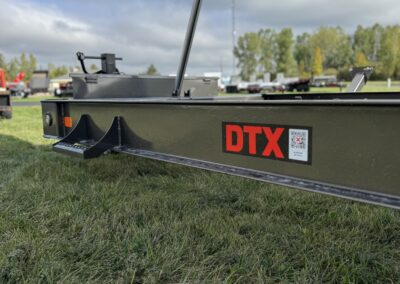

• 8″ X 15LB I-BEAM TONGUE & FRAME WITH TELESCOPING CYLINDER AND TOOLBOX

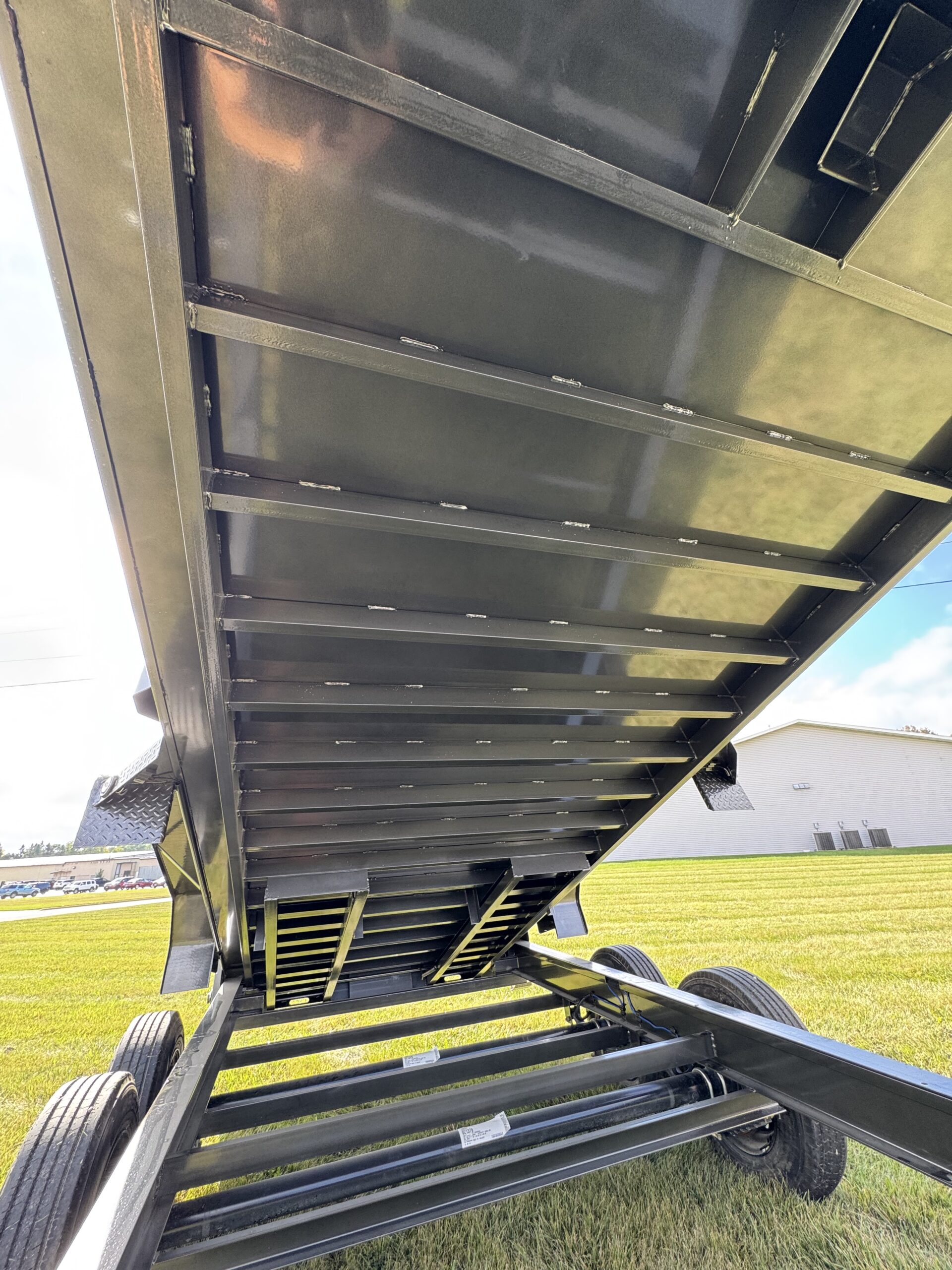

• 3″ CHANNEL ON 12″ CENTERS
• 3′ SOLID SIDES ON DUMP TRAILER

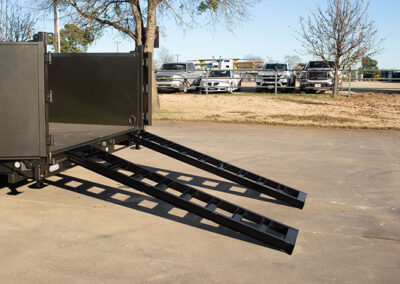

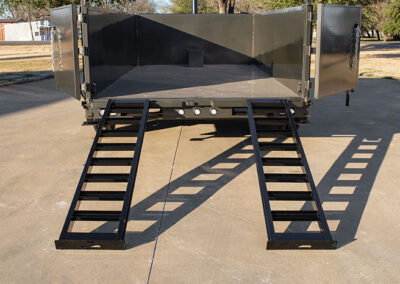

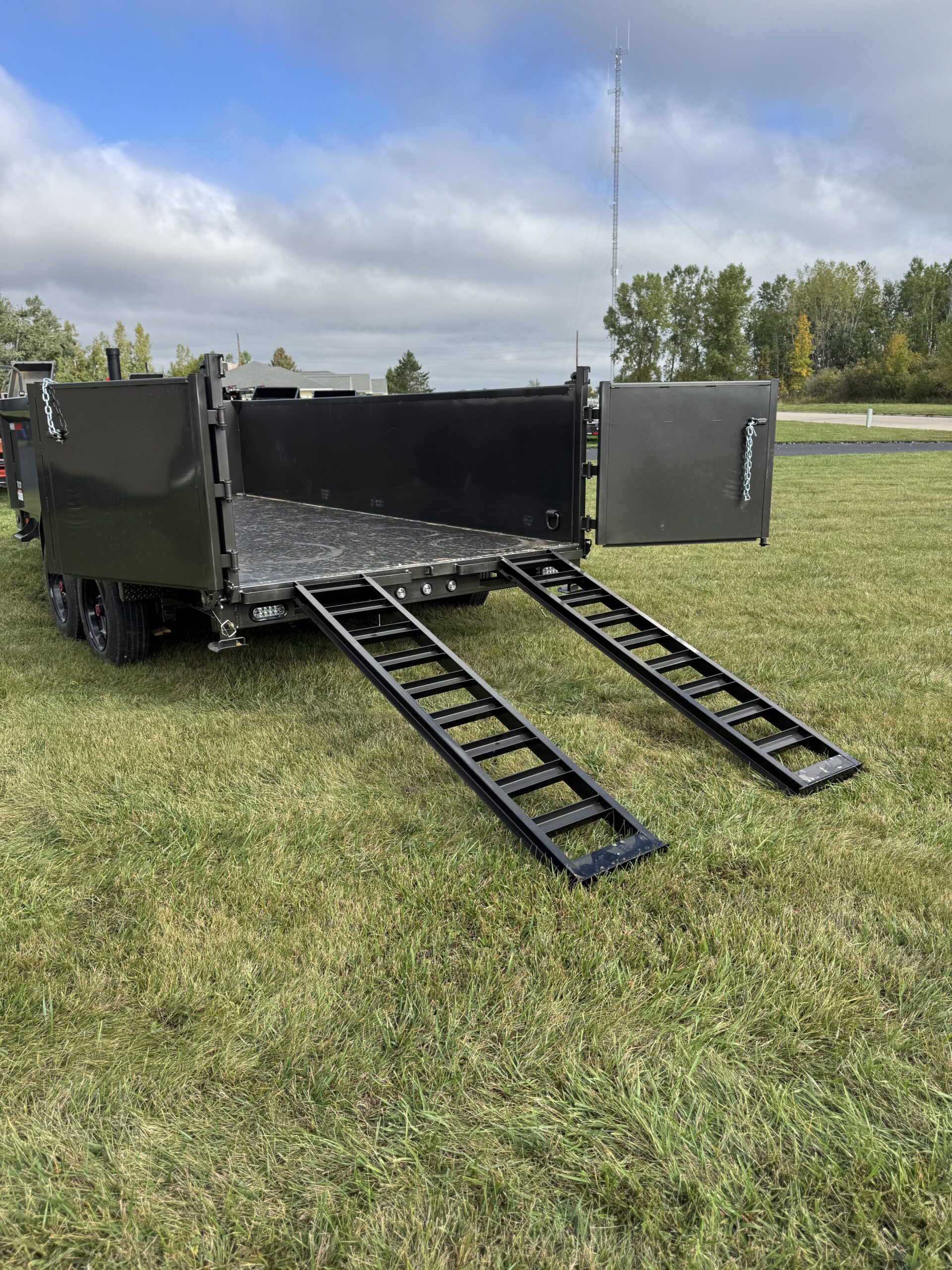

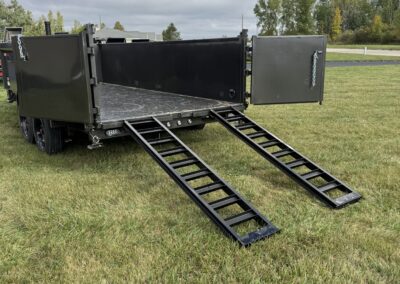

• NO DOVETAIL/7′ SLIDE-IN RAMPS
• 2-8K ELECTRIC BRAKE AXLES
• SLIPPER SPRING SUSPENSION

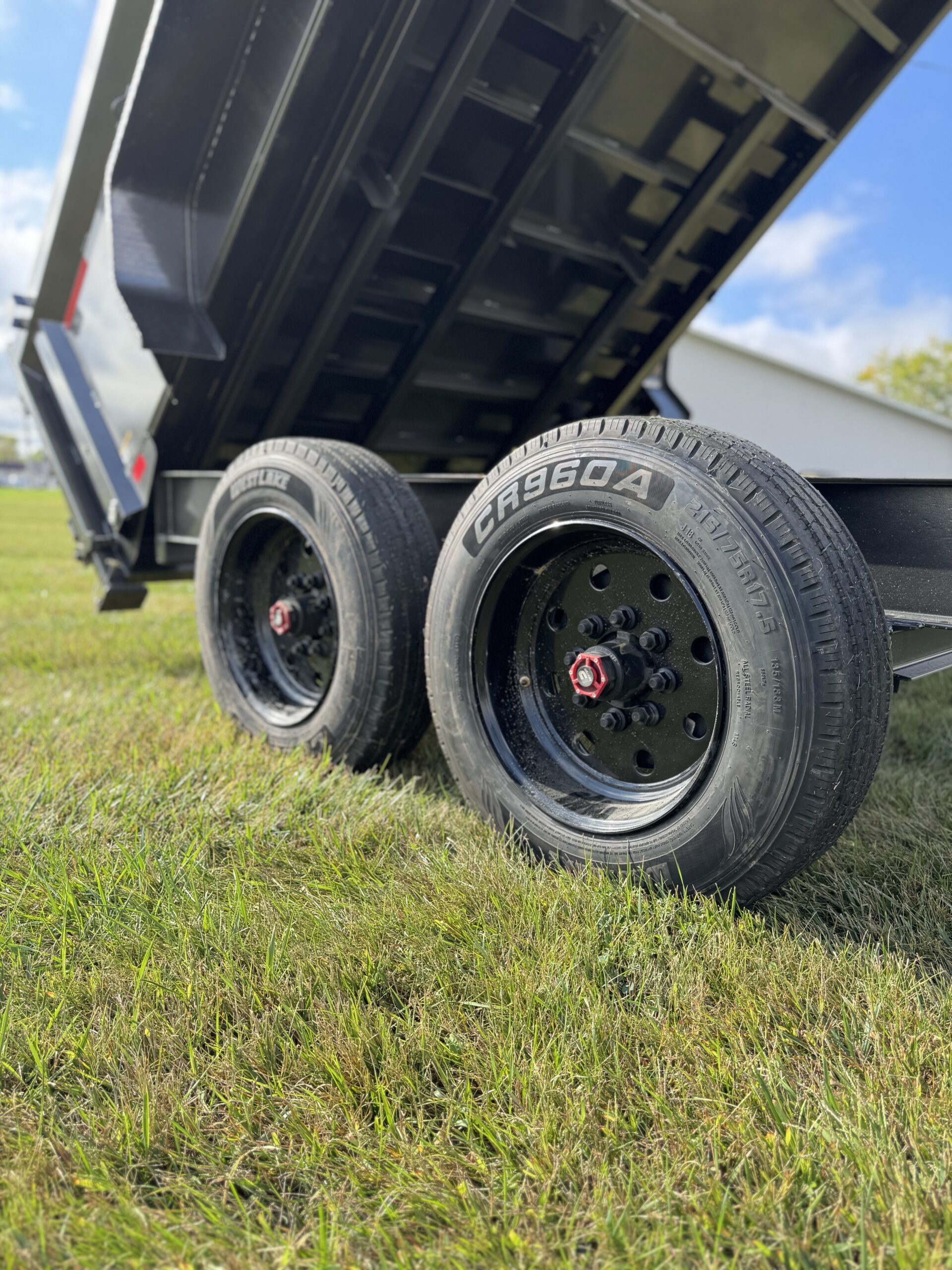

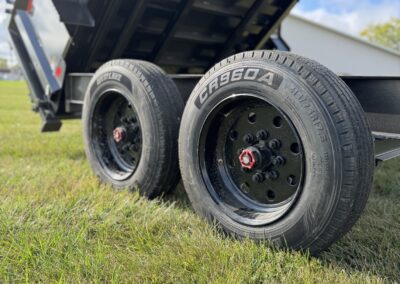

• ST235/80R16 E RADIAL TIRES
• DOUBLE BROKE DIAMOND PLATE FENDERS
• 10 GAUGE FLOOR AND SIDES
• FLUSHMOUNT LED’S/STANDARD WIRING

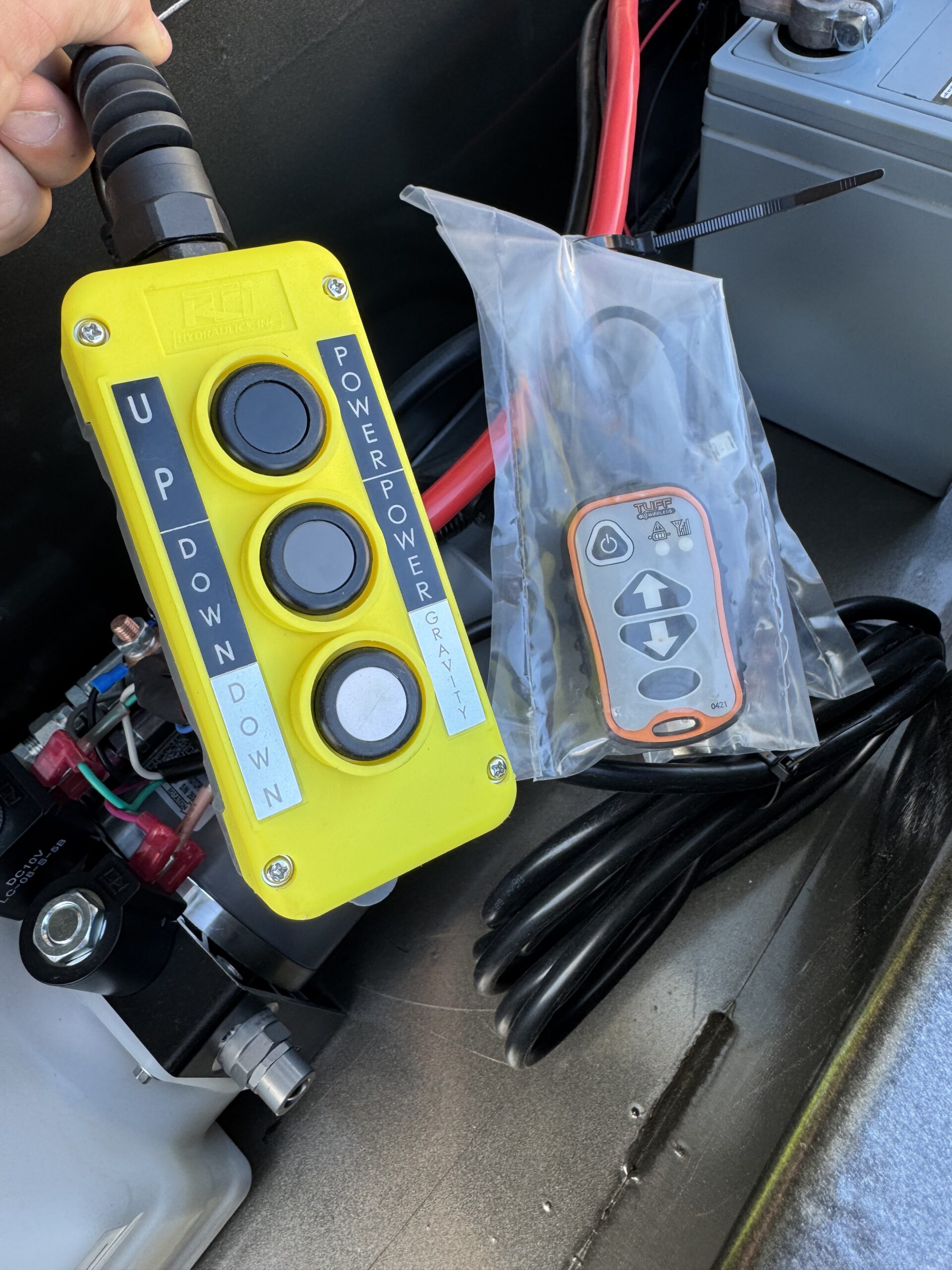

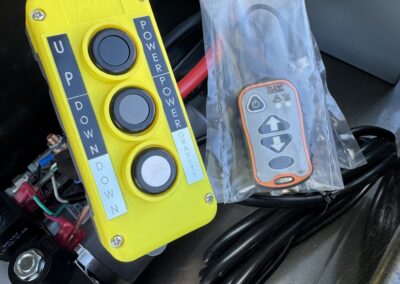

• PULL BACK TARP SYSTEM WIRELESS REMOTE

COUPLERS

• 21K ADJUSTABLE PINTLE EYE
• 21K ADJUSTABLE PLATE MOUNT PINTLE EYE
• 2 5/16″ 30K ROUND GN COUPLER
• 30K ROUND GN COUPLER KING PIN

JACKS

• 2 – 10K DROP-LEG JACKS ON GN
• 1 – HYDRAULIC JACK 2 – HYDRAULIC JACKS ON GN

TONGUE/NECKS

• STND HEIGHT I-BEAM NECK (ADD. RISER BOX OR DECKOVER)
• 6″ EXTENDED HEIGHT RISERS NECK (ADD. RISER BOX OR DECK-OVER)

SIDES

• 4′ SOLID SIDES ON DUMP TRAILER
• 3′ \FLARE/ SIDES ON DUMP TRAILER

SUSPENSIONS

4″ DROP WITH SLIPPER SPRING SUSPENSION

WHEEL/TIRES

• ST235/85R16 G RADIAL TIRES ON 2-7K ST215/75R17.5
• H RADIAL TIRES ON SINGLES

FLOORS

• 3/16″ FLOOR ONLY/10 GAUGE SIDES

TARPS

• FLIP-OVER TARP SYSTEM

SPARES

• SPARE ST235/80R16 E RADIAL TIRE
• SPARE ST235/85R16 G RADIAL TIRE
• SPARE ST215/75R17.5 H RADIAL TIRE ON SINGLE

D-RINGS

• EXTRA 1/2″ BULL-NOSE DRINGS

OTHER OPTIONS

• RECEIVER HITCH 7-WATT SOLAR PANEL
• FORK POCKETS UNDER FRAME
• OVERSIZED TOOL TRAY
