• 16′-28′

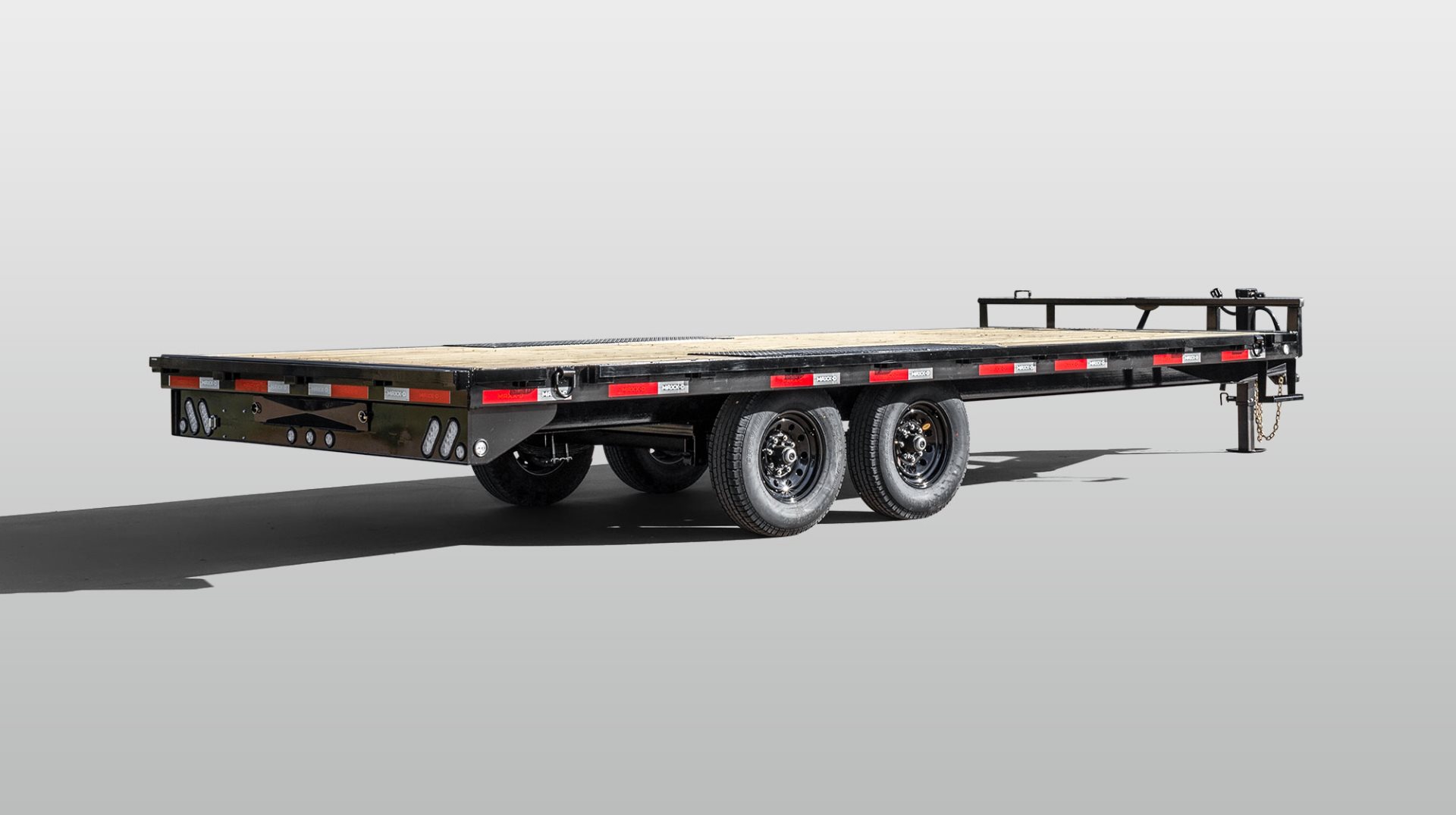

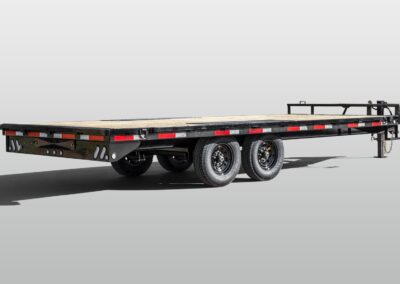

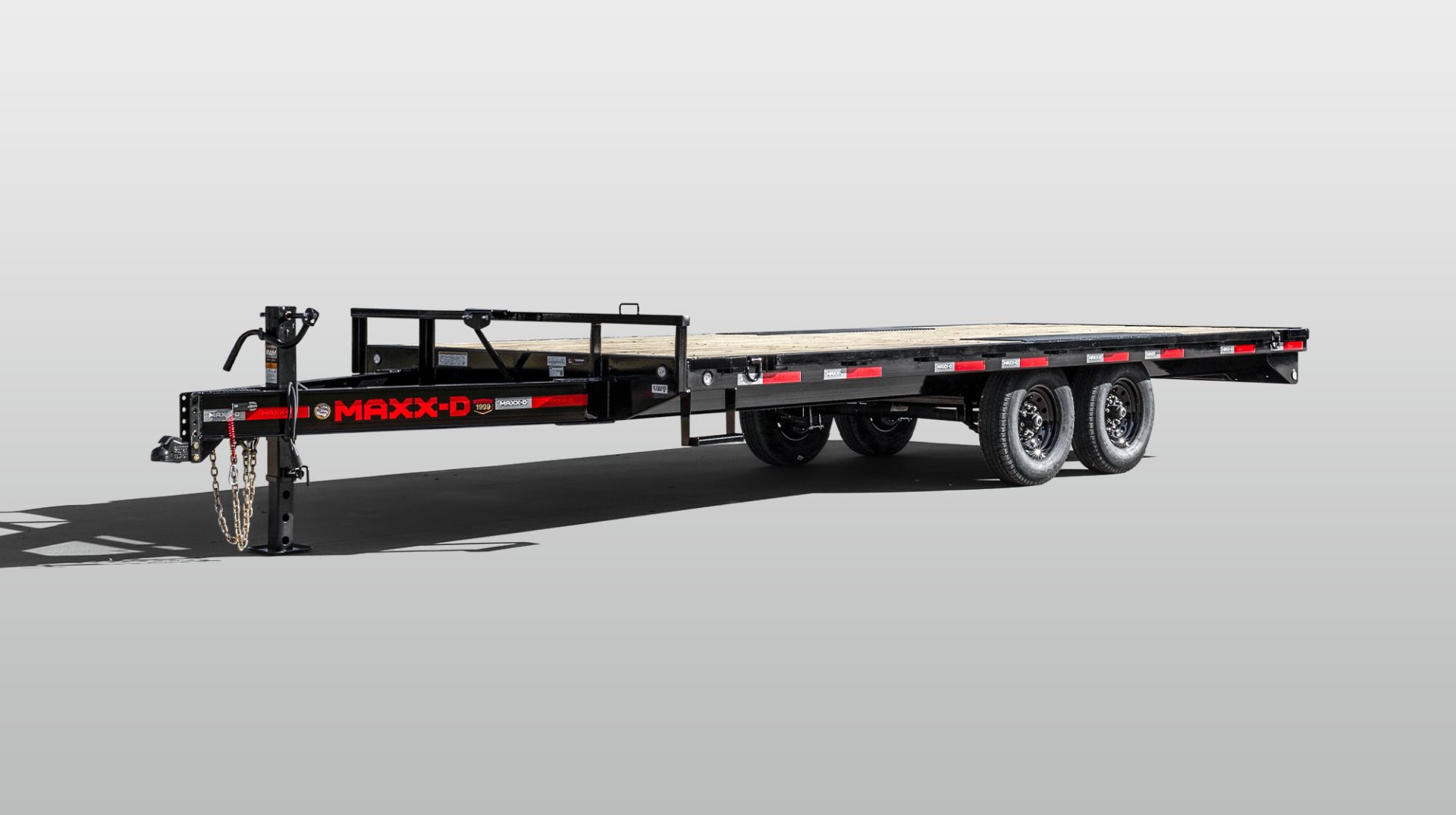

The DOX I-Beam Deckover Trailer is a versatile, medium-duty flatbed for hauling equipment, transporting pallets, and handling job site materials. Even as our smallest deckover model, the DOX delivers serious durability.

Designed with an I-beam frame for strength, the DOX features multiple ramp options, including 7’ slide-in ramps or MAXX-D-Out ramps, and twin 7K electric brake axles with a 14,000 lb. GVWR. Available in 16’ to 28’ lengths, the DOX provides easy forklift loading while maintaining maneuverability in tight spaces.

BUILD YOUR TRAILER-https://maxxdtrailers.com/dox-14k-i-beam-deckover-trailer

SPEC SHEET-https://maxxdtrailers.com/assets/maxxd/images/pdf/trailer_specs_print_sheet_-_individual_dox.pdf

STANDARD FEATURES

• 2 5/16″ ADJUSTABLE COUPLER
• 1 – 10K DROP-LEG JACK

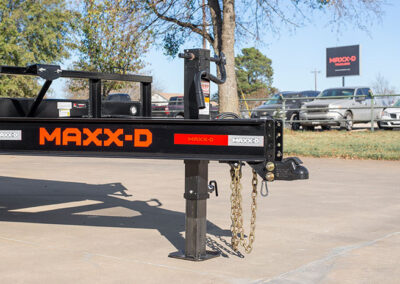

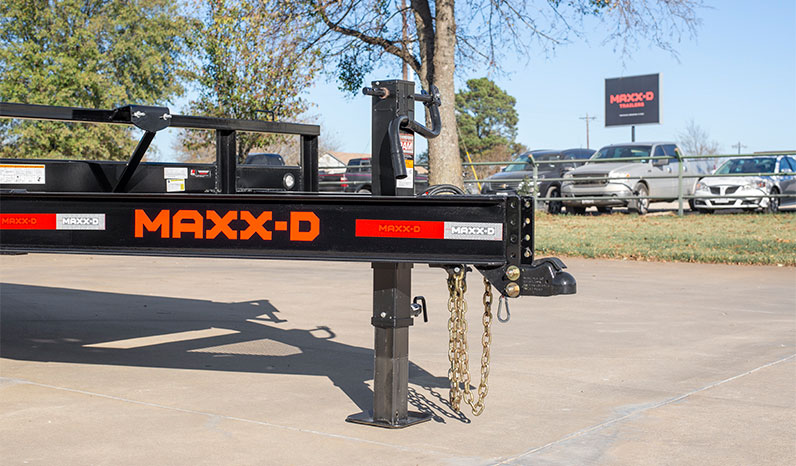

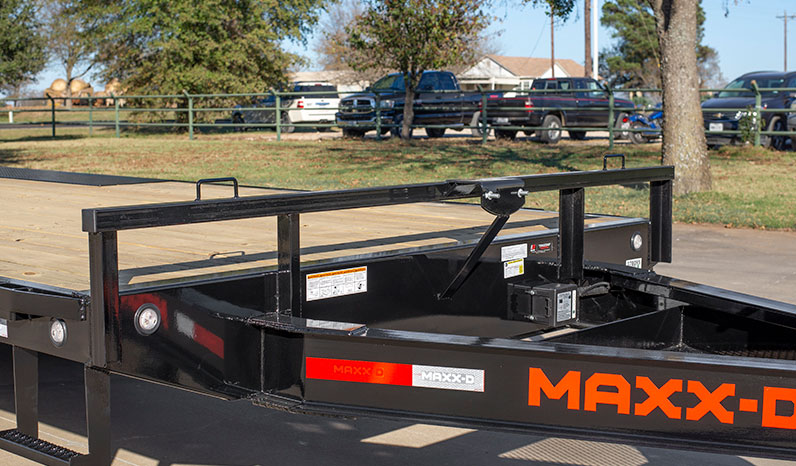

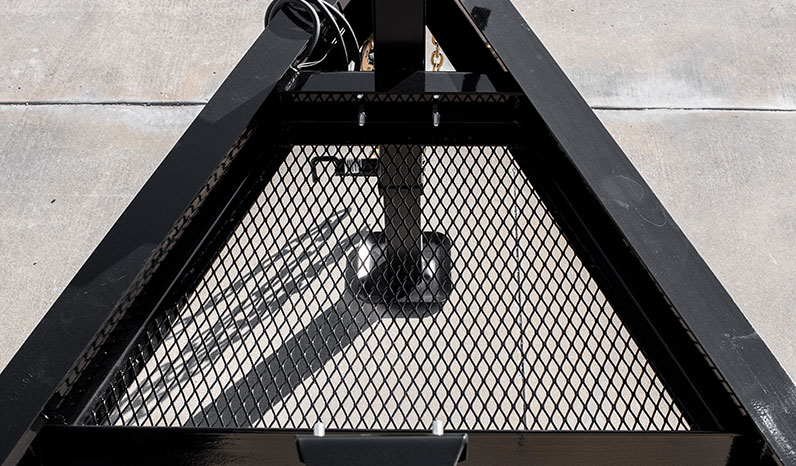

• I-BEAM TONGUE WITH TOOL TRAY
• 8″ X 10LB I-BEAM FRAME 3″ CHANNEL ON 16″ CENTERS
• 6″ CHANNEL OUTER FRAME
• NO DOVETAIL/7′ SLIDE-IN RAMPS (DOVE TAIL OPTION AVAILABLE WITH MAXX-D OUT RAMPS)

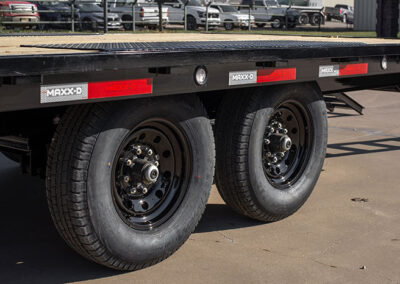

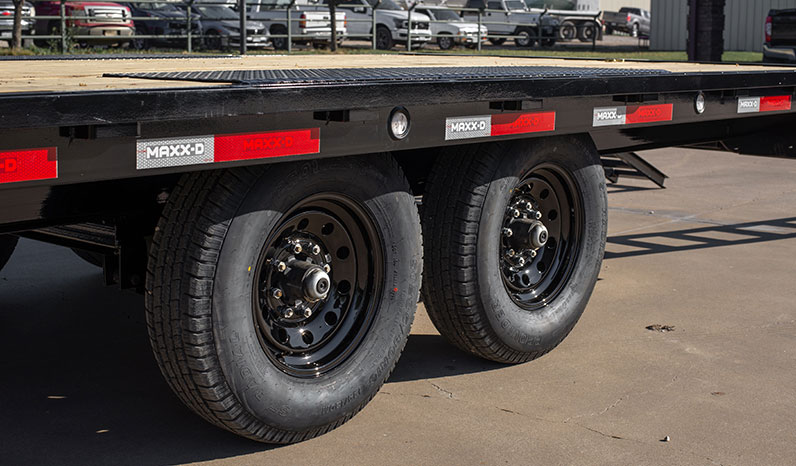

• 2-7K ELECTRIC BRAKE AXLES
• SLIPPER SPRING SUSPENSION
• ST235/80R16 E RADIAL TIRES
• 2X8 TREATED WOOD FLOOR
• FLUSHMOUNT LED’S/SEALED HARNESS
• SLIDING RATCHET BAR ONLY
