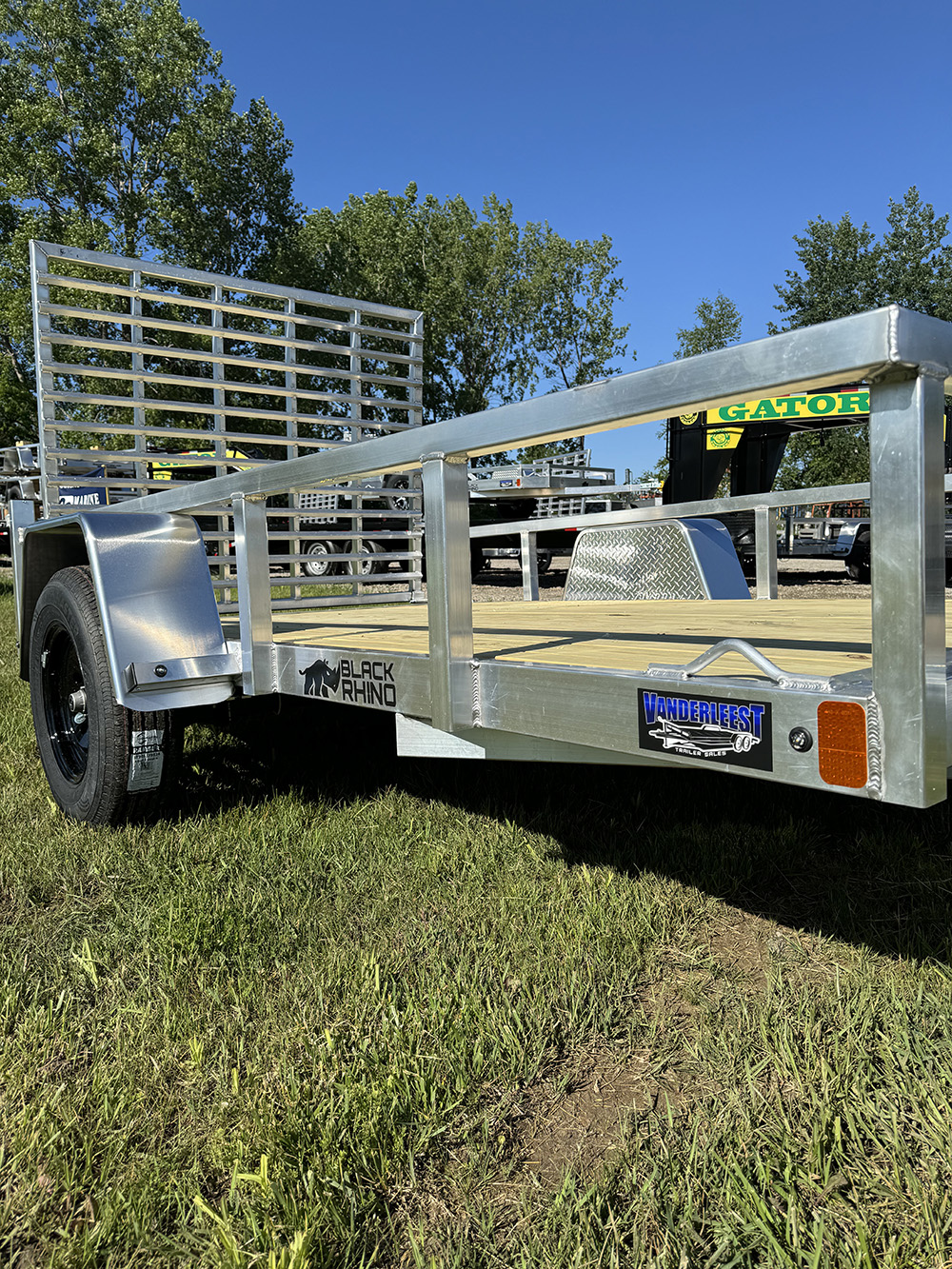

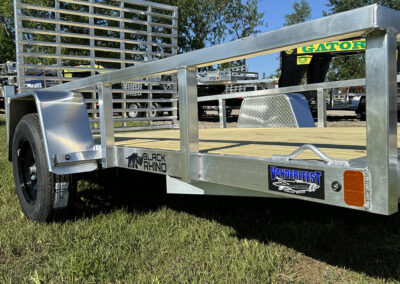

6×10 Black Rhino EXS
$3350
GVWR:
2990 lbs
Empty Weight:
660 lbs
Payload:
2330 lbs
Standard Features:
- 3500# Ez Lube Torsion Axle
- North American Extruded tubular Aluminum
- Triple tube Aluminum A-Frame

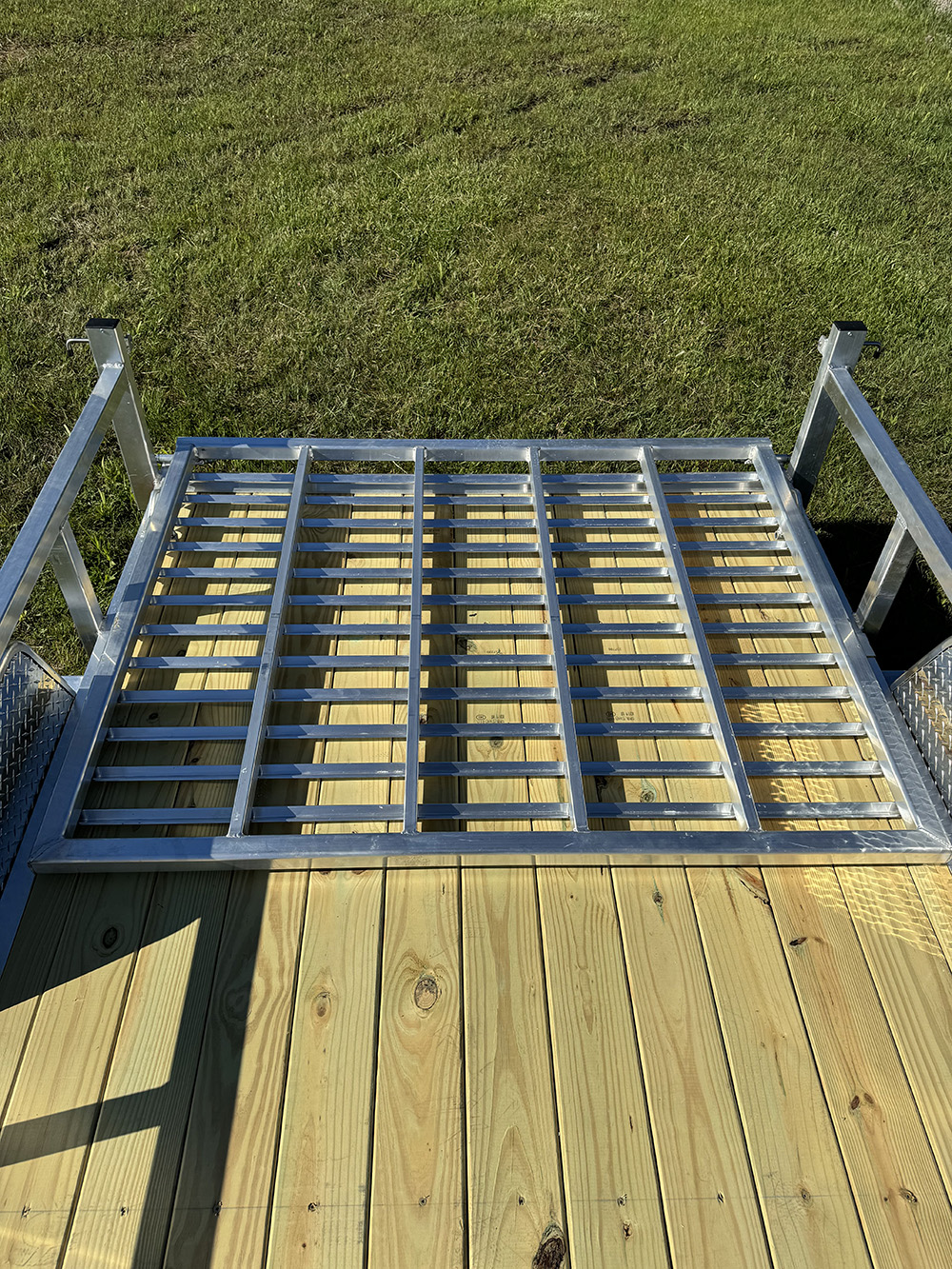

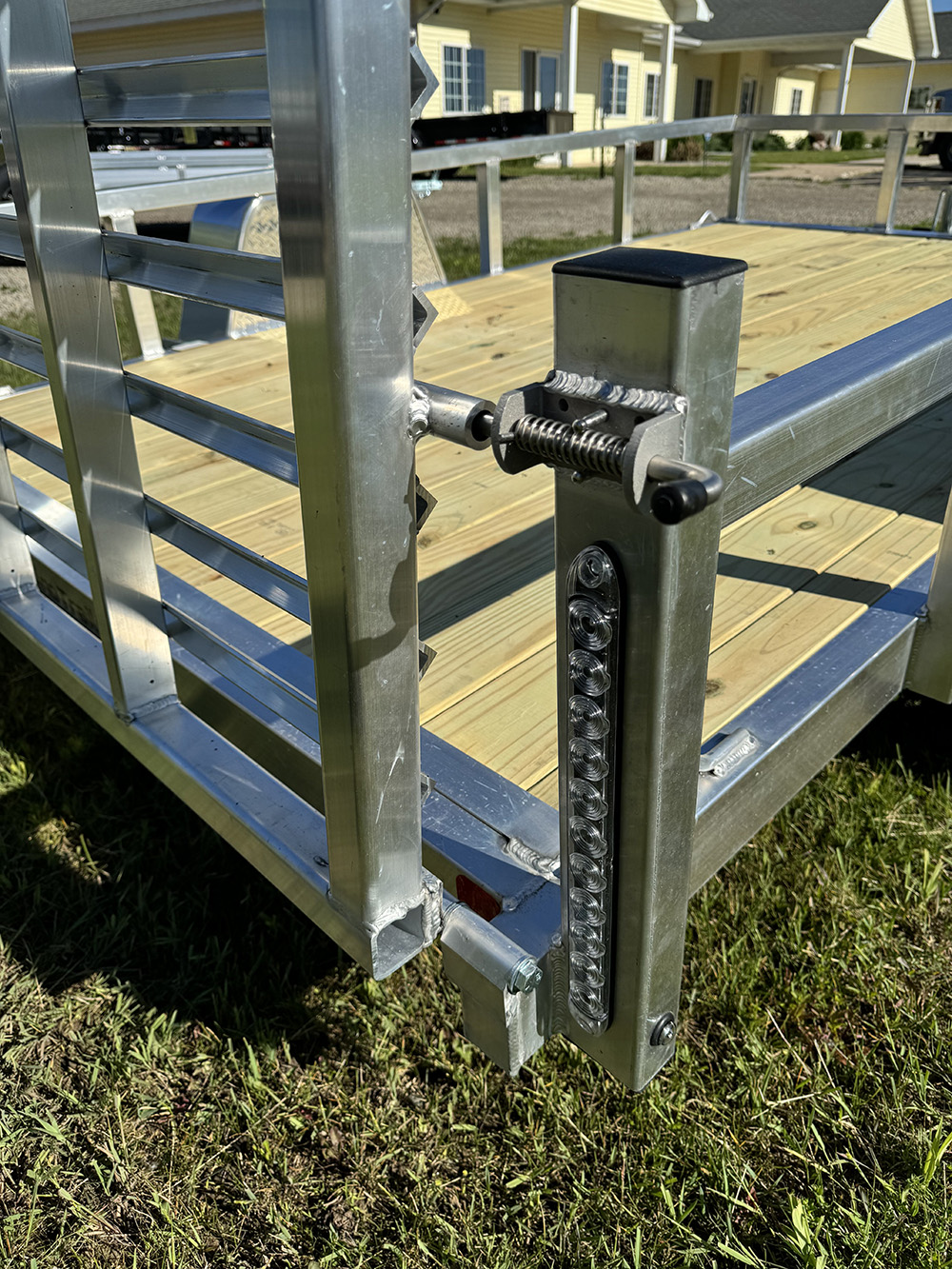

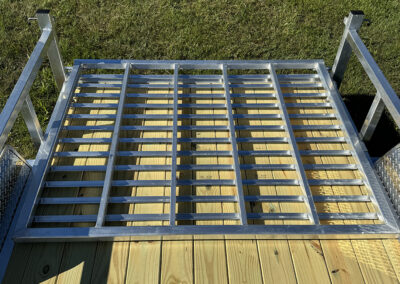

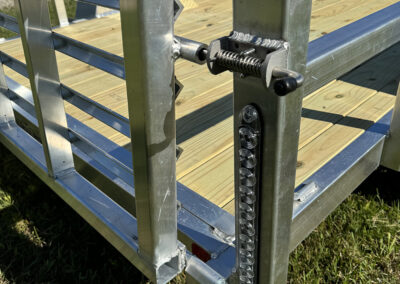

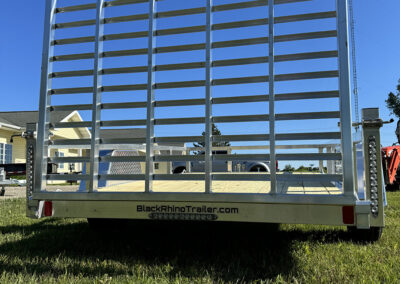

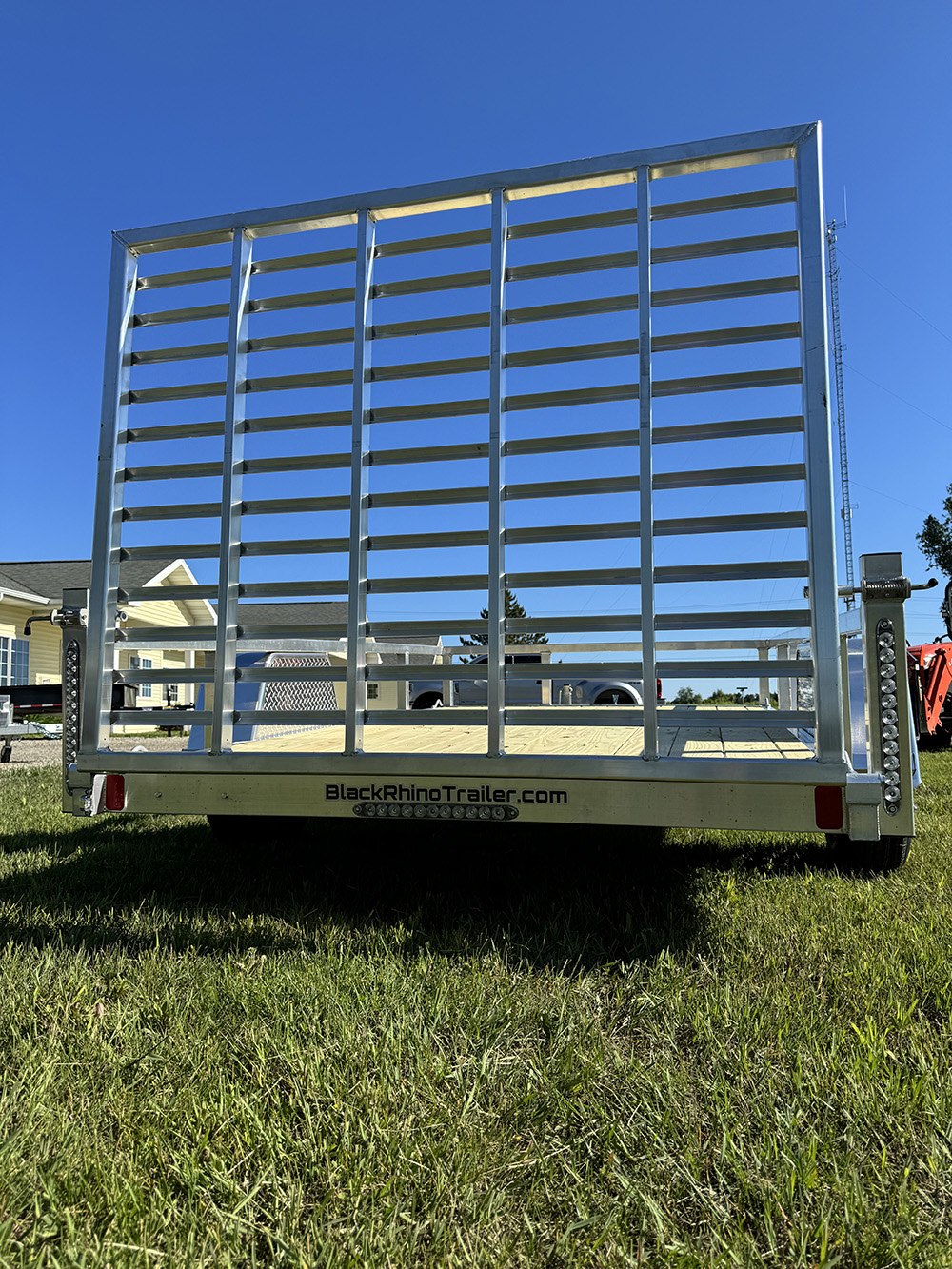

- 3 Position Removable gate
- Treated Pro wood decking
- Steel Wheels or Aluminum Upgrade

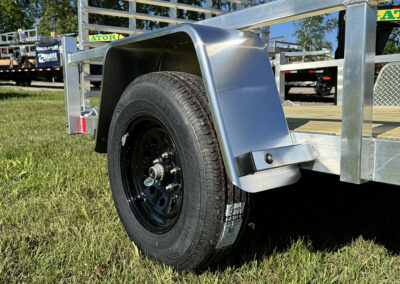

- 14” Radial tires 205-75-R14
- Full LED lighting package
- 2” ball coupler
- 14” side rail
- 3 year limited warranty
Optional Features:
- Spare tire mount
- Spare tire
EX Single Axle Model Specs
| Model | EX508 | EX510 | EX610 | EX612 | EX614 | EX712 | EX714 |
|---|---|---|---|---|---|---|---|
| Deck (W/L) | 60" x 8' | 60" x 10' | 72" x 10' | 72" x 12' | 72" x 14' | 81" x 12' | 81" x 14' |
| Overall (W/L) | 80" x 12' | 80" x 14' | 92" x 14' | 92" x 16' | 92" x 18' | 102" x 16' | 102" x 18' |
| Deck Height | 17" | 17" | 17" | 17" | 17" | 17" | 17" |
| Rear Gate Length | 54" | 54" | 54" | 54" | 54" | 54" | 54" |
| Axle(s) | Spring (Idler) | Spring (Idler) | Spring (Idler) | Spring (Idler) | Spring (Idler) | Spring (Idler) | Spring (Idler) |
| GAWR (Lbs.) | 3,500 | 3,500 | 3,500 | 3,500 | 3,500 | 3,500 | 3,500 |
| GVWR (Lbs.) | 2,990 | 2,990 | 2,990 | 2,990 | 2,990 | 2,990 | 2,990 |
| Weight (Lbs.) | 550 | 615 | 660 | 690 | 760 | 780 | 830 |
| Payload Capacity (Lbs.) | 2,440 | 2,375 | 2,330 | 2,300 | 2,230 | 2,210 | 2,160 |
| Wheels | 14" Steel | 14" Steel | 14" Steel | 14" Steel | 14" Steel | 14" Steel | 14" Steel |
| Tires | 205/75R14 | 205/75R14 | 205/75R14 | 205/75R14 | 205/75R14 | 205/75R14 | 205/75R14 |
| Power Connection | 4-Way Flat | 4-Way Flat | 4-Way Flat | 4-Way Flat | 4-Way Flat | 4-Way Flat | 4-Way Flat |
